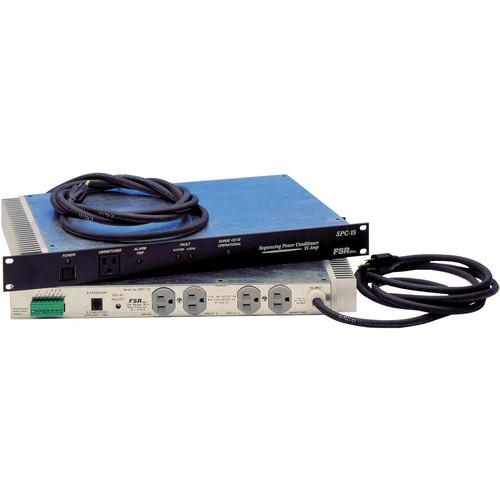

User Manual for FSR SPC-15 Power Sequencers AC Power Conditioning & Sequencing System Click to enlarge the picture
Contents of the user manual for the FSR SPC-15 Power Sequencers AC Power
- Product category: Power Distributors & Conditioners FSR
- Brand: FSR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FSR Power Distributors & Conditioners
|
User manual for the FSR SPC-15 Power Sequencers AC Power contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FSR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FSR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FSR product will considerably shorten its lifespan!
|
Product description The FSR SPC-15 Power Sequencers AC Power Conditioning & Sequencing System provides RFI and suppression and surge protection. Additional circuits can be added via 6-wire low voltage line. - Suppresses RFI/EMI interference with high voltage surge and transient suppression
- Uses solid state TRIACS instead of mechanical relay contacts for years of trouble-free usage
- Expand with the SPC-15X Expansion Unit for sequential switching
In the Box FSR SPC-15 Power Sequencers AC Power Conditioning & Sequencing System 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FSR SPC-15 Power Sequencers AC Power Conditioning & Sequencing System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFSR SPC-15 Specs | Input | 120VAC/60Hz | | Output | 6 surge suppressed outlets | | Surge Energy Rating | Spike protection modes: Line to neutral, neutral to ground, line to ground
Spike protection voltage: Max clamping voltage 340V peak, L-N, N-G, L-G
Response time: 1 nanosecond
Maximum surge current: >100,000 AMPS (8x20 usec pulse)
Maximum spike energy: >1000 joules
Noise attenuation: Differential 13dB @ 150KHz
increasing to 45dB @ 30MHz
Common mode: 15dB @ 150KHz, increasing to >45dB @ 30MHz | | Audible Alarm | None | | Dimensions | 19 x 1.75 x 8.5" (482.6 x 44.45 x 215.9mm) | | Weight | 14 lbs (6.35kg) |
