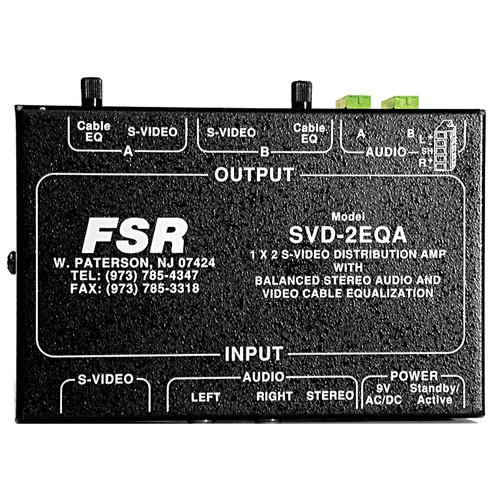

Product description The FSR SVD-2EQA is a Y/C S-Video Stereo Audio Distribution Amplifier; it features composite video and balanced or unbalanced stereo audio output. The video circuitry allows EQ adjustment in a compact metal housing. - Compact Size
- Measurements of less than 6" at its longest dimension, this device will fit into small studio spaces or on a desktop very easily.
- EQ Adjustment
- Separate EQ adjustments for each channel allow the outputs to be adjusted for different cable lengths.
- Audio
- Output of balanced or unbalanced audio can be accessed by the user.
In the Box FSR SVD-2EQA 1x2 Audio/Video Distribution Amplifier - Y/C S-Video, Balanced or Unbalanced Audio Out (Captive Screw), EQ Video AC Power Adapter 3 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FSR SVD-2EQA 1x2 Audio Video Distribution Amplifier - Y C S-Video, Balanced or Unbalanced Audio Out , EQ Video in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFSR SVD-2EQA Specs | Input | Y/C S-Video, 0.7 to 2 Vpp @ 75 ohms, on a 4-Pin connector
Unbalanced Stereo Audio, 10K ohms +6 dBv, on RCA's or a Stereo Mini | | Output | Y/C S-Video x2, 0.7 to 2 Vpp @ 75 ohms, on 4-Pin connectors
Unbalanced or Balanced Stereo Audio x2, @ 50 or 600 ohms, on Captive Screw Connectors | | Video Bandwidth | 100 MHz | | Video Signal-to-Noise Ratio | Not Specified by Manufacturer | | Differential Phase | Not Specified by Manufacturer | | Differential Gain | Not Specified by Manufacturer | | Video Control | EQ Adjust for Each Output | | Coupling | DC | | Audio Bandwidth | 20 kHz | | Signal to Noise Ratio | 98 dB | | Audio THD | 0.01% | | Audio Controls | None | | Power Source | 8 - 14 VDC from an AC Power Adapter | | Dimensions (WxDxH) | 5.125 x 3.39 x 1.312"
13 x 8.61 x 3.33cm | | Weight | Not Specified by Manufacturer |
