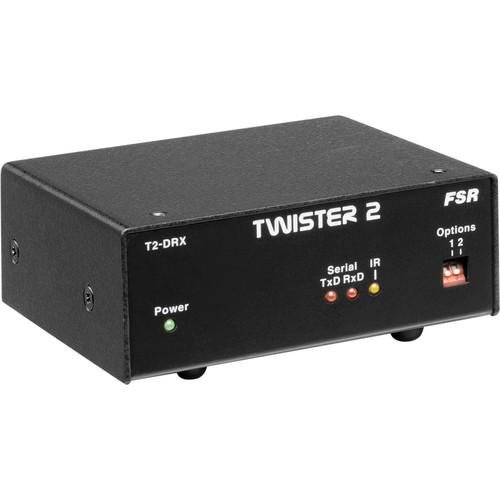

User Manual for FSR T2-DRX IR Data Receiver Click to enlarge the picture
Contents of the user manual for the FSR T2-DRX IR Data Receiver
- Product category: Video Extenders & Repeaters FSR
- Brand: FSR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FSR Video Extenders & Repeaters
|
User manual for the FSR T2-DRX IR Data Receiver contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FSR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FSR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FSR product will considerably shorten its lifespan!
|
Product description The T2-DRX IR/Data Receiver forms part of FSR's Twister 2 Cat-5 data transmission system. Combined with an optional T2-DTX transmitter, this receiver allows for long-distance transmission of RS-232 data and/or IR control data using affordable, easily available Cat-5/5E/6 cable. This means not only cost savings but ease of installation versus bulkier, traditional data cables.
Using up to 1000 feet of Cat-5 type cable, the T2-DRX receives data and control instructions from the transmitter via its RJ-45 connector, allowing remote control of a projector or other RS-232 controlled device. This makes the receiver ideal for control rooms, classrooms, houses of worship, boardrooms and other applications needing error-free data transmission with no electrical interference. Note: This is only one component in a larger system. In order for this unit to work properly it must be paired with a transmitter. - 9-pin DSub male connector for output
- CAT-5 connections are via RJ-45 connectors (EIA/TIA-568B)
- Compatible with RS-232 standards
- Normal and high output emitter power level settings
- Dual output terminals for convenient hookup of multiple emitters
- UL and CSA approved external power source (wall plug-in) included
- Full duplex RS-232 up to 115K baud
- Serial TXD/RXD signal confirmation indicators
- Compatible with most IR devices
- Extends IR control up to 1000 feet
In the Box FSR T2-DRX IR/Data Receiver AC Power Supply 3 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FSR T2-DRX IR Data Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFSR T2-DRX Specs | Construction | Metal | | Input | RS-232/IR: RJ-45 | | Output | RS-232: 9-pin DSub
IR: 3-pin Phoenix (x2) | | Power Source | 9VAC @0.2A
12VDC @0.1A | | Dimensions (WxHxD) | 4.2 x 1.6 x 3.93" (10.7 x 4.1 x 10 cm) | | Weight | 1.2 lbs (0.54kg) |
