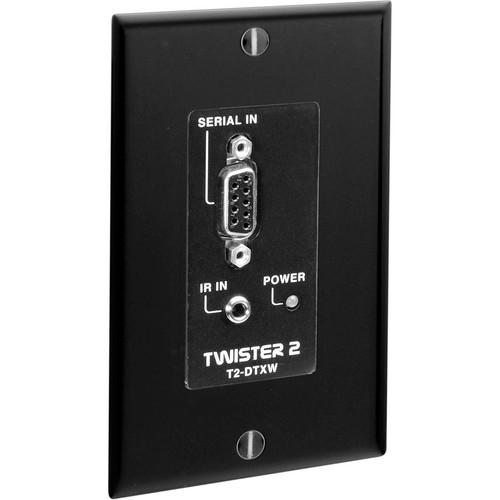

Product description The T2-DTXW-BLK IR/Data Transmitter with Black Wall Plate forms part of FSR's Twister 2 Cat-5 data transmission system. Combined with an optional T2-DRX receiver, this transmitter allows for long-distance transmission of RS-232 data and/or IR control data using affordable, easily available Cat-5/5E/6 cable. This means not only cost savings but ease of installation versus bulkier, traditional data cables.
Using up to 1000 feet of Cat-5 type cable, the T2-DTXW-BLK transmits data and control instructions via its RJ-45 connector, allowing remote control of a projector or other RS-232 controlled device. This makes the transmitter ideal for control rooms, classrooms, houses of worship, boardrooms and other applications needing error-free data transmission with no electrical interference. Note: This is only one component in a larger system. In order for this unit to work properly it must be paired with a receiver. - 9-pin DSub female connector for input
- CAT-5 connections are via RJ-45 connectors (EIA/TIA-568B)
- Compatible with RS-232 standards
- Wall plate is single gang Decora style, with matching plates provided for standalone use
- UL and CSA approved external power source (wall plug-in) included
- Full duplex RS-232 up to 115K baud
- Serial TXD/RXD signal confirmation indicators
- Compatible with most IR devices
- Extends IR control up to 1000 feet
In the Box FSR T2-DTXW-BLK IR/Data Transmitter w/Wall Plate (Black) AC Power Supply 3 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FSR T2-DTXW-BLK IR Data Transmitter w Wall Plate in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFSR T2-DTXW-BLK Specs | Construction | Metal and Plastic | | Input | RS-232: 9-pin DSub
IR: 3.5mm mini | | Output | RS-232/IR: RJ-45 | | Power Source | 9VAC @0.2A
12VDC @0.1A | | Dimensions (WxHxD) | 1.7 x 4.1 x 0.93" (4.3 x 10.4 x 2.4 cm) | | Weight | 1 lb (0.45kg) |
