User Manual for FSR T2-DTXW-IVO IR Data Transmitter w Wall Plate Click to enlarge the picture
Contents of the user manual for the FSR T2-DTXW-IVO IR Data Transmitter w
- Product category: Wall Plates & Installation Boxes FSR
- Brand: FSR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FSR Wall Plates & Installation Boxes
|
User manual for the FSR T2-DTXW-IVO IR Data Transmitter w contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FSR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FSR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FSR product will considerably shorten its lifespan!
|

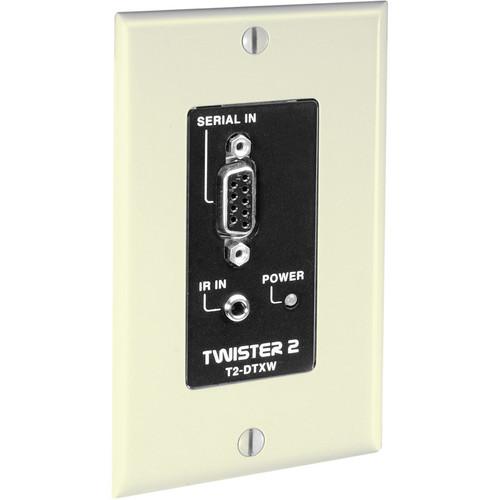

Product description The T2-DTXW-IVO IR/Data Transmitter with Ivory Wall Plate forms part of FSR's Twister 2 Cat-5 data transmission system. Combined with an optional T2-DRX receiver, this transmitter allows for long-distance transmission of RS-232 data and/or IR control data using affordable, easily available Cat-5/5E/6 cable. This means not only cost savings but ease of installation versus bulkier, traditional data cables.
Using up to 1000 feet of Cat-5 type cable, the T2-DTXW-IVO transmits data and control instructions via its RJ-45 connector, allowing remote control of a projector or other RS-232 controlled device. This makes the transmitter ideal for control rooms, classrooms, houses of worship, boardrooms and other applications needing error-free data transmission with no electrical interference. Note: This is only one component in a larger system. In order for this unit to work properly it must be paired with a receiver. - 9-pin DSub female connector for input
- CAT-5 connections are via RJ-45 connectors (EIA/TIA-568B)
- Compatible with RS-232 standards
- Wall plate is single gang Decora style, with matching plates provided for standalone use
- UL and CSA approved external power source (wall plug-in) included
- Full duplex RS-232 up to 115K baud
- Serial TXD/RXD signal confirmation indicators
- Compatible with most IR devices
- Extends IR control up to 1000 feet
In the Box FSR T2-DTXW-IVO IR/Data Transmitter w/Wall Plate (Ivory) AC Power Supply 3 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FSR T2-DTXW-IVO IR Data Transmitter w Wall Plate in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFSR T2-DTXW-IVO Specs | Construction | Metal and Plastic | | Input | RS-232: 9-pin DSub
IR: 3.5mm mini | | Output | RS-232/IR: RJ-45 | | Power Source | 9VAC @0.2A
12VDC @0.1A | | Dimensions (WxHxD) | 1.7 x 4.1 x 0.93" (4.3 x 10.4 x 2.4 cm) | | Weight | 1 lb (0.45kg) |
