User Manual for FSR Tilting Table Box for IPS Inserts Click to enlarge the picture
Contents of the user manual for the FSR Tilting Table Box for IPS
- Product category: Wall Plates & Installation Boxes FSR
- Brand: FSR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FSR Wall Plates & Installation Boxes
|
User manual for the FSR Tilting Table Box for IPS contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FSR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FSR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FSR product will considerably shorten its lifespan!
|

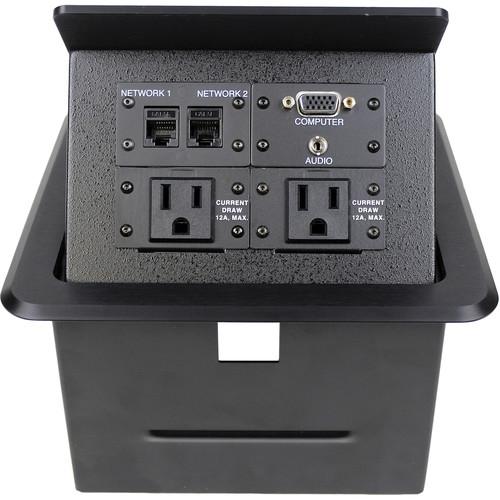

Product description The black Tilting Table Box for IPS Inserts from FSR is a tilt-top-style box that can be custom configured for any job-specific cabling scenario. The unit has openings for up to eight single IPS connector insert plates (not included), or a variety of multiple plate arrangements. The tilting table box can be installed in desks, tables, and lecterns; it is recommended for use in classrooms, court rooms, boardrooms, and more.
With the table box open, the connectors are angled approximately 35° from vertical. This angle accommodates a person sitting at the table, with the box being 22" from the edge of the table. This box can be mounted in a wide variety of tables with thicknesses ranging from 0.75 to 2.25". - Holds up to eight single IPS connector inserts
- Tilts to approximately 35° from vertical
- Allows for up to 4" of clearance behind the IPS plate surface
In the Box FSR Tilting Table Box for IPS Inserts Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FSR Tilting Table Box for IPS Inserts in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFSR TB-IPS-BLK Specs | Table Top Thickness | 0.75 to 2.25" (1.9 to 5.7 cm) | | Angle | Approx. 35° from vertical | | Dimensions | 7.2 x 7.3 x 4.5" (18.2 x 18.4 x 11.4 cm)
Overall Height when Open: 8.6" (21.8 cm) | | | | Package Weight | 5.3 lb | | Box Dimensions (LxWxH) | 12.1 x 10.3 x 10.1" |
