User Manual for FSR TN-2105EQA 2x1 Computer Audio Video Switcher - HD-15, BNC, Unbalanced Audio In, Balanced Audio Out Click to enlarge the picture
Contents of the user manual for the FSR TN-2105EQA 2x1 Computer Audio Video
- Product category: Routers & Switchers FSR
- Brand: FSR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FSR Routers & Switchers
|
User manual for the FSR TN-2105EQA 2x1 Computer Audio Video contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FSR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FSR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FSR product will considerably shorten its lifespan!
|

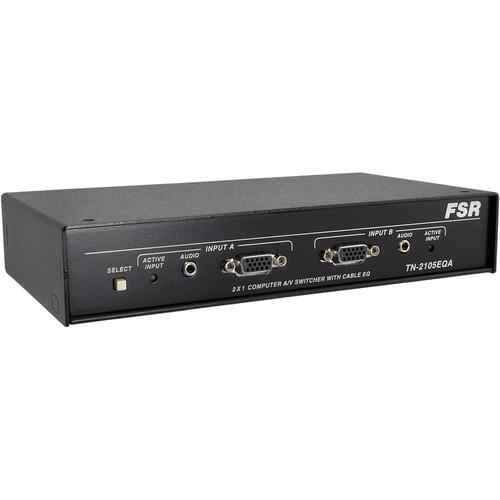

Product description The FSR TN-2105EQA is a Computer Audio/Video Switcher; it takes in 2 computer generated video signals along with unbalanced audio and switches to a HD-15 or 5 BNC video output with balanced audio. It features EQ adjustment and a compact size. - Audio
- This unit accepts unbalanced audio but, has the ability to output balanced audio or unbalanced audio.
- Applications
- This unit works well in situations where two PC sources need to be switched for a presentation display.
- EQ Adjustment
- A cable EQ adjustment is offered so the user can optimize the image in relation to the cable length.
In the Box FSR TN-2105EQA 2x1 Computer Audio/Video Switcher - HD-15, BNC, Unbalanced Audio In, Balanced Audio Out AC Power Adapter 3 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FSR TN-2105EQA 2x1 Computer Audio Video Switcher - HD-15, BNC, Unbalanced Audio In, Balanced Audio Out in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFSR TN-2105EQA Specs | Input | Computer Generated Video x2, 0.7 Vpp @ 75 ohms, on HD-15 connectors
Unbalanced Stereo Audio x2, @ 10K ohms, on Stereo Mini Plugs | | Output | Computer Generated Video x2, Selectable, adjustable level @ 75 ohms, on 1 HD-15 or 5 BNC connectors
Balanced Stereo Audio, @ 600 ohms, on a Phoenix connector | | Switch Type | Front Panel Push Button
Remote Contact Closure | | Video Bandwidth | 400 MHz on 5 BNC Output
320 MHz on HD-15 Output | | Differential Gain | Not Specified by Manufacturer | | Differential Phase | Not Specified by Manufacturer | | Video Signal-to-Noise Ratio | Not Specified by Manufacturer | | Audio Bandwidth | 20 kHz | | Signal to Noise Ratio | Not Specified by Manufacturer | | Audio THD | 0.01% | | Control | Front Panel Selection
Contact Closure via Phoenix connector
Rear Panel EQ Switch | | Power Source | 9 VAC or VDC from an AC Power Adapter | | Dimensions (WxDxH) | 8.5 x 5.5 x 1.5"
21.6 x 14 x 3.8cm | | Weight | Not Specified by Manufacturer | | | | Package Weight | 4.1 lb | | Box Dimensions (LxWxH) | 20.1 x 11.5 x 2.8" |
