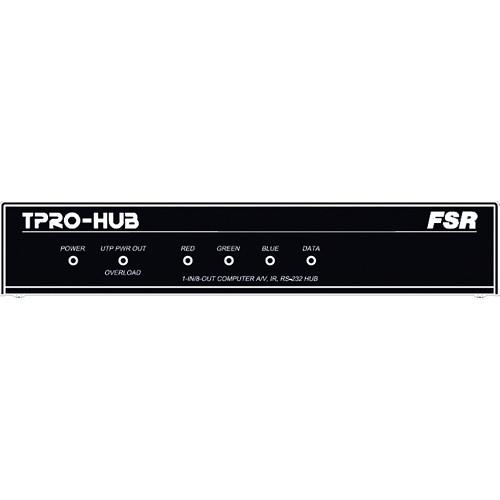

Product description The FSR TPRO-HUB 1-In/8-Out Expansion Hub works with TwisterPro Cat-5 Transmitter/Receiver Systems. Used for more demanding applications, it outputs a transmitter's audio/video/data/IR signals to 8 receivers via low-cost Cat-5 type cable, while simultaneously powering both ends of the system. The signals are then fed to projectors, monitors or other peripherals, with up to 512 outputs possible using cascading multiple hubs.
The TPRO-HUB and Twister Pro system can be rackmounted with an optional 1RU rack mount kit, and is perfect for control rooms, classrooms, houses of worship, boardrooms and other applications needing error-free video and audio transmission with zero electrical interference. Note: This is only one component in a larger system. In order for this unit to work properly it must be paired with a transmitter and receiver. - 8 RJ-45 outputs, 1 RJ-45 input
- Supplies power to both transmitter and receiver
- Cascade multiple hubs for up to 512 outputs
- LED indicators for RGB, Data, and Overload
- Maximum distance to transmitter is 1000 ft, maximum to receiver is 600 ft. If receiver is also powered, then distance increases to 1000 ft.
In the Box FSR TPRO-HUB 1-In/8-Out Expansion Hub AC Power Supply Rack Bracket 3 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FSR TPRO-HUB 1-In 8-Out Expansion Hub in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFSR TPRO-HUB Specs | Construction | Metal | | Cable Type | Cat-5, 5E, 6 | | Range | (when powered by Hub):
600 ft (183m) to Receiver (1000 ft if Receiver also powered)
1000 ft (305m) to Transmitter | | Video Signals | RGBHV, RGBS, RGsB, RsGsBs, Component, S-Video | | Maximum Resolution | 1920 x 1080 (1080p) | | Impedance | Video: 75 Ohms
Audio: 50 Ohms | | Input | (1) RJ-45 | | Output | (8) RJ-45 | | Power Source | 24VDC @2.7A (max) | | Dimensions (WxHxD) | 8.47 x 1.6 x 4.88" (21.5 x 4.1 x 12.4 cm) | | Weight | Not specified by manufacturer |
