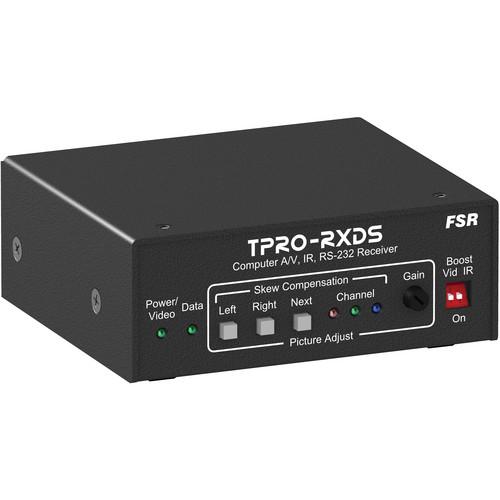

Product description The TPRO-RXDS 1RU x 1/4 Wide Brick Receiver forms part of FSR's TwisterPro UTP Transmitter/Receiver system. Combined with an optional TPRO-TX transmitter, this receiver allows for long-distance transmission of RGB video, stereo audio, RS-232 data and IR control data. Offering the highest level of signal integrity and error-free transmission, this system uses affordable, easily installed Cat-5/5E/6 cable--a major advantage over bulkier, traditional video and data cables.
Through cable runs of up to 1000 feet, the TPRO-RXDS uses RJ-45 connections to transmit not only all RS-232 and IR data, but video resolutions up to 1920 x 1080 and 24-bit stereo audio @48kHZ. A single VGA port handles RGB, component, composite or S-Video signals, while RS-232/IR data is carried via 9-pin DSub. Full expandability is possible using separate 1-in/8-out hubs, which can be cascaded to allow up to 512 outputs.
Unlike the TPRO-RXD, the TPRO-RXDS uses skew compensation to adjust for the delay skew, or loss of color convergence, that can affect images transmitted over cables longer than 300 feet (91.4m). This feature allows fine-tuning of the image by merging the misconverged red, green, and blue lines back into solid white.
This receiver is ideal for control rooms, classrooms, houses of worship, boardrooms and other applications needing reliable video, audio and data transmission with zero electrical interference. Its "brick" style enclosure can be used on any surface, or it can be rack mounted with an optional rack kit. Note: This is only one component in a larger system. In order for this unit to work properly it must be paired with a transmitter. AC adapter must also be purchased separately. - VGA 15-pin DSub female connector for video output
- DB-9 male connector for RS-232 output
- CAT-5 and UTP connections are via RJ-45 connectors (EIA/TIA-568B)
- Video resolutions up to 1920 x 1080 (1080p)
- Cable skew compensation adjustments
- Adjustable gain control on front panel
- Compatible with RS-232 standards, most IR devices
- Simplex RS-232 up to 19.2k baud
- LED indication of video, RS-232 and IR data activity
- Custom carrier frequencies are available per customer request
- Extends IR control up to 1000 feet
- Normal and high output emitter power level settings
- High output power level settings up to 60mW allows for multiple emitter connections (emitters sold separately)
- Integrated IR sensors in addition to hard-wired input options
- UL and CSA approved external power source (wall plug-in) included
- High quality 24-bit stereo 48 kHz sample rate
- Over-current sensing with LED indication
- Optional 1 in/8 out TPRO-HUB with power supply available
- Unit can be powered at either transmitter or receiver end, or through optional hub
In the Box FSR TPRO-RXDS 1RU x 1/4 Wide Brick Receiver 3 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FSR TPRO-RXDS 1RU x 1 4 Wide Brick Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFSR TPRO-RXDS Specs | Construction | Metal | | Cable Type | Cat-5, 5E, 6 | | Range | 600 ft (when powered at transmitter)
1000 ft (when powered at receiver) | | Video Signals | RGBHV, RGBS, RGsB, RsGsBs, Component, S-Video | | Maximum Resolution | 1920 x 1080 (1080p) | | Impedance | Video: 75 Ohms
Audio: 50 Ohms | | Input | Audio/Video: RJ-45 | | Output | VGA: 15-pin DSub (x1, x1 Loop Through)
Audio: 3-pin pluggable screw terminals
RS-232: 9-pin DSub
IR: 3.5mm mini | | Power Source | 24VDC @0.19A | | Dimensions (WxHxD) | 4.2 x 4.1 x 1.6" (10.7 x 10.4 x 4.1 cm) | | Weight | 1.35 lb (0.61 kg) | | | | Package Weight | 0.95 lb | | Box Dimensions (LxWxH) | 10.3 x 7.9 x 2.9" |
