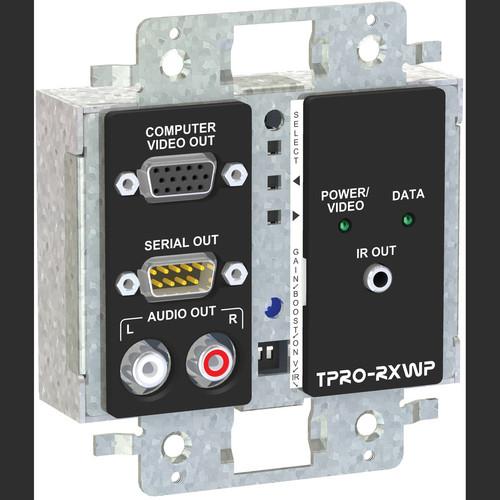

User Manual for FSR TPRO-RXWPDS-WHT 2-Gang Wall Plate Receiver Click to enlarge the picture
Contents of the user manual for the FSR TPRO-RXWPDS-WHT 2-Gang Wall Plate Receiver
- Product category: Wall Plates & Installation Boxes FSR
- Brand: FSR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FSR Wall Plates & Installation Boxes
|
User manual for the FSR TPRO-RXWPDS-WHT 2-Gang Wall Plate Receiver contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FSR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FSR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FSR product will considerably shorten its lifespan!
|
Product description The TPRO-RXWPDS-WHT 2-Gang Wall Plate Receiver (White) forms part of FSR's TwisterPro UTP Transmitter/Receiver system. Combined with an optional TPRO-TX transmitter, this receiver allows for long-distance transmission of RGB video, stereo audio, RS-232 data and IR control data. Offering the highest level of signal integrity and error-free transmission, this system uses affordable, easily installed Cat-5/5E/6 cable--a major advantage over bulkier, traditional video and data cables.
Through cable runs of up to 1000 feet, the TPRO-RXWPDS-WHT uses RJ-45 connections to transmit not only all RS-232 and IR data, but video resolutions up to 1920 x 1080 and 24-bit stereo audio @48kHZ. A single VGA port handles RGB, component, composite or S-Video signals, while RS-232/IR data is carried via 9-pin DSub. Full expandability is possible using separate 1-in/8-out hubs, which can be cascaded to allow up to 512 outputs.
Unlike the TPRO-RXWPD models, the TPRO-RXWPDS-WHT uses skew compensation to adjust for the delay skew, or loss of color convergence, that can affect images transmitted over cables longer than 300 feet (91.4m). This feature allows fine-tuning of the image by merging the misconverged red, green, and blue lines back into solid white.
This receiver is ideal for control rooms, classrooms, houses of worship, boardrooms and other applications needing reliable video, audio and data transmission with zero electrical interference. Its two-gang wall plate design also comes with matching Decora trim rings for standalone use. Note: This is only one component in a larger system. In order for this unit to work properly it must be paired with a transmitter. - VGA 15-pin DSub female connector for video output
- DB-9 male connector for RS-232 output
- CAT-5 and UTP connections are via RJ-45 connectors (EIA/TIA-568B)
- Video resolutions up to 1920 x 1080 (1080p)
- Cable skew compensation adjustments
- Adjustable gain control on front panel
- Matching Decora trim rings included for standalone use, or units can be populated along with FSR's IPS component and plates for complete interface solution
- Compatible with RS-232 standards, most IR devices
- Simplex RS-232 up to 19.2k baud
- LED indication of video, RS-232 and IR data activity
- Custom carrier frequencies are available per customer request
- Extends IR control up to 1000 feet
- Normal and high output emitter power level settings
- High output power level settings up to 60mW allows for multiple emitter connections (emitters sold separately)
- Integrated IR sensors in addition to hard-wired input options
- High quality 24-bit stereo 48 kHz sample rate
- Over-current sensing with LED indication
- Optional 1 in/8 out TPRO-HUB with power supply available
- Unit can be powered at either transmitter or receiver end, or through optional hub
In the Box FSR TPRO-RXWPDS-WHT 2-Gang Wall Plate Receiver (White) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FSR TPRO-RXWPDS-WHT 2-Gang Wall Plate Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFSR TPRO-RXWPDS-WHT Specs | Construction | Metal and Plastic | | Cable Type | Cat-5, 5E, 6 | | Range | 600 ft (when powered at transmitter)
1000 ft (when powered at receiver) | | Video Signals | RGBHV, RGBS, RGsB, RsGsBs, Component, S-Video | | Maximum Resolution | 1920 x 1080 (1080p) | | Impedance | Video: 75 Ohms
Audio: 50 Ohms | | Input | Audio/Video: RJ-45 | | Output | VGA: 15-pin DSub
Audio L/R: RCAx2
RS-232: 9-pin DSub
IR: 3.5mm mini | | Power Requirement | 24VDC @0.19A | | Dimensions (WxHxD) | 3.56 x 1.3 x 4.1" (9 x 3.3 x 10.4 cm) | | Weight | Not specified by manufacturer |
