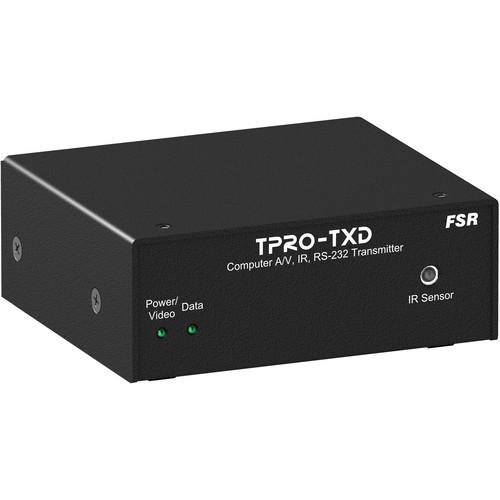

User Manual for FSR TPRO-TXD 1RU x 1 4 Wide Brick Transmitter Click to enlarge the picture
Contents of the user manual for the FSR TPRO-TXD 1RU x 1 4
- Product category: Video Extenders & Repeaters FSR
- Brand: FSR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FSR Video Extenders & Repeaters
|
User manual for the FSR TPRO-TXD 1RU x 1 4 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FSR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FSR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FSR product will considerably shorten its lifespan!
|
Product description The TPRO-TXD Wide Brick Transmitter forms part of FSR's TwisterPro UTP Transmitter/Receiver system. Combined with an optional TPRO-RX receiver, this transmitter allows for long-distance transmission of RGB video, stereo audio, RS-232 data and IR control data. Offering the highest level of signal integrity and error-free transmission, this system uses affordable, easily installed Cat-5/5E/6 cable--a major advantage over bulkier, traditional video and data cables.
Through cable runs of up to 1000 feet, the TPRO-TXD uses RJ-45 connections to transmit not only all RS-232 and IR data, but video resolutions up to 1920 x 1080 and 24-bit stereo audio @48kHZ. A single VGA port handles RGB, component, composite or S-Video signals, while RS-232/IR data is carried over a 4-pin Phoenix plug. Full expandability is possible using optional 1-in/8-out hubs, which can be cascaded to allow up to 512 outputs.
The TPRO-TXD is ideal for control rooms, classrooms, houses of worship, boardrooms and other applications needing reliable video, audio and data transmission with no electrical interference. Its "brick" style housing can be used on any surface, or it can be rack mounted with an optional rack mounting kit. Note: This is only one component in a larger system. In order for this unit to work properly it must be paired with a receiver. AC adapter is also purchased separately. - VGA 15-pin DSub female connector for video input
- 4-pin Phoenix plug for RS-232/IR input
- CAT-5 and UTP connections are via RJ-45 connectors (EIA/TIA-568B)
- Video resolutions up to 1920 x 1080 (1080p)
- Compatible with RS-232 standards, most IR devices
- Simplex RS-232 up to 19.2k baud
- LED indication of video, RS-232 and IR data activity
- Custom carrier frequencies are available per customer request
- Extends IR control up to 1000 feet
- Normal and high output emitter power level settings
- High output power level settings up to 60mW allows for multiple emitter connections (emitters sold separately)
- Integrated IR sensors in addition to hard-wired input options
- UL and CSA approved external power source (wall plug-in) included
- High quality 24-bit stereo 48 kHz sample rate
- Over-current sensing with LED indication
- Optional 1 in/8 out TPRO-HUB with power supply available
- Unit can be powered at either transmitter or receiver end, or through optional hub
In the Box FSR TPRO-TXD 1RU x 1/4 Wide Brick Transmitter 3 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FSR TPRO-TXD 1RU x 1 4 Wide Brick Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFSR TPRO-TXD Specs | Construction | Metal | | Cable Type | Cat-5, 5E, 6 | | Range | 600 ft (when powered at transmitter)
1000 ft (when powered at receiver) | | Video Signals | RGBHV, RGBS, RGsB, RsGsBs, Component, S-Video | | Maximum Resolution | 1920 x 1080 (1080p) | | Impedance | Video: 75 Ohms
Audio: 50 Ohms | | Input | VGA: 15-pin DSub
Audio: 3-pin Phoenix plug
RS-232/IR: 4-pin Phoenix plug | | Output | Audio/Video: RJ-45 | | Power Source | 24VDC @0.09A | | Dimensions (WxHxD) | 4.2 x 4.1 x 1.6" (10.7 x 10.4 x 4.1 cm) | | Weight | 1.30 lb (0.58 kg) | | | | Package Weight | 1.55 lb | | Box Dimensions (LxWxH) | 8.8 x 5.4 x 3.4" |
