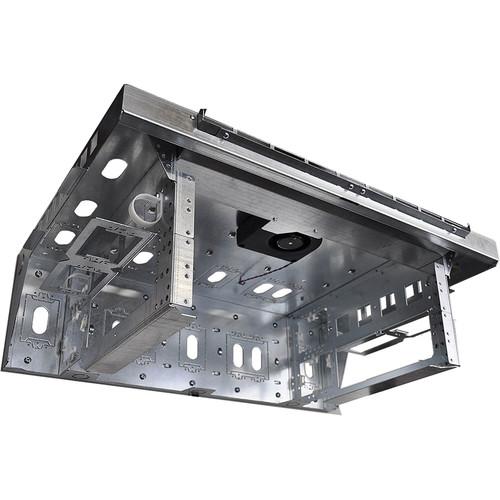

User Manual for FSR TS-400 Top Shelf Wall Mounted Enclosure Click to enlarge the picture
Contents of the user manual for the FSR TS-400 Top Shelf Wall Mounted
- Product category: Wall Plates & Installation Boxes FSR
- Brand: FSR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FSR Wall Plates & Installation Boxes
|
User manual for the FSR TS-400 Top Shelf Wall Mounted contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FSR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FSR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FSR product will considerably shorten its lifespan!
|
Product description The TS-400 Top Shelf Wall Mounted Enclosure from FSR allows you to accommodate up to 4RU of equipment on the ceiling. It provides ample space to mount AC receptacles, AV interfaces, and signal termination plates with 9 single gang mounting positions, 4 two gang mounting positions as well as knockouts for cable pass-through and a 6 IPS plate mounting area.The enclosure's locking plastic cover keeps the equipment mounted inside secure while allowing Wi-Fi and other wireless RF signals to pass between the equipment and the room. - Three position rack depth adjustment
- Fan provides up to 110W of equipment cooling (sold separately)
- Cover allows Wi-Fi and other wireless devices to pass through
- Assortment of cable clamps and locking cover included
In the Box FSR TS-400 Top Shelf Wall Mounted Enclosure Locking Cover Assortment of Cable Clamps Mounting Kit Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FSR TS-400 Top Shelf Wall Mounted Enclosure in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFSR TS-400 Specs | Rack Space | 4 RU | | Positions | 9 single gang positions
4 double gang positions
6 positions for IPS plates | | Knockouts | Internal: 1 x 6 IPS
3 x 1-gang
External: 4 x 2-gang / oval
6 x 1-gang / oval
4 x oval | | Load Capacity | 50 lb (23 kg) | | Dimensions | Top Length: 27.0" (68.5 cm)
Base Length: 30.2" (76.7 cm)
Width: 19" (48.2 cm)
Depth: 9.7" (24.6 cm) |
