User Manual for FSR VIP-100-IVO Wall Plate Interface - CI-5BWPA and VWP-SVA Combo Plate Click to enlarge the picture
Contents of the user manual for the FSR VIP-100-IVO Wall Plate Interface -
- Product category: Signal Converters FSR
- Brand: FSR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FSR Signal Converters
|
User manual for the FSR VIP-100-IVO Wall Plate Interface - contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FSR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FSR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FSR product will considerably shorten its lifespan!
|

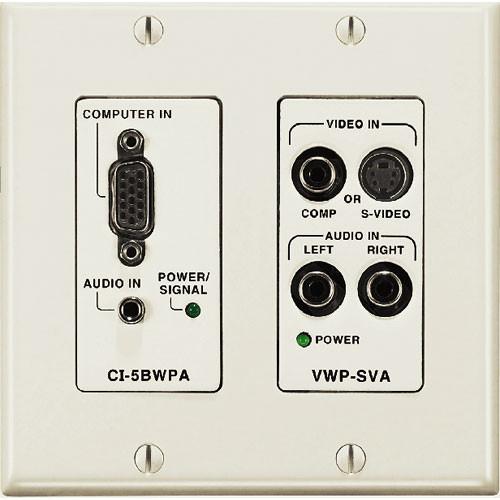

Product description The FSR VIP-100-IVO is a ivory wall plate interface for video and audio connectivity and EQ. This double gang plate is a combination of the CI-5BWPA and VWP-SVA interfaces. - CI--5BWPA
- The FSR CI-5BWPA is an interface converter for computer generated video; it accepts video from a computer source on an HD-15 connector and interfaces to a 5 BNC output for RGBHV connectivity. The audio interfaces from unbalanced stereo mini to balanced stereo audio. This device also features cable EQ and line amplification to drive a display device.
- VWP-SVA
- The FSR VWP-SVA is an interface converter for composite video; it accepts video from a composite source on an RCA connector and interfaces to an S-Video output for Y/C connectivity. The audio interfaces from unbalanced stereo RCA to balanced stereo audio. This device also features cable EQ and line amplification.
In the Box FSR VIP-100-IVO Wall Plate Interface - CI-5BWPA and VWP-SVA Combo Plate (Ivory) Ivory Plate AC Power Adapter Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FSR VIP-100-IVO Wall Plate Interface - CI-5BWPA and VWP-SVA Combo Plate in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFSR VIP-100-IVO Specs | Input | Computer Generated VGA type, on an HD-15 type connector
Unbalanced Stereo Audio, PC level, on a stereo mini plug
Composite Video, on an RCA connector
Unbalanced Stereo Audio, on RCA connectors | | Output | RGBHV, 0.7 Vpp on RGB @ 75 ohms, on BNC connectors
Balanced Stereo Audio, on captive screw connectors
Y/C Video, 0.7 Vpp on C @ 75 ohms, on 2 BNC connectors
Balanced Stereo Audio, on captive screw connectors | | Conversion | Computer Generated VGA type signal on HD-15 connectors to RGBS or RGBHV on BNC connectors
Unbalanced Stereo Audio to Balanced Stereo Audio
Composite video signal on RCA connectors to Y/C S-Video on 2 BNC connectors | | Control | Cable Gain and EQ 3 Position Selection | | Power Source | 9 VAC
8-14 VDC
AC Power Supply Included | | Dimensions (WxDxH) | 2 Gang Power Outlet | | Weight | Not Specified by Manufacturer |
