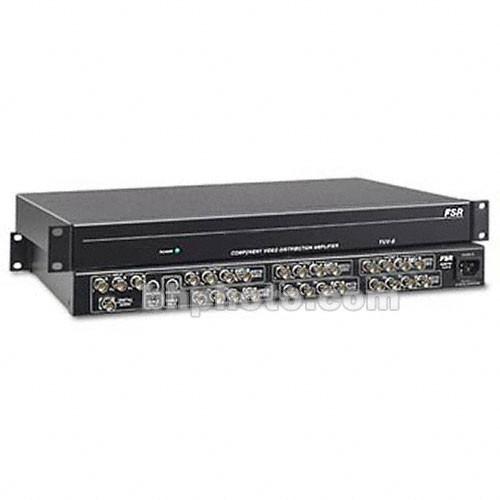

User Manual for FSR YUV-6 Ultra-High Resolution Ultra-High Bandwidth Distribution Amplifier Click to enlarge the picture
Contents of the user manual for the FSR YUV-6 Ultra-High Resolution Ultra-High Bandwidth
- Product category: Distribution Amplifiers (DA's) FSR
- Brand: FSR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FSR Distribution Amplifiers (DA's)
|
User manual for the FSR YUV-6 Ultra-High Resolution Ultra-High Bandwidth contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FSR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FSR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FSR product will considerably shorten its lifespan!
|
Product description The YUV-6 Ultra-High Resolution / Ultra-High Bandwidth Distribution Amplifier from FSR is a distribution amplifier designed to manage high-capacity bandwidth and resolutions for audio-video applications. It features (1) input and (6) outputs. The first two outputs offer independent cable equalization to allow for long cable runs without signal loss, even at high resolutions. Cable runs of up to 175' are possible with 180 MHz of full amplitude bandwidth and +/- 0.75 dB flatness to 130 Mhz. A 0.2V P-P input signal yields 316 MHz of bandwidth and +/- 0.5 dB flatness to 250 MHz. This means that the signal you feed into the YUV-6 will arrive at the far end of the cable with an almost immeasurable amount of loss and no distortion due to peaking effects.
This unit accepts and distributes RGBS, RGsB, RsGsBs, Component video, S-video, Composite video, and digital audio on 75 Ohm female BNC connectors. The digital audio input accepts DTS, AES/EBU, and SP/DIF signals with sampling rates of up to 96 kHz. Extremely low jitter and sub nano-second rise and fall times ensure transparent audio signal distribution.
This model's built-in universal power supply ensures that it will work anywhere in the world. Moreover, a small footprint of 1U means that you can save valuable workspace by mounting this unit in your rack. - High-Capacity Bandwith & Resolution
- This distribution amplifier is designed to manage high-capacity bandwidth and resolutions for audio-video applications.
- Extended Cable Runs
- This unit offers independent cable equalization that allows cable runs of up to 175' without significant signal loss.
- Multi-Format Support
- This unit accepts and distributes RGBS, RGsB, RsGsBs, Component video, S-video, Composite video, and digital audio. The digital audio input accepts DTS, AES/EBU, and SP/DIF signals.
- Universal Power
- This model's built-in universal power supply ensures that it will work anywhere in the world.
- Rack Ready
- This unit's small footprint of 1U allows you to save valuable workspace by mounting it in your rack.
In the Box FSR YUV-6 Ultra-High Resolution / Ultra-High Bandwidth Distribution Amplifier Interface Unit Three-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FSR YUV-6 Ultra-High Resolution Ultra-High Bandwidth Distribution Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFSR YUV-6 Specs | Video Input | Number/Type: 1 RGBS (audio channel not used), RGsB, RsGsBs, Component video, S-video, Composite video
Connectors: 3 or 4 female BNC (the fourth can be used for digital audio instead of sync)
Impedance: 75 Ohms
Input Levels: RGB 0.7V p-p, Y of component video 1V p-p, S-video 1V p-p, Composite video 1V p-p, R-Y, B-Y component video 0.3V p-p, C of S-video 0.3V p-p
Min/Max Levels: 0.3V p-p to2V p-p with no offset
Horizontal Frequency: 15kHz to 180kHz
Vertical Frequency: 15Hz to 170Hz
Differential phase error: 0.2 degrees at 3.58 MHz (NTSC), 4.43 MHz (PAL)
Differential Gain error: 0.1%at 3.58 MHz (NTSC), 4.43 MHz (PAL) | | Video Output | Number/Type: 6 RGBS (audio channel not used), RGsB, RsGsBs, Component video, S-video, Composite video
Connectors: 6 groups of 4 BNC
Impedance: 75 Ohms
Output Levels: RGB 0.7V p-p, Y of component video 1V p-p, S-video 1V p-p, Composite video 1V p-p, R-Y, B-Y component video 0.3V p-p, C of S-video 0.3V p-p, Min/Max Levels: 0.3V p-p to1.5V p-p
DC offset: +/-20mV maximum with input at 0V offset | | Audio Input | Number/Type: 1 Dolby Digital, DTS, AES/EBU, SP/DIF
Connectors: 1 female BNC
Impedance: 510 Ohms
Nominal Level: 1V (consumer), 2V (professional)
Min/Max Levels: 0.5V p-p to 5V p-p
Sampling Rates: 32 kHz, 44.1 kHz, 48 kHz, 96 kHz | | Audio Output | Number/Type: 6 Dolby Digital, DTS, AES/EBU, SP/DIF
Connectors: 6 female BNC
Impedance: 75 Ohms
Output Level: 2.4V p-p into 75 Ohms
Propagation Delay: 15 nS max
Rise Fall Time: 1 nS max | | Synchronization | Input Level: Analog or TTL 0.5V to 5V p-p
Output Level: 5V into Hi -Z
2.4V into 75 Ohms
Input Impedance: 510 Ohms
Output Impedance: 75 Ohms
Propagation Delay: 15 nS max
Rise/Fall Time: 1 nS | | Power | 100VAC to 240VAC, 50/60 Hz, internal, autoswitch 0.65A/115V, 0.4A/230V | | Material | Metal | | Dimensions | 1U rack height | | Weight | Not specified by manufacturer |
