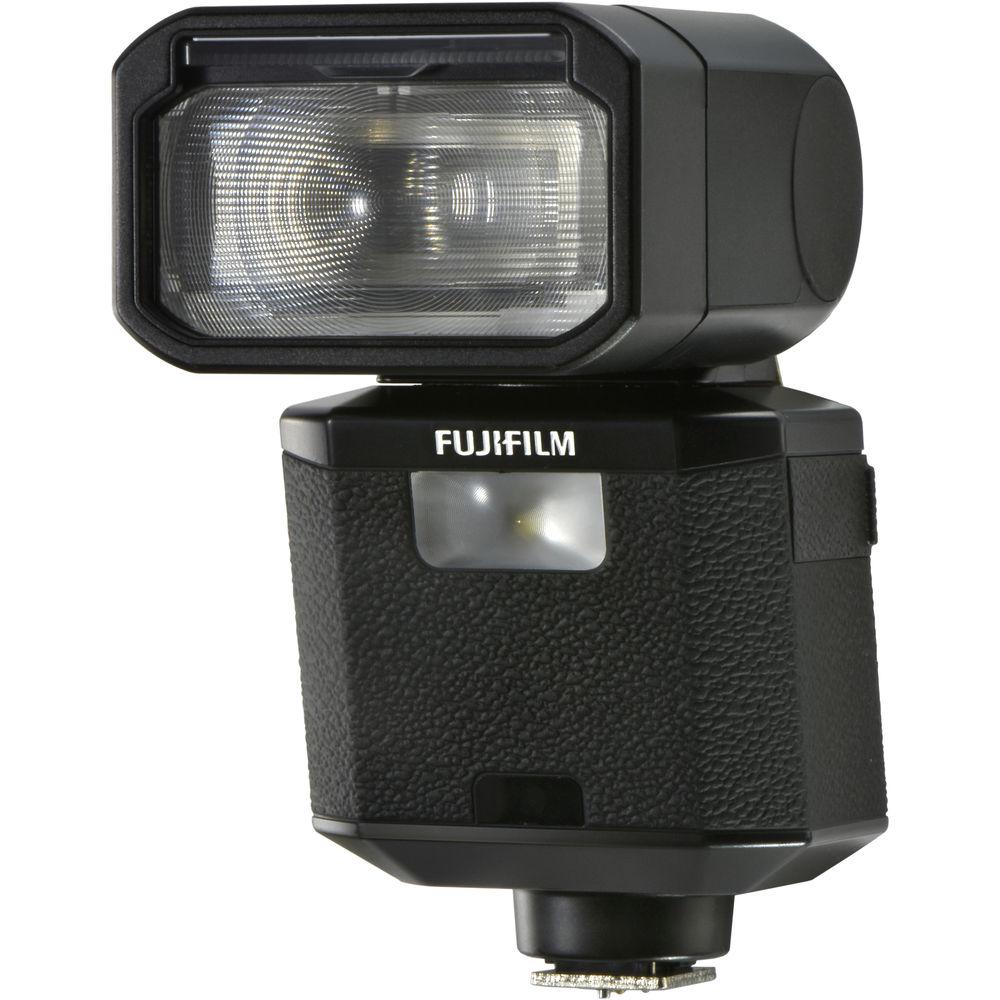

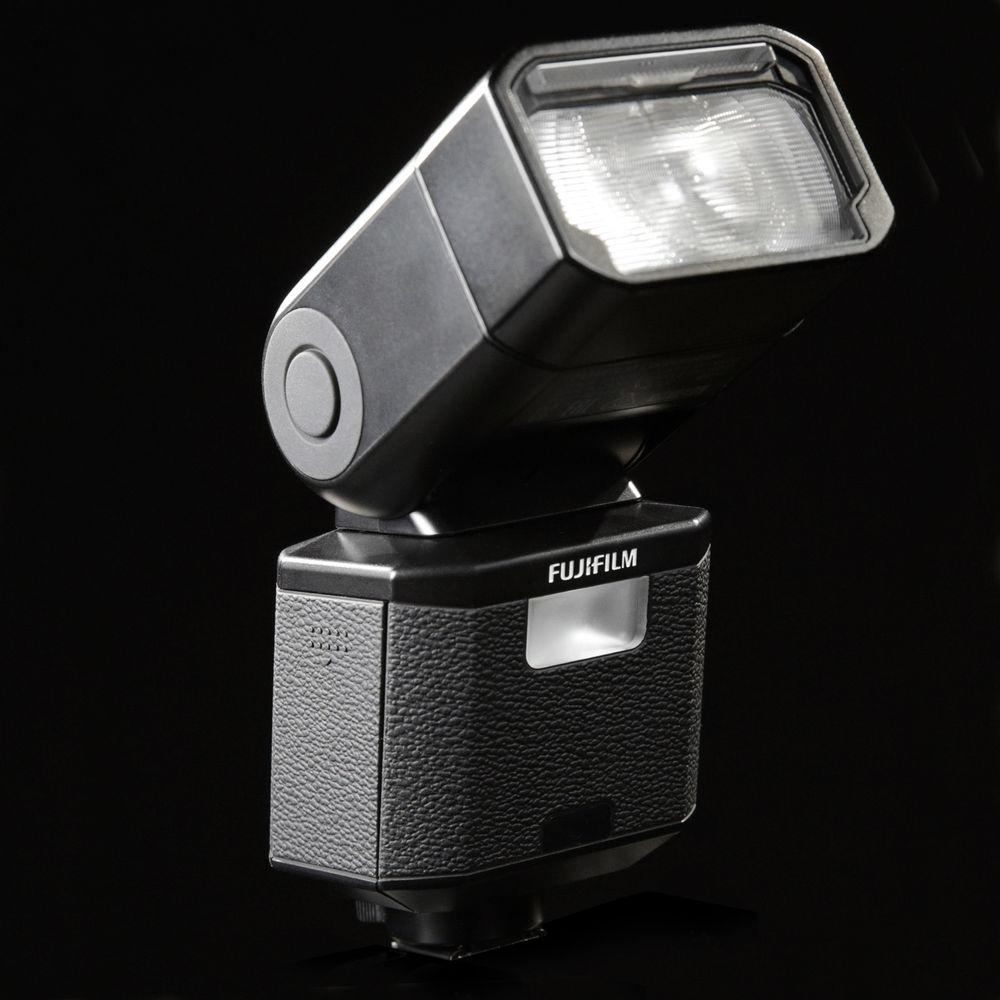

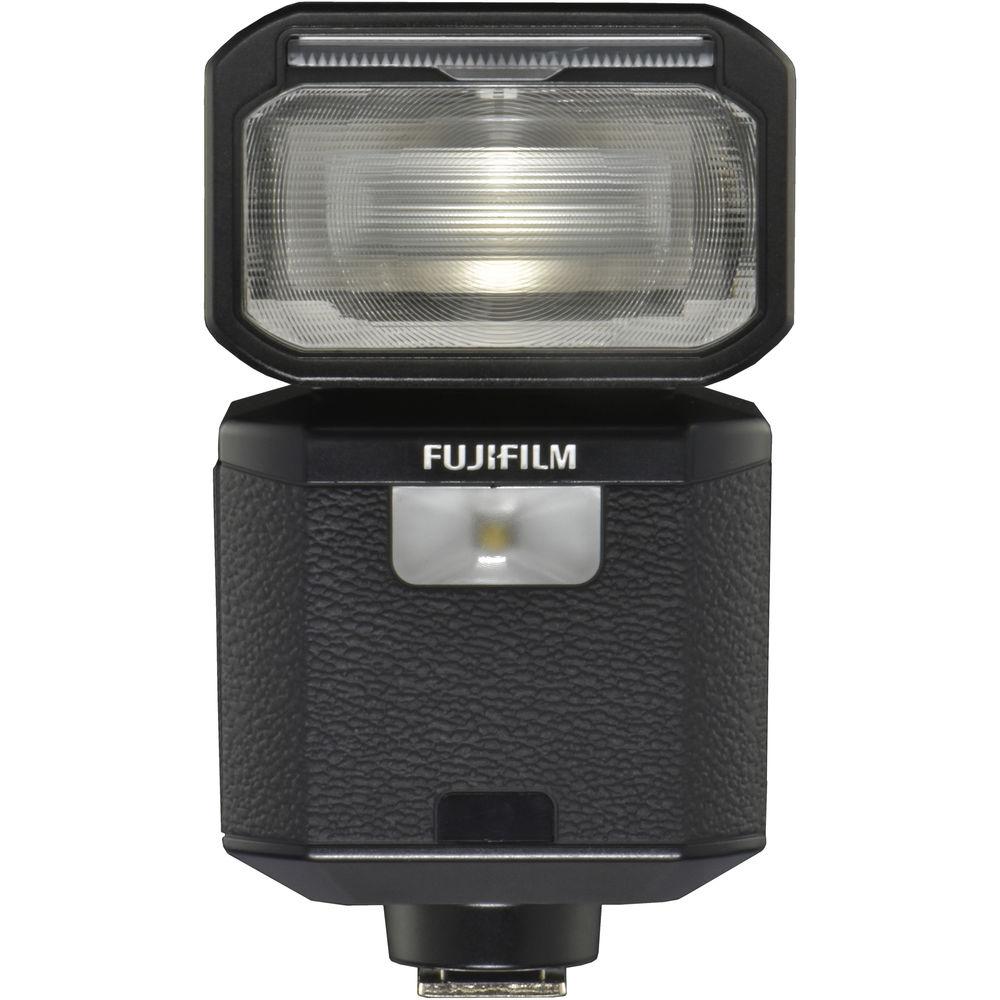

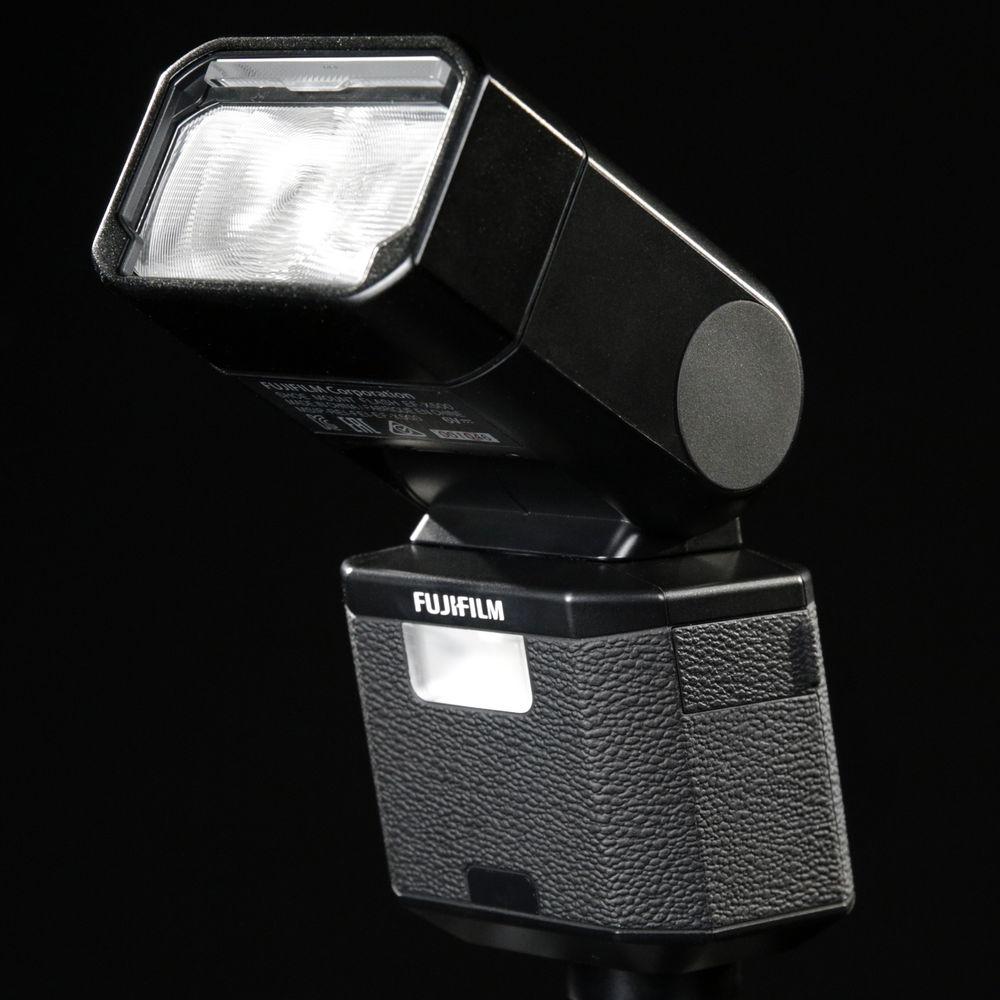

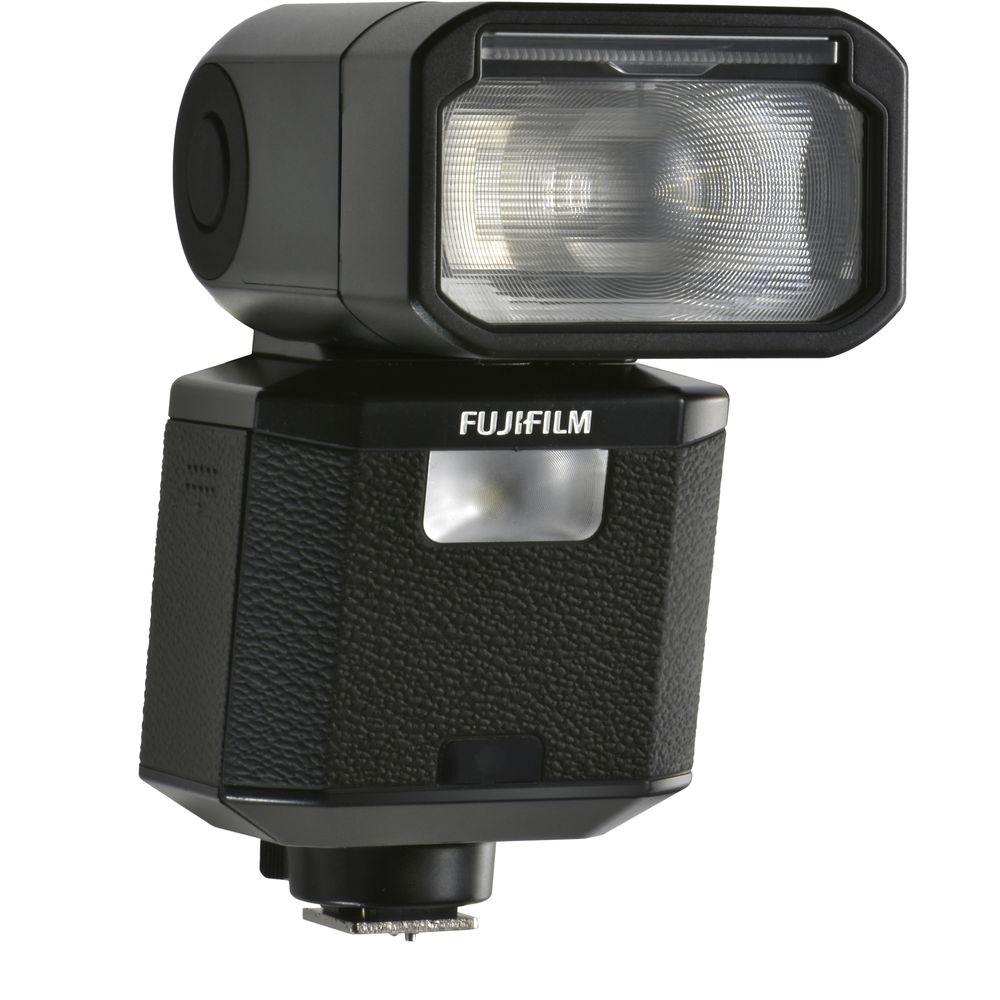

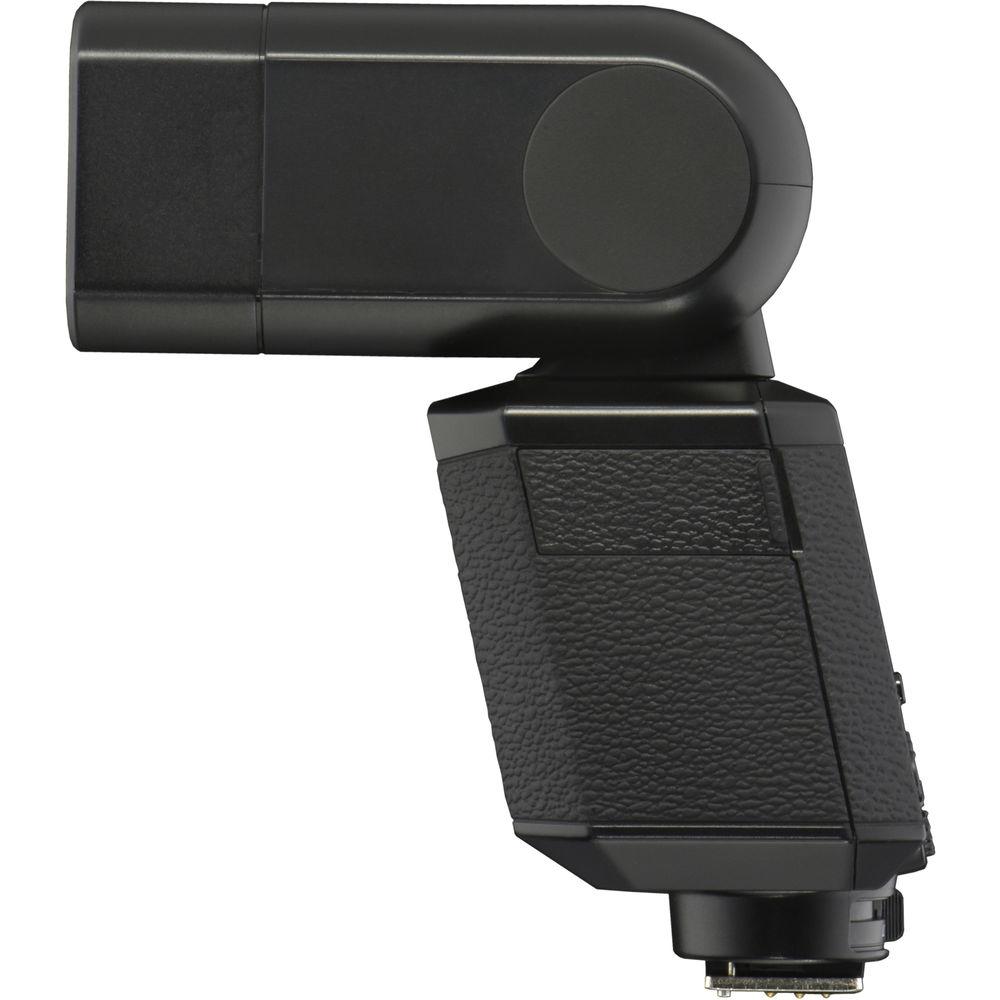

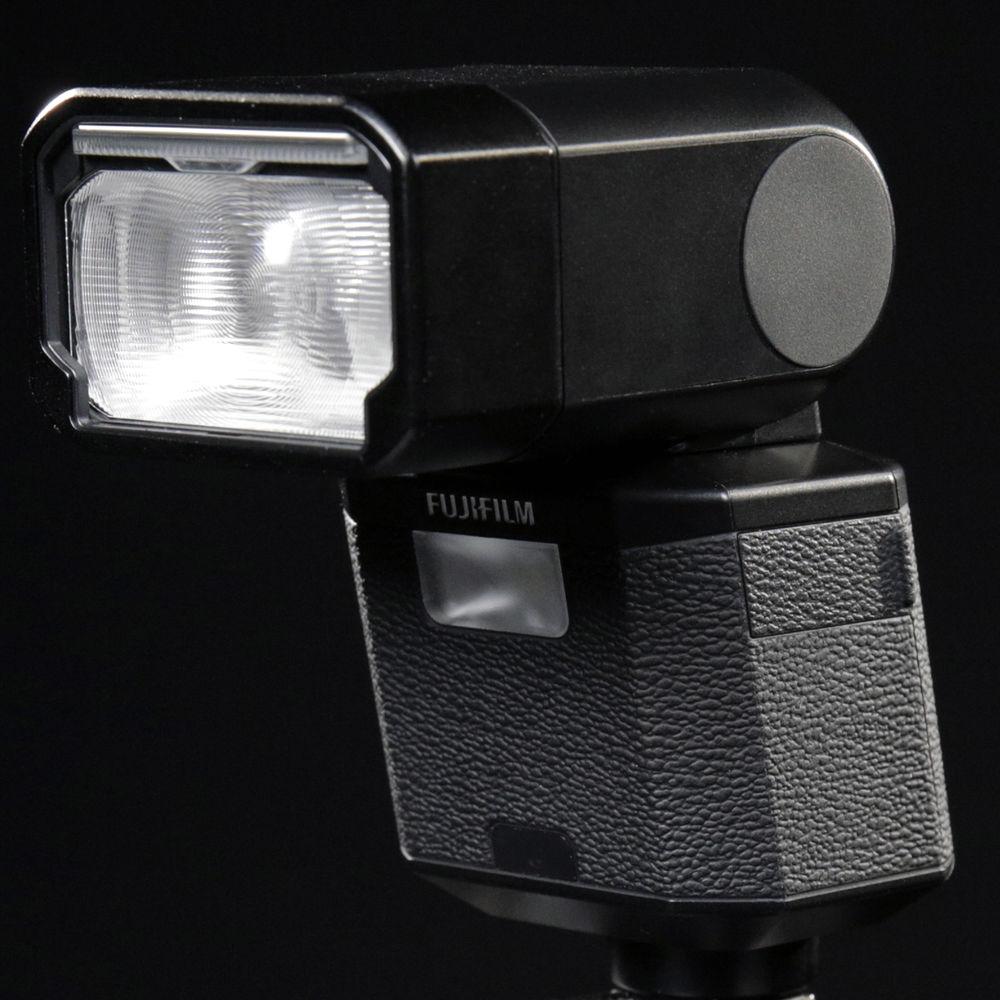

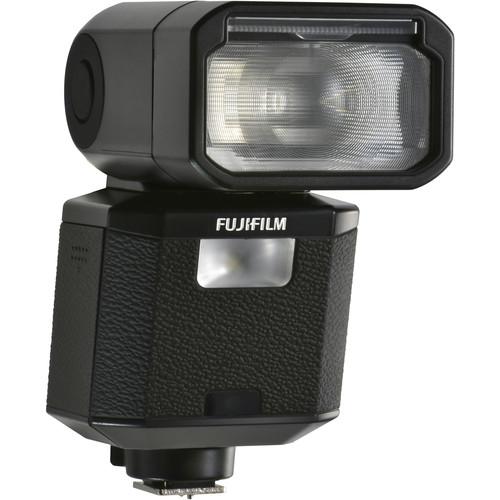

User Manual for FUJIFILM EF-X500 Flash Click to enlarge the picture
Contents of the user manual for the FUJIFILM EF-X500 Flash
- Product category: On Camera Flashes FUJIFILM
- Brand: FUJIFILM
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FUJIFILM On Camera Flashes
 |
User manual for the FUJIFILM EF-X500 Flash contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FUJIFILM product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FUJIFILM user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FUJIFILM product will considerably shorten its lifespan!
|

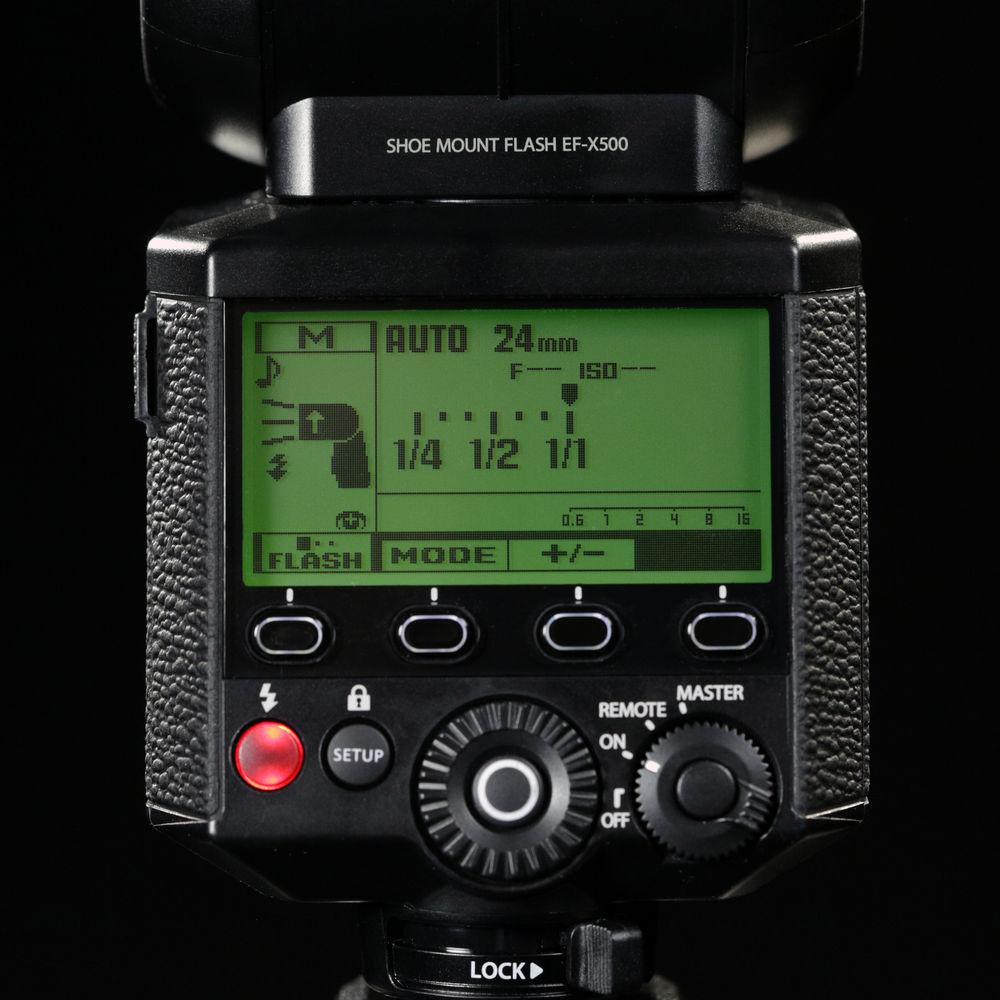

Product description Take advantage of high-speed sync, wireless control and triggering, and other advanced flash capabilities with the FUJIFILM EF-X500 Flash for X-series cameras. Featuring a lower profile, this weather-resistant flash is compatible with Fuji's TTL system, and a great option for the company's compact mirrorless cameras. It offers a powerful guide number of 164' at ISO 100 and 105mm settings as well as a zoom range of 24-105mm, equivalent to 16-70mm in APS-C lenses. A pull-out diffuser is available for expanding coverage to wider 20mm, or 10mm APS-C lenses. In keeping with hybrid stills/video camera designs, and offering an alternative fill light option to the pull-out bounce card built into the flash, is an LED light.

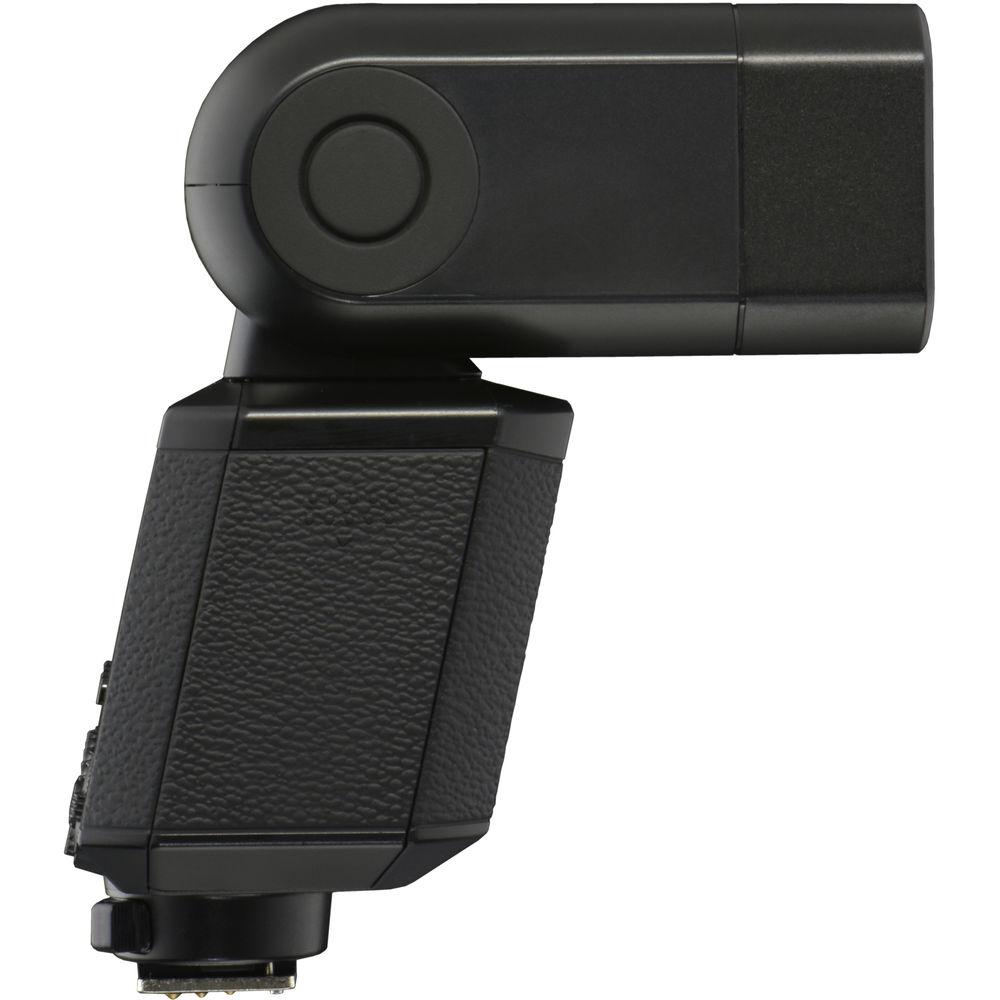

For bounce lighting, the EF-X500 can tilt from -10 to 90° and offers rotation left 135° and right 180°. A major addition to this flash is full wireless master and slave TTL functionality. It uses optical pulse communication to trigger and control remote EF-X500 flashes set up in one of four channels and within three groups. Additionally, the flash has a multi flash stroboscopic mode and runs on four AA batteries. - Powerful guide number of 164' at ISO 100 and 105mm
- Zoom range of 24-105mm in 35mm terms, or 16-70mm for APS-C format
- Pull-out diffuser offers support for 20mm optics and pull-out bounce card helps provide additional fill light
- Daylight-balanced color temperature of 5600K
- High-speed sync possible with select cameras
- Manual power control of 1/1 to 1/512 in 1/3 stop steps
- Multi repeating flash mode with setting of 1-500 Hz for 2-100 flashes
- Flash exposure compensation of -5 to +5 EV in 1/3 EV steps
- Requires master EF-X500 on the camera body for wireless operation
- Optical pulse communication has four channels and three groups
- Runs on four AA batteries of EF-BP1 battery pack
UPC: 074101028454 In the Box FUJIFILM EF-X500 Flash Diffuser Mini Stand Soft Case Limited 1-Year Warranty User Manual PDF 2mbzbbxbudreawereuevw Table of Contents
|
Upload User Manual
Have you got an user manual for the FUJIFILM EF-X500 Flash in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFUJIFILM EF-X500 Specs | Mount | Shoe | | Guide No. | 164.04' / 50 m ISO 100 at 105 mm Position | | Exposure Control | Manual, TTL | | Vari-Power | 1/1 to 1/512 | | Bounce Head | -10 to 90° | | Swivel Head | 315° | | Coverage | 20 - 105 mm (Full Frame) | | Zoom Head | Full Frame: 24 - 105 mm | | Recycle Time | Approximately 2.5 to 3.9 Seconds | | Flash-Ready Indicator | Yes | | Compensation | -5 EV to +5 EV (in 1/3 EV steps) | | Wireless Operation | Method: Optical Pulse
Distance: Up to 49.21' / 15 m | | Wireless Communication Channels | 4 Channels | | Wireless Groups | 3 Groups | | Power Source | 4 x AA Alkaline, Lithium, Rechargeable NiMH Batteries | | Dimensions (W x H x D) | 2.6 x 4.9 x 4.2" / 67.2 x 124.0 x 107.3 mm | | Weight | 13.40 oz / 380 g | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 8.9 x 5.1 x 4.6" |
Rating82% users recommend this product to others. And what about you?
This product has already been rated by 01 owners. Add your rating and experience with the product.
