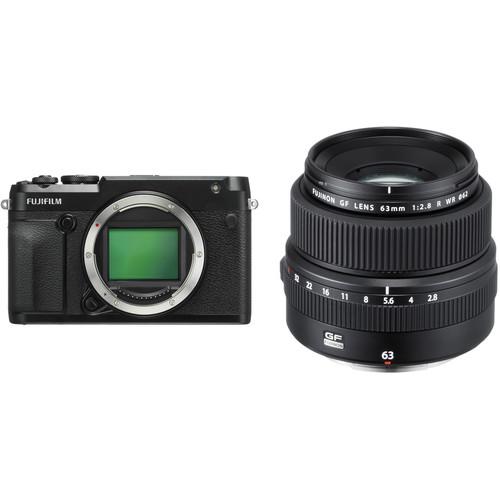

User Manual for FUJIFILM GFX 50R Medium Format Mirrorless Camera with 63mm Lens Kit Click to enlarge the picture
Contents of the user manual for the FUJIFILM GFX 50R Medium Format Mirrorless
- Product category: Medium Format Cameras FUJIFILM
- Brand: FUJIFILM
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FUJIFILM Medium Format Cameras
|
User manual for the FUJIFILM GFX 50R Medium Format Mirrorless contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FUJIFILM product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FUJIFILM user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FUJIFILM product will considerably shorten its lifespan!
|
Product description Pairing the sleek rangefinder-inspired camera with a normal-length prime, the FUJIFILM GFX 50R Medium Format Mirrorless Camera with 63mm Lens Kit from bundles the medium format body with the 50mm-equivalent GF 63mm f/2.8 R WR lens. - FUJIFILM GFX 50R Medium Format Mirrorless Camera (Body Only)
- PRECIOUS GFX 50R with Christoph Busse / FUJIFILM
Distinguished by its svelte, rangefinder-inspired design, the FUJIFILM GFX 50R is a sleek medium format mirrorless camera that is notably portable and highly capable. Revolving around a 43.8 x 32.9mm 51.4MP CMOS sensor, which is paired with the X-Processor Pro image processor, the GFX 50R is capable of producing high-resolution still imagery with an extremely wide dynamic range, a broad sensitivity range up to an extended ISO 102400, and the sensor's large size contributes to a unique three-dimensional look with especially smooth tonal and color transitions. The sensor and processor also enable recording Full HD 1080p30 video.
Benefitting the imaging capabilities is a comfortable physical design, which incorporates a 3.69m-dot OLED electronic viewfinder for bright, clear eye-level viewing. Alternatively, the rear 3.2" 2.36m-dot touchscreen LCD features a three-way tilting design that supports working from high and low angles, even when shooting in the vertical orientation. Additionally, the GFX 50R has a durable magnesium-alloy build that is also dust- and weather-sealed, as well as freezeproof down to 14°F, for working in trying environmental conditions. - 51.4MP CMOS Sensor and X-Processor Pro
- Utilizing a large, 43.8 x 32.9mm 51.4MP CMOS sensor and X-Processor Pro, the GFX 50R is capable of delivering high-resolution, 14-bit stills with a 14-stop wide dynamic range as well as a broad sensitivity range of ISO 100-12800, which can be extended to ISO 50-102400. The large size of each pixel allows for more efficient light gathering, too, for smoother tonal and color transitions to produce a characteristic three-dimensional "medium format look." Also contributing to several medium format looks, a variety of traditional medium and large format aspect ratios can be used in addition to the standard 4:3, including 1:1, 65:24, 5:4, 7:6, 3:2, and 16:9.
The image processor and sensor also lend a versatile edge to the system, and permit shooting continuously up to 3 fps or for recording Full HD 1080p video at 29.97, 25, 24, and 23.98 fps frame rates. Film Simulation modes, including a Color Chrome Effect to produce subtle tonality among highly saturated colors, can be used in conjunction with video recording, too, to lessen the need for color correction during post production. - Body Design
-
- Rangefinder-inspired design is compact and lightweight, and by placing the viewfinder in the upper corner of the body design, it is possible to keep one eye on the viewfinder while surveying the scene with the other.
- Magnesium-alloy body construction is both lightweight and durable, and the camera system is sealed in 64 places to render it weather- and dust-resistant, as well as freezeproof down to 14°F, for use in inclement conditions.
- Built-in 3.69m-dot OLED electronic viewfinder offers high-resolution, 0.77x-magnification eye-level viewing.
- A 3.2" 2.36m-dot touchscreen LCD is also available for image playback, menu navigation, and live view shooting. This LCD features a unique tilting design that moves both 45° downward and 90° upward for shooting from high and low angles, and also tilts 60° to the side to benefit shooting in the vertical orientation when in live view.
- A series of dedicated dials are placed about the body for independently adjusting aperture, shutter speed, and ISO.
- Included NP-T125 rechargeable lithium-ion battery provides approximately 400 shots per charge when Auto Power Save is on.
- Built-in Bluetooth low energy allows for direct wireless sharing of files as well as remote camera control from a linked mobile device.
- 117-Point Autofocus System
- A contrast-detection autofocus system is employed that uses 117 total points, which can be further divided into 425 points, for notable focusing speed and accuracy that is especially beneficial when working with the inherent shallow depth of field of medium format. Focus point selection is possible using the integrated Focus Lever for intuitive switching between points and, alternatively, the rear touchscreen can also be used for selecting precise focus areas. Face and Eye Detection AF are also available to benefit portraiture, and an electronic depth of field scale can be used for more critical selective focus. Additionally, focus peaking is available in manual focus mode as well as frame magnification for more critical focusing.
- Other Camera Features
-
- The FUJIFILM G lens mount features a short focal flange distance of just 26.7mm to better facilitate adapting lenses and to allow for reduced back focusing distances to better prevent vignetting and promote edge-to-edge sharpness with the GF series of lenses.
- Film Simulation modes allow you to reproduce the look and feel of several of FUJIFILM's film types, including Provia, Velvia, Astia, Classic Chrome, Pro Neg. Hi, Pro Neg. Standard, Acros, Monochrome, and Sepia. Additionally, Grain Effect can be adjusted as well as Classic Chrome effect to fine-tune the look of imagery.
- Dual UHS-II SD memory card slots are featured, and permit saving imagery in a sequential manner, backup/duplicate manner, or in a sorted manner to segregate JPEG and raw files.
- Mechanical focal plane permits working with shutter speeds from 60 minutes up to 1/4000 sec, and an electronic shutter allows the use of shutter speeds up to 1/16000 sec for working in bright light conditions.
- Interval shooting is possible for up to 999 consecutive frames with a 1 sec to 24 hour delay between exposures, as well as up to a 24 hours shutter delay.
- Multiple Exposure mode lets you shoot two consecutive overlaid frames, and the first frame will be shown on the rear LCD to aid in alignment for the second exposure.
- A variety of file formats are available depending on your workflow needs, and include uncompressed and compressed raw file types; Super Fine, Fine, and Normal JPEG settings; and TIFF files can be output via in-camera raw file development.
- A voice memo function lets you solely record your voice for up to 30 seconds at a time for making notes or keeping track of shooting information.
- 3D Electronic Level can be used to ensure the accuracy of horizontal and vertical lines within your composition.
- Tethered shooting is possible using Capture One Pro for FUJIFILM software to send images from the camera to your computer for further editing. Alternatively, the Tether Shooting Plug-in PRO for Adobe Photoshop Lightroom and HS-V5 for Windows operating systems are also available.
UPC: 074101040128 - FUJIFILM GF 63mm f/2.8 R WR Lens
- PRECIOUS GFX 50R with Christoph Busse / FUJIFILM
A sleek and versatile normal-length prime, the GF 63mm f/2.8 R WR from FUJIFILM is a 50mm equivalent lens for the G-mount GFX camera system. Its 10 elements, eight groups optical design incorporates one extra-low dispersion element to reduce chromatic aberrations and color fringing for improved clarity and color accuracy throughout the aperture range. A fluorine coating has also been added to the front element to repel moisture and the lens also features a dust-, freeze-, and weather-resistant construction for use in inclement conditions. Additionally, a manual aperture ring is featured for intuitive, tactile adjustment over exposure settings, and a Command position can also be set for camera-based control over the aperture. - Standard-length prime lens offers a 50mm equivalent focal length to realize a normal field of view for working with a variety of subjects.
- Bright f/2.8 maximum aperture benefits working in low-light conditions as well as enables a high degree of control over depth of field.
- The optical design incorporates one extra-low dispersion element to reduce chromatic aberrations and color fringing throughout the aperture and focusing ranges for notable clarity and color fidelity.
- The front optical group is used for focusing to Minimize aberrations and distortions throughout the focusing range.
- Physical aperture ring allows for intuitive adjustment over exposure settings, and incorporates a C (Command) position to permit camera-based aperture setting.
- The front element features a hydrophobic fluorine coating to repel moisture.
- Dust- and weather-sealed physical construction enables working in harsh climates and temperatures as low as 14°F.
- Rounded nine-blade diaphragm contributes to a pleasing bokeh quality.
UPC: 074101032062 In the Box GFX 50R Medium Format Mirrorless Camera (Body Only) cbqfrctqtzcqztwbuarbayau NP-T125 Rechargeable Lithium-Ion Battery BC-T125 Battery Charger Plug Adapter BCP-002 Body Cap Shoulder Strap Strap Clip Clip Attaching Tool Protective Cover Cable Protector Hot Shoe Cover Sync Terminal Cover Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FUJIFILM GFX 50R Medium Format Mirrorless Camera with 63mm Lens Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - FUJIFILM GFX 50R Medium Format Mirrorless Camera (Body Only)
Resolution | 51.4 MP | Sensor | 43.8 x 32.9 mm CMOS sensor, Bayer array with primary color filter | Storage Type | 2x SD card slots Both slots support UHS-I/UHS-II SD/SDHC/SDXC memory cards | File Formats | Still Image: JPEG (Exif ver. 2.3), raw (14-bit RAF), raw + JPEG, 8-bit TIFF via in-camera raw conversion
Movie: MOV (MPEG-4 AVC/H.264) Audio: Linear PCM (stereo sound, 48 kHz sampling) | Number of Recording Pixels | 8256 x 6192 | Aspect Ratios | 4:3, 3:2, 16:9, 1:1, 65:24, 5:4, 7:6 | Lens Mount | FUJIFILM G-mount | Sensitivity | Auto, ISO 100-12800 (Extended Range: ISO 50-102400) | Exposure Control | TTL 256-zone metering Multi, Spot, Average, Center-Weighted | Exposure Mode | Program, Aperture Priority, Shutter Speed Priority, Manual | Exposure Compensation | +/- 5 EV in 1/3 steps (movie recording: +/- 2 EV) | Shutter Type | Focal plane shutter | Shutter Speed | Mechanical Shutter: 4 to 1/4000 sec in P mode; 60 minutes to 1/4000 sec in all other modes Bulb and Time modes up to 60 minutes
Electronic Shutter: 4 to 1/16000 sec in P mode; 60 minutes to 1/16000 sec in all other modes Bulb and Time modes up to 60 minutes
Electronic Front Curtain Shutter: 4 to 1/4000 sec in P mode; 60 minutes to 1/4000 sec in all other modes Bulb and Time modes up to 60 minutes
Mechanical + Electronic Shutter: 4 to 1/16000 sec in P mode; 60 minutes to 1/16000 sec in all other modes Bulb and Time modes up to 60 minutes
Electronic Front Curtain Shutter + Electronic Shutter: 4 to 1/16000 sec in P mode; 60 minutes to 1/16000 sec in all other modes Bulb and Time modes up to 60 minutes
Sync Speed for Flash: 1/125 sec or slower | Continuous Shooting | Approx. 3 fps for unlimited JPEGs, 13 lossless compressed raw files, or 8 uncompressed raw files | Focus | 117-point TTL contrast-detection system Manual, Continuous, Single focus modes AF Frame Selection: Single-Point, Zone AF, Wide/Tracking AF | White Balance | Automatic Scene Recognition, Custom, Color Temperature Selection (K), Preset (Daylight, Shade, Fluorescent Light [Daylight], Fluorescent Light [Warm White], Fluorescent Light [Cool White], Incandescent Light, Underwater) | Self-Timer Delay | 10 or 2 sec delay | Interval Shooting | Yes | Flash Modes | Sync Mode: 1st Curtain, 2nd Curtain, Auto FP (HSS) Flash Mode: TTL (Flash Auto, Standard, Slow Sync), Manual, Off | Hot Shoe | Yes; dedicated TTL flash compatible | Viewfinder | 0.5" / 1.3 cm 3.69m-dot OLED 100% frame coverage Eyepoint: Approx. 23 mm Diopter Adjustment: -4 to +2 m Magnification: 0.77x Diagonal Angle of View: Approx. 38° Horizontal Angle of View: Approx. 30° Built-in eye sensor | LCD Monitor | 3.2" 2.36m-dot tilting touchscreen LCD 4:3 aspect ratio 100% frame coverage | Video Recording | Full HD 1920 x 1080 at 29.97p, 25p, 24p, and 23.98p at 36 Mb/s HD 1280 x 720 at 29.97p, 25p, 24p, and 23.98p at 18 Mb/s Maximum Recording Length: Approx. 30 minutes | Wireless Connectivity | Bluetooth low energy IEEE 802.11b/g/n WEP, WPA, WPA2 mixed mode encryption Infrastructure access mode | Terminal | USB Type-C (USB 3.1 Gen. 1) terminal Micro-HDMI connector (Type-D) 3.5 mm stereo Mini connector for external microphone 2.5 mm remote release connector DC in 15 V connector (compatible with optional AC-15V AC Adapter) Hot shoe PC sync terminal | Battery Type | NP-T125 rechargeable lithium-ion battery Approx. 400 shots per charge | Startup Time | Approx. 0.4 sec | Operating Conditions | 14-104°F / -10-40°C 10-80% humidity (no condensation) | Dimensions | 6.3 x 3.8 x 2.6" / 160.7 x 96.5 x 66.4 mm Minimum Depth: 1.8" / 46 mm | Weight | 1.7 lb / 775 g (with battery and memory card) 1.5 lb / 690 g (body only) | | Box Dimensions (LxWxH) | 17.0 x 10.15 x 10.1" | - FUJIFILM GF 63mm f/2.8 R WR Lens
Focal Length | 63 mm | Aperture | Maximum: f/2.8 Minimum: f/32 | Camera Mount | Fujifilm G | Angle of View @ Infinity | 46.9° | Minimum Focus Distance | 1.64' / 50 cm | Diaphragm Blades | 9 | Optical Design | 10 Elements in 8 Groups | Magnification | 0.17x | Flange Focal Distance | 26.7 mm | Autofocus | Yes | Filter Thread | Front: 62 mm | Dimensions | Approx. 3.31 x 2.80" (84 x 71 mm) | Weight | 14.29 oz / 405 g | | Box Dimensions (LxWxH) | 8.5 x 6.5 x 5.7" |
