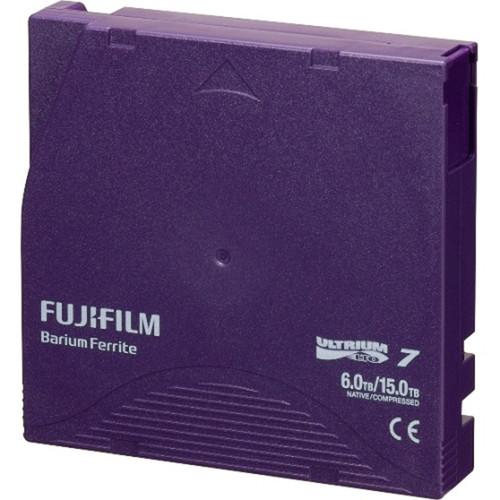

User Manual for FUJIFILM LTO Ultrium 7 6TB Data Cartridge Tape with Barium Ferrite Technology Click to enlarge the picture
Contents of the user manual for the FUJIFILM LTO Ultrium 7 6TB Data
- Product category: Archiving Media FUJIFILM
- Brand: FUJIFILM
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FUJIFILM Archiving Media
|
User manual for the FUJIFILM LTO Ultrium 7 6TB Data contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FUJIFILM product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FUJIFILM user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FUJIFILM product will considerably shorten its lifespan!
|
Product description Composed of Barium Ferrite, the LTO Ultrium 7 6TB Data Cartridge Tape from FUJIFILM supports native transfer rates of up to 300 MB/s and compressed transfer rates of up to 700 MB/s for fast efficient data transmission. In addition to enhanced data rates, this LTO Ultrium 7 drive supports a native capacity of 6.0TB and compressed capacity of 15.0TB allowing users to store a large amount of data. - Barium Ferrite Technology
- Barium Ferrite is a type of magnetic particle which can be greatly reduced in size to improve recording density without magnetic signal loss. Barium Ferrite can maintain critical magnetic properties such as coercivity, frequency characteristics and lower noise even with a smaller particle size, resulting in the LTO Ultrium 7 cartridge having dramatically higher capacity compared to past generations of LTO cartridges.
Barium Ferrite is chemically stable (already oxidized) and does not get easily demagnetized by outside energy interference. Therefore, magnetic tape using Barium Ferrite can achieve a long archival life of more than 30 years based upon FUJIFILM's accelerated life tests. With better frequency characteristics than metal particles, Barium Ferrite has a significantly increased margin of recording capability even when the ability of the drive head has diMinished after repeated use. - Nanocubic Technology
- For LTO Ultrium 7 development, FUJIFILM has further advanced the NANOCUBIC technology with the following key technologies and has successfully achieved a higher recording density:
1.) Development of finer magnetic particles
2.) Developed uniform particle dispersion technology by applying high-dispersed binder technology
3.) Advanced nano-coating technology was improved to achieve a smoother and even thinner magnetic layer resulting in a significant decrease in tape surface defects - Reel Design
- As the tape length increases, there is a tendency of increased pressure on the hub with the potential risk of causing hub deformation. This may lead to potential problems, such as tape edge damage or other physical anomalies. In order to avoid such hub deformation, FUJIFILM has strengthened the hub structure by applying a new design with new materials. As a result, FUJIFILM has successfully achieved both running stability in the drive and a highly reliable archival life expectancy.
UPC: 074101027808 In the Box FUJIFILM LTO Ultrium 7 6TB Data Cartridge Tape with Barium Ferrite Technology Limited Lifetime Manufacturer Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FUJIFILM LTO Ultrium 7 6TB Data Cartridge Tape with Barium Ferrite Technology in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFUJIFILM 16456574 Specs | Compressed Capacity | 15 TB | | Uncompressed Capacity | 6 TB | | Native Transfer Rate | 300 MB/s | | Tape Length | 3150' / 960 m | | Tape Thickness | 5.6 µm | | Tracks | 3584 | | Operating Temperature | 50 to 113°F / 10 to 45°C | | Operating Humidity | 10 to 80% | | Storage Temperature | 61 to 90°F / 16 to 32°C | | Storage Humidity | 20 to 80% | | Dimensions (W x H x D) | 4.2 x 4.0 x 0.9" / 101.6 x 106.7 x 22.9 mm | | | | Package Weight | 0.6 lb | | Box Dimensions (LxWxH) | 4.5 x 4.2 x 1.1" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 08 owners. Add your rating and experience with the product.
