FUJIFILM MKX18-55mm T2.9 Lens & Hoya

User Manual for FUJIFILM MKX18-55mm T2.9 Lens & Hoya 82mm NXT Plus UV Filter Kit

• Product category: Digital Cine Lenses FUJIFILM
• Brand: FUJIFILM
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for FUJIFILM Digital Cine Lenses

Product description

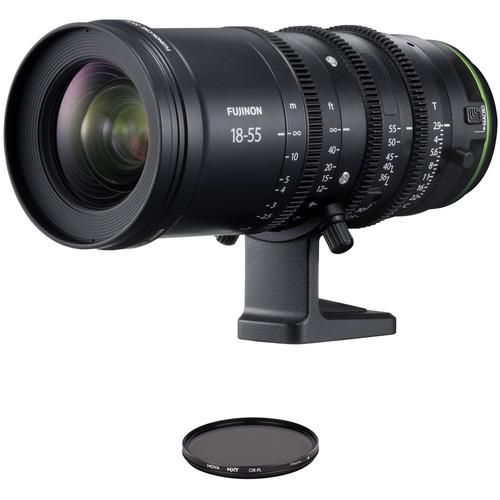

• FUJIFILM MKX18-55mm T2.9 Lens (Fuji X-Mount) The Fujinon MKX18-55mm T2.9 Lens in X-Mount is a lightweight cine-style zoom lens for X-mount cameras with a Super 35mm-sized sensor. The electrical contacts within the lens mounts allows communication with X-series cameras. It features a mechanical design with three independent lens control rings: focus, iris, and zoom. Each ring incorporates a cine-style gear with a 0.8 MOD for interfacing with standard cine -style lens accessories. The focus ring features approximately 200° of rotation, which provides room for precise focus pulls, and the iris is clickless, enabling smooth iris pulls. The lens also incorporates a macro mode for close focusing capabilities.

  The lens is color matched to other Fujinon lenses such as the HK, ZK, and XK series, which enables smooth intercutting between lenses. The 85mm front enables use with many cine-style matte boxes via use of optional step-up rings (rings not included). The lens weighs only 2.16 pounds, which is fairly light for a cinema zoom that holds focus and aperture throughout the focal length range. It is designed for cameras with a Fuji X-mount, so it has a short flange focal distance, but the lens allows for flange focal distance adjustment so you can fine-tune it to the camera you are using the lens on.
  • The electical contacts within the lens mount enables communication with X-series cameras, which allows for correction of distortion and color/brightness shading to prevent vignetting. This communication also enables you to achieve a variety of color expressions when using Film Simulation modes.
  • T2.9 to T22 aperture with 9 iris blades for attractive bokeh
  • The 28.5mm diameter image circle covers the 3-perf super 35 format with a 16:9 aspect ratio
  • Industry standard 0.8 film pitch gears for focus, zoom, and iris control
  • The gear rings positions for focus, zoom, and iris are located at the same position on both lenses in the MKX series, making switching between the two zooms quick as you don't have to adjust the position of lens accessories
  • Both lenses in the MKX series have the same weight and length so here is no need to rebalance your camera when you change from one lens to the other
  • 200° focus barrel rotation
  • No shims are required to adjust the flange focal distance as this lens has a built-in adjustment mechanism
  • Macro focus function available
  UPC: 074101037197
• Hoya 82mm NXT Circular Polarizer Filter The Hoya 82mm NXT Circular Polarizer Filter helps to reduce reflections and glare by filtering out light that has become polarized due to reflection from a non-metallic surface. The light from the sun naturally becomes partially polarized due to reflecting off electrons in air molecules, causing the light to scatter into what appears as haze. A polarizing filter arranges, and filters, this directionally polarized light perpendicularly to the reflected light, allowing for the absorption of much of this light. This results in a noticeable reduction of glare and reflections from non-metallic surfaces and an increase in the saturation of skies and foliage.

  A circular polarizer only differs from a linear polarizer in that it contains a quarter wave plane in addition to the linear polarizing filter. The addition of this quarter wave plane is to circularly polarize the linearly polarized light for the use of auto focus and exposure functions. Due to how the light is broken down and filtered with a linear polarizer, auto focus and exposure accuracy become skewed during use. When the light becomes circularly polarized, it permits the use of these functions.

  This filter is non-coated. Hoya NXT filters have over 97% average light transmission, and are constructed from heat-resistant, high-transparency optical glass.
  • Helps to reduce reflections and glare by filtering out light that has become polarized due to reflection from a non-metallic surface.
  • Polarizing filters arrange, and filter, directionally polarized light perpendicularly to the reflected light, allowing for the absorption of much of the light.
  • Clears up haze in distant landscapes and provides more saturated, vivid colors.
  • Non-coated.
  • Strongest effect when used at a 90° angle from the sun.
  • Circular polarizers are ideal for use with digital cameras and autofocus lenses where a linear polarizer will often disrupt auto exposure and focus features.
  • Over 97% average light transmission.
  • Constructed from heat-resistant, high-transparency optical glass.
  UPC: 024066055712

• MKX18-55mm T2.9 Lens (Fuji X-Mount) uarvfeeurdzdvscdrsctuftsc
• Zoom Lever
• Support Foot
• Lens Hood
• Limited 1-Year Warranty

• Hoya - 82mm NXT Circular Polarizer Filter

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• FUJIFILM MKX18-55mm T2.9 Lens (Fuji X-Mount)

  Focal Length	18 to 55mm
  Lens Mount	Fujifilm X
  Format	Super35/APS-C
  Image Circle	28.5 mm
  Maximum T-Stop	T2.9 to 22
  Minimum Focus Distance from Image Plane	2.8' / 0.85 m
  Optical Design	22 Elements in 17 Groups
  Iris Blades	9
  Gear MOD & Pitch	Focus: 0.8 MOD / 32 Pitch Iris: 0.8 MOD / 32 Pitch Zoom: 0.8 MOD / 32 Pitch
  Front Diameter	85 mm
  Filter Thread	82 mm
  Focus Rotation	200°
  Zoom Ratio	3x
  Electronic Communication	Yes
  Tripod Mounting Thread	1/4"-20
  Length	8.12" / 20.62 cm
  Weight	2.2 lb / 1.0 kg

  Box Dimensions (LxWxH)	15.1 x 7.5 x 7.45"

• Hoya 82mm NXT Circular Polarizer Filter

  Filter Type	Circular Polarizer
  Filter Factor	2 - 4 (1 - 2 Stop)
  Shape	Circle
  Circular Size	82 mm
  Front Accessory Thread / Bayonet	82 mm
  Filter Material	Glass
  Coatings	None

  Box Dimensions (LxWxH)	4.3 x 3.5 x 0.6"
