FUJIFILM X-A5 Mirrorless Camera with 15-45mm

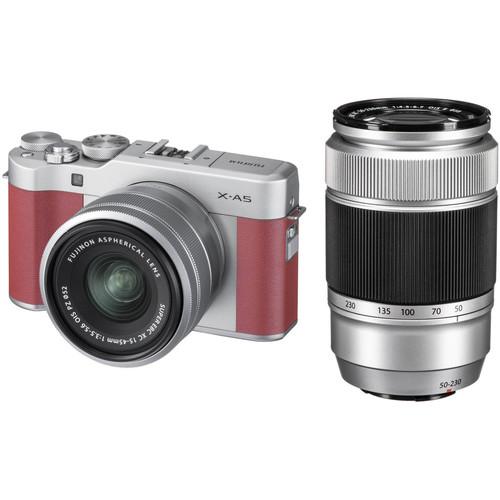

User Manual for FUJIFILM X-A5 Mirrorless Camera with 15-45mm and 50-230mm Lens Kit

• Product category: Mirrorless System Cameras FUJIFILM
• Brand: FUJIFILM
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for FUJIFILM Mirrorless System Cameras

Product description

• FUJIFILM X-A5 Mirrorless Digital Camera with 15-45mm Lens (Pink)
  • FUJIFILM X-A5 Promotional Video
  Combining a retro look with modern functionality, the pink X-A5 Mirrorless Digital Camera from FUJIFILM is a mirrorless camera that sports a 24.2MP APS-C CMOS sensor and an updated processor that is 1.5 times faster than previous models. It is designed to be portable and easy to carry around, weighing only 1.1 lb with its included 15-45mm f/3.5-5.6 kit lens. However, the camera still comes fully featured for a professional shooter, offering UHD 4K recording and Full HD video at 60 fps as well as an Intelligent Hybrid AF system with phase-detect points for lightning-fast focusing. The X-A5 offers several functions and filters that aim to simplify your life while shooting. 4K Burst Function allows you to quickly produce stills at 15 fps, so you can select the best frame, while a Portrait Enhancer Mode helps ensure that skin tones are rendered in a pleasing way. A Multi Focus Mode is available for focus stacking, automatically merging 4K images and adjusting the required depth of field for the best result. Finally, seventeen advanced filters and eleven film simulation filters are offered to fit a variety of situations, including fog removal and HDR photography. Operation is made easy thanks to the camera's tilting 3" LCD touchscreen, which comes with a notable 1040k-dot resolution and revamped GUI for more intuitive use. Once the screen is turned 180 degrees for taking selfies, the camera's rear command dial automatically switches functions to allow for easy control of the zoom and shutter release. The rotation also automatically activates an eye detection AF function, which helps ensure that the subject's face is sharply in focus. Other features of the X-A5 include a maximum ISO sensitivity of 12,800, up to 450 pictures per charge, and Bluetooth connectivity for transferring files to a smartphone, tablet, or directly to your INSTAX SP-3 printer.
  • • Compact mirrorless camera, weighing 1.1 lb with kit lens installed
    • APS-C cropped sensor offering 24.2MP stills and video recording up to UHD 4K
    • Intelligent Hybrid AF system for fast focusing, featuring phase-detection technology
    • LCD touchscreen tilts 180 degrees for selfie shooting, with a rear command dial for easy shutter release and eye detection AF function to help ensure sharp focus on subject
    • Electronic shutter with a maximum speed of 1/32,000 seconds
    • Burst Function captures 4K stills at up to 15 fps so you can select the best one from the bunch
    • Multi Focus Mode automatically performs focus stacking with 4K images, adjusts depth of field for optimized results
    • Portrait Enhancer mode helps ensure that skin tones are rendered in a pleasing way
    • Quiet Venue mode disables the sound of the shutter and controls, so the camera makes as little noise as possible
    • Advanced filters include soft focus, low-key, HDR art, fog removal, and toy camera modes
    • Film simulation filters designed to replicate the look of film prints, including Velvia, classic chrome, and sepia tones
    • Normal scene modes available such as fireworks, sunset, beach, portrait, etc.
    • Regular range of ISO sensitivity is extended up to 12,800, allowing for shooting in low-light conditions
    • Built-in manual pop-up flash on left side of camera
    • Dedicated exposure compensation dial for changing up to plusmn;5 stops in 1/3 steps
    • Bluetooth connectivity for transferring pictures and video to a smartphone, tablet, or INSTAX SP-3 printer
  UPC: 074101036183
• FUJIFILM XC 50-230mm f/4.5-6.7 OIS II Lens (Silver)
  • FUJIFILM X-A5 Promotional Video
  Covering short- to medium-telephoto focal lengths, the silver XC 50-230mm f/4.5-6.7 OIS II from FUJIFILM is a 76-350mm-equivalent zoom suitable for working with a range of distance subjects, from portraits to sports. Its optical design includes one aspherical element and one extra-low dispersion element, which help to reduce a variety of aberrations in order to produce a high degree of sharpness, clarity, and color accuracy. A Super EBC coating has also been applied to individual elements to control flare and ghosting for increased contrast when working in strong lighting conditions. Complementing the optical design is a 3.5 stop-effective image stabilization system, which minimizes the appearance of camera shake to benefit shooting handheld. Additionally, a stepping AF motor provides fast and quiet focusing performance and a rounded seven-blade diaphragm contributes to a pleasing bokeh quality.
  • Telephoto zoom is designed for FUJIFILM X-mount mirrorless cameras and provides a 76-350mm equivalent focal length range.
  • One extra-low dispersion element is used to reduce color fringing and chromatic aberrations in order to produce high clarity and color fidelity throughout the zoom range.
  • One aspherical element controls distortion and spherical aberrations, which helps to improve sharpness and realize more accurate rendering.
  • Super EBC coating has been applied to individual elements to reduce lens flare and ghosting for improved contrast and color fidelity when working in strong lighting conditions.
  • Stepping motor affords fast and quiet autofocus performance that benefits both stills and video applications.
  • Optical image stabilization minimizes the appearance of camera shake by 3.5 stops to better enable handheld shooting with slower shutter speeds.
  • Rounded seven-blade diaphragm contributes to a pleasing out-of-focus quality to benefit the use of selective focus and shallow depth of field techniques.
  UPC: 074101023329

• X-A5 Mirrorless Digital Camera with 15-45mm Lens (Pink) wtweffteeb
• XC 15-45mm f/3.5-5.6 OIS PZ Lens
• NP-W126S Li-Ion Battery Pack
• Shoulder Strap
• Body Cap
• AC Power Adapter
• Plug Adapter
• USB Cable
• Limited 1-Year Warranty

• XC 50-230mm f/4.5-6.7 OIS II Lens (Silver) wtweffteeb

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• FUJIFILM X-A5 Mirrorless Digital Camera with 15-45mm Lens (Pink)

  Lens Mount	FUJIFILM X
  Camera Format	APS-C (1.5x Crop Factor)
  Pixels	24.2 Megapixel
  Maximum Resolution	6000 x 4000
  Aspect Ratio	1:1, 3:2, 16:9
  Sensor Type	CMOS
  Sensor Size	23.5 x 15.7 mm
  Image File Format	JPEG, RAW
  Image Stabilization	None

  ISO Sensitivity	200 to 12800 (Extended: 100 to 51200)
  Shutter Speed	Mechanical Shutter 1/4000 to 30 Seconds in Manual Mode 1/4000 to 4 Seconds in Program Mode 0 to 60 Minutes in Bulb Mode Electronic Shutter 1/32000 to 30 Seconds in Manual Mode 1/32000 to 4 Seconds in Program Mode 0 to 60 Minutes in Bulb Mode
  Metering Method	Average, Multi-Zone, Spot
  Exposure Modes	Aperture Priority, Manual, Program, Shutter Priority
  Exposure Compensation	-5 to +5 EV (1/3 EV Steps)
  White Balance	Automatic Scene Recognition, Color Temperature, Custom, Fine, Fluorescent (Cool White), Fluorescent (Daylight), Fluorescent (Warm White), Incandescent, Shade, Underwater
  Continuous Shooting	Up to 6 fps for up to 10 Exposures (JPEG Format) Up to 3 fps for up to 50 Exposures (JPEG Format)
  Interval Recording	Yes
  Self Timer	2/10-Second Delay

  Recording Modes	MOV/H.264 UHD 4K (3840 x 2160) at 15p Full HD (1920 x 1080) at 23.976p/24p/50p/59.94p HD (1280 x 720) at 23.976p/24p/50p/59.94p
  Recording Limit	Up to 27 Minutes
  Audio Recording	Built-In Microphone (Stereo)
  Audio File Format	Linear PCM (Stereo)

  Focus Type	Auto and Manual Focus
  Focus Mode	Automatic (A), Continuous-Servo AF (C), Manual Focus (M), Single-Servo AF (S)

  Monitor Size	3"
  Monitor Resolution	1,040,000 Dot
  Monitor Type	Tilting Touchscreen LCD

  Built-in Flash	Yes
  Flash Modes	Auto, Commander, Forced On, Rear Curtain/Slow Sync, Red-Eye Reduction, Suppressed Flash
  Guide Number	13.12' / 4 m at ISO 100
  Maximum Sync Speed	1/180 Second
  Dedicated Flash System	TTL
  External Flash Connection	Hot Shoe

  Memory Card Slot	1 x SD/SDHC/SDXC
  Connectivity	2.5mm Sub-Mini, HDMI D (Micro), USB 2.0 Micro-B
  Wireless	Wi-Fi Bluetooth
  GPS	None

  Operating Temperature	32 to 104°F / 0 to 40°C
  Operating Humidity	10 to 80%

  Battery	1 x NP-W126S Rechargeable Lithium-Ion, 8.4 VDC, 1260 mAh
  Dimensions (W x H x D)	4.6 x 2.7 x 1.6" / 11.7 x 6.8 x 4.0 cm
  Weight	12.73 oz / 361 g (Body with Battery and Memory)

  Focal Length	15 to 45mm (35mm Equivalent Focal Length: 23 to 69mm)
  Maximum Aperture	f/3.5 to 5.6
  Minimum Aperture	f/22
  Angle of View	86.9 Rating 90% users recommend this product to others. And what about you? This product has already been rated by 83 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
