User Manual for FUJIFILM X-H1 Mirrorless Digital Camera Body with Accessory Kit Click to enlarge the picture
Contents of the user manual for the FUJIFILM X-H1 Mirrorless Digital Camera Body
- Product category: Mirrorless System Cameras FUJIFILM
- Brand: FUJIFILM
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FUJIFILM Mirrorless System Cameras
|
User manual for the FUJIFILM X-H1 Mirrorless Digital Camera Body contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FUJIFILM product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FUJIFILM user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FUJIFILM product will considerably shorten its lifespan!
|

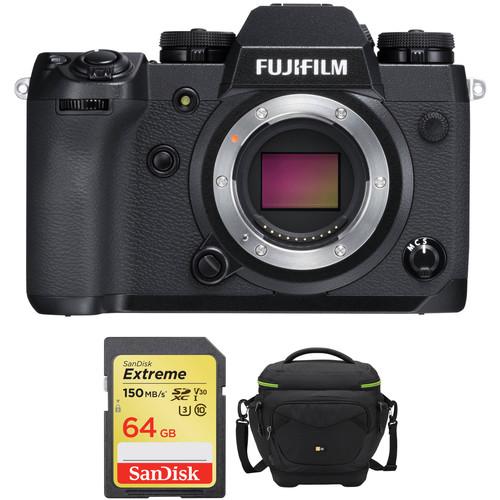

Product description An essentials kit, the FUJIFILM X-H1 Mirrorless Digital Camera with Accessory Kit from bundles the advanced mirrorless body with a memory card and a camera bag. - FUJIFILM X-H1 Mirrorless Digital Camera (Body Only)
- Hands-On Review: Fujifilm X-H1
- FUJIFILM X-H1 Promotional Video
Offering plenty of features inside a durable magnesium-alloy housing, the X-H1 Mirrorless Digital Camera from FUJIFILM aims to position itself as a leading option for professional video and photo work. Equipped with a 24.3MP APS-C X-Trans CMOS III image sensor and the X-Processor Pro Engine, this camera allows you to capture high quality imagery quickly and with low noise at sensitivities up to ISO 51200. A major implementation is an in-body 5-axis image stabilization system, a first for X-Series cameras, which can compensate for up to 5.5 stops of shutter speed to create sharp imaging even when little light is available.In the video department, the X-H1 offers DCI 4K shooting at 24 fps and a boosted 200 Mb/s bit rate for internal footage. Slow motion can be achieved in a high-speed video mode that boasts Full HD 1080p video at up to 120 fps. Professionals will also enjoy the addition of internal F-log recording to an SD card, which allows for a more streamlined workflow, as well as an ETERNA mode that aims to simulate cinematic film with desaturated colors and rich shadow tones. And if you ever find yourself without your shotgun mic, the camera's built-in microphone can save your life in a pinch with 24-bit/48 kHz recording.Several improvements can be seen in the X-H1's design, including a larger hand grip and back buttons, an info display on the top right side, and the addition of an AF-ON button. The weather-sealed body sports dual UHS-II SD card slots and makes use of a 0.5" 3.69m-dot EVF with 0.75x magnification, which features a low display time lag of only 0.005 seconds and a refresh rate of 100 fps for smooth and accurate composition. When not shooting at eye level, the articulated 3.0" 1.04m-dot LCD offers touch functions and a unique three-way tilt that allows you to achieve nearly any viewing angle. Also available is a 1.28" sub-LCD info screen on the top right of the camera for viewing your settings on the fly. And for those that regularly shoot sports under fluorescent lighting, the XH-1 comes with a flicker reduction mode to help your exposures stay accurate at fast shutter speeds. - 24.3MP APS-C X-Trans CMOS III Sensor
- Utilizing FUJIFILM's unique, randomized pixel array, the 24.3MP APS-C X-Trans CMOS III sensor affords a high degree of image quality and sharpness due to the omission of an optical low-pass filter. Versus conventional pixel patterns, the X-Trans design more closely mimics the organic nature of film in order to produce nuanced colors and smooth tonal transitions, while also reducing moir
|
Upload User Manual
Have you got an user manual for the FUJIFILM X-H1 Mirrorless Digital Camera Body with Accessory Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - FUJIFILM X-H1 Mirrorless Digital Camera (Body Only)
| | | Lens Mount | FUJIFILM X | | Camera Format | APS-C (1.5x Crop Factor) | | Pixels | 24.3 Megapixel | | Maximum Resolution | 6000 x 4000 | | Aspect Ratio | 1:1, 3:2, 16:9 | | Sensor Type | CMOS | | Sensor Size | 23.5 x 15.6 mm | | Image File Format | JPEG, RAW | | Bit Depth | 14-Bit | | Image Stabilization | Sensor-Shift, 5-Axis | | | | ISO Sensitivity | Auto, 200 to 12800 (Extended: 100 to 51200) | | Shutter Speed | Electronic Shutter
1/32000 to 30 Seconds in Auto Mode
Mechanical Shutter
1/8000 to 30 Seconds in Auto Mode | | Metering Method | Average, Center-Weighted Average, Multi-Zone, Spot | | Exposure Modes | Aperture Priority, Manual, Program, Shutter Priority | | Exposure Compensation | -5 to +5 EV (1/3 EV Steps) | | White Balance | Automatic Scene Recognition, Color Temperature, Custom, Fine, Fluorescent (Cool White), Fluorescent (Daylight), Fluorescent (Warm White), Incandescent, Shade, Underwater | | Continuous Shooting | Up to 14 fps at 24.3 MP for up to 40 Exposures (JPEG Format) | | Interval Recording | Yes | | Self Timer | 2/10-Second Delay | | | | Recording Modes | MOV/MPEG-4
DCI 4K (4096 x 2160) at 23.976p/24p [50 to 200 Mb/s]
UHD 4K (3840 x 2160) at 23.976p/24p/25p/29.97p [50 to 200 Mb/s]
DCI 2K (2048 x 1080) at 23.976p/24p/25p/29.97p/50p/59.94p [50 to 100 Mb/s]
Full HD (1920 x 1080) at 23.976p/24p/25p/29.97p/50p/59.94p/100p/120p [200 Mb/s]
HD (1280 x 720) at 23.976p/24p/25p/29.97p/50p/59.94p [50 Mb/s] | | Recording Limit | Up to 29 Minutes, 59 Seconds | | Video Encoding | NTSC/PAL | | Audio Recording | Built-In Microphone (Stereo)
External Microphone Input | | Audio File Format | Linear PCM (Stereo) | | | | Focus Type | Auto and Manual Focus | | Focus Mode | Continuous-Servo AF (C), Manual Focus (M), Single-Servo AF (S) | | Autofocus Points | Phase Detection: 325 | | | | Viewfinder Type | Electronic | | Viewfinder Size | 0.5" | | Viewfinder Resolution | 3,690,000 Dot | | Viewfinder Eye Point | 23 mm | | Viewfinder Coverage | 100% | | Viewfinder Magnification | Approx. 0.75x | | Diopter Adjustment | -4 to +2 m | | Monitor Size | 3" | | Monitor Resolution | 1,040,000 Dot | | Monitor Type | Tilting Touchscreen LCD | | | | Built-in Flash | None | | Flash Modes | Commander, First-Curtain Sync, Manual, Rear Curtain/Slow Sync, Slow Sync, TTL Auto | | Maximum Sync Speed | 1/250 Second | | External Flash Connection | Hot Shoe | | | | Memory Card Slot | 2 x SD/SDHC/SDXC | | Internal Memory | None | | Connectivity | 2.5mm Sub-Mini, HDMI D (Micro), USB 3.0 Micro-B | | Wireless | Wi-Fi
Bluetooth | | GPS | None | | | | Operating Temperature | 14 to 104°F / -10 to 40°C | | Operating Humidity | 10 to 80% | | | | Battery | 1 x NP-W126S Rechargeable Lithium-Ion | | Dimensions (W x H x D) | 5.5 x 3.8 x 3.4" / 139.8 x 97.3 x 85.5 mm | | Weight | 23.74 oz / 673 g (Body with Battery and Memory) | | | | Box Dimensions (LxWxH) | 8.0 x 7.25 x 6.0" | - SanDisk 64GB Extreme UHS-I SDXC Memory Card
| Card Type | SDXC | | Storage Capacity | 64 GB | | Bus Type | UHS-I | | Speed Class | 10 | | UHS Speed Class | U3 | | Video Speed Class | V30 | | Data Transfer | Read Speed: 150 MB/s Maximum (Burst)
Write Speed: 60 MB/s Maximum (Burst)
Write Speed: 30 MB/s Minimum | | Built-in Write-Protect Switch | Yes | | Wireless Capability | None | | | | Box Dimensions (LxWxH) | 9.0 x 6.8 x 4.5" | - Case Logic Kontrast DSLR Shoulder Bag (Black)
| Material | Polyester and foam padding | | Type of Closure | Zipper | | Carrying/Transport Options | Padded top handle
Adjustable shoulder strap with sliding pad | | Fits Devices | 8.7 x 5.5 x 7.9" / 22.1 x 14.0 x 20.1 cm | | Exterior Dimensions | 10.6 x 7.9 x 10.2" / 26.9 x 20.1 x 25.9 cm | | Weight | 1.56 lb / 0.71 kg | | | | Box Dimensions (LxWxH) | 12.2 x 10.4 x 7.7" |
