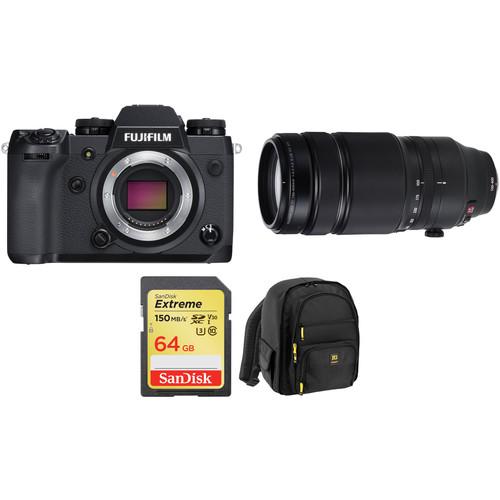

User Manual for FUJIFILM X-H1 Mirrorless Digital Camera with 100-400mm Lens and Memory Card Kit

• Product category: Mirrorless System Cameras FUJIFILM
• Brand: FUJIFILM
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for FUJIFILM Mirrorless System Cameras

Product description

• FUJIFILM X-H1 Mirrorless Digital Camera (Body Only)
  • Hands-On Review: Fujifilm X-H1
  • FUJIFILM X-H1 Promotional Video
  Offering plenty of features inside a durable magnesium-alloy housing, the X-H1 Mirrorless Digital Camera from FUJIFILM aims to position itself as a leading option for professional video and photo work. Equipped with a 24.3MP APS-C X-Trans CMOS III image sensor and the X-Processor Pro Engine, this camera allows you to capture high quality imagery quickly and with low noise at sensitivities up to ISO 51200. A major implementation is an in-body 5-axis image stabilization system, a first for X-Series cameras, which can compensate for up to 5.5 stops of shutter speed to create sharp imaging even when little light is available.In the video department, the X-H1 offers DCI 4K shooting at 24 fps and a boosted 200 Mb/s bit rate for internal footage. Slow motion can be achieved in a high-speed video mode that boasts Full HD 1080p video at up to 120 fps. Professionals will also enjoy the addition of internal F-log recording to an SD card, which allows for a more streamlined workflow, as well as an ETERNA mode that aims to simulate cinematic film with desaturated colors and rich shadow tones. And if you ever find yourself without your shotgun mic, the camera's built-in microphone can save your life in a pinch with 24-bit/48 kHz recording.Several improvements can be seen in the X-H1's design, including a larger hand grip and back buttons, an info display on the top right side, and the addition of an AF-ON button. The weather-sealed body sports dual UHS-II SD card slots and makes use of a 0.5" 3.69m-dot EVF with 0.75x magnification, which features a low display time lag of only 0.005 seconds and a refresh rate of 100 fps for smooth and accurate composition. When not shooting at eye level, the articulated 3.0" 1.04m-dot LCD offers touch functions and a unique three-way tilt that allows you to achieve nearly any viewing angle. Also available is a 1.28" sub-LCD info screen on the top right of the camera for viewing your settings on the fly. And for those that regularly shoot sports under fluorescent lighting, the XH-1 comes with a flicker reduction mode to help your exposures stay accurate at fast shutter speeds.
  24.3MP APS-C X-Trans CMOS III Sensor
  • Utilizing FUJIFILM's unique, randomized pixel array, the 24.3MP APS-C X-Trans CMOS III sensor affords a high degree of image quality and sharpness due to the omission of an optical low-pass filter. Versus conventional pixel patterns, the X-Trans design more closely mimics the organic nature of film in order to produce nuanced colors and smooth tonal transitions, while also reducing moir

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• FUJIFILM X-H1 Mirrorless Digital Camera (Body Only)

  Lens Mount	FUJIFILM X
  Camera Format	APS-C (1.5x Crop Factor)
  Pixels	24.3 Megapixel
  Maximum Resolution	6000 x 4000
  Aspect Ratio	1:1, 3:2, 16:9
  Sensor Type	CMOS
  Sensor Size	23.5 x 15.6 mm
  Image File Format	JPEG, RAW
  Bit Depth	14-Bit
  Image Stabilization	Sensor-Shift, 5-Axis

  ISO Sensitivity	Auto, 200 to 12800 (Extended: 100 to 51200)
  Shutter Speed	Electronic Shutter 1/32000 to 30 Seconds in Auto Mode Mechanical Shutter 1/8000 to 30 Seconds in Auto Mode
  Metering Method	Average, Center-Weighted Average, Multi-Zone, Spot
  Exposure Modes	Aperture Priority, Manual, Program, Shutter Priority
  Exposure Compensation	-5 to +5 EV (1/3 EV Steps)
  White Balance	Automatic Scene Recognition, Color Temperature, Custom, Fine, Fluorescent (Cool White), Fluorescent (Daylight), Fluorescent (Warm White), Incandescent, Shade, Underwater
  Continuous Shooting	Up to 14 fps at 24.3 MP for up to 40 Exposures (JPEG Format)
  Interval Recording	Yes
  Self Timer	2/10-Second Delay

  Recording Modes	MOV/MPEG-4 DCI 4K (4096 x 2160) at 23.976p/24p [50 to 200 Mb/s] UHD 4K (3840 x 2160) at 23.976p/24p/25p/29.97p [50 to 200 Mb/s] DCI 2K (2048 x 1080) at 23.976p/24p/25p/29.97p/50p/59.94p [50 to 100 Mb/s] Full HD (1920 x 1080) at 23.976p/24p/25p/29.97p/50p/59.94p/100p/120p [200 Mb/s] HD (1280 x 720) at 23.976p/24p/25p/29.97p/50p/59.94p [50 Mb/s]
  Recording Limit	Up to 29 Minutes, 59 Seconds
  Video Encoding	NTSC/PAL
  Audio Recording	Built-In Microphone (Stereo) External Microphone Input
  Audio File Format	Linear PCM (Stereo)

  Focus Type	Auto and Manual Focus
  Focus Mode	Continuous-Servo AF (C), Manual Focus (M), Single-Servo AF (S)
  Autofocus Points	Phase Detection: 325

  Viewfinder Type	Electronic
  Viewfinder Size	0.5"
  Viewfinder Resolution	3,690,000 Dot
  Viewfinder Eye Point	23 mm
  Viewfinder Coverage	100%
  Viewfinder Magnification	Approx. 0.75x
  Diopter Adjustment	-4 to +2 m
  Monitor Size	3"
  Monitor Resolution	1,040,000 Dot
  Monitor Type	Tilting Touchscreen LCD

  Built-in Flash	None
  Flash Modes	Commander, First-Curtain Sync, Manual, Rear Curtain/Slow Sync, Slow Sync, TTL Auto
  Maximum Sync Speed	1/250 Second
  External Flash Connection	Hot Shoe

  Memory Card Slot	2 x SD/SDHC/SDXC
  Internal Memory	None
  Connectivity	2.5mm Sub-Mini, HDMI D (Micro), USB 3.0 Micro-B
  Wireless	Wi-Fi Bluetooth
  GPS	None

  Operating Temperature	14 to 104°F / -10 to 40°C
  Operating Humidity	10 to 80%

  Battery	1 x NP-W126S Rechargeable Lithium-Ion
  Dimensions (W x H x D)	5.5 x 3.8 x 3.4" / 139.8 x 97.3 x 85.5 mm
  Weight	23.74 oz / 673 g (Body with Battery and Memory)

  Box Dimensions (LxWxH)	8.0 x 7.25 x 6.0"

• FUJIFILM XF 100-400mm f/4.5-5.6 R LM OIS WR Lens

  Focal Length	100 to 400mm (35mm Equivalent Focal Length: 152 to 609mm)
  Maximum Aperture	f/4.5 to 5.6
  Minimum Aperture	f/22
  Lens Mount	FUJIFILM X
  Format Compatibility	APS-C
  Angle of View	16.2 Rating 94% users recommend this product to others. And what about you? This product has already been rated by 49 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
