Product description

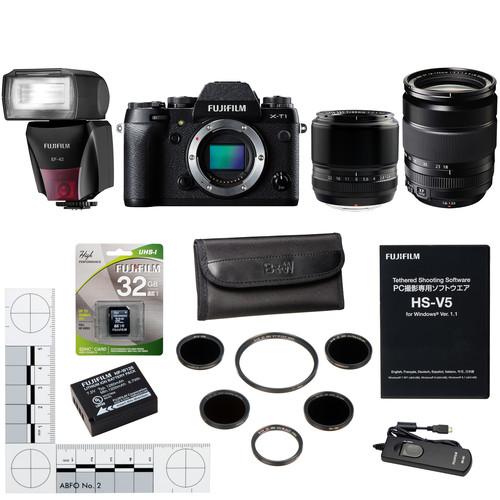

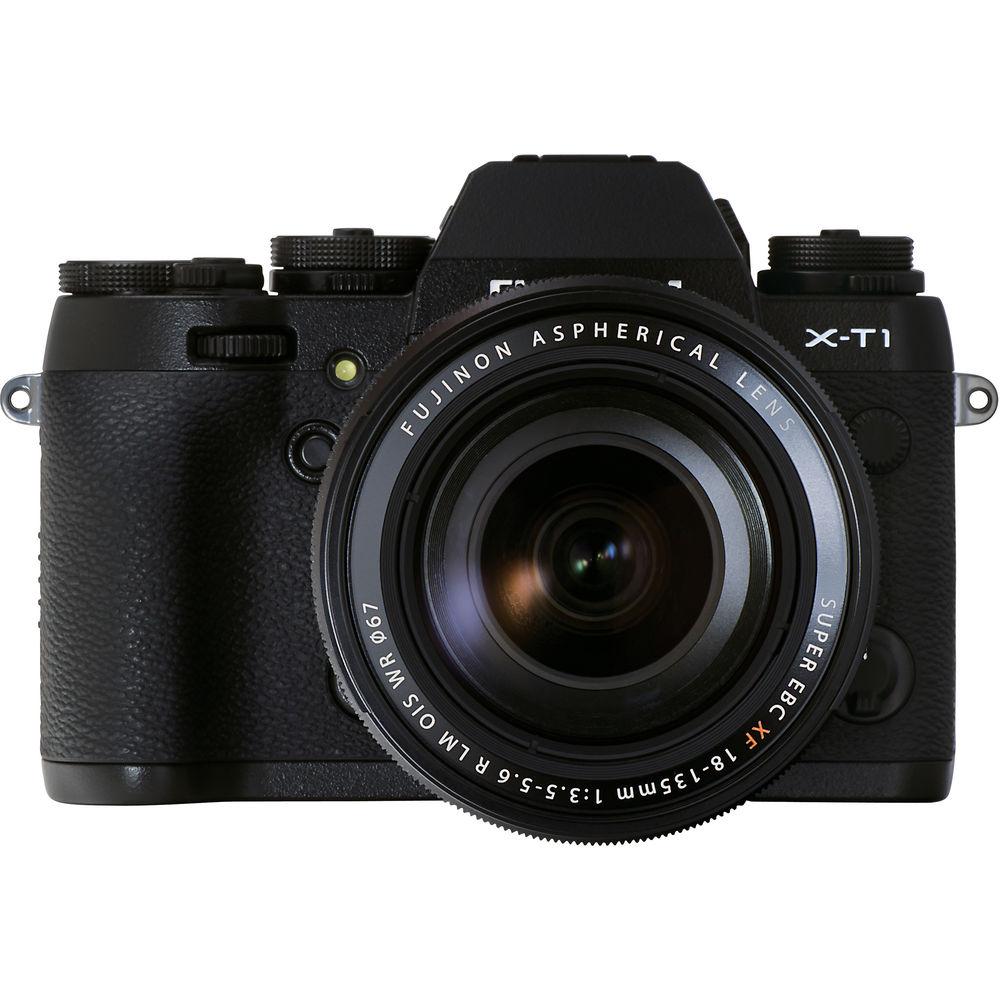

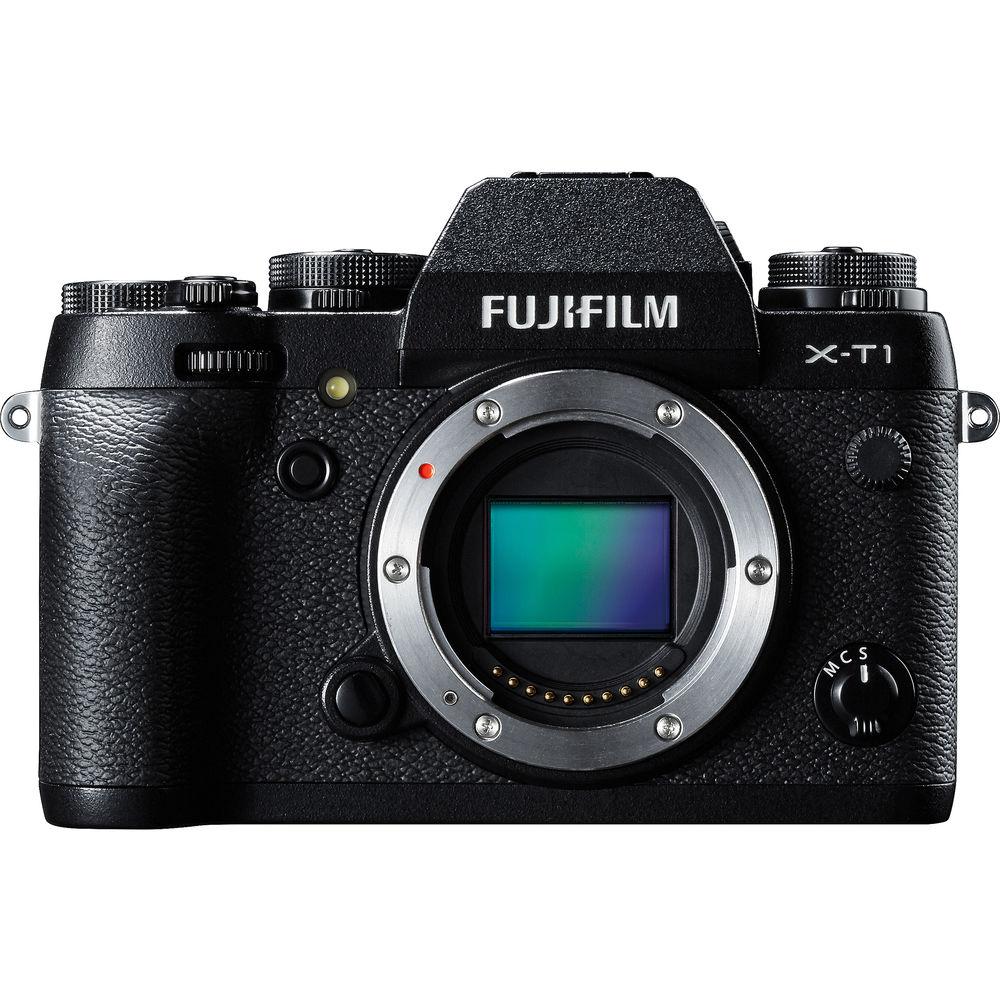

• X-T1 IR Mirrorless Digital Camera (Body Only)
  • FUJIFILM X-T1 Promotional Video
  Based on a proven design but modified for specialized photographic applications, the Fujifilm X-T1 IR is a unique mirrorless digital camera that allows you to photograph both UV and IR wavelengths, in addition to the visible spectrum. This updated design passes 380-1000nm, compared to the approximate 400-700nm range of most cameras, allowing you to photograph subjects that are otherwise rendered invisible. This extended range is suitable for forensic, crime scene investigation, and healthcare applications.

  Aside from the distinct spectral sensitivity, the X-T1 IR is identical to the X-T1 in nearly all other aspects. It features a 16.3 megapixel APS-C X-Trans CMOS II sensor and an EXR Processor II to produce high-resolution imagery and full HD video with an expandable sensitivity range from ISO 100-25600 as well as a top continuous shooting rate of 8 fps. Fujifilm's proprietary X-Trans sensor uses a unique randomized pixel array in order to avoid the use of a resolution-reducing optical low-pass filter, therefore providing images with the utmost sharpness and clarity. This imaging system is benefitted by the Intelligent Hybrid AF system, which uses both contrast- and phase-detection methods to acquire focus quickly and accurately. Enhanced manual focusing capabilities are also a result of these technologies; Digital Split Image and Focus Highlight Peaking are two methods for quickly and precisely determining focus using intelligent focusing aids for improved control and optimized efficiency.

  For image monitoring, review, and menu navigation, both a 2.36m-dot OLED electronic viewfinder and a 3.0" 1.04m-dot tilting LCD screen are available. The body design extends this versatility through the implementation of manual, physical control dials on the top plate of the camera as well as customizable buttons and a Q Menu button for expedited access to some of the most useful settings. This control scheme further enables an intuitive built-in Wi-Fi system for direct sharing of imagery to an Android or iOS mobile device for instant sharing online. Note: This item can only be sold to police departments, forensic nursing departments, medical specialist agencies, corporate organizations or government entities, and consultants to those organizations and entities that are operating in the United States. Proof must be demonstrated that the purchasing agency intends to use the X-T1 IR for forensics purposes.
  Dedicated to Infrared Photography
  • While nearly identical to the standard X-T1, the X-T1 IR features modified imaging capabilities that enable it to pass both UV and IR wavelengths, in addition to standard visible light. This extended sensitivity, from approximately 380 to 1000nm, supports a greater range of specialized shooting and scientific needs, such as law enforcement crime scene investigation, healthcare diagnostics and observation, document duplication and reproduction imaging, and other technical applications.
  16.3MP APS-C X-Trans CMOS II Sensor
  • A large 16.3MP APS-C CMOS image sensor is integrated into the X-T1 IR to provide high image quality and detail. Using Fujifilm's unique X-Trans bespoke pixel array, the sensor is designed with a randomized pixel pattern to eliminate the need of an optical low-pass filter for reducing moiré and aliasing. By removing this filter from the design, higher image sharpness is possible. Lens Modulation Optimizer (LMO) factors are also taken into account using the EXR Processor II, which helps to automatically compensate for aberrations and diffraction blur in order to produce images with the utmost inherent sharpness.

    The X-Trans sensor also works to provide highly effective noise reduction and a clean signal-to-noise ratio. This enables smoother-looking imagery that becomes especially apparent when photographing in low-light situations with an expanded sensitivity range of ISO 100-25600. Additionally, a top continuous shooting rate of 8 fps is possible, for up to 47 consecutive frames, to benefit working with moving subject matter.
  EXR Processor II
  • Aside from benefitting low-light performance, the EXR Processor II also provides quick performance throughout the entire camera system. The camera start-up time is about 0.5 seconds, shutter lag is about 0.05 seconds, and the shooting interval time is about 0.5 seconds. A fast autofocus performance speed of 0.08 seconds is also enabled using the advanced Intelligent Hybrid AF system using both contrast- and phase-detection focusing methods.
  Intelligent Hybrid AF and Enhanced Manual Focus
  • Intelligent Hybrid AF is a quick, responsive autofocus system that employs both contrast- and phase-detection methods to acquire focus quickly in a wide variety of lighting conditions and shooting situations. Clear focus can quickly be attained to aid in catching fast-paced movement more easily. Three focus modes are available (AF-S, AF-C, and M) for greater control over how the X-T1 IR achieves sharp focus. When working with autofocus, the AF area is divided into a 49-point matrix in order to gain clear focus of any type of subject matter. Additionally, a built-in AF assist lamp is available for aiding the focus system when photographing in low-light situations.

    When working with manual focus, two additional features can be employed for enhanced critical focusing in a more controllable manner. By using the phase-detection pixels located on the imaging sensor, Digital Split Image technology is able to assist in acquiring precise focus through the implementation of four striped focusing aids; akin to a rangefinder focusing method, once these stripes have been lined up, sharp focus can be ensured. Also contributing to manual focus accuracy, Focus Peak Highlight has been integrated and enables a more objective system of focusing by way of highlighting sharp edges and lines of contrast, using one of three colors, once they are in focus.
  Multi Mode Real Time Viewfinder
  • An advanced electronic viewfinder has been incorporated into the X-T1 IR's design to support clear eye-level monitoring along with a host of unique viewing features to better support a more efficient overall workflow. The Real Time Viewfinder is comprised of a 2,360k-dot OLED display and features an exceptionally high magnification of 0.77x, along with a 31° angle of view. This perspective is further complemented by the 0.005 sec. lag time, which smoothly and seamlessly renders scenes and moving subjects.

    Beyond the technical aspects of the viewfinder, an adaptable graphical user interface has also been designed to increase efficiency during shooting. Four different viewing modes are available:

    • FULL: This mode takes advantage of the high magnification ratio of the viewfinder and produces an image that fills the majority of the viewfinder in an unobstructed manner. Shooting information is presented at the top and bottom edges and does not interfere with the image frame itself.
    • NORMAL: This mode enables you to focus on the composition at hand while still having an in-depth understanding of camera settings and shooting conditions.
    • VERTICAL: When the camera is held in a vertical orientation, the information display automatically rotates so it is facing upright for easier reading of camera settings. When working in this mode, images can also be reviewed in the vertical orientation.
    • DUAL: Serving to benefit those working with manual focus, this mode presents a split screen view of the scene where you see both a regular view as well as the Focus Assist View (Focus Highlight Peaking and Digital Split Image) at the same time, allowing you to concentrate on the image composition as well as critical focus accuracy.


    In addition to the four viewing modes, the shooting information displayed within the viewfinder can also be customized to suit one's needs. 19 different settings can be toggled on or off depending on preference.

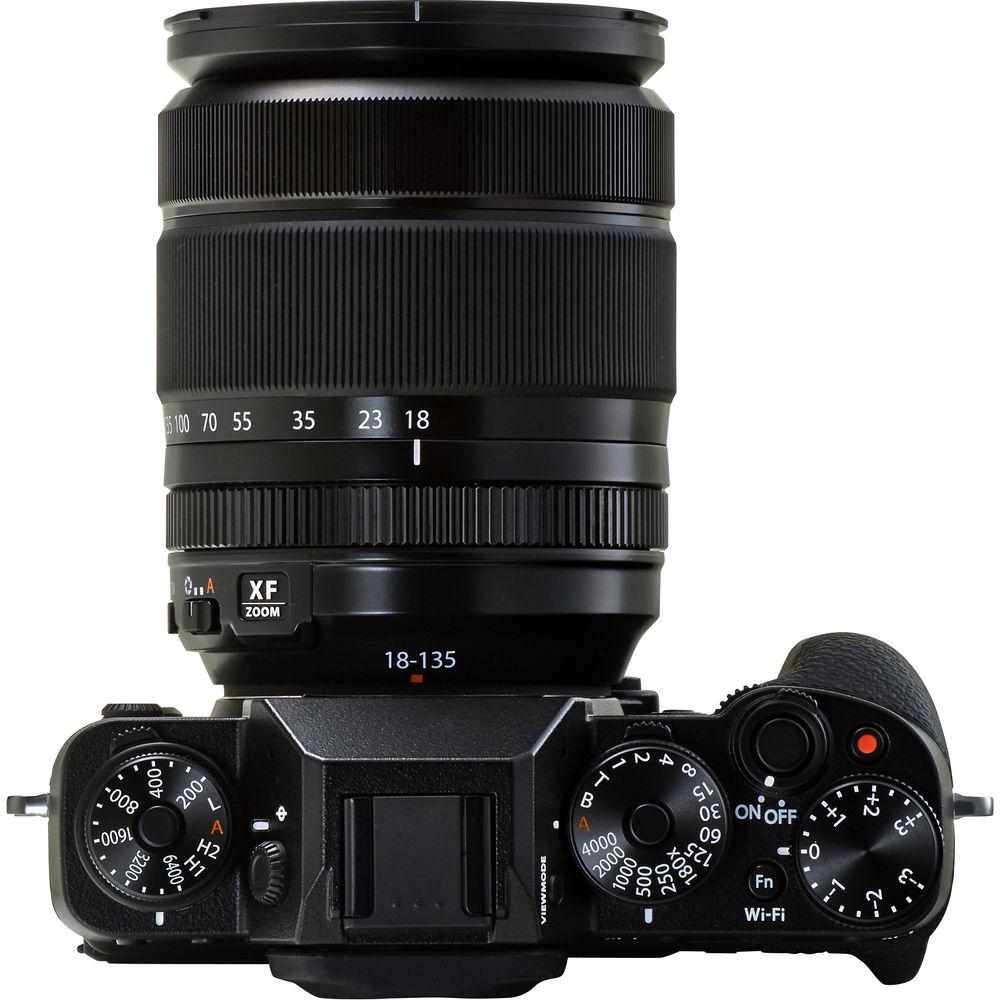

  Classic Camera Design
  • Featuring a body design reminiscent of SLR film cameras, the X-T1 IR exhibits a meshing of both analog exposure controls along with intelligent automated technologies. The clean and functional body design incorporates physical shutter speed, ISO, drive mode, AF mode, and +/- 3 EV exposure compensation double-deck precision-milled aluminum alloy dials that pair well with the manual aperture rings found on many of the XF lenses for intuitive exposure setting selection. Depending on individual needs, six customizable buttons, dual command dials, and an easily-accessible Q Menu provide an efficient solution for modifying some of the most frequently used camera settings, such as ISO, white balance, and file settings. For more extensive menu navigation, as well as live view monitoring and image review, a 3.0" 1,040k-dot LCD monitor is available and features a tilting design to better support working from high and low angles.

    Furthermore, the magnesium alloy body also features approximately 80 points of weather sealing to protect itself from dust and moisture, as well as temperatures as low as 14°F, for confident use in trying conditions.
  Full HD Movie Recording
  • Full HD 1080p video recording is supported up to 60 fps, with other frame rates and formats also available. Full-time AF tracking is available during recording with subject tracking capabilities for ensured sharpness when either the subject is moving or if the camera is moving, panning, or zooming. +/- 2 EV exposure compensation is available during recording.

    An HDMI port enables high definition playback of movies to an HDTV and the inclusion of a 2.5mm input supports the use of an optional external microphone for enhanced sound quality.
  Built-In Wi-Fi Connectivity
  • Wireless connectivity is built into the camera and allows for instant sharing of images directly to an Android or iOS mobile device. The Fujifilm Camera Remote app allows you to browse the image contents of your camera from your mobile device and transfer both videos and photos, and the entire sharing process is further expedited by simply pressing and holding the dedicated Wi-Fi button to begin transferring immediately. Remote camera control and monitoring is also supported through the use of the app, which enables Touch AF, shutter release, exposure settings adjustment, macro, timer, and flash controls to all be adjusted from the linked mobile device. Location data can also be embedded into image file's metadata for geotagging.
  Other Camera Features
  • • An in-camera RAW converter lets you record your images in 14-bit RAW and process them prior to computer-based editing procedures. This process enables you to modify the exposure, white balance, and other controls directly through the menu interface. Additionally, for more thorough processing of files, RAW File Converter software is included for RAW image processing on your computer.
    • Interval shooting is possible with intervals of 1 second to 24 hours for up to 999 frames.
    • Compatible with UHS-II memory cards for fast transfer speeds during shooting.
    • Multiple Exposure mode gives you the ability to overlay imagery in-camera. When working in this mode, subsequent exposures can be paired and the final appearance can be previewed on the LCD or in the EVF before making the final exposure.
    • Motion panorama mode allows you to record expansive views up to 360° wide in a seamless, sweeping manner.
    • The included EF-X8 shoe-mount flash has a guide number of 26.2' at ISO 100 and provides additional illumination to imagery for photographing in dark conditions. A sync terminal is also available for use of additional optional external flashes.
    • The included NP-W126 battery enables approximately 350 frames to be recorded per charge.

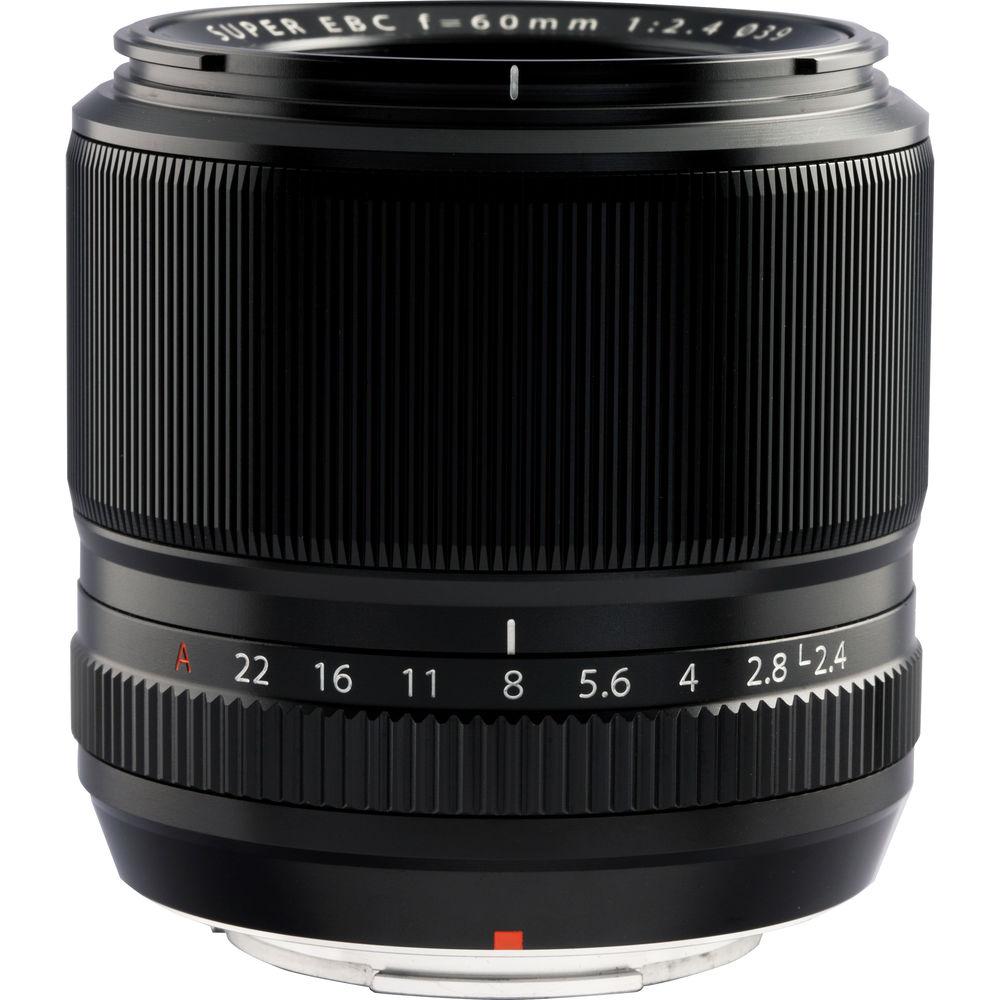

• XF 60mm f/2.4 R Macro Lens Excelling at close range, the FUJIFILM XF 60mm f/2.4 R Macro is a 91mm-equivalent prime featuring a 1:2 maximum magnification along with a 10.5" minimum focusing distance. A maximum f/2.4 aperture suits working in a variety of lighting conditions and also affords greater control over depth of field. The optical design features one aspherical element and one extra-low dispersion element, which help to reduce both spherical and chromatic aberrations for increased sharpness and clarity. A Super EBC coating has also been applied to suppress flare and ghosting when working in bright and backlit conditions.
  • Portrait-length prime lens is designed for APS-C-format FUJIFILM X-mount mirrorless cameras and provides a 91mm equivalent focal length.
  • Bright f/2.4 maximum aperture balances a compact design with lens speed for working in difficult lighting conditions and controlling depth of field.
  • Ideal for macro shooting, this lens offers half of life-size 1:2 maximum magnification along with a minimum focusing distance of 10.5" to suit working with close-up subjects.
  • One aspherical element limits distortion and spherical aberration in order to realize greater sharpness and accurate rendering.
  • One extra-low dispersion element greatly reduces color fringing and chromatic aberrations in order to produce greater clarity and color accuracy.
  • Super EBC coating has been applied to individual elements to reduce lens flare and ghosting for improved contrast and color fidelity when working in strong lighting conditions.
  • Rounded nine-blade diaphragm contributes to a pleasing bokeh quality.
  UPC: 074101014044

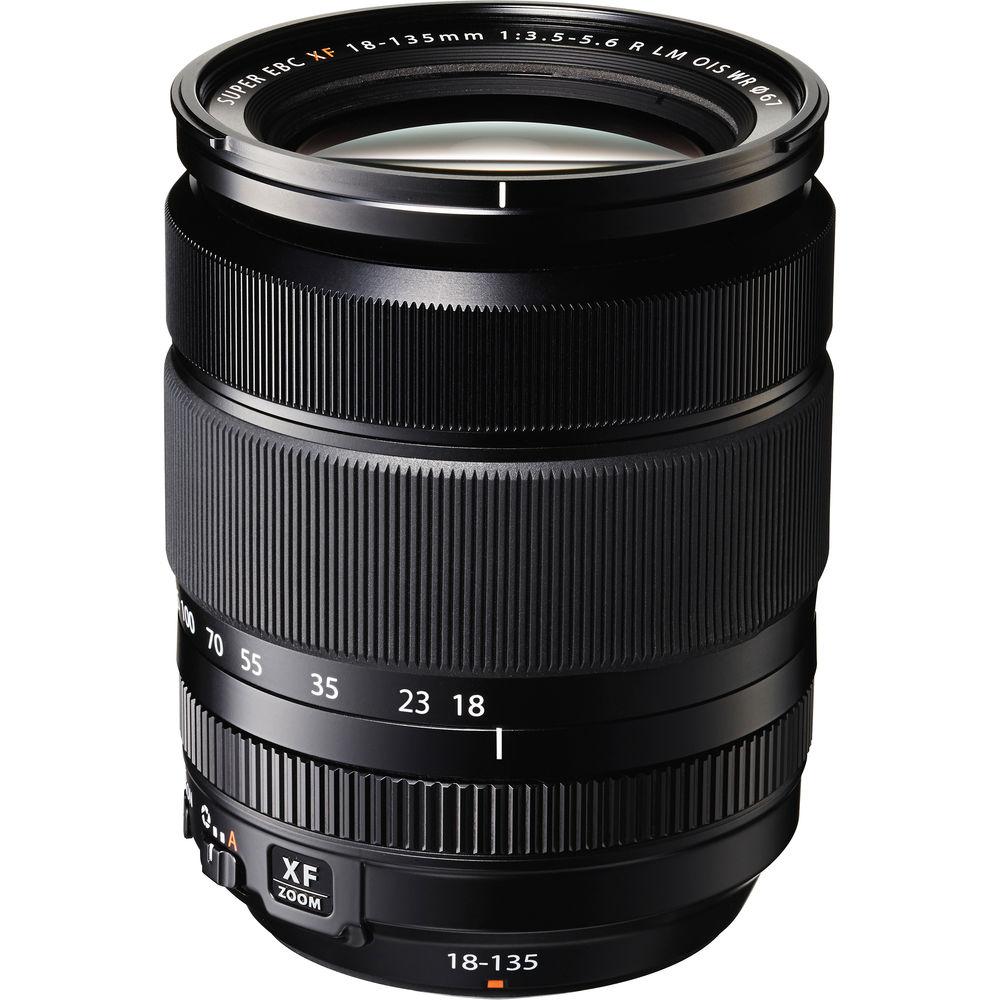

• XF 18-135mm f/3.5-5.6 R LM OIS WR Lens An ideal all-around lens, the FUJIFILM XF 18-135mm f/3.5-5.6 R LM OIS WR is a versatile 27-206mm-equivalent zoom, covering wide-angle to medium telephoto fields of view. Well-suited for travel and walkaround shooting, the expansive reach of this lens is further complemented by a sophisticated optical design, which uses ED and aspherical elements, to produce high color accuracy, sharpness, and image clarity. An HT-EBC coating also improves contrast and color neutrality by reducing flare and ghosting when working in strong lighting conditions. Also benefitting use in a variety of situations, a linear motor delivers quick and quiet autofocus performance and a five stop-effective image stabilization system minimizes the appearance of camera shake. Additionally, the lens is fully weather-sealed for working in inclement conditions.
  • All-in-one zoom is designed for APS-C-format Fujifilm X-mount mirrorless cameras and offers a 27-206mm equivalent focal length range.
  • Two extra-low dispersion elements are used to greatly reduce color fringing and chromatic aberrations in order to produce high clarity and color fidelity throughout the zoom range.
  • Four aspherical elements control distortion and spherical aberrations, which helps to improve sharpness and realize more accurate rendering.
  • An HT-EBC (High Transmittance Electron Beam Coating) coating has been applied to the entire surface of each element to for controlling ghosting and flare for greater contrast and color accuracy.
  • A linear motor autofocus system, coupled with an internal focusing design, delivers smooth, near-silent performance that is especially beneficial to video applications and when working in noise-sensitive areas.
  • Complemented by an enhanced gyro sensor and unique series of algorithms, the optical stabilization system minimizes the appearance of camera shake by up to five stops to enable sharper imaging when working with longer focal lengths or slower shutter speeds.
  • The lens body incorporates 20 distinct weather seals to protect against dust and moisture, and to enable worry-free use in inclement conditions and freezing temperatures as low as 14°F.
  • Rounded seven-blade diaphragm contributes to a pleasing out-of-focus quality to benefit the use of selective focus and shallow depth of field techniques.
  UPC: 074101025408

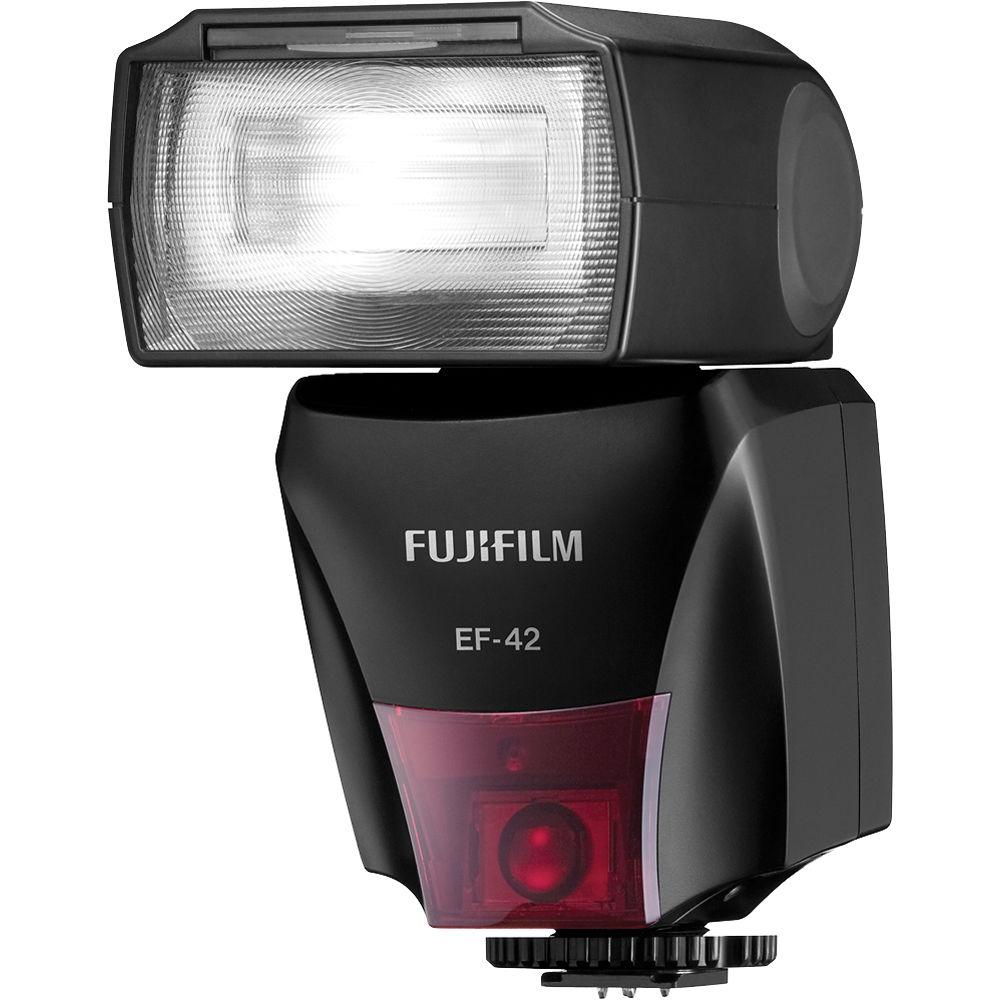

• EF-42 Flash Providing users with a portable lighting solution, the EF-42 Flash from FUJIFILM features a guide number of 138' at ISO 100 and 105mm and is fully compatible with FUJIFILM cameras, offering TTL flash metering support. The flash head itself has a zoom range from 24-105mm with full-frame cameras which can be extended down to 20mm with a wide-angle panel. Also, bounce flash is possible with tilting upward 90° and rotation 120° right and 180° left, for full control over light placement.

  The flash offers full manual controls if desired from 1/1 to 1/64 power as well as exposure compensation from -1.5 to +1.5 EV in 1/2 EV steps. Also, the front of the unit has an AF assist light and it has a recycle time of 3 to 3.5 seconds at full power. It runs on 4 AA batteries.
  • Zoom focal length can be set to either 35mm or APS-C formats with ranges of 24-105mm and 16-70mm respectively
  • Color temperature of approximately 5600K
  • Battery life of about 220-240 full power flashes
  • Locking hot shoe mount
  UPC: 074101009132

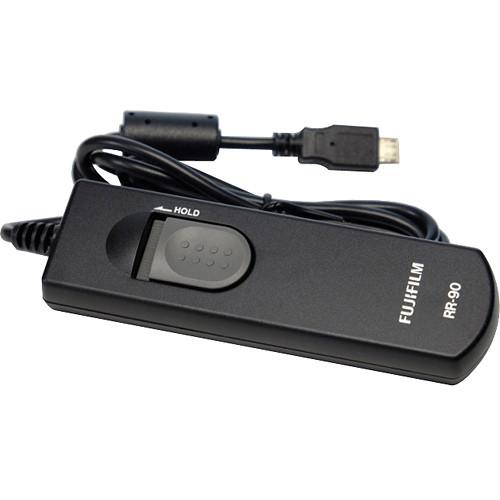

• RR-90 Remote Release The RR-90 Remote Release is a wired shutter release designed for use with select FUJIFILM digital cameras. Mimicking the same controls as the camera's shutter release, this remote supports half-pressing for focus and full pressing for exposures. Additionally, the release button can be locked into position to support making long exposures in bulb mode.
  Camera Compatibility
  • GFX 50S, X-H1, X-Pro2, X-T2, X-T1, X-T20, X-T10, X-E3, X-E2S, X-E2, X-M1, X-A5, X-A3, X-A2, X-A1, X-A10, X100F, X100T, X70, X30, XQ2, XQ1, and FinePix S1
  UPC: 074101022803

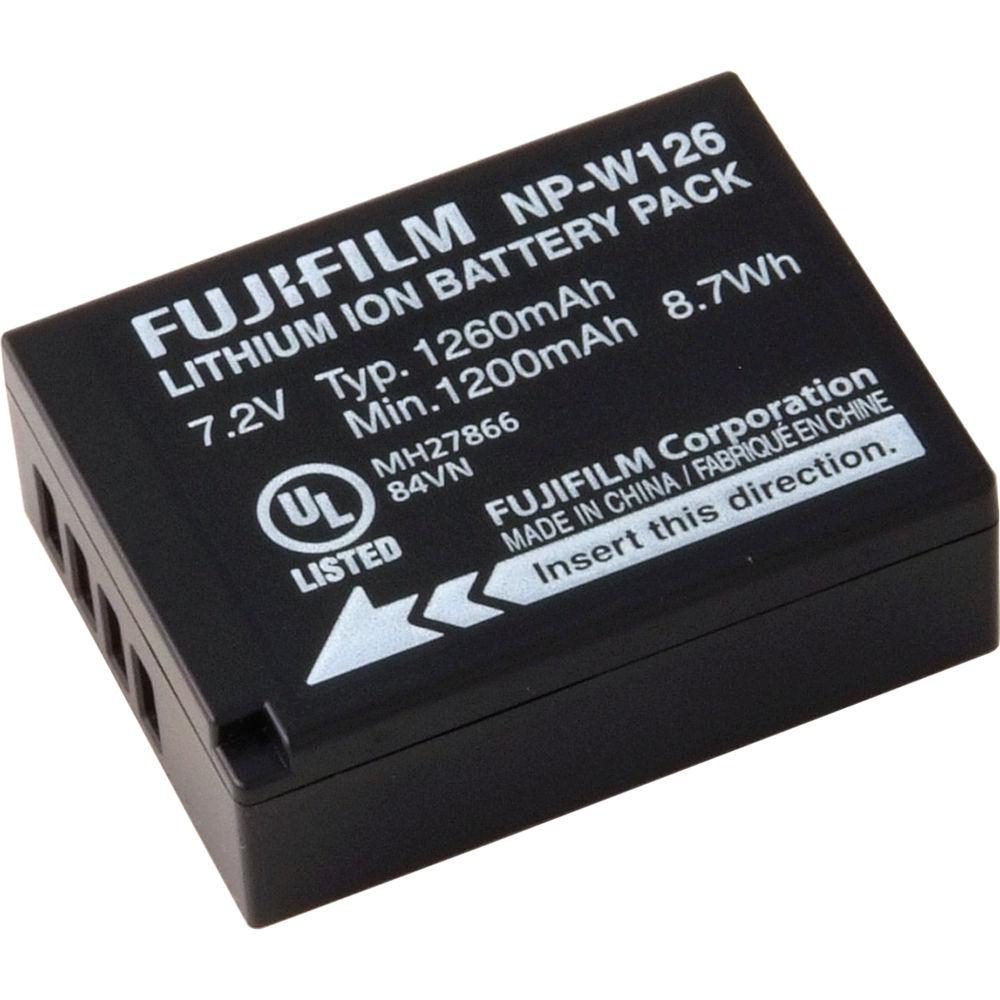

• NP-W126 Li-Ion Battery Pack The NP-W126 Li-Ion Battery Pack from Fujifilm is a rechargeable Lithium-ion battery that is compatible with several Fujifilm FinePix and Fujifilm X-series cameras.
  Compatibility
  • • BC-W126 Battery Charger
    • FinePix HS30EXR Camera
    • FinePix HS33EXR Camera
    • FinePix HS50EXR
    • X-Pro1 Camera
    • X-E1
    • X-M1
    • X-A1
• 67mm UV/IR Cut MRC 486M Filter The B+W 67mm UV/IR Cut MRC 486M Filter is an ultraviolet and infrared control filter that is useful for digital cinematography as well as still photography. While recording video with a CCD or CMOS camera, multi-stop neutral-density filters are used to maintain proper exposure by compensating for increased light levels when widening the camera lens's iris to obtain a narrower depth of field. As the increased amount of light passes through multi-stop neutral-density filtration, visible light is progressively blocked, while infrared light is allowed to pass through. As the proportion of infrared light that reaches the sensor of a camera being used for digital cinematography becomes greater, the results can show unwanted color shifts, particularly in dark areas of the frame such as shadows where the appearance of black is dominant.

  When the B+W 67mm UV/IR Cut MRC 486M Filter is applied, 88% of ultraviolet light waves are blocked at 380 nanometers along with 95% of infrared light waves at 700 nanometers, helping to ensure that light falling on a digital camera sensor is limited to the visible spectrum. When used along with multi-stop neutral-density filters while recording with a digital sensor, potential infrared color shifts are prevented or minimized, preserving color accuracy throughout the frame. This filter may also be used to help ensure that the appearance of unwanted blue casts is reduced while recording digital video or still photos under daylight that also features intense ultraviolet light.

  The front surface of a B+W 67mm UV/IR Cut MRC 486M Filter includes thirty layers of interference coatings which allow it to limit the light that falls on a digital camera sensor to the visible spectrum. When combined with a wide-angle lens, lower-frequency wavelengths of visible light associated with yellow, orange, and red colors passing through the filter and along that lens type's curved edges can be impeded in a significantly greater degree than higher-frequency wavelengths of visible light associated with blue and violet colors. This can result in an unwanted cool cast along the edges of an image taken with a B+W 67mm UV/IR Cut MRC 486M Filter and a wide-angle lens. To avoid such color shifts along the edges of an image when using this filter, it is recommended not to be used with lenses that are intended to provide an angle of view greater than 60°.

  Eight layers of anti-reflection coating are included on the rear glass surface of this B+W 67mm UV/IR Cut MRC 486M Filter. This Multi-Resistant Coating (MRC) prevents internal ghosting and reflections, offers protection to the filter substrate, and helps its rear surface to stay clean for longer than with uncoated filters.

  B+W filters are constructed from Schott glass for increased optical clarity and color fidelity. The B+W 67mm UV/IR Cut MRC 486M Filter features an F-Pro brass filter ring for durability and jamming prevention, as well as 67mm front filter threads that allow it to be paired with other filter types. When in use, but not combined with another filter that provides a specific effect, it is recommended to place a clear, protective filter over the B+W 67mm UV/IR Cut MRC 486M Filter to prevent damage to its front interference coatings.
  • 88% of ultraviolet light waves are blocked at 380 nanometers, before which they are further removed, reducing bluish cast of daylight when recording video or still photos.
  • 95% of infrared light waves are blocked at 700 nanometers, after which they are progressively eliminated.
  • Useful with CCD or CMOS sensors to filter out infrared light pollution that cause color shifts frequently associated with high-definition recording with multi-stop neutral-density filters.
  • Does not require adjustments to exposure while in use.
  • Thirty layers of interference coatings on front surface limits light that falls on a digital camera sensor to the visible spectrum.
  • Multicoated rear surface prevents internal ghosting and reflections.
  • Constructed from Schott glass for optical clarity.
  • F-Pro brass filter ring helps to prevent jamming and provides additional strength.
  • 67mm front filter threads allow use with other filters to protect front surface or combine with other effects.
  • Plastic case for storage and transport.
• 39mm UV/IR Cut MRC 486M Filter The B+W 39mm UV/IR Cut MRC 486M Filter is an ultraviolet and infrared control filter that is useful for digital cinematography as well as still photography. While recording video with a CCD or CMOS camera, multi-stop neutral-density filters are used to maintain proper exposure by compensating for increased light levels when widening the camera lens's iris to obtain a narrower depth of field. As the increased amount of light passes through multi-stop neutral-density filtration, visible light is progressively blocked, while infrared light is allowed to pass through. As the proportion of infrared light that reaches the sensor of a camera being used for digital cinematography becomes greater, the results can show unwanted color shifts, particularly in dark areas of the frame such as shadows where the appearance of black is dominant.

  When the B+W 39mm UV/IR Cut MRC 486M Filter is applied, 88% of ultraviolet light waves are blocked at 380 nanometers along with 95% of infrared light waves at 700 nanometers, helping to ensure that light falling on a digital camera sensor is limited to the visible spectrum. When used along with multi-stop neutral-density filters while recording with a digital sensor, potential infrared color shifts are prevented or minimized, preserving color accuracy throughout the frame. This filter may also be used to help ensure that the appearance of unwanted blue casts is reduced while recording digital video or still photos under daylight that also features intense ultraviolet light.

  The front surface of a B+W 39mm UV/IR Cut MRC 486M Filter includes thirty layers of interference coatings which allow it to limit the light that falls on a digital camera sensor to the visible spectrum. When combined with a wide-angle lens, lower-frequency wavelengths of visible light associated with yellow, orange, and red colors passing through the filter and along that lens type's curved edges can be impeded in a significantly greater degree than higher-frequency wavelengths of visible light associated with blue and violet colors. This can result in an unwanted cool cast along the edges of an image taken with a B+W 39mm UV/IR Cut MRC 486M Filter and a wide-angle lens. To avoid such color shifts along the edges of an image when using this filter, it is recommended not to be used with lenses that are intended to provide an angle of view greater than 60°.

  Eight layers of anti-reflection coating are included on the rear glass surface of this B+W 39mm UV/IR Cut MRC 486M Filter. This Multi-Resistant Coating (MRC) prevents internal ghosting and reflections, offers protection to the filter substrate, and helps its rear surface to stay clean for longer than with uncoated filters.

  B+W filters are constructed from Schott glass for increased optical clarity and color fidelity. The B+W 39mm UV/IR Cut MRC 486M Filter features an F-Pro brass filter ring for durability and jamming prevention, as well as 39mm front filter threads that allow it to be paired with other filter types. When in use, but not combined with another filter that provides a specific effect, it is recommended to place a clear, protective filter over the B+W 39mm UV/IR Cut MRC 486M Filter to prevent damage to its front interference coatings.
  • 88% of ultraviolet light waves are blocked at 380 nanometers, before which they are further removed, reducing bluish cast of daylight when recording video or still photos.
  • 95% of infrared light waves are blocked at 700 nanometers, after which they are progressively eliminated.
  • Useful with CCD or CMOS sensors to filter out infrared light pollution that cause color shifts frequently associated with high-definition recording with multi-stop neutral-density filters.
  • Does not require adjustments to exposure while in use.
  • Thirty layers of interference coatings on front surface limits light that falls on a digital camera sensor to the visible spectrum.
  • Multicoated rear surface prevents internal ghosting and reflections.
  • Constructed from Schott glass for optical clarity.
  • F-Pro brass filter ring helps to prevent jamming and provides additional strength.
  • 39mm front filter threads allow use with other filters to protect front surface or combine with other effects.
  • Plastic case for storage and transport.
• 39mm UV Black (403) Filter The B+W 39mm UV Black (403) Filter is a specialized filter used to block visible light while allowing UV A radiation (320-385nm) to pass through. This filter differs significantly to the more well known UV filter, which does the opposite by blocking UV radiation. The UV Black filter visibly appears completely black and is used in combination with specially sensitized films for applications such as forensic photography, material research, and fluorescence photography. Depending on the illumination and materials being used, the filter factor ranges from 8 to 20 (3 to 4.3 stops).

  B+W filters are constructed from high quality Schott glass for increased optical clarity and color fidelity. They feature a brass filter ring for durability as well as jamming prevention.
  • Used for ultraviolet reflection photography in forensics or material research applications.
  • Can be used as a filter for a UV-emitter when working in fluorescence photography.
  • Depending on applications and materials being used, the filter factor ranges from 8 to 20 (3 to 4.3 stops).
  • Constructed from high quality Schott glass for optical clarity.
  • Brass filter ring helps to prevent jamming and provides additional strength.
• 39mm IR Dark Red 092 Filter Dedicated to infrared photography, the 39mm IR Dark Red 092 Filter from B+W is a specialized filter for both digital and film photography. It has a nearly opaque, dark purple appearance when held to light, and is designed to block all visible spectrum light up to 650nm. To produce surreal effects, the 092 filter allows only 50% of light pass just below 700nm, and from 720-2000nm more than 90% of IR radiation passes. Since most infrared films are sensitive up to 1000nm, this transmitted red portion of the spectrum still affects the exposure. Due to the nature of infrared photography, the filter factor for this filter is highly variable and depends largely on your film sensitivity and lighting conditions.

  This specialized filter is uncoated and uses high-quality Schott glass for its construction to maintain imaging integrity and optical clarity. It also features an F-Pro brass filter ring for durability as well as jamming prevention.
  • Used for infrared photography applications with digital cameras and specialized IR films.
  • Blocks all visible light up to 650nm while allowing greater than 90% radiation transmission between 730-2000nm.
  • Variable filter factor depending on your film sensitivity and lighting conditions.
  • Constructed from Schott glass for optical clarity.
  • F-Pro brass filter ring helps to prevent jamming and provides additional strength.
  • Plastic case included for storage and transport.
• 39mm Infrared 093 Filter The B+W 39mm Infrared 093 Filter corresponds to a Wratten 87C filter and is designed to help capture images of how a subject reflects or transmits infrared light.

  Infrared light waves occupy the space in the electromagnetic spectrum behind visible light due to their longer wavelengths. Many surfaces and materials react to, or emit infrared light waves differently than visible light waves, which provide the potential for photographs of subjects or subject properties that are otherwise invisible to the human eye. Such images require an infrared-sensitive medium such as infrared film or a digital photographic sensor which may be more effective when used without the infrared-blocking filters that are frequently built over them.

  Conventional light sources such as the sun, photographic strobes, or incandescent lighting may be used to provide infrared illumination. However, because infrared films or digital photographic sensors can be more sensitive to the relatively higher energy and shorter-wavelength visible light those sources also emit, the effects of infrared light can be otherwise obscured. The B+W 39mm Infrared 093 Filter makes it possible to capture images of how subjects are illuminated by infrared light by blocking near-infrared, visible, and ultraviolet light waves while allowing approximately 88% of infrared light waves 900nm or greater into the lens it is mounted onto.

  This filter is constructed from Schott glass for increased optical clarity and features an F-Pro brass filter ring for durability as well as jamming prevention.
  • • Designed for use with infrared film or digital camera sensors by filtering out near-infrared, visible, and ultraviolet light
    • Allows approximately 88% of infrared light waves beginning at 900nm to pass through
    • Effective for infrared films or other media sensitive to infrared wavelengths 900nm or above
    • Constructed from Schott glass for optical clarity
    • Non-coated
    • Filter factor of approximately 20 to 40x reduces exposure by about 4.3 to 5.3 stops
    • F-Pro brass filter ring helps to prevent jamming and provides additional strength
    • 39mm front filter threads allow for use with other filters
    • Plastic case for storage and transport
• B6 Filter Pouch The B+W B6 Filter Pouch is a flexible plastic padded filter pouch with slots for six filters up to 62mm.
  • Folding padded filter pouch
  • B+W logo
  Compatible with;
  • • 6 Filters up to 62mm

• NP-W126 Li-Ion Battery Pack

• BC-W126 Battery Charger

• EF-X8 Shoe-Mount Flash Unit

• Shoulder Strap

• Body Cap

• Metal Strap Clip

• Protective Cover

• Clip Attaching Tool

• Hot Shoe Cover

• Tall-Oriented Battery Grip Connector Cover

• Sync Terminal Cover

• Software CD-ROM

• Limited 1-Year Warranty

• 39mm Lens Cap

• Rear Lens Cap for FUJIFILM X-Mount Lenses

• Lens Hood

• Lens Pouch

• Limited 1-Year Warranty

• 67mm Lens Cap

• Rear Lens Cap for FUJIFILM X-Mount Lenses

• Lens Hood

• Lens Pouch

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Filter Case

• Limited 1-Year Warranty

• Filter Case

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Plastic Case

• Limited 1-Year Warranty

• Filter Case

• Limited 1-Year Warranty

• Limited 1-Year Warranty

Also Includes

• TTL Cable (6.5')
• 32GB SDHC Memory Card
• Forensic Scale Marker
• HS-V5 Tethered Shooting Software
• 39mm R6780 IR Filter

Upload User Manual

Please enter here the link to the user manual of this product: User manual for FUJIFILM X-T1 IR Mirrorless Camera Forensic Bundle can be downloaded below, so the upload option is not active. OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0% User manual for FUJIFILM X-T1 IR Mirrorless Camera Forensic Bundle can be downloaded below, so the upload option is not active.

Download User Manual

Download PDF User Manual - FUJIFILM X-T1 IR Mirrorless Camera Forensic Bundle (PDF file, 4.08 MB)

Technical parameters

• X-T1 IR Mirrorless Digital Camera (Body Only)

  Pixels	Actual: 16.7 Megapixel Effective: 16.3 Megapixel

  Aspect Ratio	16:9

  Focus Mode	Continuous-Servo AF (C), Manual Focus (M), Single-Servo AF (S)
  Autofocus Points	Contrast Detection: 49

  Viewfinder Size	0.5"
  Viewfinder Resolution	2,360,000 Dot
  Viewfinder Eye Point	23 mm
  Viewfinder Coverage	100%
  Viewfinder Magnification	Approx. 0.77x
  Diopter Adjustment	-4 to +2 m

  Metering Method	Average, Multi-Zone, Spot
  White Balance	Automatic Scene Recognition, Color Temperature, Custom, Fine, Fluorescent (Cool White), Fluorescent (Daylight), Fluorescent (Warm White), Incandescent, Shade, Underwater
  Continuous Shooting	Up to 8 fps at 16.3 MP for up to 47 Exposures Up to 3 fps at 16.3 MP for up to Exposures

  Flash Modes	Auto, Auto/Red-Eye Reduction, Commander, Commander/Red-Eye Reduction, Forced On, Forced On/Red-Eye Reduction, Rear Curtain Sync/Red-Eye Reduction, Rear Sync, Slow Sync, Slow Sync/Red-Eye Reduction, Suppressed Flash
  External Flash Connection	Hot Shoe, PC Terminal

  Battery	1 x NP-W126 Rechargeable Lithium-Ion Battery Pack, 7.2 VDC, 1260 mAh

  Box Dimensions (LxWxH)	9.0 x 7.9 x 4.0"

• XF 60mm f/2.4 R Macro Lens

  Focal Length	60mm (35mm Equivalent Focal Length: 91mm)
  Maximum Aperture	f/2.4
  Minimum Aperture	f/22
  Lens Mount	FUJIFILM X
  Format Compatibility	APS-C
  Angle of View	26.6 Rating 90% users recommend this product to others. And what about you? This product has already been rated by 33 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
