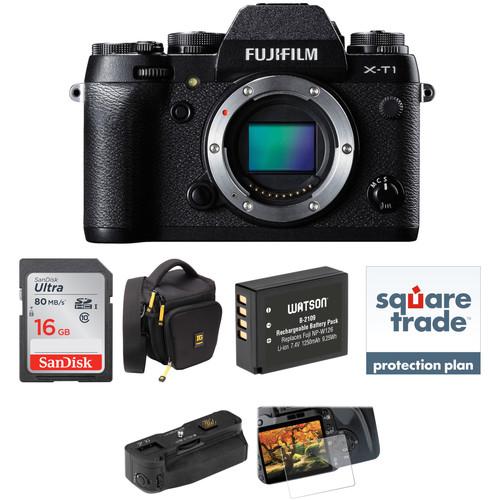

FUJIFILM X-T1 Mirrorless Digital Camera Deluxe

User Manual for FUJIFILM X-T1 Mirrorless Digital Camera Deluxe Kit

• Product category: Mirrorless System Cameras FUJIFILM
• Brand: FUJIFILM
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for FUJIFILM Mirrorless System Cameras

Product description

• FUJIFILM X-T1 Mirrorless Digital Camera (Body Only)
  • FUJIFILM X-T1 Promotional Video
  The Fujifilm X-T1 Mirrorless Digital Camera features a 16.3 megapixel APS-C X-Trans CMOS II sensor and an EXR Processor II to produce high-resolution imagery with an expandable sensitivity range from ISO 100-51200 as well as a top continuous shooting rate of 8 fps. Fujifilm's proprietary X-Trans sensor uses a unique randomized pixel array in order to avoid the use of a resolution-reducing optical low-pass filter, therefore providing images with the utmost sharpness and clarity. This imaging system is benefitted by the Intelligent Hybrid AF system, which uses both contrast- and phase-detection methods to acquire focus quickly and accurately. Enhanced manual focusing capabilities are also a result of these technologies; Digital Split Image and Focus Highlight Peaking are two methods for quickly and precisely determining focus using intelligent focusing aids for improved control and optimized efficiency.

  For image monitoring, review, and menu navigation, both a 2,360k-dot OLED electronic viewfinder and a 3.0" 1,040k-dot tilting LCD screen are available. The body design extends this versatility through the implementation of manual, physical control dials on the top plate of the camera as well as customizable buttons and a Q Menu button for expedited access to some of the most useful settings. This control scheme further enables an intuitive built-in Wi-Fi system for direct sharing of imagery to an Android or iOS mobile device for instant sharing online.

  Full HD 1080p movie recording in multiple frame rates is possible and a 2.5mm microphone input permits the use of an optional external microphone for improved audio quality with recordings. Full-time continuous focusing is supported while taking video, also, as well as the use of Film Simulation modes. Film Simulation modes make use of Fujifilm's history of producing both negative and slide films, and allow you to apply those films' characteristics to your digital imagery to better suit your intended look.
  16.3MP APS-C X-Trans CMOS II Sensor
  • A large 16.3MP APS-C CMOS image sensor is integrated into the X-T1 to provide high image quality and detail. Using Fujifilm's unique X-Trans bespoke pixel array, the sensor is designed with a randomized pixel pattern to eliminate the need of an optical low-pass filter for reducing moiré and aliasing. By removing this filter from the design, higher image sharpness is possible. Lens Modulation Optimizer (LMO) factors are also taken into account using the EXR Processor II, which helps to automatically compensate for aberrations and diffraction blur in order to produce images with the utmost inherent sharpness.

    The X-Trans sensor also works to provide highly effective noise reduction and a clean signal-to-noise ratio. This enables smoother-looking imagery that becomes especially apparent when photographing in low-light situations with an expanded sensitivity range of ISO 100-51200. Additionally, a top continuous shooting rate of 8 fps is possible, for up to 47 consecutive frames, to benefit working with moving subject matter.
  EXR Processor II
  • Aside from benefitting low-light performance, the EXR Processor II also provides quick performance throughout the entire camera system. The camera start-up time is about 0.5 seconds, shutter lag is about 0.05 seconds, and the shooting interval time is about 0.5 seconds. A fast autofocus performance speed of 0.08 seconds is also enabled using the advanced Intelligent Hybrid AF system using both contrast- and phase-detection focusing methods.
  Intelligent Hybrid AF and Enhanced Manual Focus
  • Intelligent Hybrid AF is a quick, responsive autofocus system that employs both contrast- and phase-detection methods to acquire focus quickly in a wide variety of lighting conditions and shooting situations. Clear focus can quickly be attained to aid in catching fast-paced movement more easily. Three focus modes are available (AF-S, AF-C, and M) for greater control over how the X-T1 achieves sharp focus. When working with autofocus, the AF area is divided into a 49-point matrix in order to gain clear focus of any type of subject matter. Additionally, a built-in AF assist lamp is available for aiding the focus system when photographing in low-light situations.

    When working with manual focus, two additional features can be employed for enhanced critical focusing in a more controllable manner. By using the phase-detection pixels located on the imaging sensor, Digital Split Image technology is able to assist in acquiring precise focus through the implementation of four striped focusing aids; akin to a rangefinder focusing method, once these stripes have been lined up, sharp focus can be ensured. Also contributing to manual focus accuracy, Focus Peak Highlight has been integrated and enables a more objective system of focusing by way of highlighting sharp edges and lines of contrast, using one of three colors, once they are in focus.
  Multi Mode Real Time Viewfinder
  • An advanced electronic viewfinder has been incorporated into the X-T1's design to support clear eye-level monitoring along with a host of unique viewing features to better support a more efficient overall workflow. The Real Time Viewfinder is comprised of a 2,360k-dot OLED display and features an exceptionally high magnification of 0.77x, along with a 31° angle of view. This perspective is further complemented by the 0.005 sec. lag time, which smoothly and seamlessly renders scenes and moving subjects.

    Beyond the technical aspects of the viewfinder, an adaptable graphical user interface has also been designed to increase efficiency during shooting. Four different viewing modes are available:


  • FULL: This mode takes advantage of the high magnification ratio of the viewfinder and produces an image that fills the majority of the viewfinder in an unobstructed manner. Shooting information is presented at the top and bottom edges and does not interfere with the image frame itself.
  • NORMAL: This mode enables you to focus on the composition at hand while still having an in-depth understanding of camera settings and shooting conditions.
  • VERTICAL: When the camera is held in a vertical orientation, the information display automatically rotates so it is facing upright for easier reading of camera settings. When working in this mode, images can also be reviewed in the vertical orientation.
  • DUAL: Serving to benefit those working with manual focus, this mode presents a split screen view of the scene where you see both a regular view as well as the Focus Assist View (Focus Highlight Peaking and Digital Split Image) at the same time, allowing you to concentrate on the image composition as well as critical focus accuracy.


  In addition to the four viewing modes, the shooting information displayed within the viewfinder can also be customized to suit one's needs. 19 different settings can be toggled on or off depending on preference.
  Classic Camera Design
  • Featuring a body design reminiscent of SLR film cameras, the X-T1 exhibits a meshing of both analog exposure controls along with intelligent automated technologies. The clean and functional body design incorporates physical shutter speed, ISO, drive mode, AF mode, and +/- 3 EV exposure compensation double-deck precision-milled aluminum alloy dials that pair well with the manual aperture rings found on many of the XF lenses for intuitive exposure setting selection. Depending on individual needs, six customizable buttons, dual command dials, and an easily-accessible Q Menu provide an efficient solution for modifying some of the most frequently used camera settings, such as ISO, white balance, and file settings. For more extensive menu navigation, as well as live view monitoring and image review, a 3.0" 1,040k-dot LCD monitor is available and features a tilting design to better support working from high and low angles.

    Furthermore, the magnesium alloy body also features approximately 80 points of weather sealing to protect itself from dust and moisture, as well as temperatures as low as 14°F, for confident use in trying conditions.
  Full HD Movie Recording
  • Full HD 1080p video recording is supported up to 60 fps, with other frame rates and formats also available. Full-time AF tracking is available during recording with subject tracking capabilities for ensured sharpness when either the subject is moving or if the camera is moving, panning, or zooming. +/- 2 EV exposure compensation is available during recording as well as the use of Film Simulation settings.

    An HDMI port enables high definition playback of movies to an HDTV and the inclusion of a 2.5mm input supports the use of an optional external microphone for enhanced sound quality.
  Built-In Wi-Fi Connectivity
  • Wireless connectivity is built into the camera and allows for instant sharing of images directly to an Android or iOS mobile device. The Fujifilm Camera Remote app allows you to browse the image contents of your camera from your mobile device and transfer both videos and photos, and the entire sharing process is further expedited by simply pressing and holding the dedicated Wi-Fi button to begin transferring immediately. Remote camera control and monitoring is also supported through the use of the app, which enables Touch AF, shutter release, exposure settings adjustment, Film Simulation modes, white balance modes, macro, timer, and flash controls to all be adjusted from the linked mobile device. Location data can also be embedded into image file's metadata for geotagging.
  Film Simulation Mode and Advanced Filters
  • Taking advantage of Fujifilm's vast history in traditional film-based photography, the X-T1 integrates several Film Simulation modes to mimic the look and feel of some Fujifilm's classic film types. Pulling from their line of transparency films, PROVIA offers natural-looking tones for everyday shooting, VELVIA produces a more dramatic and rich tonality with deeper color saturation, and ASTIA gives less contrast for a softer depiction of skin tones. Mimicking their negative films, PRO Neg. Std. gives smooth image tones that are suitable for accurate color renditions, while PRO Neg. Hi produces a more dramatic feel with the ability to draw color out of a variety of lighting conditions. In addition to the colorful benefits of these Film Simulation modes, there are also monochrome modes that simulate the look of traditional yellow, green, and red black and white contrast filters. A sepia mode is also available for producing an inherently nostalgic look.

    Eight Advanced Filters are also available to creatively enhance the look of imagery, and include: High Key, Low Key, Soft Focus, Toy Camera, Miniature, Pop Color, Dynamic Tone, and Partial Color (Red, Orange, Yellow, Green, Blue, Purple).
  Other Camera Features
  • An in-camera RAW converter lets you record your images in 14-bit RAW and process them prior to computer-based editing procedures. This process enables you to modify the exposure, white balance, and other controls directly through the menu interface. Additionally, for more thorough processing of files, RAW File Converter software is included for RAW image processing on your computer.
  • Interval shooting is possible with intervals of 1 second to 24 hours for up to 999 frames.
  • Compatible with UHS-II memory cards for fast transfer speeds during shooting.
  • Multiple exposure mode gives you the ability to overlay imagery in-camera. When working in this mode, subsequent exposures can be paired and the final appearance can be previewed on the LCD or in the EVF before making the final exposure.
  • Motion panorama mode allows you to record expansive views up to 360° wide in a seamless, sweeping manner.
  • The included EF-X8 shoe-mount flash has a guide number of 26.2' at ISO 100 and provides additional illumination to imagery for photographing in dark conditions. A sync terminal is also available for use of additional optional external flashes.
  • Four different auto bracketing modes are available: Dynamic Range, Film Simulation, AE, and ISO Sensitivity.
  • The included NP-W126 battery enables approximately 350 frames to be recorded per charge.
  UPC: 074101024531
• SanDisk 16GB Ultra UHS-I SDHC Memory Card (Class 10)
  • FUJIFILM X-T1 Promotional Video
  Record Full HD 1080p video with this Class 10 compliant 16GB Ultra UHS-I SDHC Memory Card from SanDisk. With enhanced data read speeds of up to 80 MB/s this Ultra SDHC memory card is designed to suit the needs of compact and mid-range point and shoot cameras. You can also save and store a variety of files such as music, movies, documents and more. The writable label found on the card allows you to write down what is saved to the card while the built-in write protect switch helps to prevent accidental data loss. This card, as with most SanDisk cards, comes shock, temperature, x-ray, magnet, and waterproof to take your files with you nearly anywhere you go.
  • Class 10 performance for Full HD Video (1080p)
  • Read speeds up to 80 MB/s
  • Writable label for easy identification and organization
  • Engineered with UHS-I bus architecture
  • This SD memory card comes shock, temperature, x-ray, magnet, and waterproof proof
  UPC: 619659136451
• Ruggard Hunter 35 DSLR Holster Bag
  • FUJIFILM X-T1 Promotional Video
  The Hunter 35 DSLR Holster Bag from Ruggard is slightly larger than the Hunter 25 and holds a DSLR (up to semi-pro size) with lens attached, face down, in shooting position. When you're ready to shoot, simply remove your camera, get the shot and replace your camera in the bag. The zippered top of the bag opens away from your body for fast access to your gear. This also serves as a security feature since no one but you will be able to see inside the bag. The bag has a water-repellent exterior and smooth polyester lining that helps prevent scratches to the finish of your camera/lens combo. Inside, there are two removable touch fastened strips that can be configured to support your gear. For storage, there is a front zippered organizer panel, mesh side pocket and two side loops that accept optional pouches. On the inside of the quick-release flap, there are two touch fastened memory card pockets. The bag is carried by its removable shoulder strap, top carry handle or belt loop that will leave you hands free. The zippers have yellow pull tabs that make the bag easy to use while you're wearing gloves.
  Carry-on Form Factor
  • FAA and airline carry-on specifications are subject to change without notice. Please check with your airline before designating this case as a carry-on item. Most airlines require carry-on items to have an external linear measurement that is equal to or less than 45.0" (114.3 cm). The external dimensions of this case add up to 20.9" (53.1 cm)
  UPC: 847628559004
• Watson NP-W126 Lithium-Ion Battery Pack (7.4V, 1250mAh)
  • FUJIFILM X-T1 Promotional Video
  The Watson NP-W126 Lithium-Ion Battery Pack works with the same cameras as the Fujifilm NP-W126. This replacement battery pack features a capacity of 1250mAh, 7.4V of output power and 9.25 watt-hours. Small and lightweight, lithium-ion batteries can be charged or discharged at any time without developing memory effect.
  Compatible Cameras
  • Mirrorless:
    • X-A3
    • X-E1
    • X-Pro 1
    • X-T2
    • X-T3
    • X-T20
    • X-T30
    FinePix:
    • HS30EXR
    • HS35EXR
    • HS50EXR
    UPC: 847628560772
  • Vello BG-F1 Battery Grip for Fujifilm X-T1
    • FUJIFILM X-T1 Promotional Video
    The Battery Grip from Vello is made exclusively for the Fujifilm X-T1 mirrorless digital camera. It holds one NP-W126 lithium-ion battery, effectively doubling your shooting time, and provides a comfortable grip when shooting in portrait orientation.

    The grip has an alternate shutter release button to facilitate shooting when held vertically with a lock to prevent accidental release. In addition, the grip has extra AE-L, AF-L, and FA buttons, as well as front and rear command dials. It is designed with an anti-slip rubber grip and firm curvature to further improve handling. A tripod socket is included as is a holder for the camera's contact cover. UPC: 847628589575
  • Vello LCD Screen Protector Ultra for Fujifilm X-A3, X-A5, X-T1 & X-T2 Camera
    • FUJIFILM X-T1 Promotional Video
    This LCD Screen Protector Ultra from Vello is a sheet of ultra-thin (0.02") optical glass used to safeguard the LCD monitor of the Fujifilm X-A3, X-A5, X-T1 & X-T2. It easily adheres to the screen via static, without trapping air bubbles, and if removed, won't leave a sticky residue behind. Multiple layers of protective material shield your display from dirt, scratches, sweat, smears, and light impact. The shatter-proof glass blocks UV rays while allowing visible light in. It can be easily cleaned using the supplied microfiber cloth and wet wipe.
    Camera Compatibility
    • Fujifilm:
      • X-A3
      • X-A5
      • X-T1
      • X-T2
    UPC: 847628586949
  In the Box
  • X-T1 Mirrorless Digital Camera (Body Only) vtubtywqzvfccxsrareczs
  • NP-W126 Li-Ion Battery Pack
  • BC-W126 Battery Charger
  • EF-X8 Shoe-Mount Flash Unit
  • Shoulder Strap
  • Body Cap
  • Metal Strap Clip
  • Protective Cover
  • Clip Attaching Tool
  • Hot Shoe Cover
  • Tall-Oriented Battery Grip Connector Cover
  • Sync Terminal Cover
  • Software CD-ROM
  • Limited 1-Year Warranty
  • SquareTrade - 2 Year Drops & Spills Warranty
  • Vello - BG-F1 Battery Grip for Fujifilm X-T1
  • Vello - LCD Screen Protector Ultra for Fujifilm X-A3, X-A5, X-T1 & X-T2 Camera



  Includes Free

  • SanDisk - 16GB Ultra UHS-I SDHC Memory Card (Class 10)
  • Ruggard - Hunter 35 DSLR Holster Bag
  • Watson - NP-W126 Lithium-Ion Battery Pack (7.4V, 1250mAh)
  10 Recommended Cameras for Sports, Wildlife, and Action Photography Elizabeth Groeschen 02/18/2016 vtubtywqzvfccxsrareczs User Manual- for Camera PDF 3.9mbvtubtywqzvfccxsrareczs More from Manufacturer Table of Contents

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• FUJIFILM X-T1 Mirrorless Digital Camera (Body Only)

  Lens Mount	FUJIFILM X
  Camera Format	APS-C (1.5x Crop Factor)
  Pixels	Actual: 16.7 Megapixel Effective: 16.3 Megapixel
  Maximum Resolution	4896 x 3264
  Aspect Ratio	3:2
  Sensor Type	CMOS
  Sensor Size	23.6 x 15.6 mm
  Image File Format	JPEG, RAW
  Image Stabilization	None

  ISO Sensitivity	Auto, 200 to 6400 (Extended: 100 to 51200)
  Shutter Speed	Electronic Front Curtain Shutter 1/4000 to 30 Seconds 1/4000 to 1/4 Second in Program Mode 0 to 60 Minutes in Bulb Mode 1/2 to 30 Seconds in Time Mode
  Metering Method	Average, Multi-Zone, Spot
  Exposure Modes	Aperture Priority, Manual, Shutter Priority
  Exposure Compensation	-3 to +3 EV (1/3 EV Steps)
  White Balance	Automatic Scene Recognition, Color Temperature, Custom, Fine, Fluorescent (Cool White), Fluorescent (Daylight), Fluorescent (Warm White), Incandescent, Shade, Underwater
  Continuous Shooting	Up to 8 fps at 16.3 MP for up to 47 Exposures (JPEG Format)
  Interval Recording	Yes
  Self Timer	2/10-Second Delay

  Recording Modes	MOV Full HD (1920 x 1080) at 24p/25p/29.97p/50p/59.94p HD (1280 x 720) at 24p/25p/29.97p/50p/59.94p
  Recording Limit	Up to 27 Minutes
  Audio Recording	Built-In Microphone (Stereo) External Microphone Input
  Audio File Format	Linear PCM (Stereo)

  Focus Type	Auto and Manual Focus
  Focus Mode	Continuous-Servo AF (C), Manual Focus (M), Single-Servo AF (S)
  Autofocus Points	Contrast Detection: 49

  Viewfinder Type	Electronic
  Viewfinder Size	0.5"
  Viewfinder Resolution	2,360,000 Dot
  Viewfinder Eye Point	23 mm
  Viewfinder Coverage	100%
  Viewfinder Magnification	Approx. 0.77x
  Diopter Adjustment	-4 to +2 m
  Monitor Size	3"
  Monitor Resolution	1,040,000 Dot
  Monitor Type	Tilting LCD

  Built-in Flash	None
  Flash Modes	Auto, Auto/Red-Eye Reduction, Commander, Commander/Red-Eye Reduction, Forced On, Forced On/Red-Eye Reduction, Rear Curtain Sync/Red-Eye Reduction, Rear Sync, Slow Sync, Slow Sync/Red-Eye Reduction, Suppressed Flash
  Maximum Sync Speed	1/180 Second
  Dedicated Flash System	TTL
  External Flash Connection	Hot Shoe, PC Terminal

  Memory Card Slot	1 x SD/SDHC/SDXC
  Connectivity	2.5mm Sub-Mini, HDMI C (Mini), USB 2.0, X-Sync Socket
  Wireless	Wi-Fi
  GPS	None

  Battery	1 x NP-W126 Rechargeable Lithium-Ion Battery Pack, 7.2 VDC, 1260 mAh
  Dimensions (W x H x D)	5.1 x 3.5 x 1.3" / 129.5 x 88.9 x 33.4 mm (Excluding Protrusions)
  Weight	15.52 oz / 439.99 g (Body with Battery and Memory)

  Box Dimensions (LxWxH)	8.9 x 7.9 x 4.1"

• SanDisk 16GB Ultra UHS-I SDHC Memory Card (Class 10)

  Card Type	SDHC
  Storage Capacity	16 GB
  Bus Type	UHS-I
  Speed Class	10
  Bus Interface Speed	UHS Class I
  Data Transfer	Read Speed: 80 MB/s Maximum (Burst) Write Speed: 10 MB/s Minimum
  Durability	Magnet-Proof, Shockproof, Temperature Extremes, Waterproof, X-Ray Proof
  Operating Temperature	-13 to 185°F/ -25 to 85°C
  Storage Temperature	-40 to 185°F/ -40 to 85°C
  Built-in Write-Protect Switch	Yes

  Box Dimensions (LxWxH)	4.3 x 4.0 x 0.1"

• Ruggard Hunter 35 DSLR Holster Bag

  Carrying/Transport Options

  Belt Loop, Handle, Shoulder Strap

  Exterior Dimensions	7.3 x 5.3 x 8.25" / 18.5 x 13.5 x 21 cm
  Exterior Material	Nylon
  Type of Closure	Quick Release, Zipper

  Interior Dimensions	6.5 x 4.5 x 7" / 16.5 x 11.4 x 17.8 cm
  Interior Material	Polyester
  Weight	10.3 oz / 292.0 g

  Box Dimensions (LxWxH)	10.0 x 7.0 x 5.5"

• Watson NP-W126 Lithium-Ion Battery Pack (7.4V, 1250mAh)

  Capacity (Wh)	9.25 Wh
  Amp-Hours	1250 mAh
  Chemistry	Lithium-Ion
  Output Voltage	7.4 VDC
  Dimensions (W x H x D)	1.9 x 1.4 x 0.6" / 4.7 x 3.6 x 1.5 cm
  Weight	1.8 oz / 51 g

  Box Dimensions (LxWxH)	5.4 x 3.1 x 1.0"

• Vello BG-F1 Battery Grip for Fujifilm X-T1

  Battery Type	1 x Battery Pack (NP-W126)
  Tripod Mounting Thread	1/4"-20 Female
  Operating Temperature	32 to 104°F / 0 to 40°C
  Dimensions (L x W x H)	5.0 x 1.9 x 1.5" / 12.7 x 4.8 x 3.8 cm
  Weight	5.6 oz / 158.7 g

  Box Dimensions (LxWxH)	6.2 x 3.2 x 2.9"

• Vello LCD Screen Protector Ultra for Fujifilm X-A3, X-A5, X-T1 & X-T2 Camera

  Material	Glass
  Thickness	19.69 mil / 0.5 mm

  Box Dimensions (LxWxH)	3.9 x 3.8 x 0.9"
