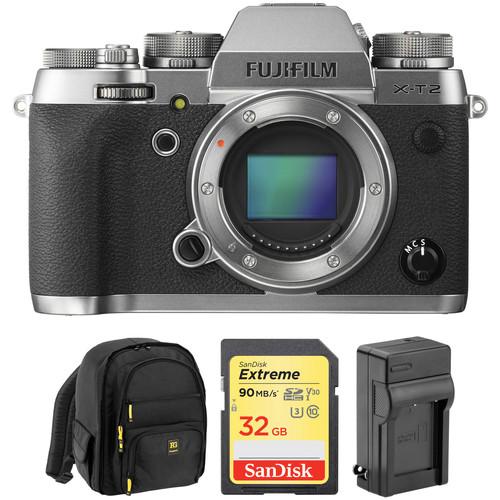

FUJIFILM X-T2 Mirrorless Digital Camera Body

User Manual for FUJIFILM X-T2 Mirrorless Digital Camera Body with Free Accessory Kit

• Product category: Mirrorless System Cameras FUJIFILM
• Brand: FUJIFILM
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for FUJIFILM Mirrorless System Cameras

Product description

• FUJIFILM X-T2 Mirrorless Digital Camera (Body Only, Graphite Silver Edition)
  • FUJIFILM X-T2 Promotional Video (4K version) / FUJIFILM
  Offering a more conventional form factor and packing in UHD 4K video recording, FUJIFILM's X-T2 Mirrorless Digital Camera certainly aims to fill the needs of many working professionals. Equipped with a 24.3MP APS-C X-Trans CMOS III image sensor and the X-Processor Pro Engine, users will be able to capture finely detailed imagery quickly and with low noise at sensitivities up to ISO 51200. The powerful combination permits rapid image capture at up to 8 fps with full AF tracking or at up to 14 fps using the silent electronic shutter. In terms of AF, the X-T2 uses an Intelligent Hybrid system with 325 points that ensure accurate, fast tracking of subjects in all modes.

  For video, the X-T2 offers internal UHD 4K video as well as an 8-bit 4:2:2 HDMI output. The internal recording offers 100 Mbps bitrate for capturing fine details with ease. Along with this an F-Log Gamma setting will be available for capturing a flat picture best used in serious grading applications. Fuji's array of Film Simulations and Grain Effects can also be used here, for both photo and video shoots.

  Improved handling is a key upgrade in the X-T2, incorporating a larger grip, locking dials, raised buttons, and more to make operation smoother. The weather-sealed body also sports a 0.5" 0.77x 2.36m-dot OLED EVF with a larger eyecup for comfortable composition and a base refresh rate of 60 fps, which can be boosted to 100 fps. There is also a 3.0" 1.04m-dot three-way tilting LCD screen for alternative viewing options. This screen has a unique tilt that permits shooting at odd angles, including in the portrait orientation. Additionally, it has a focus lever joystick that allows for rapidly adjusting and changing the selected AF point or area.
  Graphite Silver Edition
  • The special Graphite Silver Edition of the X-T2 features a uniquely durable and aesthetic triple layer coating finish that serves to both protect it and give it visual appeal. Succeeding an initial antioxidant treatment to the magnesium alloy body, a matte black primer coat is first applied. This helps to develop a shadow-like appearance that also accentuates the highlights developed by subsequent coats. The second step in the finishing process involves rotating the body at high speeds while thin strips of paint particles are layered using computer-controlled Thin-Film Multilayer Coating Technology, which produces the smooth graphite silver-colored look. Finally, a clear coat is applied for added durability and shininess based on the ambient lighting conditions.

    Beyond the unique coating and appearance of the camera, this special edition X-T2 also includes a matching graphite silver EF-X8 shoe-mounted flash, a leather camera strap, and an aluminum hot shoe cover.
  24.3MP APS-C X-Trans CMOS III Sensor
  • Utilizing FUJIFILM's unique, randomized pixel array, the 24.3MP APS-C X-Trans CMOS III sensor affords a high degree of image quality and sharpness due to the omission of an optical low-pass filter. Versus conventional pixel patterns, the X-Trans design more closely mimics the organic nature of film in order to produce nuanced colors and smooth tonal transitions, while also reducing moiré and aliasing.

    When paired with the X-Processor Pro, the sensor is also capable of producing clean image quality with reduced noise values, along with a native sensitivity range up to ISO 12800 that can be expanded to ISO 51200.
  X-Processor Pro
  • Aside from benefitting the low-light performance, the X-Processor Pro also contributes to fast performance throughout the camera system, including a start-up time of 0.3 seconds, shutter lag time of 0.05 seconds, shooting interval time of 0.19 seconds, and AF speeds of up to 0.08 seconds. Coupled with the on-sensor phase-detection AF, up to 8 fps continuous shooting is also possible with full-time motion predictive AF for tracking fast-moving subjects while shooting. The ability to record compressed raw files also helps to expedite file transferring for longer continuous burst shooting, and both a fast top focal plane shutter speed of 1/8000 sec and a flash sync speed of 1/250 sec further contribute to shooting versatility.
  UHD 4K Video Recording and F-Log Gamma
  • Beyond stills shooting, the X-T2 is the first FUJIFILM mirrorless camera to offer UHD 4K video recording options. It records this ultra high resolution 3840 x 2160 footage at an excellent 100 Mbps bitrate and with a minor 1.17x crop of the sensor. It also uses a 5120 x 2880 sample of the sensor that is 1.8x more resolution than the UHD 4K frame that is created, ensuring maximum resolution and detail is provided. Footage can be recorded internally for up to about 10 minutes, though with the addition of the optional Vertical Power Booster Grip users will be able to record for up to 30 minutes with ease. Also, the camera features a 3.5mm microphone jack for more advanced audio solutions. Users looking for a headphone jack will find one on the optional Vertical Power Booster Grip.

    Full HD recording also benefits from the X-T2's video prowess, taking a 3000 x 1687 input to create finely detailed 1920 x 1080 footage at 100 Mbps. A variety of frame rates are available, including 60p, 50p, 30p, 25p, 24p, and True 24.00 for Full HD recording and 30p, 25p, 24p, and True 24.00 for UHD 4K.

    Along with the vastly enhanced recording capabilities, the X-T2 offers an F-Log Gamma setting that provides a flat picture for use in advanced color grading software during editing. This should maximize the potential dynamic range in difficult scenes. Image adjustments can be made as well to highlight tone, shadow tone, color, and sharpness. Additionally, HDMI output is supported with an 8-bit 4:2:2 signal and users will be able to use Film Simulation effects to capture unique video.
  OLED Electronic Viewfinder and 3-Way Tilting LCD Screen
  • There are two distinct ways to monitor and compose images on the X-T2, an electronic viewfinder and a rear LCD screen, depending on your particular needs. The 0.5" EVF offers a high 0.77x magnification along with a 2.36m-dot resolution that ensures crisp imagery. Along with these features, the EVF uses an OLED display that provides deep blacks and rich, vivid colors. To ensure a clear view, the EVF offers a base refresh rate of 60 fps which can then be boosted to 100 fps for moments of intense action.

    The rear 3.0" LCD screen received its own upgrades, especially with the introduction of a three-way tilt mechanism. This allows photographers and videographers to work in a variety of odd angles, including portrait orientation shooting. The screen features a high 1.04m-dot resolution for crystal clear viewing.
  Intelligent Hybrid 325-Point Autofocus System
  • Blending both phase- and contrast-detection focusing methods, the X-T2 is capable of acquiring focus both quickly and accurately. The entire system is comprised of 325 points, of which there are numerous phase-detection points for faster performance that is beneficial to photographing moving subjects. Approximately 50% of the width and 75% of the height of the imaging area is covered by phase-detection points, too, to offer greater compositional freedom without sacrificing fast autofocus performance. The majority of the frame is then also covered by an apt contrast-detection focusing system that has been quickened by the camera's refined processing power for more versatile control. For refined manual focusing control, Focus Peaking is available to highlight lines of contrast in the scene to more objectively determine sharp focus.

    Continuous AF modes have been seriously upgraded, as the X-T2 now offers customization of a variety of settings in order to dial in the performance for your specific subject matter. This includes changing the sensitivity, speed, and more to ensure that just what you want to capture is in focus.
  Body and Interface Design
  • • Supporting its use in harsh climates, the durable weather-resistant body design is constructed from magnesium alloy and sealed to protect against dust, moisture, and cold temperatures down to 14°F.
    • Dual SD card slots allow for a more flexible and reliable means of storing imagery, and both card slots are compatible with UHS-II standards for fast transfer speeds.
    • The top plate incorporates a series of locking dials and levers for fast, intuitive adjustment over exposure settings, including a shutter speed dial that offers a mechanical shutter speed range from 1 to 1/8000 sec, as well as bulb and time settings. An ISO dial is also incorporated into the shutter speed dial, for confirming the sensitivity setting without having to turn the camera on. The exposure compensation dial lets you choose +/- 3 EV in 1/3 steps, and a command dial position expands the range to +/- 5 EV for further control.
    • Front and rear command dials integrate a push function for easier use and settings selection and six different function buttons can be assigned to control a range of settings.
    • A dedicated Focus Lever provides faster, more intuitive control over selecting specific focus points while shooting.
    • A larger grip and larger eyecup are available for a more comfortable feeling
    • Four-way buttons on the back of the camera have been raised for a more tactile feel.
    Film Simulation and Grain Effect Modes
    • Taking advantage of FUJIFILM's vast history in traditional film-based photography, the X-T2 integrates several Film Simulation modes to mimic the look and feel of some of FUJIFILM's classic film types. For monochrome shooting, the Acros mode offers smooth tones, deep blacks, and fine detail reMiniscent of the Neopan 100 Acros film type. A refined Classic Chrome mode is designed to deliver muted tones and a deep color reproduction, similar to that of a dated slide film. Pulling from their more contemporary line of transparency films, Provia offers natural-looking tones for everyday shooting, Velvia produces a more dramatic and rich tonality with deeper color saturation, and Astia gives less contrast for a softer depiction of skin tones. Mimicking their negative films, Pro Neg. Std. gives smooth image tones that are suitable for accurate color renditions, while Pro Neg. Hi produces a more dramatic feel with the ability to draw color out of a variety of lighting conditions.

      In addition to simulating specific film types, a Grain Effect mode is also available to replicate the look of old film photos with an organic textured appearance, which is especially noticeable when printing.
    Other Camera Features
    • • An electronic shutter function permits using shutter speeds up to 1/32,000 sec for working with wide aperture settings in bright lighting conditions.
      • Built-in Wi-Fi enables wireless transferring of imagery to linked mobile devices as well as remote control over camera settings and the shutter via the free FUJIFILM Camera Remote app. Additionally, this connectivity enables the use of the optional INSTAX SHARE Smartphone Printer for wireless instant printing via the INSTAX Share app.
      • An interval timer permits recording time-lapse sequences and can be configured to record up to 999 frames in time spans ranging from one second to 24 hours.
      • Multiple exposure mode gives you the ability to overlay imagery in-camera. When working in this mode, subsequent exposures can be paired and the final appearance can be previewed on the LCD or in the EVF before making the final exposure.
      • Additional Advanced Filters can also be used to creatively enhance the look of imagery in-camera, and include Toy Camera, Miniature, Pop Color, High Key, Low Key, Dynamic Tone, Soft Focus, and Partial Color (Red/Orange/Yellow/Green/Blue/Purple).
      Optional Vertical Power Booster Grip
      • While most of the X-T2's signature features are built directly into the body, a couple other capabilities can be unlocked with the addition of the optional Vertical Power Booster Grip. This enables faster shooting speeds of 11 fps with autofocus as well as longer video recording times of up to 30 minutes. Additionally, the grip features a 3.5mm headphone jack for audio monitoring.
      UPC: 074101029819
    • Ruggard Outrigger 45 Backpack (Black)
      • FUJIFILM X-T2 Promotional Video (4K version) / FUJIFILM
      The black Outrigger 45 Backpack from Ruggard holds a standard DSLR system and an iPad. The front pocket measures 8.0 x 7.25" and contains five small, pen-sized slip-in slots as well as a mesh stash pocket. The second compartment is dedicated for your iPad. The third compartment measures 14.5 x 8.5" and contains three memory card pockets, two slash stretch pockets and a key ring. The spacious main compartment for your camera gear includes seven removable dividers that can be configured to accommodate whatever gear you carry.

      For carrying comfort, the back of the backpack is made from a breathable, small-mesh, padded material and features a padded shoulder harness. You can also carry the backpack using the nylon grip handle at the top. The backpack has a sternum strap and a hideaway waist strap. An attached rain cover for inclement weather can be hidden away at the base of the backpack.

      Pockets

      • Small, exterior, front, zippered pouch has interior mesh slip pocket and an organizer that includes two slip pockets and three pen slots
      • Large, exterior, front, zippered pouch has two slip pockets, three touch-fastened memory card pockets, and a key leash
      • Two, exterior, expandable side pockets with a touch-fastened closure
      • Two, interior, large, zippered mesh pockets on front flap

      Construction

      • Two, large, rigid, padded interior dividers and five small ones can create up to eight sections inside the main compartment
      • Elastic touch-fastened band inside main compartment secures larger lenses
      • Tough 600D polyester exterior and 200D polyester interior lining
      • Front, zippered flap opens all the way down for full access to main compartment
      UPC: 847628561557
    • SanDisk 32GB Extreme UHS-I SDHC Memory Card
      • FUJIFILM X-T2 Promotional Video (4K version) / FUJIFILM
      Built to meet the demands of photographers and passionate shutterbugs who are using advanced cameras and HD camcorders, the 32GB Extreme UHS-I SDHC Memory Card from SanDisk allows users to take advantage of functions such as fast action shots, continuous burst mode, and multiple frames per second. It features a capacity of 32GB, is compatible with the UHS-I bus, and delivers maximum read speeds of up to 90 MB/s and maximum write speeds of up to 40 MB/s. This Extreme UHS-I SDHC card supports the V30 speed class, which guarantees minimum write speeds of 30 MB/s. If your device does not support the V30 speed class, this card also supports the U3 speed class, which likewise guarantees minimum write speeds of 30 MB/s. If your device only supports the Class 10 standard, minimum write speeds are guaranteed not to drop below 10 MB/s.

      Built for extreme conditions, SanDisk's 32GB Extreme UHS-I SDHC Memory Card is water, shock, and x-ray proof, while also being able to withstand temperatures from -13 to 185°F, allowing for use in environments such as snow and deserts. A built-in write protect switch further helps to safeguard your content, while advanced Error Correction Code engine offers improved data integrity and card reliability during read and write operations. Downloadable RescuePRO data recovery software helps you restore accidentally deleted images. The card also has a writable label on its surface and the included jewel case makes for easy storage and organization. This card is backed by a limited lifetime warranty.

      General Features

      Faster Performance and Downloads
      • With write speeds up to 40 MB/s, this card unleashes the full shooting potential of your advanced camera or DSLR. Take advantage of advanced functions such as fast action shots, continuous burst mode, and multiple frames per second. Photos are written to your card almost instantly so you'll get your best shot, and you'll save time moving it all from your camera to your computer.
      Capacity for High-Resolution Photos and Videos
      • With a capacity of 32GB to capture it all, this SanDisk Extreme UHS-I Card offers enough room for thousands of high-resolution photos. The card can accommodate high-volume image formats, such as RAW and JPEG, and also provides plenty of room for Full HD videos.
      4K and Full HD Video Recording
      • With Class 10, UHS Speed Class 3 (U3), and V30 video ratings, you'll be ready to capture 4K Ultra HD, cinema quality 3D, and Full HD video (1080p), which require more performance than ordinary cards can handle. This memory card's accelerated minimum sustained write speeds help ensure that video data isn't lost during recording, by reducing dropouts and stuttering.
      Error Correction for Enhanced Relability
      • Thanks to its Advanced Error Correction Code engine, this SanDisk Extreme UHS-I SDHC card helps reduce the chance for errors during data storage and retrieval. It prevents potential data corruption, providing high data integrity.
      Fast Transfer Speeds Reduce Upload Times
      • SanDisk Extreme UHS-I SDHC cards boast a read speed of up to 90 MB/s, so you can transfer photos and videos to your computer quickly. You'll spend less time uploading photos and more time editing, storing, and sharing.
      Durable Design
      • Designed and tested to withstand the tough conditions, this card has a capacity of 32GB and is waterproof, shockproof, and X-ray proof. It can operate in temperatures ranging from -13 to 185°F, so you can work in almost any climate.
      RescuePRO Software
      • SanDisk RescuePRO and RescuePRO Deluxe software are file and data recovery products for recovering deleted files from all types of digital media.
      UPC: 619659147037
    • Pawa Compact AC/DC Charger for Fujifilm NP-W126 or NP-W126S Battery
      • FUJIFILM X-T2 Promotional Video (4K version) / FUJIFILM
      Charge any Fujifilm NP-W126 or NP-W126S type lithium-ion battery with this dedicated Compact AC/DC Charger from Pawa. It runs on 100-240 VAC power, allowing for worldwide use, and features a folding, 2-prong North American plug. Additionally, the charger includes a European plug adapter and a 12 VDC vehicle adapter that plugs into a cigarette lighter port--making it ideal for use both at home and on the road.
      Compatibility
      • Works with any Fujifilm NP-W126 or NP-W126S type battery.
      Compact Design
      • Fold-out prongs allow for easy storage and traveling.
      Versatility
      • Runs on 100-240 VAC power to enable use all over the world. Features a two-prong North American plug, and includes both a 12 VDC vehicle adapter and a two-prong European plug adapter.
      UPC: 847628001381
    In the Box
    • X-T2 Mirrorless Digital Camera (Body Only, Graphite Silver Edition) sbyyybtyuycasfexrdxatabczuzeyfywsr
    • NP-W126S Li-Ion Battery Pack
    • BC-W126 Battery Charger
    • EF-X8 Flash (Graphite Silver Edition)
    • Body Cap for FUJIFILM X-Mount Cameras
    • X-T2 Cover Kit
    • Leather Strap
    • Strap Clip
    • Clip Attaching Tool
    • Aluminum Hot Shoe Cover
    • Vertical Power Booster Grip Connector Cover
    • Sync Terminal Cover
    • Limited 1-Year Warranty
    • Ruggard - Outrigger 45 Backpack (Black)
    • SanDisk - 32GB Extreme UHS-I SDHC Memory Card
    • Pawa - Compact AC/DC Charger for Fujifilm NP-W126 or NP-W126S Battery
    Table of Contents

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• FUJIFILM X-T2 Mirrorless Digital Camera (Body Only, Graphite Silver Edition)

  Lens Mount	FUJIFILM X
  Camera Format	APS-C (1.5x Crop Factor)
  Pixels	24.3 Megapixel
  Maximum Resolution	6000 x 4000
  Aspect Ratio	1:1, 3:2, 16:9
  Sensor Type	CMOS
  Sensor Size	23.6 x 15.6 mm
  Image File Format	JPEG, RAW
  Bit Depth	14-Bit
  Image Stabilization	None

  ISO Sensitivity	Auto, 200 to 12800 (Extended: 100 to 51200)
  Shutter Speed	Mechanical Shutter 1/8000 to 30 Seconds Electronic Shutter 1/32000 to 30 Seconds
  Metering Method	Average, Center-Weighted Average, Multi-Zone, Spot
  Exposure Modes	Aperture Priority, Manual, Program, Shutter Priority
  Exposure Compensation	-5 to +5 EV (1/3 EV Steps)
  White Balance	Automatic Scene Recognition, Color Temperature, Custom, Fine, Fluorescent (Cool White), Fluorescent (Daylight), Fluorescent (Warm White), Incandescent, Shade, Underwater
  Continuous Shooting	Up to 14 fps for up to 42 Exposures (JPEG Format) Up to 14 fps for up to 28 Exposures (Raw Format) Up to 8 fps for up to 83 Exposures (JPEG Format) Up to 8 fps for up to 33 Exposures (Raw Format) Up to 5 fps for Unlimited Exposures Up to 5 fps for up to 39 Exposures (Raw Format)
  Interval Recording	Yes
  Self Timer	2/10-Second Delay

  Recording Modes	H.264 UHD 4K (3840 x 2160)23.976p/24p/25p/29.97p [100 Mb/s] Full HD (1920 x 1080)23.976p/24p/25p/29.97p/50p/59.94p [100 Mb/s] HD (1280 x 720)24p/25p/29.97p/50p/59.94p [50 Mb/s]
  External Recording Modes	UHD 4K (3840 x 2160) Full HD (1920 x 1080) HD (1280 x 720)
  Recording Limit	Up to 29 Minutes, 59 Seconds
  Video Encoding	NTSC/PAL
  Audio Recording	Built-In Microphone (Stereo) External Microphone Input
  Audio File Format	Linear PCM

  Focus Type	Auto and Manual Focus
  Focus Mode	Continuous-Servo AF (C), Manual Focus (M), Single-Servo AF (S)
  Autofocus Points	Phase Detection: 325

  Viewfinder Type	Electronic
  Viewfinder Size	0.5"
  Viewfinder Resolution	2,360,000 Dot
  Viewfinder Eye Point	23 mm
  Viewfinder Coverage	100%
  Viewfinder Magnification	Approx. 0.77x
  Diopter Adjustment	-4 to +2 m
  Monitor Size	3"
  Monitor Resolution	1,040,000 Dot
  Monitor Type	Tilting LCD

  Built-in Flash	None
  Flash Modes	Auto, Commander, Manual, Off, Slow Sync
  Maximum Sync Speed	1/250 Second
  Flash Compensation	-5 to +5 EV (1/3 EV Steps)
  Dedicated Flash System	TTL
  External Flash Connection	Hot Shoe, PC Terminal

  Memory Card Slot	2 x SD/SDHC/SDXC
  Connectivity	3.5mm Microphone, 2.5mm Sub-Mini, HDMI D (Micro), USB 2.0 Micro-B, USB 3.0
  Wireless	Wi-Fi
  GPS	None

  Operating Temperature	14 to 104°F / -10 to 40°C
  Operating Humidity	10 to 80%

  Battery	1 x NP-W126S Rechargeable Lithium-Ion
  Dimensions (W x H x D)	5.2 x 3.6 x 1.9" / 132.5 x 91.8 x 49.2 mm
  Weight	1.11 lb / 507 g (Body with Battery and Memory)

  Box Dimensions (LxWxH)	8.1 x 5.7 x 5.6"

• Ruggard Outrigger 45 Backpack (Black)

  Features	Tablet Pocket
  Carrying/Transport Options	Backpack Straps, Waist Belt
  Camera Support Strap	Tripod

  Exterior Dimensions	11.5 x 15.5 x 7.5" / 29.2 x 39.4 x 19.1 cm
  Exterior Material	Polyester
  Type of Closure	Zipper
  Water Resistance	Rain Cover

  Interior Dimensions	10 x 14.5 x 5" / 25.4 x 36.8 x 12.7 cm
  Weight	2.4 lb / 1.1 kg

  Box Dimensions (LxWxH)	17.0 x 13.0 x 9.0"

• SanDisk 32GB Extreme UHS-I SDHC Memory Card

  Card Type	SDHC
  Storage Capacity	32 GB
  Bus Type	UHS-I
  Speed Class	10
  UHS Speed Class	U3
  Video Speed Class	V30
  Bus Interface Speed	UHS Class I
  Data Transfer	Read Speed: 90 MB/s Maximum (Burst) Write Speed: 40 MB/s Maximum (Burst) Write Speed: 30 MB/s Minimum
  Durability	Shockproof, Temperature Extremes, Waterproof, X-Ray Proof
  Operating Temperature	-13 to 185°F/ -25 to 85°C
  Storage Temperature	-40 to 185°F/ -40 to 85°C
  Error Correction	Yes
  Built-in Write-Protect Switch	Yes

  Box Dimensions (LxWxH)	4.5 x 4.0 x 0.1"

• Pawa Compact AC/DC Charger for Fujifilm NP-W126 or NP-W126S Battery

  Power Input	Wall Plug: 100-240 VAC, 50 / 60 Hz, 150 mA Vehicle Adapter: 12-24 VDC
  Power Output	8.4 V, 600 mA
  Dimensions	3.3 x 1.8 x 1.5" / 8.3 x 4.5 x 3.7 cm
  Weight	2.5 oz / 70.9 g

  Box Dimensions (LxWxH)	4.567 x 3.465 x 1.969"
