Product description

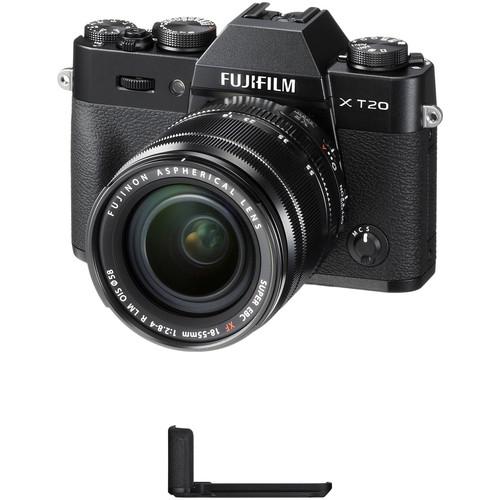

• FUJIFILM X-T20 Mirrorless Digital Camera with 18-55mm Lens (Black)
  • FUJIFILM X-T20 Promotional Video / FUJIFILM
  Blending a familiar form factor with a heightened feature-set, the black X-T20 from FUJIFILM is a sleek mirrorless camera designed for multimedia shooters. Utilizing a 24.3MP APS-C X-Trans CMOS III sensor and X-Processor Pro image processor, high-resolution stills can be recorded with notable sharpness and clarity due to the sensor's organic layout and omission of an optical low-pass filter. The sensor and processor combination also avails an extended sensitivity range to ISO 51200, a 14 fps continuous shooting rate when working with the electronic shutter, and the ability to record UHD 4K or Full HD 1080p video. When working with moving subjects, continuous autofocus performance has been optimized for improved moving subject tracking and overall accuracy, and Advanced SR Auto mode can also be used for fully automated shooting with intelligent scene recognition. Additionally, the retro-inspired camera body design incorporates a tilting 3.0" 1.04m-dot touchscreen LCD as well as a 2.36m-dot electronic viewfinder, and physical dials are available for quickly and intuitively adjusting exposure and shooting settings.

  Included with the X-T20 is the XF 18-55mm f/2.8-4 R LM OIS lens; a standard zoom lens providing a 27-84mm equivalent focal length range, covering wide-angle to portrait-length perspectives. This lens integrates optical image stabilization to Minimize the appearance of camera shake to benefit working with longer shutter speeds or greater focal lengths and a linear motor-drive AF system provides fast, smooth focusing capabilities.
  24.3MP APS-C X-Trans CMOS III Sensor
  • Utilizing FUJIFILM's unique, randomized pixel array, the 24.3MP APS-C X-Trans CMOS III sensor affords a high degree of image quality and sharpness due to the omission of an optical low-pass filter. Versus conventional pixel patterns, the X-Trans design more closely mimics the organic nature of film in order to produce nuanced colors and smooth tonal transitions, while also reducing moiré and aliasing.
  X-Processor Pro
  • Aside from benefitting the low-light performance with an expandable sensitivity range to ISO 51200, the X-Processor Pro also contributes to fast performance throughout the camera system, including a start-up time of 0.4 seconds, shutter lag time of 0.05 seconds, shooting interval time of 0.25 seconds, and a continuous shoot rate of 14 fps when working with an electronic shutter, or 8 fps with a mechanical shutter.
  UHD 4K and Full HD Video
  • Accessible via the drive dial on the top plate, the X-T20 supports both recording in both UHD 4K/30p and Full HD 1080/60p resolutions. Film Simulation modes can be used during recording to give a distinct look to footage, and video can also be output via HDMI to an external recorder or monitor, and a mic jack is featured for working with an external microphone.
  Body Design
  • • The rear 3.0" 1.04m-dot LCD touchscreen allows for intuitive operation, focus point selection, and menu navigation, and its tilting design benefits working from high and low angles.
    • High-resolution 2.36m-dot electronic viewfinder allows for bright, clear eye-level monitoring with a frame rate of 54.54 fps for smooth monitoring in a range of lighting conditions.
    • Dedicated shutter speed, drive mode, and exposure compensation dials for direct, intuitive control over exposure and shooting settings.
    • The physical exposure compensation dial now features a C position to permit an expanded +/- 5 EV range when working with the control dials.
    • Built-in Wi-Fi allows for direct wireless sharing of files as well as remote camera control from a linked mobile device.
    • Built-in pop-up flash is available for additional illumination, and a hot shoe is featured for working with an optional external flash.
  91-Point Autofocus System
  • Utilizing both contrast- and phase-detection methods, the hybrid autofocus system employs 91 total points, which can be divided into 325 total areas for a high degree of focusing accuracy in a variety of lighting conditions. Approximately 50% side-to-side and 75% top-to-bottom of the frame is covered by phase-detection points in order to provide fast AF performance to suit working with moving subjects.

    When working with autofocus, you can choose either single-shot AF-S mode or continuous AF-C mode, and each can be used in conjunction with Single Point AF, Zone AF, or Wide/Tracking AF settings. Additionally, AF-C Custom Settings let you choose from five AF-C presets depending on how your subject is moving, and the AF algorithm has been optimized for improved subject tracking and overall accuracy.
  Film Simulation Modes
  • Taking advantage of FUJIFILM's vast history in traditional film-based photography, the X-T20 integrates several Film Simulation modes, which can be used for photos or videos, to mimic the look and feel of some of FUJIFILM's classic film types. A refined Classic Chrome mode is designed to deliver muted tones and a deep color reproduction, similar to that of a dated slide film. Pulling from their more contemporary line of transparency films, Provia offers natural-looking tones for everyday shooting, Velvia produces a more dramatic and rich tonality with deeper color saturation, and Astia gives less contrast for a softer depiction of skin tones. Mimicking their negative films, Pro Neg. Std. gives smooth image tones that are suitable for accurate color renditions, while Pro Neg. Hi produces a more dramatic feel with the ability to draw color out of a variety of lighting conditions. In addition to the colorful benefits of these Film Simulation modes, there are also monochrome modes that simulate the look of traditional yellow, green, and red black and white contrast filters, as well as an Acros mode that can also be paired with colored filter effects. A sepia mode is also available for producing an inherently nostalgic look.
  Fujinon XF 18-55mm f/2.8-4 R LM OIS Lens
  • The included XF 18-55mm f/2.8-4 R LM OIS lens provides a 27-84mm equivalent focal length range, covering wide-angle to portrait-length perspectives to suit working with most everyday subject matter. An optical image stabilization system counters the appearance of camera shake by up to four shutter speed steps and a linear-driven autofocus motor helps to produce quick and smooth focusing performance. Three aspherical elements and one extra-low dispersion element work to Minimize chromatic aberrations throughout the zoom range while also benefitting overall image clarity and sharpness. A Super EBC coating has also been applied to individual elements to reduce lens flare and ghosting for an enhanced contrast and neutral colors.
  Other Camera Features
  • • Advanced SR Auto mode can be used for fully automatic shooting with scene recognition to permit on-the-fly shooting in a variety of settings.
    • Interval Timer shooting lets you record an infinite number of consecutive frames with 1 second to 24 hour intervals, and a 1 minute to 24 hour starting delay.
    • Multiple Exposure mode lets you shoot two consecutive overlaid frames, and the first frame will be shown on the rear LCD to aid in alignment for the second exposure.
    • In-camera 180° panoramas can be shot by simply panning the camera about the scene.
    • Advanced Filters: Toy Camera, Dynamic Tone, Miniature, High Key, Soft Focus, Pop Color, Low Key, and Partial Color (Red, Orange, Yellow, Green, Blue, and Purple).
  UPC: 074101032260
• FUJIFILM Metal Hand Grip for X-T10, X-T20, and X-T30
  • FUJIFILM X-T20 Promotional Video / FUJIFILM
  This Metal Hand Grip provides an optimized grip for easier handling and manipulation of the FUJIFILM X-T10, X-T20, and X-T30 mirrorless digital camera. Milled from aluminum alloy and matching the silhouette of the camera, this hand grip adds additional clearance from the base of the body to better support the use of large-diameter lenses when mounted to a tripod.

  The grip also facilitates access to the battery compartment and memory card slot, even when mounted to a tripod, for easier switching of batteries and cards during shooting. Additionally, the 1/4"-20 tripod mount has been positioned along the optical axis of the camera to benefit the creation of panning shots and the bottom of the plate is equipped with rails for use in conjunction with a quick release plate. UPC: 074101026771

• X-T20 Mirrorless Digital Camera with 18-55mm Lens (Black)
• XF 18-55mm f/2.8-4 R LM OIS Lens
• NP-W126S Li-Ion Battery Pack
• BC-W126 Battery Charger
• Body Cap for FUJIFILM X-Mount Cameras
• Shoulder Strap
• Metal Strap Clip
• Clip Attaching Tool
• Protective Cover
• Limited 1-Year Warranty

• Metal Hand Grip for X-T10, X-T20, and X-T30

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• FUJIFILM X-T20 Mirrorless Digital Camera with 18-55mm Lens (Black)

  Lens Mount	FUJIFILM X
  Camera Format	APS-C (1.5x Crop Factor)
  Pixels	24.3 Megapixel
  Maximum Resolution	6000 x 4000
  Aspect Ratio	3:2
  Sensor Type	CMOS
  Sensor Size	23.6 x 15.6 mm
  Image File Format	JPEG, RAW
  Bit Depth	14-Bit
  Image Stabilization	None

  ISO Sensitivity	Auto, 200 to 12800 (Extended: 100 to 51200)
  Shutter Speed	Mechanical Shutter 1/4000 to 30 Seconds 1/4000 to 4 Seconds in Program Mode 0 to 60 Minutes in Bulb Mode Electronic Shutter 1/32000 to 1 Second 1/4000 to 4 Seconds in Program Mode 1Second in Bulb Mode Electronic Front Curtain Shutter 1/32000 to 30 Seconds 1/32000 to 4 Seconds in Program Mode 0 to 60 Minutes in Bulb Mode
  Metering Method	Average, Center-Weighted Average, Multiple, Spot
  Exposure Modes	Aperture Priority, Manual, Program, Shutter Priority
  Exposure Compensation	-5 to +5 EV (1/3 EV Steps)
  White Balance	Automatic Scene Recognition, Color Temperature, Custom, Daylight, Fluorescent (Cool White), Fluorescent (Daylight), Fluorescent (Warm White), Incandescent, Shade, Underwater
  Continuous Shooting	Up to 14 fps at 24.3 MP for up to 42 Exposures (JPEG Format) Up to 14 fps at 24.3 MP for up to 23 Exposures (Raw Format) Up to 11 fps at 24.3 MP for up to 56 Exposures (JPEG Format) Up to 11 fps at 24.3 MP for up to 24 Exposures (Raw Format) Up to 8 fps at 24.3 MP for up to 62 Exposures (JPEG Format) Up to 8 fps at 24.3 MP for up to 25 Exposures (Raw Format) Up to 5 fps at 24.3 MP for up to 68 Exposures (JPEG Format) Up to 5 fps at 24.3 MP for up to 28 Exposures (Raw Format) Up to 4 fps at 24.3 MP for up to 73 Exposures (JPEG Format) Up to 4 fps at 24.3 MP for up to 29 Exposures (Raw Format) Up to 3 fps at 24.3 MP for up to 81 Exposures (JPEG Format) Up to 3 fps at 24.3 MP for up to 32 Exposures (Raw Format)
  Interval Recording	Yes
  Self Timer	2/10-Second Delay

  Recording Modes	MOV/H.264 UHD 4K (3840 x 2160) at 23.976p/24p/25p/29.97p [100 Mb/s] Full HD (1920 x 1080) at 23.976p/24p/25p/29.97p/50p/59.94p [36 Mb/s] HD (1280 x 720) at 23.976p/24p/25p/29.97p/50p/59.94p [18 Mb/s]
  Recording Limit	Up to 29 Minutes, 59 Seconds
  Video Encoding	NTSC/PAL
  Audio Recording	Built-In Microphone (Stereo)
  Audio File Format	Linear PCM (Stereo)

  Focus Type	Auto and Manual Focus
  Focus Mode	Continuous-Servo AF (C), Manual Focus (M), Single-Servo AF (S)
  Autofocus Points	Phase Detection: 91

  Viewfinder Type	Electronic
  Viewfinder Size	0.39"
  Viewfinder Eye Point	17.5 mm
  Viewfinder Coverage	100%
  Viewfinder Magnification	Approx. 0.62x
  Diopter Adjustment	-4 to +2 m
  Monitor Size	3"
  Monitor Type	Tilting Touchscreen LCD

  Built-in Flash	Yes
  Flash Modes	Commander, First-Curtain Sync, Manual, Off, Second-Curtain Sync, Slow Sync, TTL Auto
  Guide Number	16.4' / 5 m at ISO 100
  Maximum Sync Speed	1/180 Second
  External Flash Connection	Hot Shoe

  Memory Card Slot	1 x SD/SDHC/SDXC
  Connectivity	2.5mm Sub-Mini, HDMI D (Micro), USB 2.0 Micro-B, USB 2.0
  Wireless	Wi-Fi
  GPS	None

  Operating Temperature	32 to 104°F / 0 to 40°C
  Operating Humidity	10 to 80%

  Battery	1 x NP-W126S Rechargeable Lithium-Ion, 8.4 VDC, 1260 mAh
  Dimensions (W x H x D)	4.7 x 3.3 x 1.6" / 118.4 x 82.8 x 41.4 mm
  Weight	13.51 oz / 383 g (Body with Battery and Memory)

  Focal Length	18 to 55mm (35mm Equivalent Focal Length: 27 to 84mm)
  Maximum Aperture	f/2.8 to 4
  Minimum Aperture	f/22
  Angle of View	79.1 Rating 50% users recommend this product to others. And what about you? This product has already been rated by 20 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
