User Manual for FUJIFILM X-T20 Mirrorless Digital Camera Click to enlarge the picture
Contents of the user manual for the FUJIFILM X-T20 Mirrorless Digital Camera
- Product category: Mirrorless System Cameras FUJIFILM
- Brand: FUJIFILM
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FUJIFILM Mirrorless System Cameras
 |
User manual for the FUJIFILM X-T20 Mirrorless Digital Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FUJIFILM product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FUJIFILM user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FUJIFILM product will considerably shorten its lifespan!
|
Product description Fujifilm Unleashes X100F, 4K-Capable X-T20, and XF 50mm f/2 Lens Read More - FUJIFILM X-T20 Promotional Video / FUJIFILM

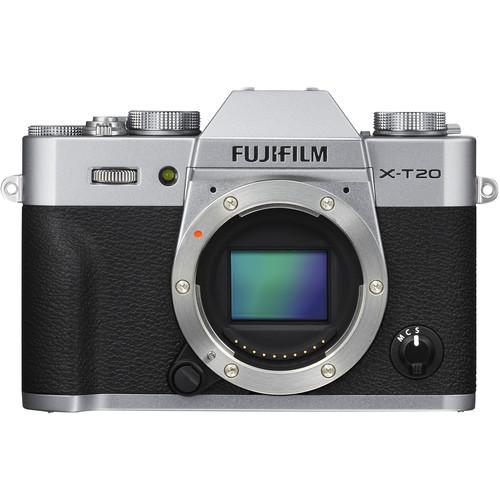

Blending a familiar form factor with a heightened feature-set, the silver X-T20 from FUJIFILM is a sleek mirrorless camera designed for multimedia shooters. Utilizing a 24.3MP APS-C X-Trans CMOS III sensor and X-Processor Pro image processor, high-resolution stills can be recorded with notable sharpness and clarity due to the sensor's organic layout and omission of an optical low-pass filter. The sensor and processor combination also avails an extended sensitivity range to ISO 51200, a 14 fps continuous shooting rate when working with the electronic shutter, and the ability to record UHD 4K or Full HD 1080p video. When working with moving subjects, continuous autofocus performance has been optimized for improved moving subject tracking and overall accuracy, and Advanced SR Auto mode can also be used for fully automated shooting with intelligent scene recognition. Additionally, the retro-inspired camera body design incorporates a tilting 3.0" 1.04m-dot touchscreen LCD as well as a 2.36m-dot electronic viewfinder, and physical dials are available for quickly and intuitively adjusting exposure and shooting settings. - 24.3MP APS-C X-Trans CMOS III Sensor
- Utilizing FUJIFILM's unique, randomized pixel array, the 24.3MP APS-C X-Trans CMOS III sensor affords a high degree of image quality and sharpness due to the omission of an optical low-pass filter. Versus conventional pixel patterns, the X-Trans design more closely mimics the organic nature of film in order to produce nuanced colors and smooth tonal transitions, while also reducing moiré and aliasing.
- X-Processor Pro
- Aside from benefitting the low-light performance with an expandable sensitivity range to ISO 51200, the X-Processor Pro also contributes to fast performance throughout the camera system, including a start-up time of 0.4 seconds, shutter lag time of 0.05 seconds, shooting interval time of 0.25 seconds, and a continuous shoot rate of 14 fps when working with an electronic shutter, or 8 fps with a mechanical shutter.
- UHD 4K and Full HD Video
- Accessible via the drive dial on the top plate, the X-T20 supports both recording in both UHD 4K/30p and Full HD 1080/60p resolutions. Film Simulation modes can be used during recording to give a distinct look to footage, and video can also be output via HDMI to an external recorder or monitor, and a mic jack is featured for working with an external microphone.
- Body Design
-

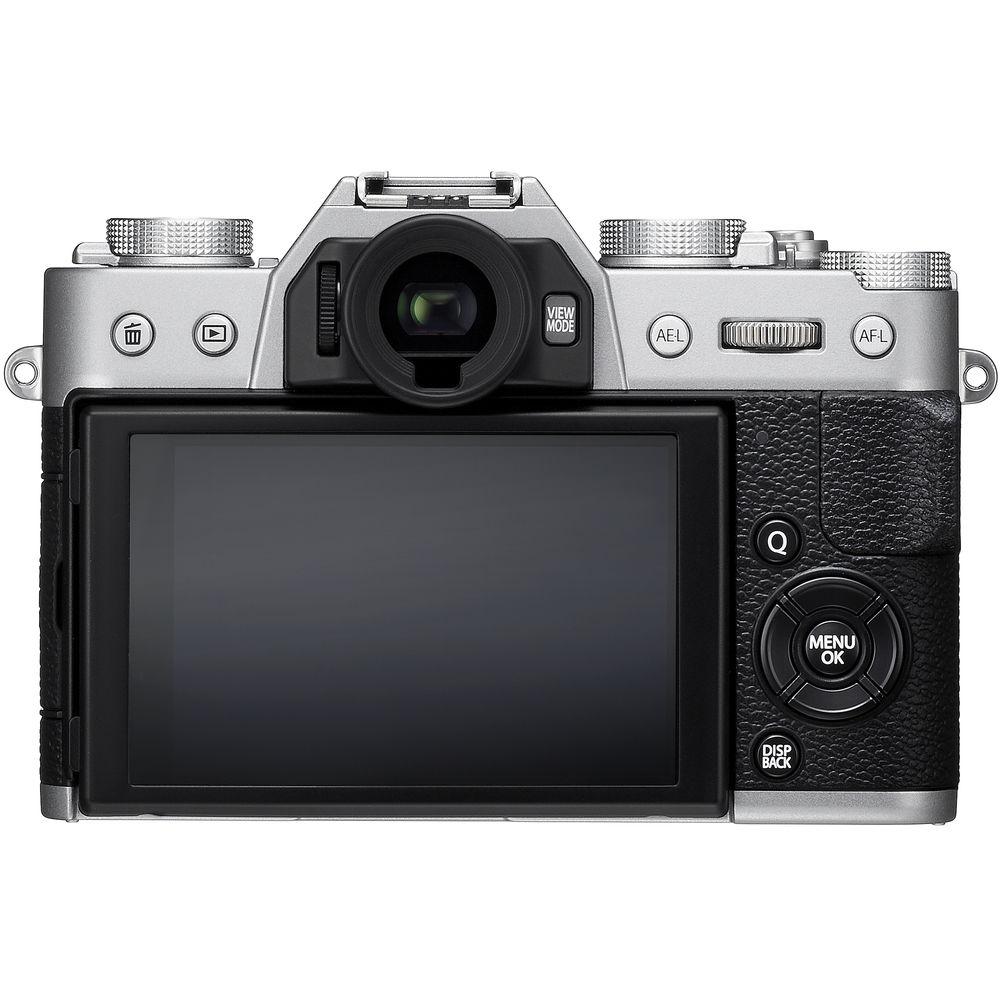

- The rear 3.0" 1.04m-dot LCD touchscreen allows for intuitive operation, focus point selection, and menu navigation, and its tilting design benefits working from high and low angles.
- High-resolution 2.36m-dot electronic viewfinder allows for bright, clear eye-level monitoring with a frame rate of 54.54 fps for smooth monitoring in a range of lighting conditions.

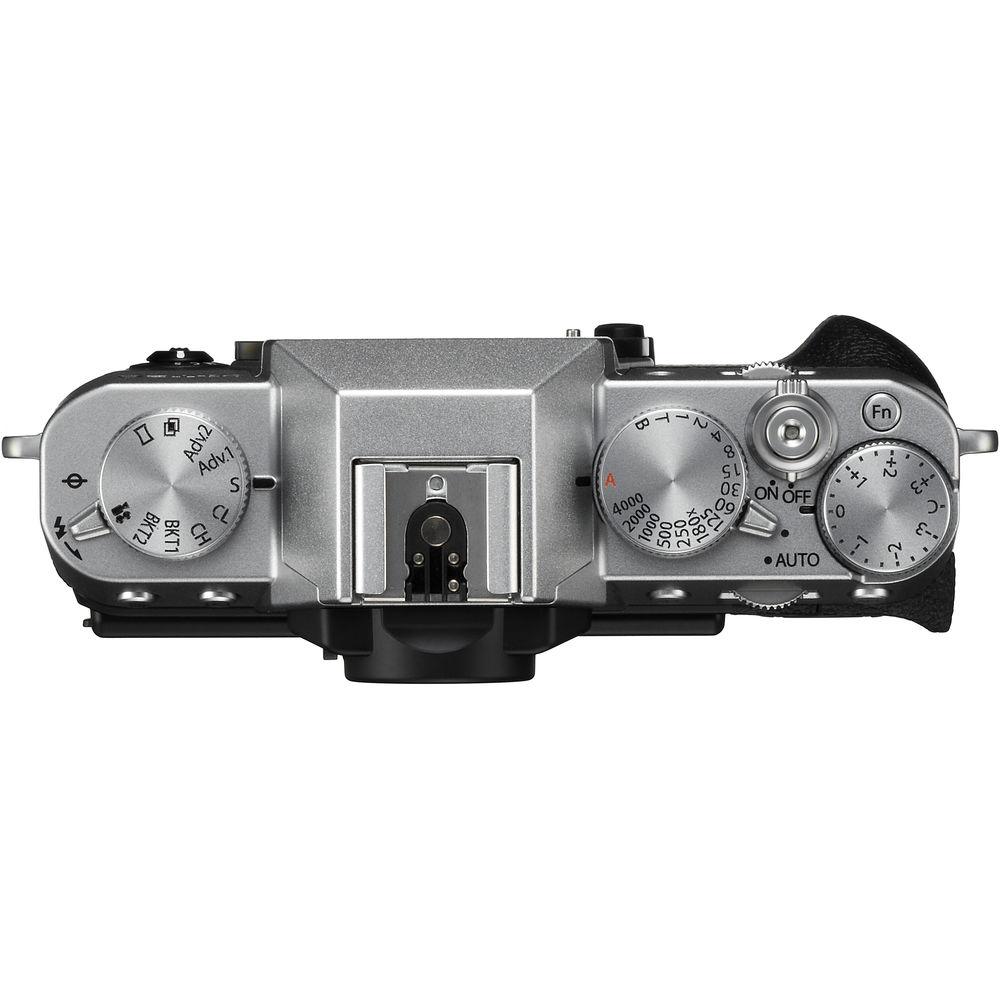

- Dedicated shutter speed, drive mode, and exposure compensation dials for direct, intuitive control over exposure and shooting settings.
- The physical exposure compensation dial now features a C position to permit an expanded +/- 5 EV range when working with the control dials.
- Built-in Wi-Fi allows for direct wireless sharing of files as well as remote camera control from a linked mobile device.
- Built-in pop-up flash is available for additional illumination, and a hot shoe is featured for working with an optional external flash.
- 91-Point Autofocus System
- Utilizing both contrast- and phase-detection methods, the hybrid autofocus system employs 91 total points, which can be divided into 325 total areas for a high degree of focusing accuracy in a variety of lighting conditions. Approximately 50% side-to-side and 75% top-to-bottom of the frame is covered by phase-detection points in order to provide fast AF performance to suit working with moving subjects.
When working with autofocus, you can choose either single-shot AF-S mode or continuous AF-C mode, and each can be used in conjunction with Single Point AF, Zone AF, or Wide/Tracking AF settings. Additionally, AF-C Custom Settings let you choose from five AF-C presets depending on how your subject is moving, and the AF algorithm has been optimized for improved subject tracking and overall accuracy. - Film Simulation Modes
- Taking advantage of FUJIFILM's vast history in traditional film-based photography, the X-T20 integrates several Film Simulation modes, which can be used for photos or videos, to mimic the look and feel of some of FUJIFILM's classic film types. A refined Classic Chrome mode is designed to deliver muted tones and a deep color reproduction, similar to that of a dated slide film. Pulling from their more contemporary line of transparency films, Provia offers natural-looking tones for everyday shooting, Velvia produces a more dramatic and rich tonality with deeper color saturation, and Astia gives less contrast for a softer depiction of skin tones. Mimicking their negative films, Pro Neg. Std. gives smooth image tones that are suitable for accurate color renditions, while Pro Neg. Hi produces a more dramatic feel with the ability to draw color out of a variety of lighting conditions. In addition to the colorful benefits of these Film Simulation modes, there are also monochrome modes that simulate the look of traditional yellow, green, and red black and white contrast filters, as well as an Acros mode that can also be paired with colored filter effects. A sepia mode is also available for producing an inherently nostalgic look.
- Other Camera Features
-
- Advanced SR Auto mode can be used for fully automatic shooting with scene recognition to permit on-the-fly shooting in a variety of settings.
- Interval Timer shooting lets you record an infinite number of consecutive frames with 1 second to 24 hour intervals, and a 1 minute to 24 hour starting delay.
- Multiple Exposure mode lets you shoot two consecutive overlaid frames, and the first frame will be shown on the rear LCD to aid in alignment for the second exposure.
- In-camera 180° panoramas can be shot by simply panning the camera about the scene.
- Advanced Filters: Toy Camera, Dynamic Tone, Miniature, High Key, Soft Focus, Pop Color, Low Key, and Partial Color (Red, Orange, Yellow, Green, Blue, and Purple).
UPC: 074101032154 In the Box FUJIFILM X-T20 Mirrorless Digital Camera (Body Only, Silver) NP-W126S Li-Ion Battery Pack wuffzuxxaeufftvuzfwbrre BC-W126 Battery Charger Body Cap for FUJIFILM X-Mount Cameras Shoulder Strap Metal Strap Clip Clip Attaching Tool Protective Cover Limited 1-Year Warranty User Manual PDF 4.5mb Table of Contents
|
Upload User Manual
Have you got an user manual for the FUJIFILM X-T20 Mirrorless Digital Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFUJIFILM X-T20 Specs | | | Lens Mount | FUJIFILM X | | Camera Format | APS-C (1.5x Crop Factor) | | Pixels | 24.3 Megapixel | | Maximum Resolution | 6000 x 4000 | | Aspect Ratio | 3:2 | | Sensor Type | CMOS | | Sensor Size | 23.6 x 15.6 mm | | Image File Format | JPEG, RAW | | Bit Depth | 14-Bit | | Image Stabilization | None | | | | ISO Sensitivity | Auto, 200 to 12800 (Extended: 100 to 51200) | | Shutter Speed | Mechanical Shutter
1/4000 to 30 Seconds
1/4000 to 4 Seconds in Program Mode
0 to 60 Minutes in Bulb Mode
Electronic Shutter
1/32000 to 1 Second
1/4000 to 4 Seconds in Program Mode
1Second in Bulb Mode
Electronic Front Curtain Shutter
1/32000 to 30 Seconds
1/32000 to 4 Seconds in Program Mode
0 to 60 Minutes in Bulb Mode | | Metering Method | Average, Center-Weighted Average, Multiple, Spot | | Exposure Modes | Aperture Priority, Manual, Program, Shutter Priority | | Exposure Compensation | -5 to +5 EV (1/3 EV Steps) | | White Balance | Automatic Scene Recognition, Color Temperature, Custom, Daylight, Fluorescent (Cool White), Fluorescent (Daylight), Fluorescent (Warm White), Incandescent, Shade, Underwater | | Continuous Shooting | Up to 14 fps at 24.3 MP for up to 42 Exposures (JPEG Format)
Up to 14 fps at 24.3 MP for up to 23 Exposures (Raw Format)
Up to 11 fps at 24.3 MP for up to 56 Exposures (JPEG Format)
Up to 11 fps at 24.3 MP for up to 24 Exposures (Raw Format)
Up to 8 fps at 24.3 MP for up to 62 Exposures (JPEG Format)
Up to 8 fps at 24.3 MP for up to 25 Exposures (Raw Format)
Up to 5 fps at 24.3 MP for up to 68 Exposures (JPEG Format)
Up to 5 fps at 24.3 MP for up to 28 Exposures (Raw Format)
Up to 4 fps at 24.3 MP for up to 73 Exposures (JPEG Format)
Up to 4 fps at 24.3 MP for up to 29 Exposures (Raw Format)
Up to 3 fps at 24.3 MP for up to 81 Exposures (JPEG Format)
Up to 3 fps at 24.3 MP for up to 32 Exposures (Raw Format) | | Interval Recording | Yes | | Self Timer | 2/10-Second Delay | | | | Recording Modes | MOV/H.264
UHD 4K (3840 x 2160) at 23.976p/24p/25p/29.97p [100 Mb/s]
Full HD (1920 x 1080) at 23.976p/24p/25p/29.97p/50p/59.94p [36 Mb/s]
HD (1280 x 720) at 23.976p/24p/25p/29.97p/50p/59.94p [18 Mb/s] | | Recording Limit | Up to 29 Minutes, 59 Seconds | | Video Encoding | NTSC/PAL | | Audio Recording | Built-In Microphone (Stereo) | | Audio File Format | Linear PCM (Stereo) | | | | Focus Type | Auto and Manual Focus | | Focus Mode | Continuous-Servo AF (C), Manual Focus (M), Single-Servo AF (S) | | Autofocus Points | Phase Detection: 91 | | | | Viewfinder Type | Electronic | | Viewfinder Size | 0.39" | | Viewfinder Resolution | 2,360,000 Dot | | Viewfinder Eye Point | 17.5 mm | | Viewfinder Coverage | 100% | | Viewfinder Magnification | Approx. 0.62x | | Diopter Adjustment | -4 to +2 m | | Monitor Size | 3" | | Monitor Resolution | 1,040,000 Dot | | Monitor Type | Tilting Touchscreen LCD | | | | Built-in Flash | Yes | | Flash Modes | Commander, First-Curtain Sync, Manual, Off, Second-Curtain Sync, Slow Sync, TTL Auto | | Guide Number | 16.4' / 5 m at ISO 100 | | Maximum Sync Speed | 1/180 Second | | External Flash Connection | Hot Shoe | | | | Memory Card Slot | 1 x SD/SDHC/SDXC | | Connectivity | 2.5mm Sub-Mini, HDMI D (Micro), USB 2.0 Micro-B, USB 2.0 | | Wireless | Wi-Fi | | GPS | None | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 10 to 80% | | | | Battery | 1 x NP-W126S Rechargeable Lithium-Ion, 8.4 VDC, 1260 mAh | | Dimensions (W x H x D) | 4.7 x 3.3 x 1.6" / 118.4 x 82.8 x 41.4 mm | | Weight | 13.51 oz / 383 g (Body with Battery and Memory) | | | | Package Weight | 2.8 lb | | Box Dimensions (LxWxH) | 8.1 x 5.7 x 5.7" |
