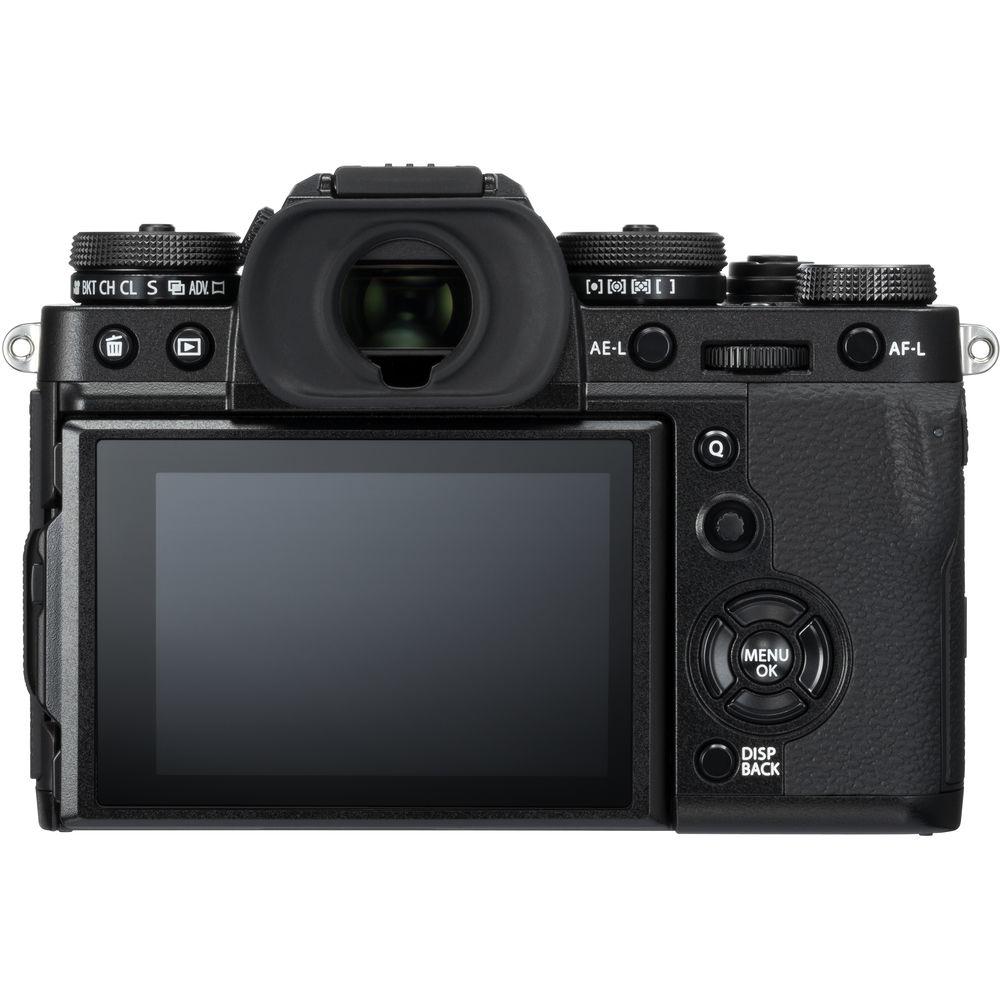

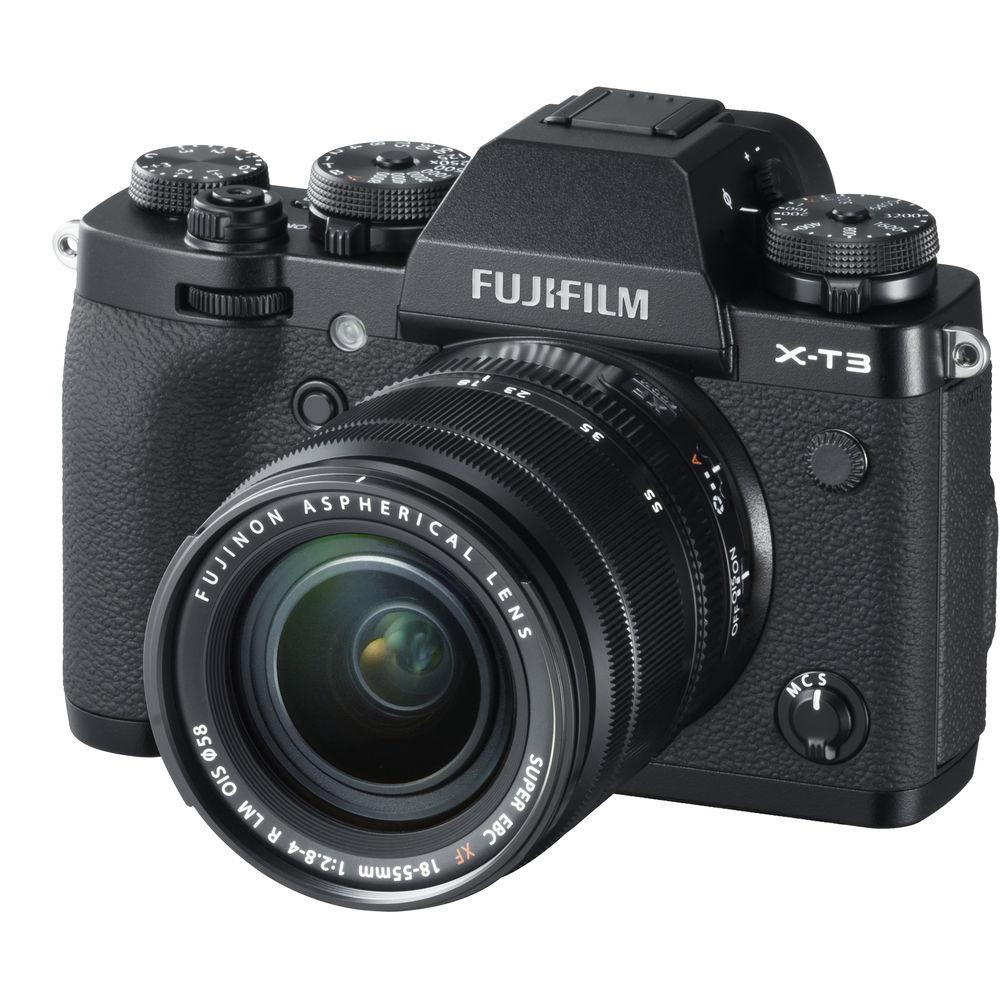

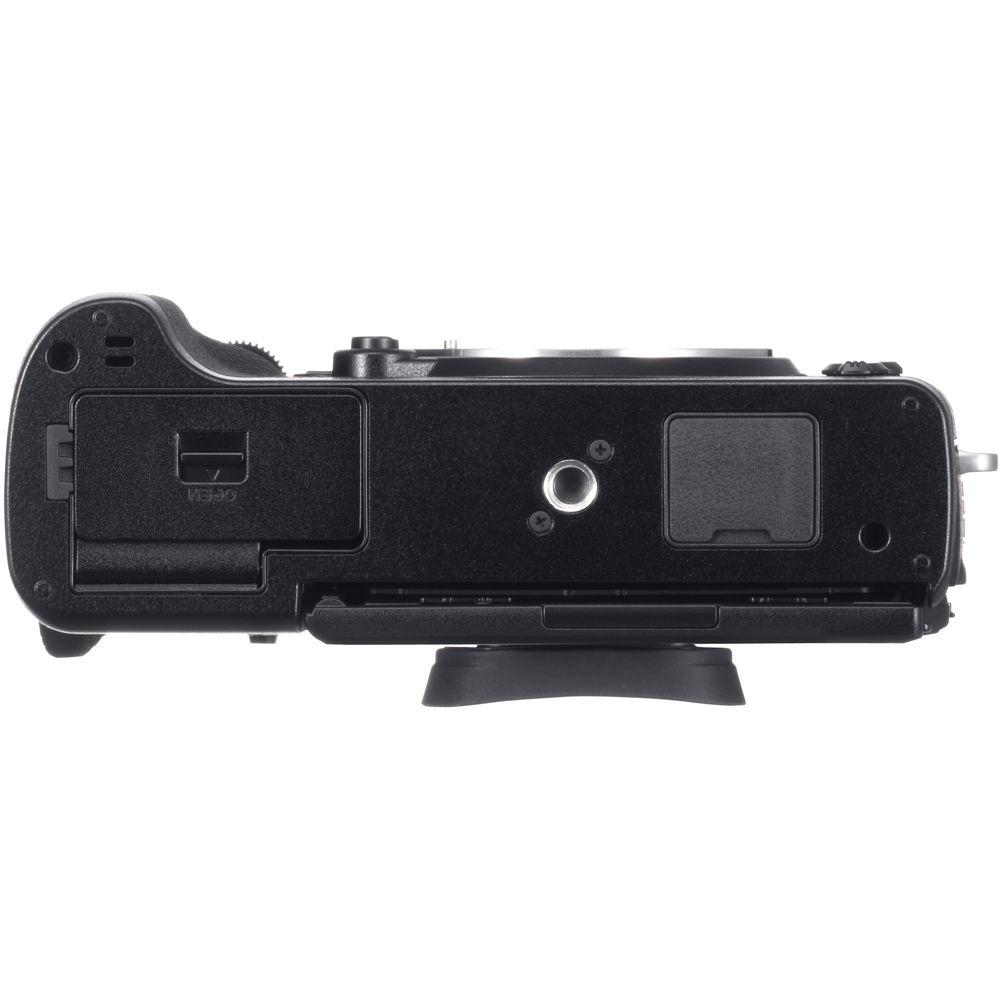

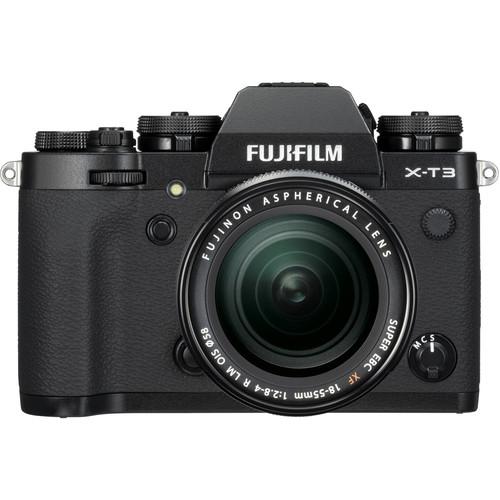

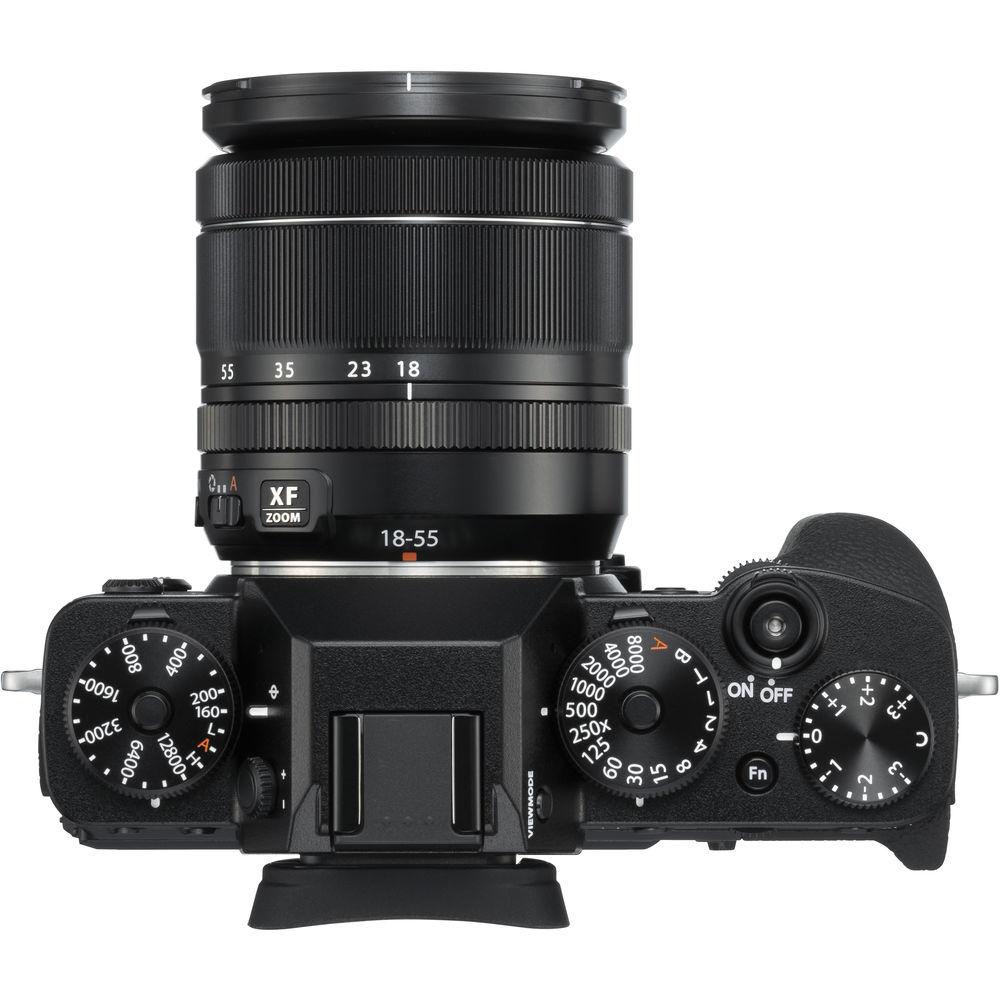

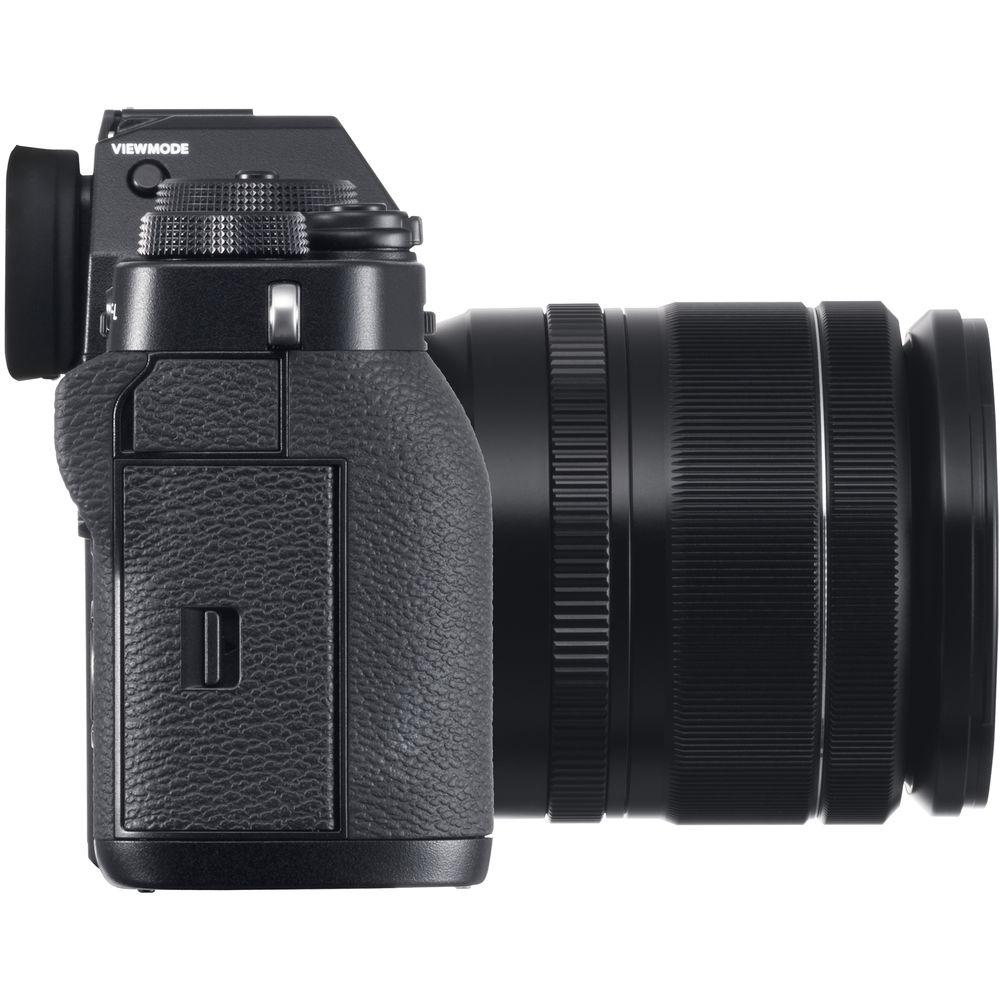

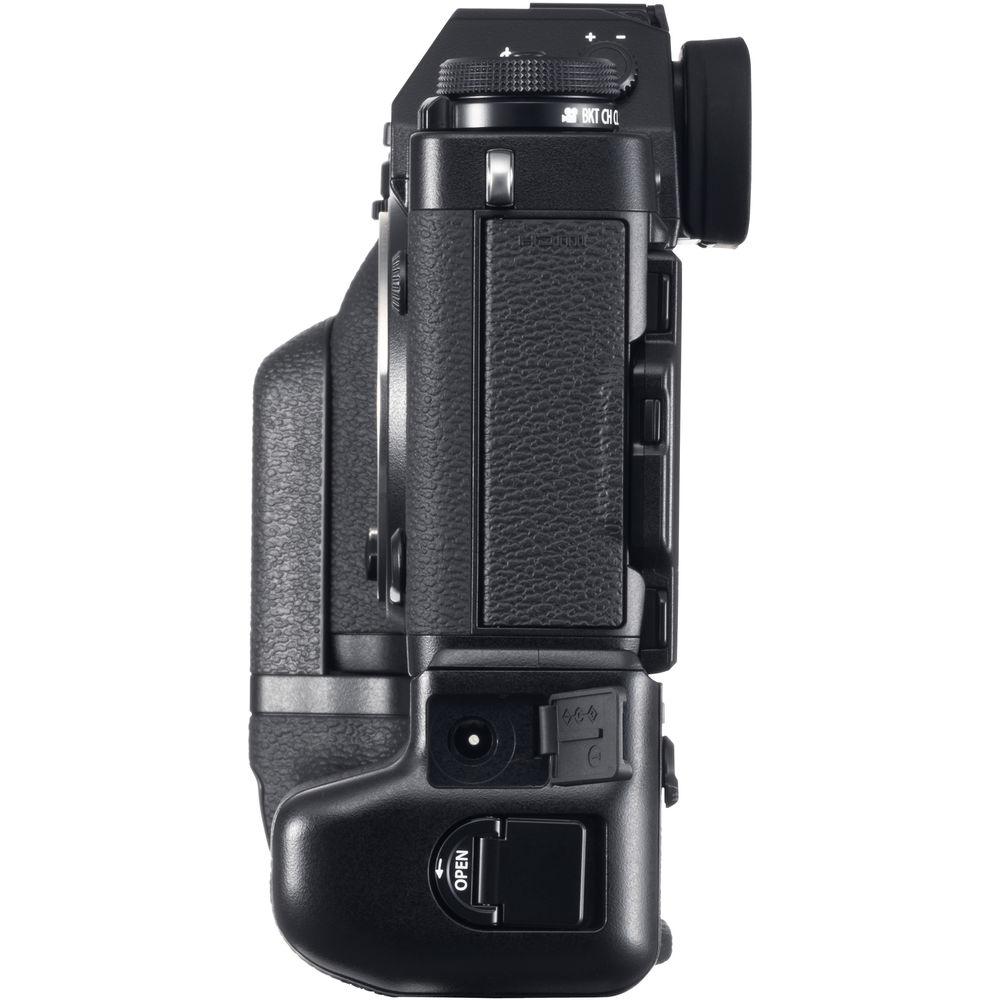

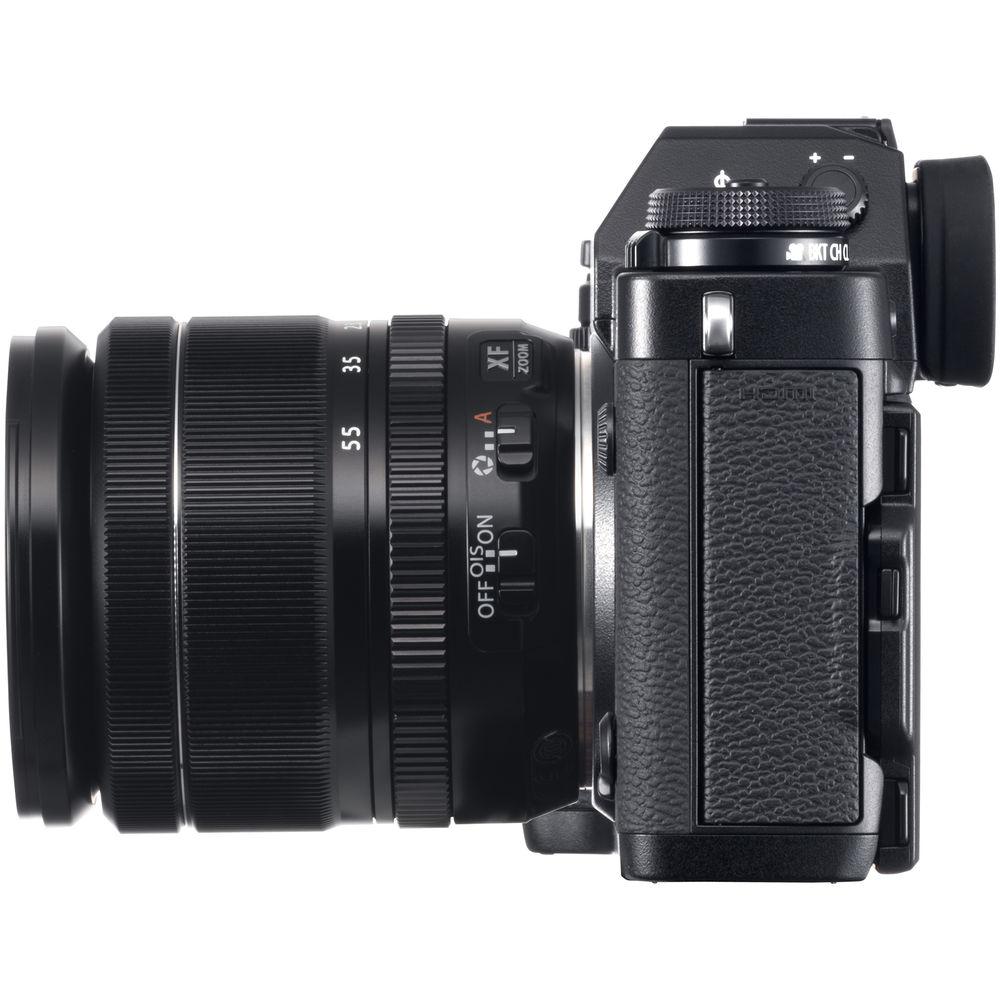

User Manual for FUJIFILM X-T3 Mirrorless Digital Camera with 18-55mm Lens Click to enlarge the picture
Contents of the user manual for the FUJIFILM X-T3 Mirrorless Digital Camera with
- Product category: Mirrorless System Cameras FUJIFILM
- Brand: FUJIFILM
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FUJIFILM Mirrorless System Cameras
 |
User manual for the FUJIFILM X-T3 Mirrorless Digital Camera with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FUJIFILM product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FUJIFILM user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FUJIFILM product will considerably shorten its lifespan!
|
Product description The Fujifilm X-T3: Making Very Good Very Better Read More - FUJIFILM X-T3 Promotional Video
Designed for videographers and action photographers alike, the black FUJIFILM X-T3 is a versatile mirrorless camera characterized by its high-speed performance, more-than-capable imaging, and multimedia flexibility. Revolving around a newly developed image sensor and processor, both high-resolution stills and 4K video can be recorded while an apt autofocus system delivers quick and accurate focusing performance. The sensor, a 26.1MP APS-C-format X-Trans CMOS 4, features a back-illuminated design, to promote greater image quality throughout the sensitivity range, along with an expansive 2.16m-point phase-detection autofocus system for quick, precise AF performance and subject tracking. Complementing the imaging and focusing is the X-Processor 4, which uses four CPUs for faster image processing as well as continuous shooting up to 11 fps with a mechanical shutter, 30 fps shooting at a 1.25x crop and electronic shutter, and internal 4K60p 10-bit video recording.

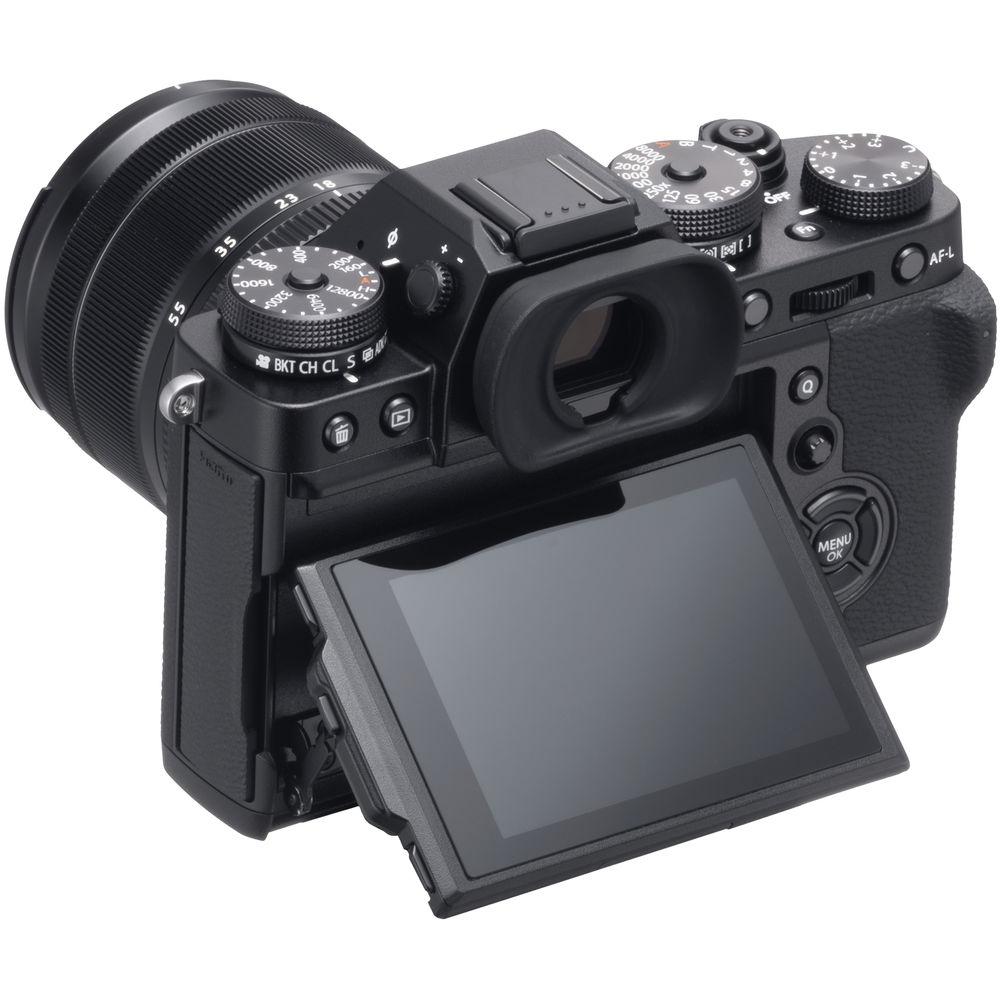

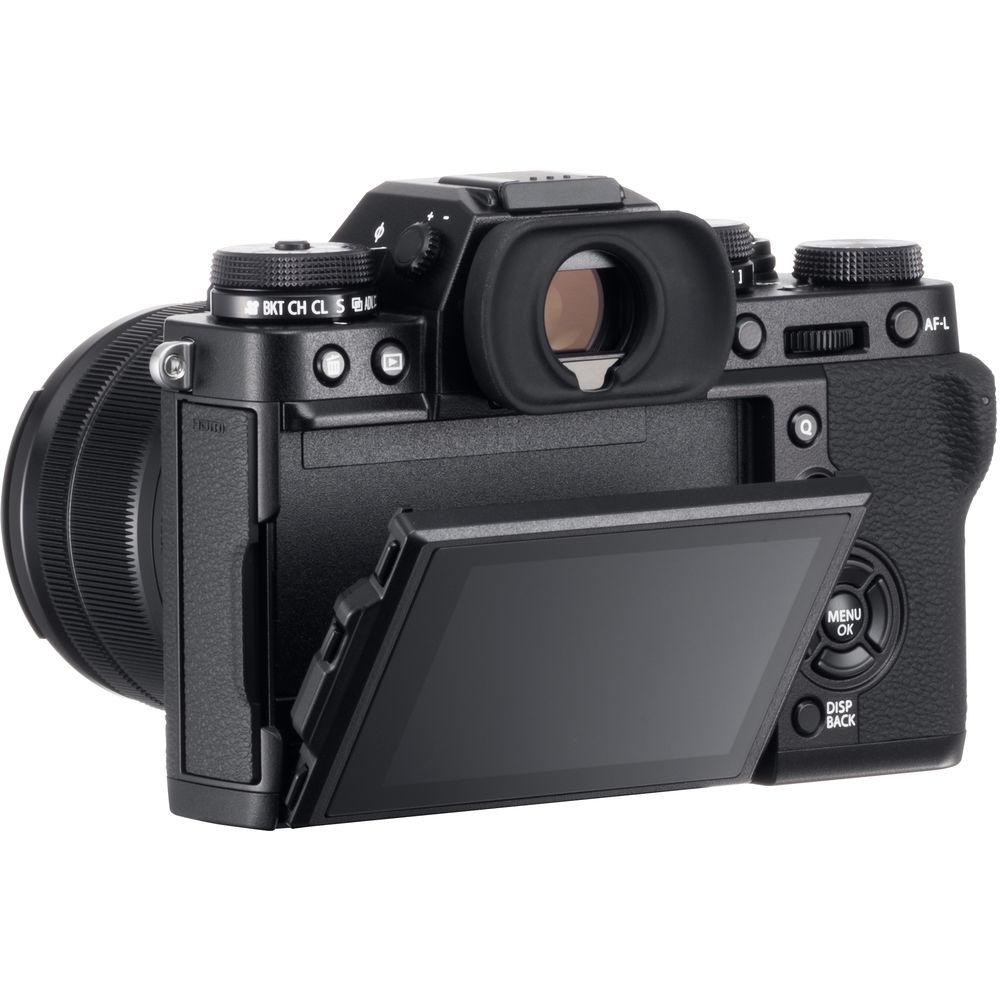

Like previous X-T cameras, the X-T3 retains its classically inspired looks and prominent tactile controls, and adds a new OLED electronic viewfinder design with 3.69m-dot resolution and a high 0.75x magnification. This finder has a high refresh rate of 100 fps for fluid viewing and remains blackout-free while shooting at the top 30 fps shooting rate. Also, a unique Sports Finder Mode can be used, which highlights the 16.6MP crop area in order to give you additional room outside of the frame to recognize moving subjects. Conversely, a rear 3.2" 1.04m-dot LCD monitor can also be used for live view shooting and larger image playback. Additionally, the X-T3 also sports built-in Bluetooth for wireless sharing and remote control, and the magnesium-alloy body is fully weather-sealed for working in trying weather conditions. - 26.1MP APS-C X-Trans BSI CMOS 4 Sensor and X-Processor 4
- Revolving around a newly developed sensor, the X-T3 features an APS-C-format 26.1MP X-Trans CMOS 4 sensor, which has a back-illuminated design to afford smooth tonal rendering, improved low-light performance, and a low native ISO 160 setting. As an X-Trans sensor, it still utilizes the randomized pixel array, too, which provides a high degree of image quality and sharpness due to the omission of an optical low-pass filter. Versus conventional pixel patterns, the X-Trans design more closely mimics the organic nature of film in order to produce nuanced colors and tonal transitions, while also reducing moir
|
Upload User Manual
Have you got an user manual for the FUJIFILM X-T3 Mirrorless Digital Camera with 18-55mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFUJIFILM X-T3 Specs | | | Lens Mount | FUJIFILM X | | Camera Format | APS-C (1.5x Crop Factor) | | Pixels | 26.1 Megapixel | | Maximum Resolution | 6240 x 4160 | | Aspect Ratio | 1:1, 3:2, 16:9 | | Sensor Type | CMOS | | Sensor Size | 23.5 x 15.6 mm | | Image File Format | JPEG, RAW | | Bit Depth | 14-Bit | | Image Stabilization | None | | | | ISO Sensitivity | Auto, 160 to 12800 (Extended: 80 to 51200) | | Shutter Speed | Mechanical Shutter
1/8000 to 900 Seconds
Electronic Shutter
1/32000 to 900 Seconds
Electronic Front Curtain Shutter
0 to 60 Minutes in Bulb Mode | | Metering Method | Average, Center-Weighted Average, Multi-Zone, Spot | | Exposure Modes | Aperture Priority, Manual, Program, Shutter Priority | | Exposure Compensation | -5 to +5 EV (1/3 EV Steps) | | White Balance | Automatic Scene Recognition, Color Temperature, Custom, Fine, Fluorescent (Cool White), Fluorescent (Daylight), Fluorescent (Warm White), Incandescent, Shade, Underwater | | Continuous Shooting | Up to 11 fps at 26.1 MP for up to 145 Exposures (JPEG Format)
Up to 11 fps at 26.1 MP for up to 42 Exposures (Raw Format)
Up to 8 fps at 26.1 MP for up to 200 Exposures (JPEG Format)
Up to 8 fps at 26.1 MP for up to 49 Exposures (Raw Format)
Up to 5.7 fps at 26.1 MP for Unlimited Exposures (JPEG Format)
Up to 5.7 fps at 26.1 MP for up to 62 Exposures (Raw Format)
Up to 30 fps at 16.6 MP for up to 60 Exposures (JPEG Format)
Up to 30 fps at 16.6 MP for up to 35 Exposures (Raw Format)
Up to 20 fps at 16.6 MP for up to 114 Exposures (JPEG Format)
Up to 20 fps at 16.6 MP for up to 37 Exposures (Raw Format)
Up to 10 fps at 16.6 MP for up to 500 Exposures (JPEG Format)
Up to 10 fps at 16.6 MP for up to 48 Exposures (Raw Format) | | Interval Recording | Yes | | Self Timer | 2/10-Second Delay | | | | Recording Modes | H.265 4:2:0 10-Bit
DCI 4K (4096 x 2160) at 23.976p/24p/25p/29.97p [100 to 400 Mb/s]
DCI 4K (4096 x 2160) at 50p/59.94p [100 to 200 Mb/s]
UHD 4K (3840 x 2160) at 23.976p/24p/25p/29.97p [100 to 400 Mb/s]
UHD 4K (3840 x 2160) at 50p/59.94p [100 to 200 Mb/s]
DCI 2K (2048 x 1080) at 23.976p/24p/25p/29.97p/50p/59.94p [50 to 200 Mb/s]
Full HD (1920 x 1080) at 23.976p/24p/25p/29.97p/50p/59.94p [50 to 200 Mb/s]
H.264/MPEG-4 4:2:0 8-Bit
DCI 4K (4096 x 2160) at 23.976p/24p/25p/29.97p [100 to 400 Mb/s]
DCI 4K (4096 x 2160) at 50p/59.94p [100 to 200 Mb/s]
UHD 4K (3840 x 2160) at 23.976p/24p/25p/29.97p [100 to 400 Mb/s]
UHD 4K (3840 x 2160) at 50p/59.94p [100 to 200 Mb/s]
DCI 2K (2048 x 1080) at 23.976p/24p/25p/29.97p/50p/59.94p [50 to 200 Mb/s]
Full HD (1920 x 1080) at 23.976p/24p/25p/29.97p/50p/59.94p [50 to 200 Mb/s] | | External Recording Modes | 4:2:2 10-Bit
DCI 4K (4096 x 2160) at 23.976p/24.00p/25p/29.97p/50p/59.94p
UHD 4K (3840 x 2160) at 23.976p/24.00p/25p/29.97p/50p/59.94p
DCI 2K (2048 x 1080) at 23.976p/24.00p/25p/29.97p/50p/59.94p
Full HD (1920 x 1080) at 23.976p/24.00p/25p/29.97p/50p/59.94p | | Recording Limit | Up to 29 Minutes, 59 Seconds | | Video Encoding | NTSC/PAL | | Audio Recording | Built-In Microphone (Stereo)
External Microphone Input | | Audio File Format | Linear PCM | | | | Focus Type | Auto and Manual Focus | | Focus Mode | Continuous-Servo AF (C), Manual Focus (M), Single-Servo AF (S) | | Autofocus Points | Phase Detection: 2160000 | | | | Viewfinder Type | Electronic | | Viewfinder Size | 0.5" | | Viewfinder Resolution | 3,690,000 Dot | | Viewfinder Eye Point | 23 mm | | Viewfinder Coverage | 100% | | Viewfinder Magnification | Approx. 0.75x | | Diopter Adjustment | -4 to +2 m | | Monitor Size | 3" | | Monitor Resolution | 1,040,000 Dot | | Monitor Type | Tilting Touchscreen LCD | | | | Built-in Flash | None | | Flash Modes | Auto, Commander, First-Curtain Sync, Hi-Speed Sync, Manual, Off, Second-Curtain Sync, Slow Sync, TTL Auto | | Maximum Sync Speed | 1/250 Second | | Dedicated Flash System | TTL | | External Flash Connection | Hot Shoe, PC Terminal | | | | Memory Card Slot | 2 x SD/SDHC/SDXC | | Connectivity | 3.5mm Headphone, 3.5mm Microphone, 2.5mm Sub-Mini, HDMI D (Micro), USB 3.0, USB Type-C, X-Sync Socket | | Wireless | Wi-Fi | | GPS | None | | | | Operating Temperature | 14 to 104°F / -10 to 40°C | | Operating Humidity | 10 to 80% | | | | Battery | 1 x NP-W126S Rechargeable Lithium-Ion | | Dimensions (W x H x D) | 5.2 x 3.7 x 2.3" / 132.5 x 92.8 x 58.8 mm | | Weight | 1.19 lb / 539 g (Body with Battery and Memory) | | | | Focal Length | 18 to 55mm (35mm Equivalent Focal Length: 27 to 84mm) | | Maximum Aperture | f/2.8 to 4 | | Minimum Aperture | f/22 | | Angle of View | 79.1
