User Manual for FUJIFILM X-T30 Mirrorless Digital Camera Click to enlarge the picture
Contents of the user manual for the FUJIFILM X-T30 Mirrorless Digital Camera
- Product category: Mirrorless System Cameras FUJIFILM
- Brand: FUJIFILM
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FUJIFILM Mirrorless System Cameras
 |
User manual for the FUJIFILM X-T30 Mirrorless Digital Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FUJIFILM product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FUJIFILM user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FUJIFILM product will considerably shorten its lifespan!
|
Product description What APS-C Mirrorless Should Be: The Fujifilm X-T30 Read More ubuefrfvats - Fujifilm X-T30 | First Look

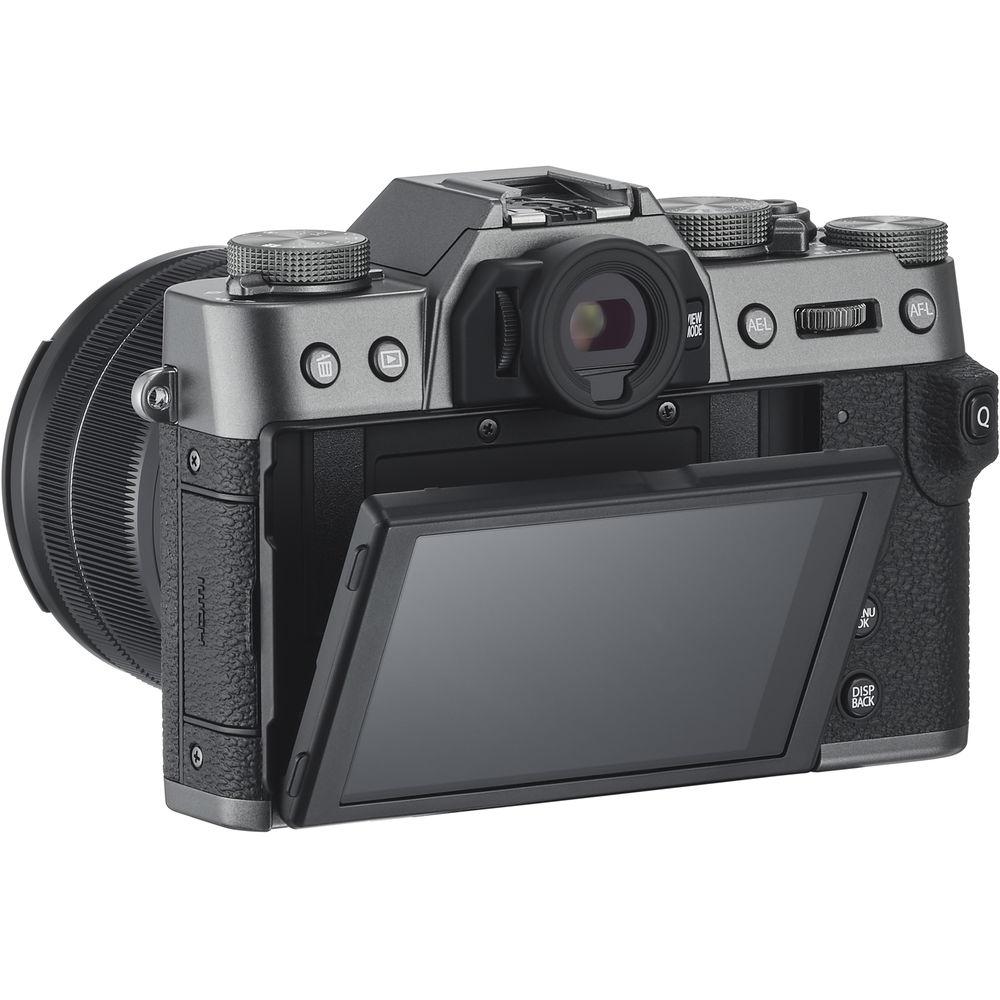

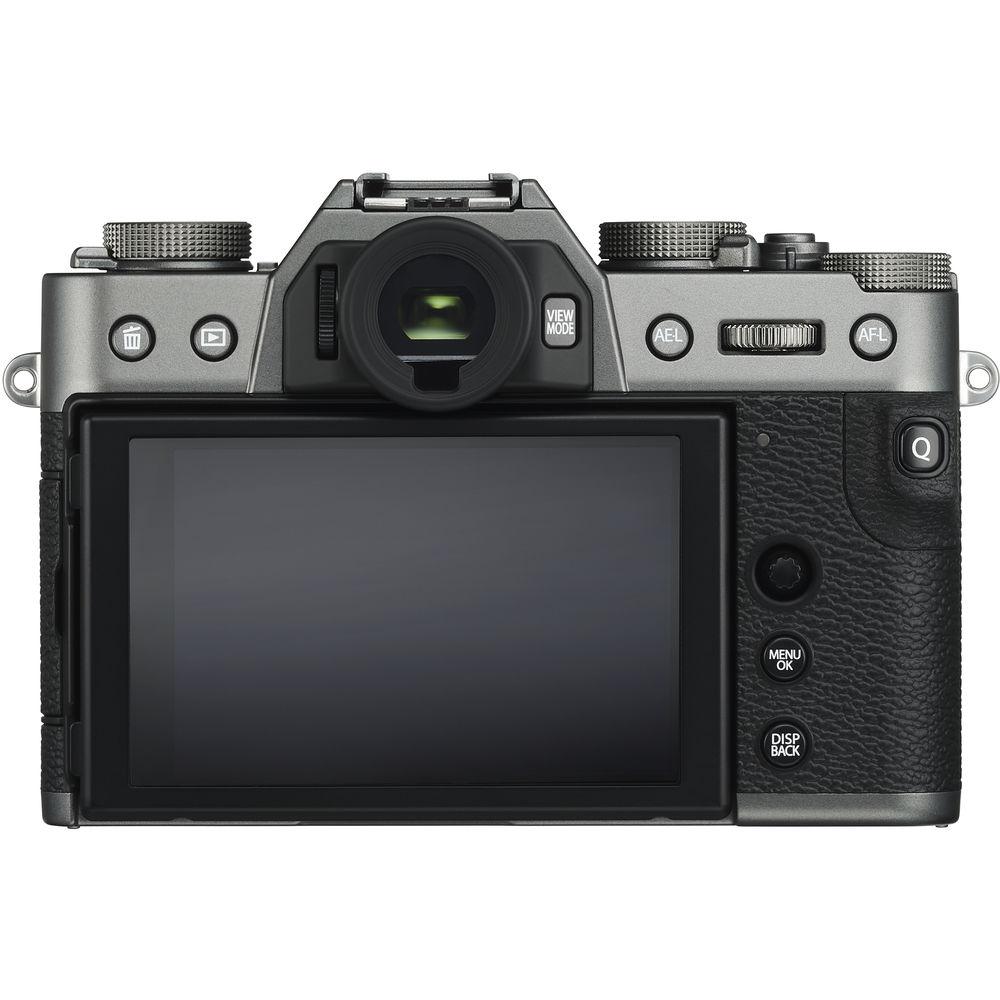

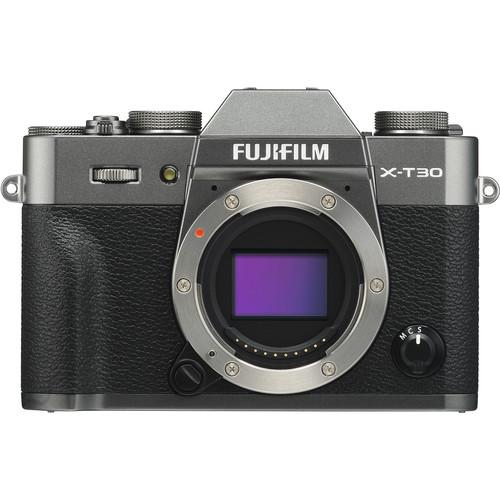

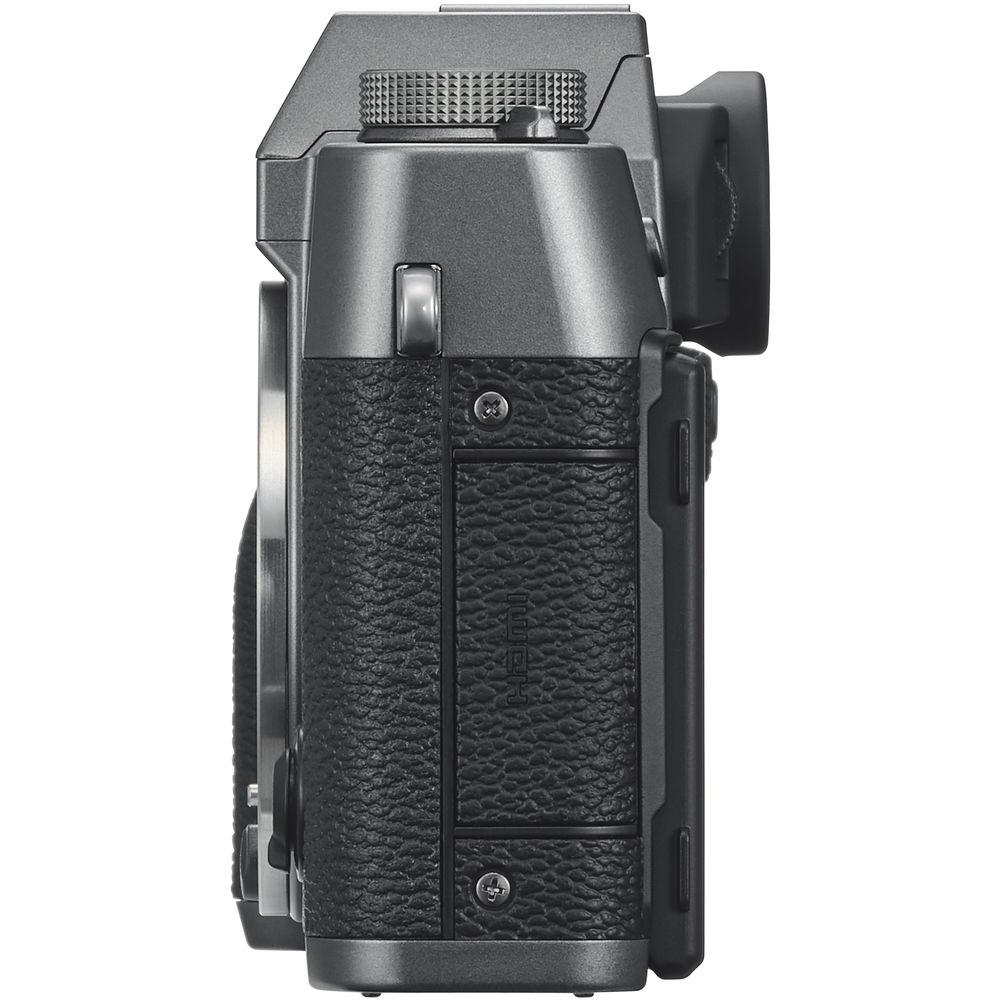

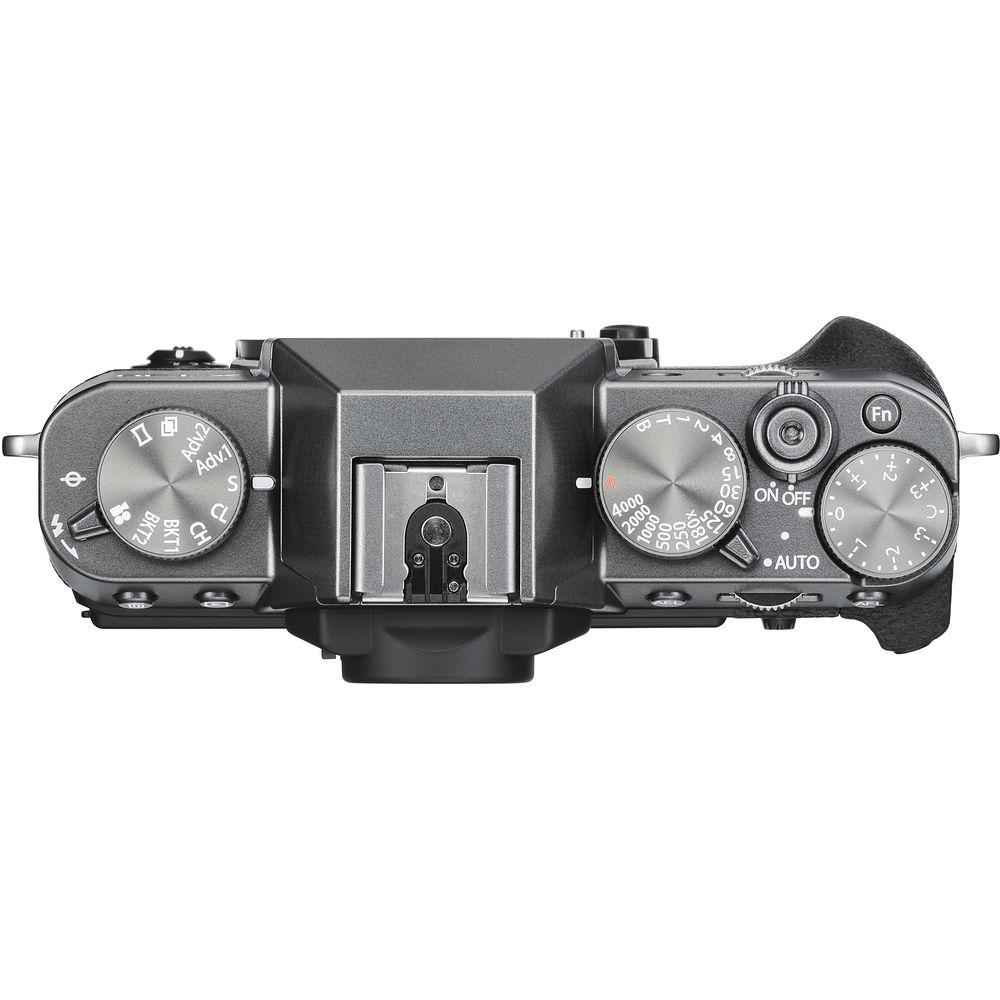

Pairing impressive imaging capabilities with an especially compact design, the charcoal silver FUJIFILM X-T30 is a versatile mirrorless camera distinguished by advanced stills and video recording along with sleek and intuitive handling characteristics. Featuring a revised image sensor and processor, both high-resolution stills and 4K video can be recorded while an apt autofocus system delivers quick and accurate focusing performance. The sensor, a 26.1MP APS-C-format X-Trans CMOS 4, features a back-illuminated design, to promote greater image quality throughout the sensitivity range, along with a 425-point phase-detection autofocus system for quick, precise AF performance and subject tracking. Complementing the imaging and focusing is the X-Processor 4, which uses four CPUs for faster image processing as well as continuous shooting up to 8 fps with a mechanical shutter, 30 fps shooting at a 1.25x crop and electronic shutter, and internal DCI/UHD 4K30 video recording.
Sharing a familiar aesthetic of FUJIFILM X-series cameras, the X-T30 sports classically inspired looks, has prominent physical controls, and has a high-resolution 2.36m-dot OLED electronic viewfinder. Conversely, a rear 3.0" 1.04m-dot tilting touchscreen LCD can also be used for live view shooting and larger image playback. Additionally, the X-T30 also sports built-in Bluetooth for wireless sharing and remote control. - 26.1MP APS-C X-Trans BSI CMOS 4 Sensor and X-Processor 4
- Sharing a sensor with the professional-oriented X-T3, the X-T30 features an APS-C-format 26.1MP X-Trans CMOS 4 sensor, which has a back-illuminated design to afford smooth tonal rendering, improved low-light performance, and a low native ISO 160 setting. As an X-Trans sensor, it utilizes a randomized pixel array, too, which provides a high degree of image quality and sharpness due to the omission of an optical low-pass filter. Versus conventional pixel patterns, the X-Trans design more closely mimics the organic nature of film in order to produce nuanced colors and tonal transitions, while also reducing moir
|
Upload User Manual
Have you got an user manual for the FUJIFILM X-T30 Mirrorless Digital Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFUJIFILM X-T30 Specs | | | Lens Mount | FUJIFILM X | | Camera Format | APS-C (1.5x Crop Factor) | | Pixels | 26.1 Megapixel | | Maximum Resolution | 6240 x 4160 | | Aspect Ratio | 1:1, 3:2, 16:9 | | Sensor Type | CMOS | | Sensor Size | 23.5 x 15.6 mm | | Image File Format | JPEG, RAW | | Bit Depth | 14-Bit | | Image Stabilization | None | | | | ISO Sensitivity | Auto, 160 to 12800 (Extended: 80 to 51200) | | Shutter Speed | Mechanical Shutter
1/4000 to 900 Seconds
Electronic Shutter
1/32000 to 900 Seconds
Electronic Front Curtain Shutter
0 to 60 Minutes in Bulb Mode | | Metering Method | Average, Center-Weighted Average, Multi-Zone, Spot | | Exposure Modes | Aperture Priority, Manual, Program, Shutter Priority | | Exposure Compensation | -5 to +5 EV (1/3 EV Steps) | | White Balance | Automatic Scene Recognition, Color Temperature, Custom, Fine, Fluorescent (Cool White), Fluorescent (Daylight), Fluorescent (Warm White), Incandescent, Shade, Underwater | | Continuous Shooting | Up to 8 fps at 26.1 MP for up to 90 Exposures (JPEG Format)
Up to 8 fps at 26.1 MP for up to 18 Exposures (Raw Format)
Up to 5 fps at 26.1 MP
Up to 4 fps at 26.1 MP
Up to 3 fps at 26.1 MP
Up to 20 fps at 26.1 MP for up to 32 Exposures (JPEG Format)
Up to 20 fps at 26.1 MP for up to 17 Exposures (Raw Format)
Up to 10 fps at 26.1 MP for up to 81 Exposures (JPEG Format)
Up to 10 fps at 26.1 MP for up to 17 Exposures (Raw Format)
Up to 30 fps at 16.6 MP for up to 26 Exposures (JPEG Format)
Up to 30 fps at 16.6 MP for up to 17 Exposures (Raw Format)
Up to 20 fps at 16.6 MP for up to 53 Exposures (JPEG Format)
Up to 20 fps at 16.6 MP for up to 17 Exposures (Raw Format)
Up to 10 fps at 16.6 MP for up to 95 Exposures (JPEG Format)
Up to 10 fps at 16.6 MP for up to 18 Exposures (Raw Format) | | Interval Recording | Yes | | Self Timer | 2/10-Second Delay | | | | Recording Modes | MOV/H.264
DCI 4K (4096 x 2160) at 23.976p/24p/25p/29.97p [100 to 200 Mb/s]
UHD 4K (3840 x 2160) at 23.976p/24p/25p/29.97p [100 to 200 Mb/s]
DCI 2K (2048 x 1080) at 23.976p/24p/25p/29.97p/50p/59.94p [100 to 200 Mb/s]
Full HD (1920 x 1080) at 23.976p/24p/25p/29.97p/50p/59.94p [100 to 200 Mb/s]
Full HD (1920 x 1080) at 100p/120p [200 Mb/s] | | External Recording Modes | 4:2:2 10-Bit
DCI 4K (4096 x 2160) at 23.976p/24.00p/25p/29.97p
UHD 4K (3840 x 2160) at 23.976p/24.00p/25p/29.97p
DCI 2K (2048 x 1080) at 23.976p/24.00p/25p/29.97p/50p/59.94p
Full HD (1920 x 1080) at 23.976p/24.00p/25p/29.97p/50p/59.94p
Full HD (1920 x 1080) at 100p/120p | | Recording Limit | Up to 29 Minutes, 59 Seconds | | Video Encoding | NTSC/PAL | | Audio Recording | Built-In Microphone (Stereo)
External Microphone Input | | Audio File Format | Linear PCM (Stereo) | | | | Focus Type | Auto and Manual Focus | | Focus Mode | Continuous-Servo AF (C), Manual Focus (M), Single-Servo AF (S) | | Autofocus Points | Phase Detection: 425 | | | | Viewfinder Type | Electronic | | Viewfinder Size | 0.39" | | Viewfinder Resolution | 2,360,000 Dot | | Viewfinder Coverage | 100% | | Viewfinder Magnification | Approx. 0.62x | | Monitor Size | 3" | | Monitor Resolution | 1,040,000 Dot | | Monitor Type | Tilting Touchscreen LCD | | | | Built-in Flash | Yes | | Flash Modes | Auto, Commander, First-Curtain Sync, Hi-Speed Sync, Manual, Off, Second-Curtain Sync, Slow Sync, TTL Auto | | Guide Number | 16.4' / 5 m at ISO 100 | | Maximum Sync Speed | 1/180 Second | | Dedicated Flash System | TTL | | External Flash Connection | Hot Shoe, PC Terminal | | | | Memory Card Slot | 1 x SD/SDHC/SDXC | | Connectivity | 2.5mm Sub-Mini, HDMI D (Micro), USB 3.0, USB Type-C, X-Sync Socket | | Wireless | Wi-Fi
Bluetooth | | GPS | None | | | | Battery | 1 x NP-W126S Rechargeable Lithium-Ion, 7.2 VDC, 1260 mAh | | Dimensions (W x H x D) | 4.7 x 3.3 x 1.8" / 118.4 x 82.8 x 46.8 mm | | Weight | 13.51 oz / 383 g (Body with Battery and Memory) |
