User manual
FUJIFILM XF 10-24mm f 4 R

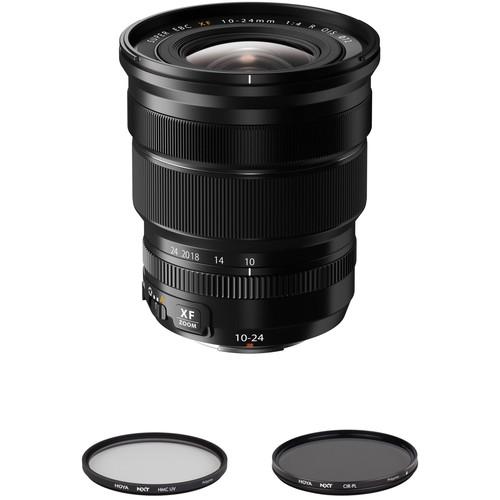

User Manual for FUJIFILM XF 10-24mm f 4 R OIS Lens with UV and Circular Polarizer Filters

• Product category: Mirrorless System Lenses FUJIFILM
• Brand: FUJIFILM
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for FUJIFILM Mirrorless System Lenses

Product description

• FUJIFILM XF 10-24mm f/4 R OIS Lens Covering a useful range of wide-angle focal lengths, the FUJIFILM XF 10-24mm f/4 R OIS is a 15-36mm-equivalent zoom featuring a constant f/4 maximum aperture, an advanced optical design, and optical image stabilization. Utilizing a series of extra-low dispersion and aspherical elements, both chromatic and spherical aberrations are well-controlled in order to realize a high degree of color accuracy, sharpness, and accurate rendering. A Super EBC coating also suppresses flare and ghosting for improved contrast and color neutrality when working in strong lighting conditions. Benefitting the optics, an optical image stabilization system minimizes the appearance of camera shake for improved sharpness when shooting handheld. Additionally, a stepping motor offers quick and quiet autofocus performance.
  • Wide-angle zoom is designed for FUJIFILM X-mount mirrorless cameras and provides a 15-36mm equivalent focal length range.
  • Constant f/4 maximum aperture offers consistent performance throughout the zoom range and also helps to realize a relatively compact and lightweight design.
  • Three extra-low dispersion elements are used to reduce color fringing and chromatic aberrations in order to produce high clarity and color fidelity throughout the zoom range.
  • Four aspherical elements control distortion and spherical aberrations, which helps to improve sharpness and realize more accurate rendering.
  • Super EBC coating has been applied to individual elements to reduce lens flare and ghosting for improved contrast and color fidelity when working in strong lighting conditions.
  • Stepping motor, along with an internal focusing design, affords fast and quiet autofocus performance that benefits both stills and video applications.
  • Optical image stabilization minimizes the appearance of camera shake to better enable handheld shooting with slower shutter speeds.
  • Rounded seven-blade diaphragm contributes to a pleasing out-of-focus quality to benefit the use of selective focus and shallow depth of field techniques.
  UPC: 074101024203
• Hoya 72mm UV Haze NXT HMC Filter The Hoya 72mm UV Haze NXT HMC Filter is a general use, clear filter that helps to absorb ultraviolet light and protect the front of your lens. Its clear design allows you to pair this filter with others or leave on lenses at all times as a general protective filter. It can also help to reduce dust and moisture and keep them from reaching your lens element while providing additional protection in case of drops or situations where scratching could occur.

  Hoya HMC filters are multi-coated for reducing flare, ghosting, and reflections on the filter surface. As a result, over 97% light transmission is possible in order to maintain contrast and color fidelity. The UV NXT filters are constructed from high quality, heat-resistant, high-transparency optical glass and a precision milled low-profile aluminum frame.
  • Absorbs UV light, which can cause outdoor photos to appear hazy and indistinct.
  • Works as general protection filter to reduce dust, moisture, and scratches from reaching lens elements.
  • HMC multi-coating affords greater than 97% light transmission and helps to reduce flare, ghosting, and reflections on the filter surface for greater contrast and color fidelity.
  • Crafted from high quality, heat-resistant, high-transparency optical glass and a precision milled low-profile aluminum frame.
  UPC: 024066055361
• Hoya 72mm NXT Circular Polarizer Filter The Hoya 72mm NXT Circular Polarizer Filter helps to reduce reflections and glare by filtering out light that has become polarized due to reflection from a non-metallic surface. The light from the sun naturally becomes partially polarized due to reflecting off electrons in air molecules, causing the light to scatter into what appears as haze. A polarizing filter arranges, and filters, this directionally polarized light perpendicularly to the reflected light, allowing for the absorption of much of this light. This results in a noticeable reduction of glare and reflections from non-metallic surfaces and an increase in the saturation of skies and foliage.

  A circular polarizer only differs from a linear polarizer in that it contains a quarter wave plane in addition to the linear polarizing filter. The addition of this quarter wave plane is to circularly polarize the linearly polarized light for the use of auto focus and exposure functions. Due to how the light is broken down and filtered with a linear polarizer, auto focus and exposure accuracy become skewed during use. When the light becomes circularly polarized, it permits the use of these functions.

  This filter is non-coated. Hoya NXT filters have over 97% average light transmission, and are constructed from heat-resistant, high-transparency optical glass.
  • Helps to reduce reflections and glare by filtering out light that has become polarized due to reflection from a non-metallic surface.
  • Polarizing filters arrange, and filter, directionally polarized light perpendicularly to the reflected light, allowing for the absorption of much of the light.
  • Clears up haze in distant landscapes and provides more saturated, vivid colors.
  • Non-coated.
  • Strongest effect when used at a 90° angle from the sun.
  • Circular polarizers are ideal for use with digital cameras and autofocus lenses where a linear polarizer will often disrupt auto exposure and focus features.
  • Over 97% average light transmission.
  • Constructed from heat-resistant, high-transparency optical glass.
  UPC: 024066055699

• XF 10-24mm f/4 R OIS Lens dvzzcxxxxbwfteaeewyytvftsusyqctudtwca
• 72mm Lens Cap
• Rear Lens Cap for FUJIFILM X-Mount Lenses
• Lens Hood
• Cloth Wrap
• Limited 1-Year Warranty

• Hoya - 72mm UV Haze NXT HMC Filter dvzzcxxxxbwfteaeewyytvftsusyqctudtwca

• Hoya - 72mm NXT Circular Polarizer Filter

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• FUJIFILM XF 10-24mm f/4 R OIS Lens

  Focal Length	10 to 24mm (35mm Equivalent Focal Length: 15 to 36mm)
  Maximum Aperture	f/4
  Minimum Aperture	f/22
  Lens Mount	FUJIFILM X
  Format Compatibility	APS-C
  Angle of View	110 Rating 96% users recommend this product to others. And what about you? This product has already been rated by 03 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
