FUJIFILM XF 100-400mm f 4.5-5.6 R

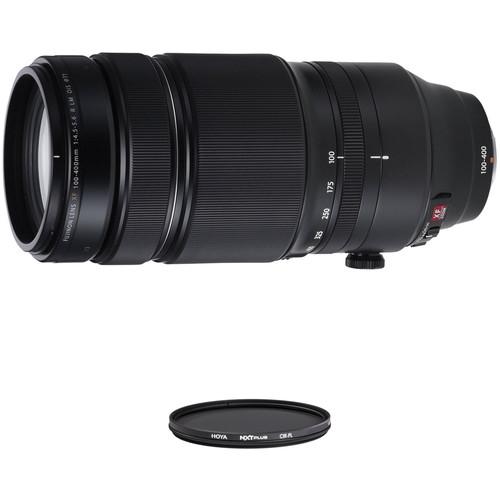

User Manual for FUJIFILM XF 100-400mm f 4.5-5.6 R LM OIS WR Lens with Circular Polarizer Filter Kit

• Product category: Mirrorless System Lenses FUJIFILM
• Brand: FUJIFILM
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for FUJIFILM Mirrorless System Lenses

Product description

• FUJIFILM XF 100-400mm f/4.5-5.6 R LM OIS WR Lens
  • Fujifilm X-Pro2, X-E2S, X70, XF 100-400mm: First Look
  A long-reaching zoom optimized for use in harsh climates, the XF 100-400mm f/4.5-5.6 R LM OIS WR Lens is designed for FUJIFILM X-series mirrorless cameras and provides a 152-609mm equivalent focal length range. Ideally suited for wildlife and sports applications, the versatile telephoto range benefits photographing distant, moving subjects, and is reinforced by a twin linear AF motor for fast performance, as well as five stop-effective optical image stabilization to Minimize the appearance of camera shake. Further benefitting its use outdoors, this 100-400mm lens also sports a weather-sealed construction and fluorine-coated front element to guard against dust and moisture from affecting the lens' performance.

  In regards to the optical design, this lens incorporates five extra-low dispersion elements and one Super ED element, which reduce chromatic aberrations and color fringing for increased clarity and color accuracy. Additionally, a nine-blade diaphragm contributes to a pleasing bokeh quality when working with selective focus techniques.
  • Long-reaching telephoto zoom is designed for APS-C-format FUJIFILM X-mount mirrorless cameras and offers a 152-609mm equivalent focal length range.
  • Five extra-low dispersion elements and one Super ED element are used to greatly reduce color fringing and chromatic aberrations in order to produce high clarity and color fidelity throughout the zoom range.
  • A five stop-effective optical image stabilization system Minimizes the appearance of camera shake for sharper handheld shooting in low-light conditions and with slower shutter speeds.
  • Twin linear motors deliver quick, quiet, and smooth autofocus performance that is especially beneficial when working with fast-moving subjects.
  • A focus limiter switch on the side of the lens barrel lets you constrain the focusing range to either the full range of 5.7' to infinity, or from 16.4' to infinity for faster focusing performance with distant subjects.
  • The lens body incorporates 13 distinct weather seals in 12 locations to protect against dust and moisture, and to enable worry-free use in inclement conditions and freezing temperatures as low as 14°F. Additionally, a fluorine coating has been applied to the front lens element to guard against smudging, moisture, and dust.
  • Rounded nine-blade diaphragm contribute to a pleasing out-of-focus quality to benefit the use of selective focus and shallow depth of field techniques.
  • Zoom-lock switch prevents unwanted zoom creep from occurring and also can be used to maintain the same zoom position while shooting.
  • A removable, rotating tripod collar allows for well-balanced mounting and shooting when working from a tripod or monopod.
  • The included lens hood incorporates a sliding window to allow easier adjustment of rotating filters, such as a polarizer, while the hood is installed.
  • Compatible with optional XF 1.4x TC WR and XF 2x TC WR teleconverters.
  UPC: 074101027501
• Hoya 77mm NXT Plus Circular Polarizer Filter
  • Fujifilm X-Pro2, X-E2S, X70, XF 100-400mm: First Look
  The 77mm NXT Plus Circular Polarizer Filter helps to reduce reflections and glare by filtering out light that has become polarized due to reflection from a non-metallic surface. The light from the sun naturally becomes partially polarized due to reflecting off electrons in air molecules, causing the light to scatter into what appears as haze. A polarizing filter arranges and filters this directionally polarized light perpendicularly to the reflected light, allowing for the absorption of much of this light. This results in a noticeable reduction of glare and reflections from non-metallic surfaces and an increase in the saturation of skies and foliage.

  A circular polarizer only differs from a linear polarizer in that it contains a quarter wave plane in addition to the linear polarizing filter. The addition of this quarter wave plane is to circularly polarize the linearly polarized light for the use of auto focus and exposure functions. Due to how the light is broken down and filtered with a linear polarizer, auto focus and exposure accuracy become skewed during use. When the light becomes circularly polarized, it permits the use of these functions.

  This filter is constructed from optical glass for clarity as well as color fidelity and features an aluminum-alloy filter ring that can be rotated in order to adjust the intensity of the polarization effect. To prevent internal ghosting and reflections, each glass surface includes five layers of anti-reflection coating. An additional hydrophobic coating results in an improved beading effect when in contact with water for greater cleaning efficiency.
  • Helps to reduce reflections and glare by filtering out light that has become polarized due to reflection from a non-metallic surface.
  • Polarizing filters arrange, and filter, directionally polarized light perpendicularly to the reflected light, allowing for the absorption of much of the light.
  • Clears up haze in distant landscapes and provides more saturated, vivid colors.
  • Strongest effect when used at a 90° angle from the sun.
  • Circular polarizers are ideal for use with digital cameras and autofocus lenses where a linear polarizer will often disrupt auto exposure and focus features.
  • 1.7x filter factor reduces exposure by 0.8 stop.
  • Multicoated to prevent internal ghosting and reflections while providing an improved beading effect with water for more efficient cleaning.
  • Aluminum-alloy filter ring for durability while remaining lightweight.
  • Filter ring can be rotated to adjust the intensity of the polarization effect.
  • 77mm front filter threads allow for use with other filters.
  • Top knurling to provide a more textured grip when mounting or removing it from a lens.
  • Constructed from optical glass for clarity and color fidelity.
  • Plastic filter case for storage and transport.
  UPC: 024066068132

• XF 100-400mm f/4.5-5.6 R LM OIS WR Lens svwruxucusrydf
• 77mm Lens Cap
• Rear Lens Cap for FUJIFILM X-Mount Lenses
• Lens Hood
• Tripod Collar
• Cloth Wrap
• Limited 1-Year Warranty

• Hoya - 77mm NXT Plus Circular Polarizer Filter

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• FUJIFILM XF 100-400mm f/4.5-5.6 R LM OIS WR Lens

  Focal Length	100 to 400mm (35mm Equivalent Focal Length: 152 to 609mm)
  Maximum Aperture	f/4.5 to 5.6
  Minimum Aperture	f/22
  Lens Mount	FUJIFILM X
  Format Compatibility	APS-C
  Angle of View	16.2 Rating 94% users recommend this product to others. And what about you? This product has already been rated by 53 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
