Product description

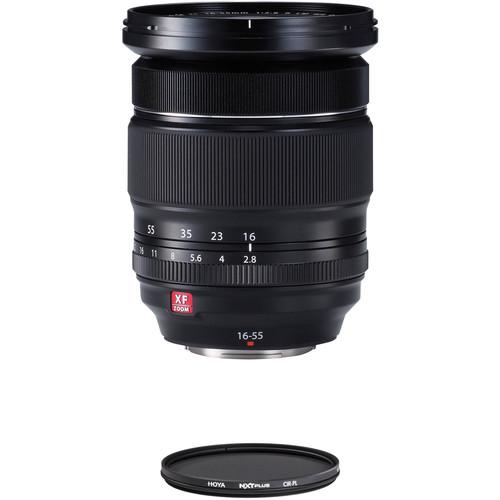

• FUJIFILM XF 16-55mm f/2.8 R LM WR Lens
  • Quick Look: FujiFilm XF 16-55mm f/2.8 R LM WR Len
  A flexible workhorse of a lens, the XF 16-55mm f/2.8 R LM WR from FUJIFILM is a versatile standard zoom spanning a 24-84mm equivalent, wide-angle to portrait-length range. Characterized by its bright f/2.8 constant maximum aperture, this lens is adept in difficult lighting conditions and also offers notable control over depth of field. Its optical design comprises both aspherical and extra-low dispersion elements, which help to reduce distortion and color fringing for improved sharpness and color accuracy throughout the zoom range. Nano-GI and HT-EBC coatings have also been applied to elements to minimize surface reflections and prevent lens flare and ghosting.

  Complementing the optical attributes is a Twin Linear Motor autofocus system, which offers impressively quick, quiet, and precise focusing that benefits both stills and video applications. Additionally, the lens has a fully weather-sealed design to support its use in trying environmental conditions.
  • Standard zoom is designed for APS-C-format Fujifilm X-mount mirrorless cameras and offers a 24-84mm equivalent focal length range.
  • Constant f/2.8 maximum aperture offers consistent performance throughout the zoom range and excels when working in difficult lighting conditions.
  • Three extra-low dispersion elements are used to greatly reduce color fringing and chromatic aberrations in order to produce high clarity and color fidelity throughout the zoom range.
  • Three aspherical elements control distortion and spherical aberrations, which helps to improve sharpness and realize more accurate rendering.
  • Nano-GI (Gradient Index) coating has been applied to lens elements and alters the refractive index between the glass and air in order to better suppress lens flare and ghosting for diagonal incident light.
  • An HT-EBC (High Transmittance Electron Beam Coating) coating has been applied to the entire surface of each element for controlling ghosting and flare for greater contrast and color accuracy.
  • A Twin Linear Motor autofocus system delivers smooth, near-silent performance that is especially beneficial to video applications and when working in noise-sensitive areas.
  • The lens body incorporates extensive weather sealing to protect against dust and moisture, and to enable worry-free use in inclement conditions and freezing temperatures as low as 14°F.
  • Rounded nine-blade diaphragm contribute to a pleasing out-of-focus quality to benefit the use of selective focus and shallow depth of field techniques.
  UPC: 074101025729
• Hoya 77mm NXT Plus Circular Polarizer Filter
  • Quick Look: FujiFilm XF 16-55mm f/2.8 R LM WR Len
  The 77mm NXT Plus Circular Polarizer Filter helps to reduce reflections and glare by filtering out light that has become polarized due to reflection from a non-metallic surface. The light from the sun naturally becomes partially polarized due to reflecting off electrons in air molecules, causing the light to scatter into what appears as haze. A polarizing filter arranges and filters this directionally polarized light perpendicularly to the reflected light, allowing for the absorption of much of this light. This results in a noticeable reduction of glare and reflections from non-metallic surfaces and an increase in the saturation of skies and foliage.

  A circular polarizer only differs from a linear polarizer in that it contains a quarter wave plane in addition to the linear polarizing filter. The addition of this quarter wave plane is to circularly polarize the linearly polarized light for the use of auto focus and exposure functions. Due to how the light is broken down and filtered with a linear polarizer, auto focus and exposure accuracy become skewed during use. When the light becomes circularly polarized, it permits the use of these functions.

  This filter is constructed from optical glass for clarity as well as color fidelity and features an aluminum-alloy filter ring that can be rotated in order to adjust the intensity of the polarization effect. To prevent internal ghosting and reflections, each glass surface includes five layers of anti-reflection coating. An additional hydrophobic coating results in an improved beading effect when in contact with water for greater cleaning efficiency.
  • Helps to reduce reflections and glare by filtering out light that has become polarized due to reflection from a non-metallic surface.
  • Polarizing filters arrange, and filter, directionally polarized light perpendicularly to the reflected light, allowing for the absorption of much of the light.
  • Clears up haze in distant landscapes and provides more saturated, vivid colors.
  • Strongest effect when used at a 90° angle from the sun.
  • Circular polarizers are ideal for use with digital cameras and autofocus lenses where a linear polarizer will often disrupt auto exposure and focus features.
  • 1.7x filter factor reduces exposure by 0.8 stop.
  • Multicoated to prevent internal ghosting and reflections while providing an improved beading effect with water for more efficient cleaning.
  • Aluminum-alloy filter ring for durability while remaining lightweight.
  • Filter ring can be rotated to adjust the intensity of the polarization effect.
  • 77mm front filter threads allow for use with other filters.
  • Top knurling to provide a more textured grip when mounting or removing it from a lens.
  • Constructed from optical glass for clarity and color fidelity.
  • Plastic filter case for storage and transport.
  UPC: 024066068132

• XF 16-55mm f/2.8 R LM WR Lens bqfcdxbttwyyatcaqbevy
• 77mm Lens Cap
• Rear Lens Cap for FUJIFILM X-Mount Lenses
• Lens Hood
• Cloth Wrap
• Limited 1-Year Warranty

• Hoya - 77mm NXT Plus Circular Polarizer Filter

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• FUJIFILM XF 16-55mm f/2.8 R LM WR Lens

  Focal Length	16 to 55mm (35mm Equivalent Focal Length: 24 to 84mm)
  Maximum Aperture	f/2.8
  Minimum Aperture	f/22
  Lens Mount	FUJIFILM X
  Format Compatibility	APS-C
