FUJIFILM XF 16mm f 1.4 R

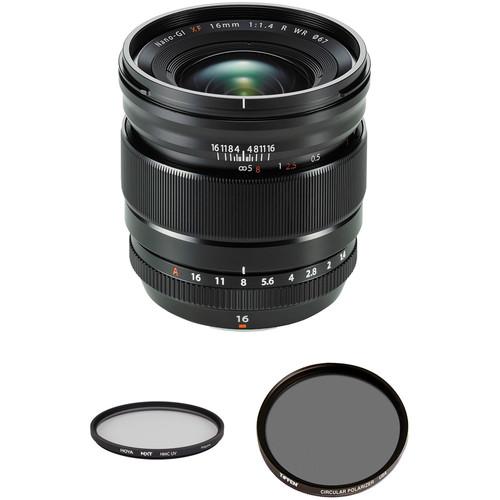

User Manual for FUJIFILM XF 16mm f 1.4 R WR Lens with UV and Circular Polarizer Filters

• Product category: Mirrorless System Lenses FUJIFILM
• Brand: FUJIFILM
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for FUJIFILM Mirrorless System Lenses

Product description

• FUJIFILM XF 16mm f/1.4 R WR Lens Fast and wide, the XF 16mm f/1.4 R WR is a 24mm-equivalent wide-angle lens designed specifically for FUJIFILM X-mount mirrorless cameras. Two aspherical and two extra-low dispersion elements are featured in the optical design, and help to reduce spherical and chromatic aberrations for improved sharpness, clarity, and color accuracy. Both a Nano-GI coating and HT-EBC coating are also used to control ghosting and flare for enhanced contrast and color fidelity when working in strong lighting conditions. Complementing the optics is a floating focus system that benefits autofocus speed and also maintains consistent performance throughout the focusing range. Additionally, the lens body is also weather-sealed to support working in trying environmental conditions.
  • Wide-angle prime lens is designed for APS-C-format FUJIFILM X-mount mirrorless cameras and provides a 24mm equivalent focal length.
  • Notably fast f/1.4 maximum aperture affords increased control over depth of field and greatly benefits working in low-light conditions.
  • Two extra-low dispersion elements are used to greatly reduce color fringing and chromatic aberrations in order to produce high clarity and color fidelity.
  • Two aspherical elements control distortion, curvature of field, and spherical aberrations, which helps to improve sharpness and realize more accurate rendering.
  • Nano-GI (Gradient Index) coating has been applied to lens elements and alters the refractive index between the glass and air in order to better suppress lens flare and ghosting for diagonal incident light.
  • HT-EBC coating has also been applied the entire surface of each element to reduce lens flare and ghosting for improved contrast and color fidelity when working in strong lighting conditions.
  • A quick and quiet autofocus motor pairs with a two-group floating focus system to achieve precise focus and consistent image quality throughout the focusing range, from the 5.9" minimum focusing distance to infinity.
  • Integrated depth of field scale benefits working with zone focusing and pre-focusing techniques.
  • Weather-resistant design includes nine different seals in eight areas to prevent dust and moisture from entering the lens and to enable worry-free use in inclement conditions and freezing temperatures as low as 14°F.
  UPC: 074101026405
• Hoya 67mm UV Haze NXT HMC Filter The Hoya 67mm UV Haze NXT HMC Filter is a general use, clear filter that helps to absorb ultraviolet light and protect the front of your lens. Its clear design allows you to pair this filter with others or leave on lenses at all times as a general protective filter. It can also help to reduce dust and moisture and keep them from reaching your lens element while providing additional protection in case of drops or situations where scratching could occur.

  Hoya HMC filters are multi-coated for reducing flare, ghosting, and reflections on the filter surface. As a result, over 97% light transmission is possible in order to maintain contrast and color fidelity. The UV NXT filters are constructed from high quality, heat-resistant, high-transparency optical glass and a precision milled low-profile aluminum frame.
  • Absorbs UV light, which can cause outdoor photos to appear hazy and indistinct.
  • Works as general protection filter to reduce dust, moisture, and scratches from reaching lens elements.
  • HMC multi-coating affords greater than 97% light transmission and helps to reduce flare, ghosting, and reflections on the filter surface for greater contrast and color fidelity.
  • Crafted from high quality, heat-resistant, high-transparency optical glass and a precision milled low-profile aluminum frame.
  UPC: 024066055354
• Tiffen 67mm Circular Polarizing Filter Tiffen 67mm Circular Polarizer Filters - Light rays which are reflected become polarized. Polarizing filters are used to select which light rays enter your camera lens. They can remove unwanted reflections from non-metallic surfaces such as water or glass and also saturate colors providing better contrast. The effect can be seen through the viewfinder and changed by rotating the filter. The filter factor varies according to how the filter is rotated and its orientation to the sun. If you're out walking on a lovely day - in the mountains or at the beach - and you want to get a fabulous shot of a cloud-filled sky or make the water seem more saturated, then a polarizer is the way to go. This filter is the best way to make the clouds stand out, increase or decrease the saturation of the ocean or increase or decrease the reflection off the water. You can also use this filter when shooting into glass or windows since it will, again, either increase or decrease reflections.If you're shooting black and white and want to simulate a threatening storm, try throwing on a #25 Red filter. The vista will take on the appearance of an imminent, ominous storm. Along with a UV or Skylight Filter, a polarizing filter should be a part of everyone's gear bag. It can turn a run-of-the-mill image into a stunning, creative photo by increasing color saturation.
  Note: Circular polarizers are specifically designed for use with auto-focus SLR cameras (They will also work on manual systems without problems)
  • This filter eliminates ultraviolet rays from outdoor shots as well as polarizing the light to remove reflections, and increase color saturation, without affecting the overall color balance
  • Can dramatically enhance a blue sky and make the clouds more prominent
  • Used best at right angle to the sun
  • Effective with cameras that use beam splitters in the path of the TTL light meter and with AF cameras
  UPC: 049383046717

• XF 16mm f/1.4 R WR Lens xqrfatudvf
• 67mm Lens Cap
• Rear Lens Cap for FUJIFILM X-Mount Lenses
• Lens Hood
• Cloth Wrap
• Limited 1-Year Warranty

• Hoya - 67mm UV Haze NXT HMC Filter

• Tiffen - 67mm Circular Polarizing Filter

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• FUJIFILM XF 16mm f/1.4 R WR Lens

  Focal Length	16mm (35mm Equivalent Focal Length: 24mm)
  Maximum Aperture	f/1.4
  Minimum Aperture	f/16
  Lens Mount	FUJIFILM X
  Format Compatibility	APS-C
  Angle of View	83.2 Rating 98% users recommend this product to others. And what about you? This product has already been rated by 71 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
