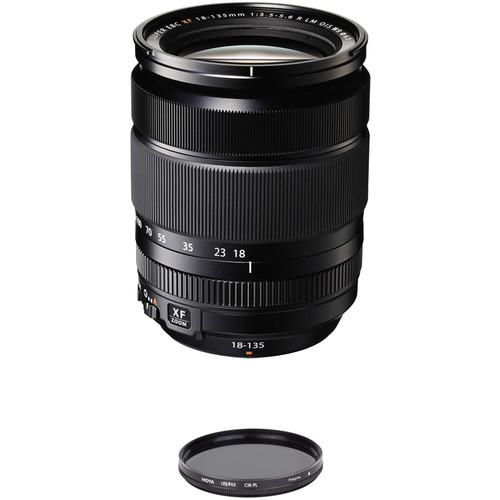

User Manual for FUJIFILM XF 18-135mm f 3.5-5.6 R LM OIS WR Lens with Circular Polarizer Filter Kit

• Product category: Mirrorless System Lenses FUJIFILM
• Brand: FUJIFILM
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for FUJIFILM Mirrorless System Lenses

Product description

• FUJIFILM XF 18-135mm f/3.5-5.6 R LM OIS WR Lens An ideal all-around lens, the FUJIFILM XF 18-135mm f/3.5-5.6 R LM OIS WR is a versatile 27-206mm-equivalent zoom, covering wide-angle to medium telephoto fields of view. Well-suited for travel and walkaround shooting, the expansive reach of this lens is further complemented by a sophisticated optical design, which uses ED and aspherical elements, to produce high color accuracy, sharpness, and image clarity. An HT-EBC coating also improves contrast and color neutrality by reducing flare and ghosting when working in strong lighting conditions. Also benefitting use in a variety of situations, a linear motor delivers quick and quiet autofocus performance and a five stop-effective image stabilization system minimizes the appearance of camera shake. Additionally, the lens is fully weather-sealed for working in inclement conditions.
  • All-in-one zoom is designed for APS-C-format Fujifilm X-mount mirrorless cameras and offers a 27-206mm equivalent focal length range.
  • Two extra-low dispersion elements are used to greatly reduce color fringing and chromatic aberrations in order to produce high clarity and color fidelity throughout the zoom range.
  • Four aspherical elements control distortion and spherical aberrations, which helps to improve sharpness and realize more accurate rendering.
  • An HT-EBC (High Transmittance Electron Beam Coating) coating has been applied to the entire surface of each element to for controlling ghosting and flare for greater contrast and color accuracy.
  • A linear motor autofocus system, coupled with an internal focusing design, delivers smooth, near-silent performance that is especially beneficial to video applications and when working in noise-sensitive areas.
  • Complemented by an enhanced gyro sensor and unique series of algorithms, the optical stabilization system minimizes the appearance of camera shake by up to five stops to enable sharper imaging when working with longer focal lengths or slower shutter speeds.
  • The lens body incorporates 20 distinct weather seals to protect against dust and moisture, and to enable worry-free use in inclement conditions and freezing temperatures as low as 14°F.
  • Rounded seven-blade diaphragm contributes to a pleasing out-of-focus quality to benefit the use of selective focus and shallow depth of field techniques.
  UPC: 074101025408
• Hoya 67mm alpha Circular Polarizer Filter The Hoya 67mm alpha Circular Polarizer Filter helps to reduce reflections and glare by filtering out light that has become polarized due to reflection from a non-metallic surface. The light from the sun naturally becomes partially polarized due to reflecting off electrons in air molecules, causing the light to scatter into what appears as haze. A polarizing filter arranges, and filters, this directionally polarized light perpendicularly to the reflected light, allowing for the absorption of much of this light. This results in a noticeable reduction of glare and reflections from non-metallic surfaces and an increase in the saturation of skies and foliage.

  A circular polarizer only differs from a linear polarizer in that it contains a quarter wave plane in addition to the linear polarizing filter. The addition of this quarter wave plane is to circularly polarize the linearly polarized light for the use of auto focus and exposure functions. Due to how the light is broken down and filtered with a linear polarizer, auto focus and exposure accuracy become skewed during use. When the light becomes circularly polarized, it permits the use of these functions.

  This filter is non-coated and has approximately 96% average light transmission. It is constructed from optical glass and precision milled aluminum frames.
  • Helps to reduce reflections and glare by filtering out light that has become polarized due to reflection from a non-metallic surface.
  • Polarizing filters arrange, and filter, directionally polarized light perpendicularly to the reflected light, allowing for the absorption of much of the light.
  • Clears up haze in distant landscapes and provides more saturated, vivid colors.
  • Strongest effect when used at a 90° angle from the sun.
  • Circular polarizers are ideal for use with digital cameras and autofocus lenses where a linear polarizer will often disrupt auto exposure and focus features.
  • Non-coated.
  • Approximately 96% average light transmission.
  • 3 to 4x filter factor reduces exposure by 1.6 to 2 stops.
  • Constructed from optical glass and precision milled aluminum frames.
  • Plastic filter case for storage and transport.
  UPC: 024066056191

• XF 18-135mm f/3.5-5.6 R LM OIS WR Lens svfwqeacbddrvrfxyqvfsxbvdr
• 67mm Lens Cap
• Rear Lens Cap for FUJIFILM X-Mount Lenses
• Lens Hood
• Lens Pouch
• Limited 1-Year Warranty

• Hoya - 67mm alpha Circular Polarizer Filter

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• FUJIFILM XF 18-135mm f/3.5-5.6 R LM OIS WR Lens

  Focal Length	18 to 135mm (35mm Equivalent Focal Length: 27 to 206mm)
  Maximum Aperture	f/3.5 to 5.6
  Minimum Aperture	f/22
  Lens Mount	FUJIFILM X
  Format Compatibility	APS-C
  Angle of View	76.5 Rating 50% users recommend this product to others. And what about you? This product has already been rated by 30 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
