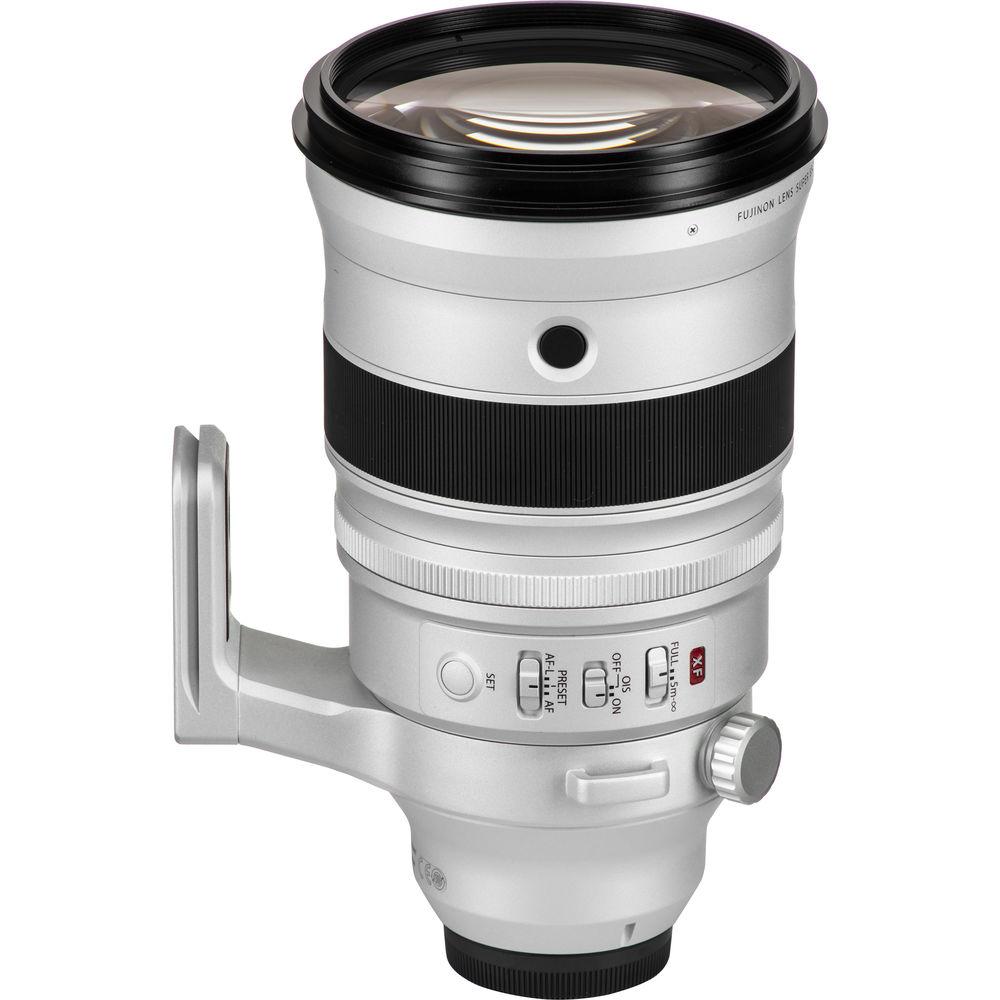

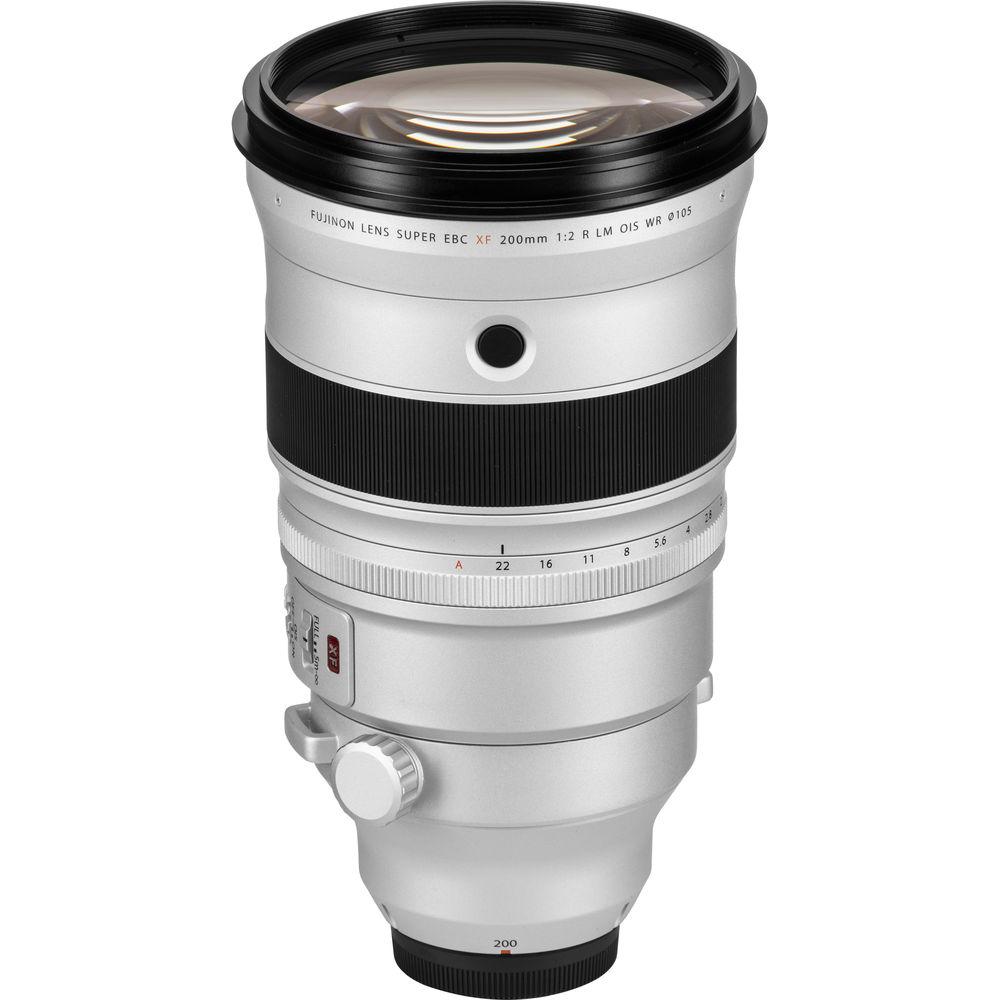

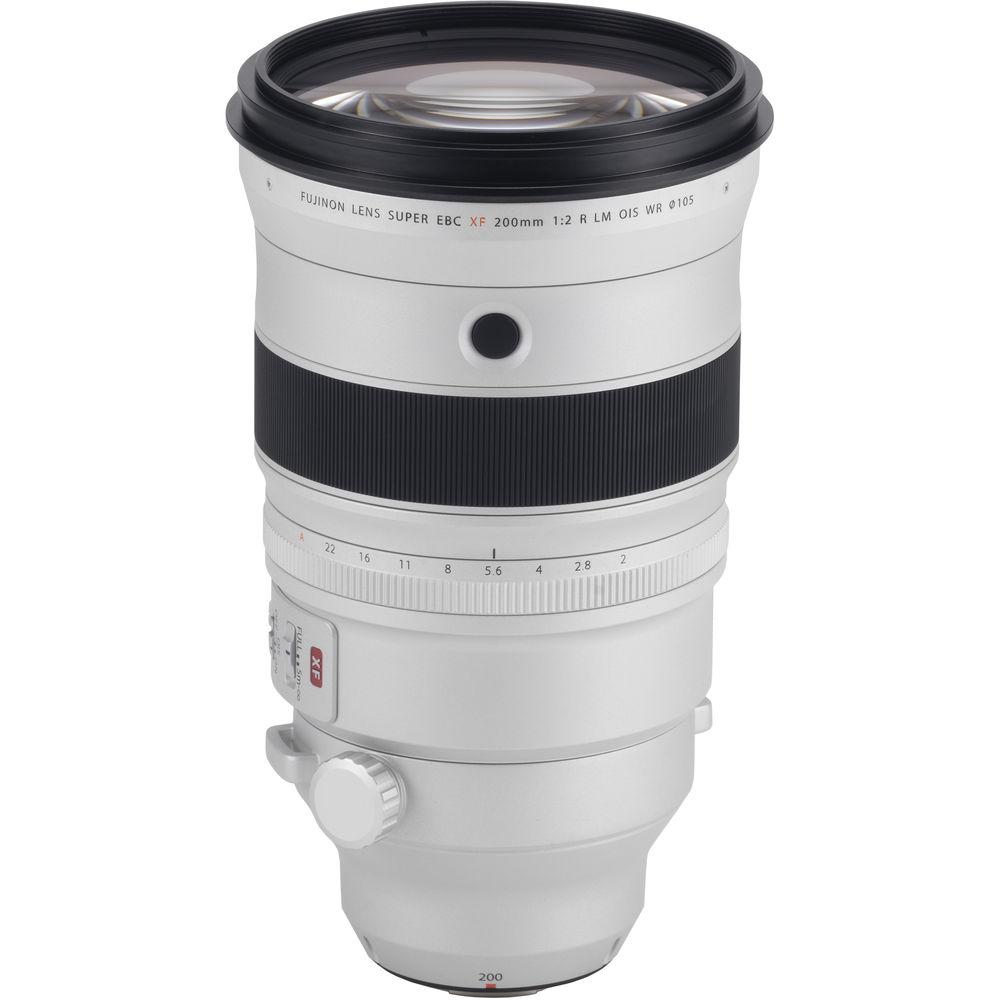

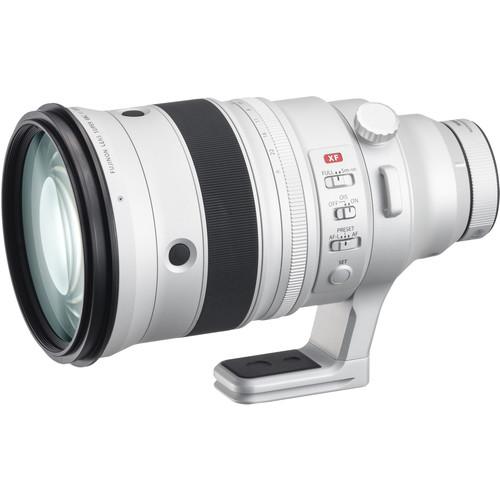

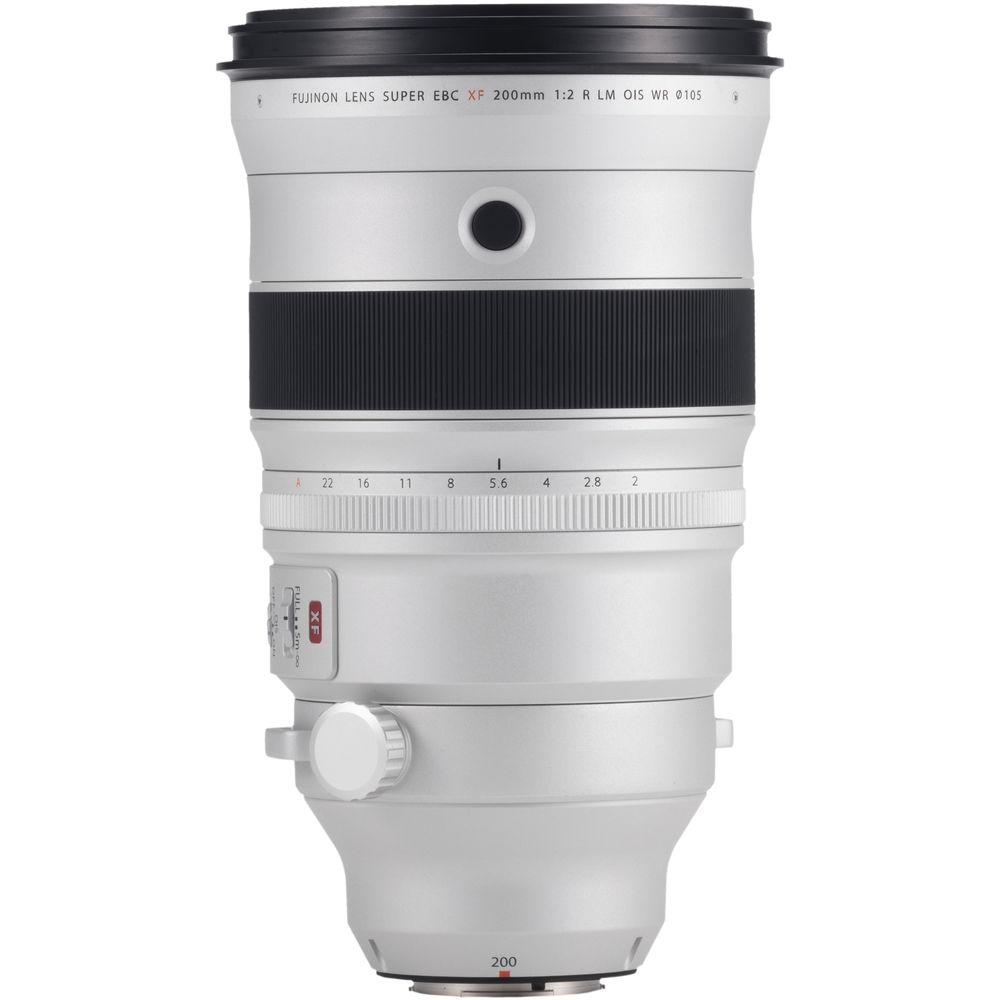

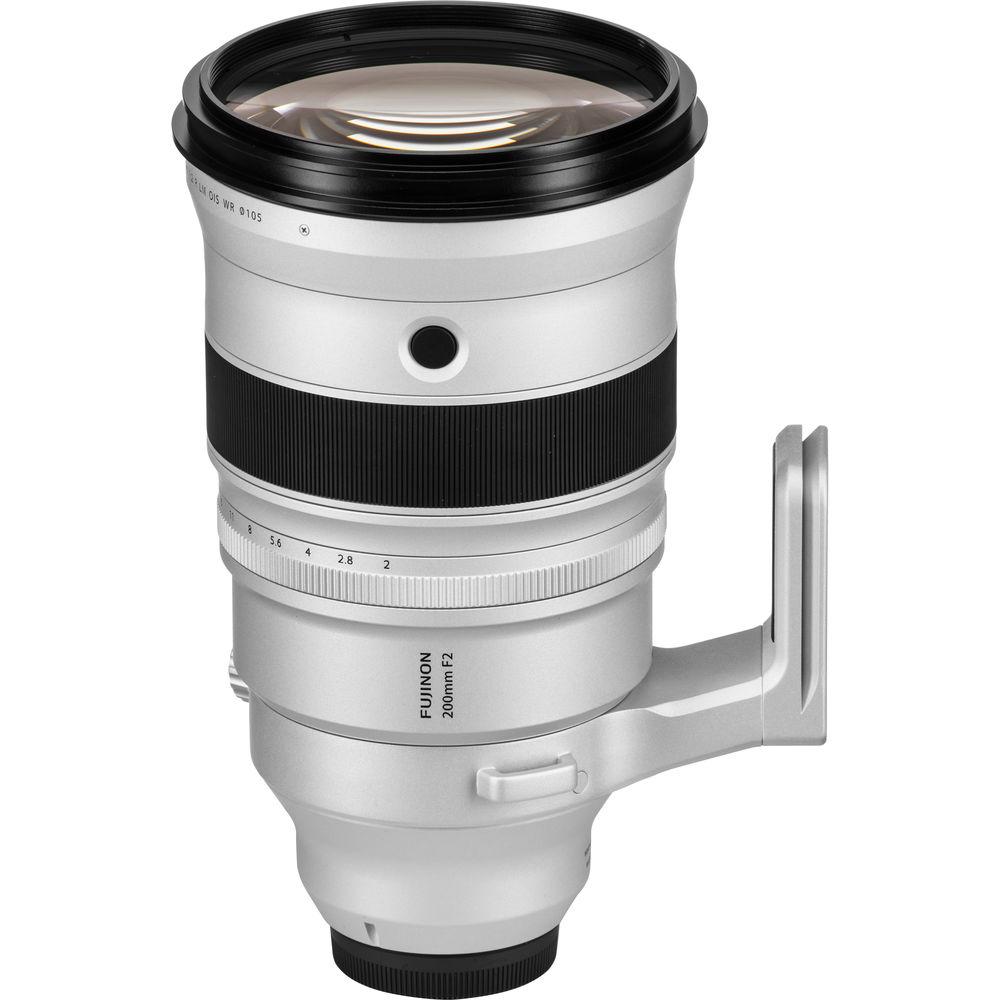

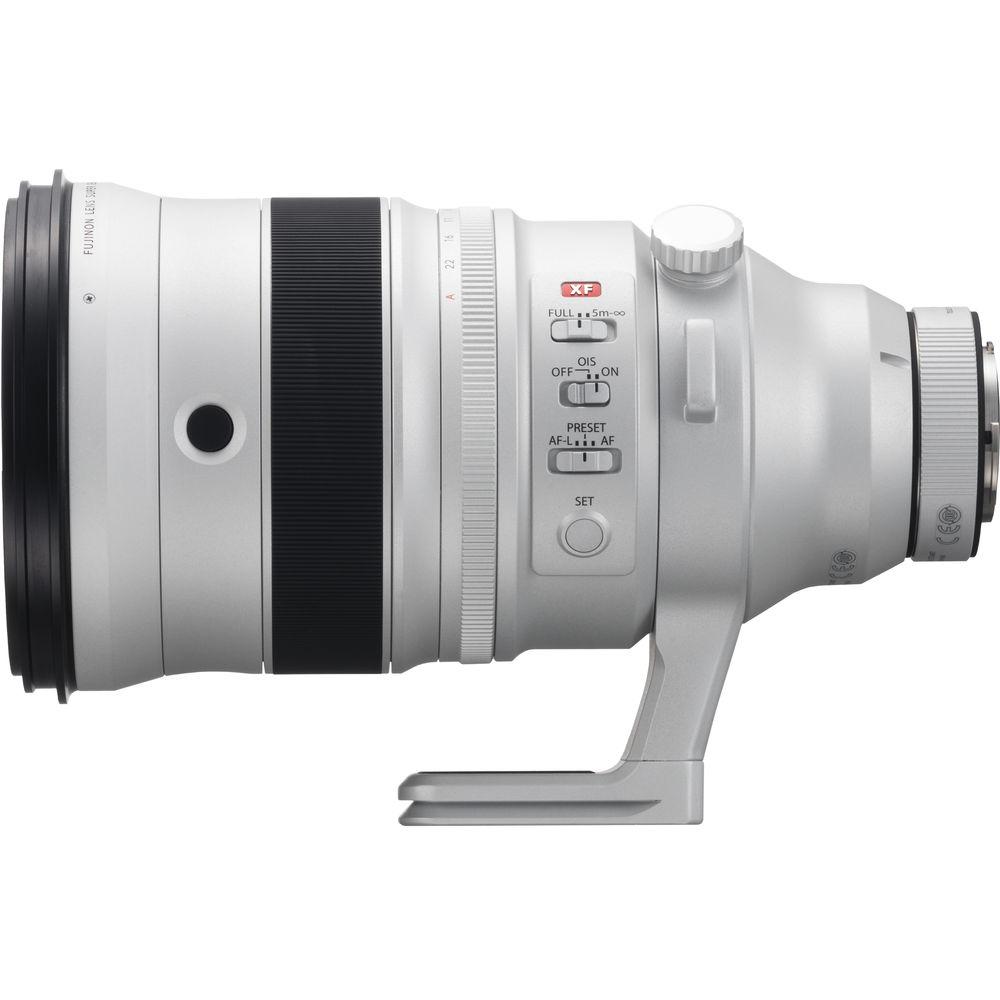

User Manual for FUJIFILM XF 200mm f 2 R LM OIS WR Lens with XF 1.4x TC F2 WR Teleconverter Kit Click to enlarge the picture
Contents of the user manual for the FUJIFILM XF 200mm f 2 R
- Product category: Mirrorless System Lenses FUJIFILM
- Brand: FUJIFILM
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FUJIFILM Mirrorless System Lenses
 |
User manual for the FUJIFILM XF 200mm f 2 R contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FUJIFILM product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FUJIFILM user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FUJIFILM product will considerably shorten its lifespan!
|
Product description Fujifilm Releases 8-16mm f/2.8 Ultra-Wide, 200mm f/2 Telephoto XF Lenses Read More usbaayxtcteabtzbsrs Distinguished by its long reach and bright design, the FUJIFILM XF 200mm f/2 R LM OIS WR is a 305mm-equivalent lens further characterized by its sophisticated optical layout, fast performance, and apt image stabilization. Well-suited for sports, events, and wildlife photography, the impressive f/2 maximum aperture suits working in a variety of lighting conditions and also promotes working with shallow depth of field and selective focus techniques. The optical design features three extra-low dispersion elements, including one Super ED element, which help to achieve greater clarity and color accuracy by controlling fringing and chromatic aberrations. A Super EBC coating is also used to suppress flare for improved contrast and color rendering. Complementing the optics is a linear motor-based autofocus system, which offers fast, near-silent performance for both stills and video use. Additionally, a five stop-effective optical image stabilization system minimizes the appearance of camera shake for sharper results. Suiting the lens's use in inclement conditions, it is also weather-sealed to resist and dust and moisture and a fluorine coating has been applied to the front element.
In addition to the lens itself, the dedicated XF 1.4x TC F2 WR Teleconverter is also included in this kit, and extends the focal length by 1.4x to result in an equivalent 427mm focal length. This teleconverter maintains all automated functions and image stabilization, and its optical design incorporates one aspherical element to control distortion and spherical aberrations. XF 200mm f/2 R LM OIS WR Lens - Telephoto prime lens is designed for APS-C-format FUJIFILM X-mount mirrorless cameras and provides a 305mm equivalent focal length.
- Notably fast f/2 maximum aperture affords greater control over depth of field for isolating subject matter and also suits working in low-light conditions.
- Three extra-low dispersion elements, including one Super ED element, are used to greatly reduce color fringing and chromatic aberrations in order to produce high clarity and color fidelity.
- Super EBC coating has been applied to individual elements to reduce lens flare and ghosting for improved contrast and color fidelity when working in strong lighting conditions.
- Linear motor autofocus system delivers smooth, near-silent performance that is especially beneficial to video applications and when working in noise-sensitive areas. An additional mechanism also fixes the focus motor group in place when the camera is turned off to reduce any unwanted vibrations during storage or travel.

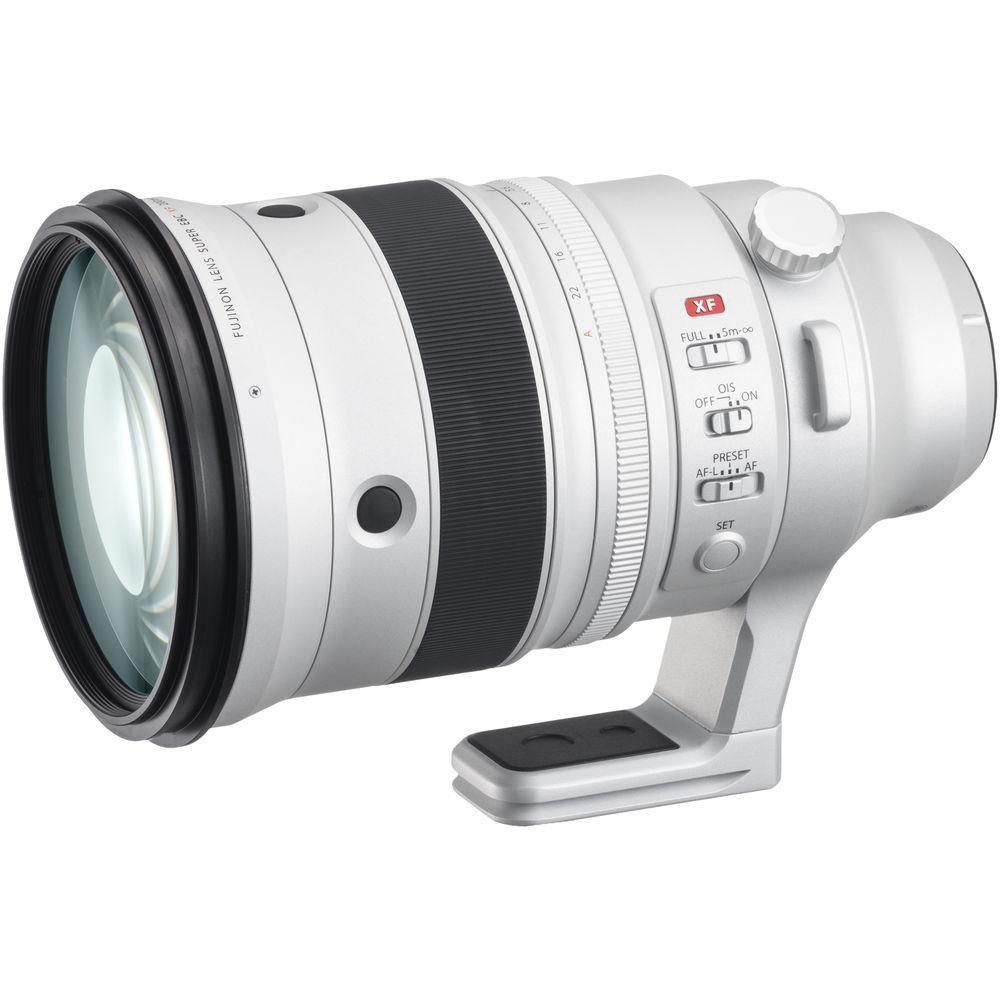

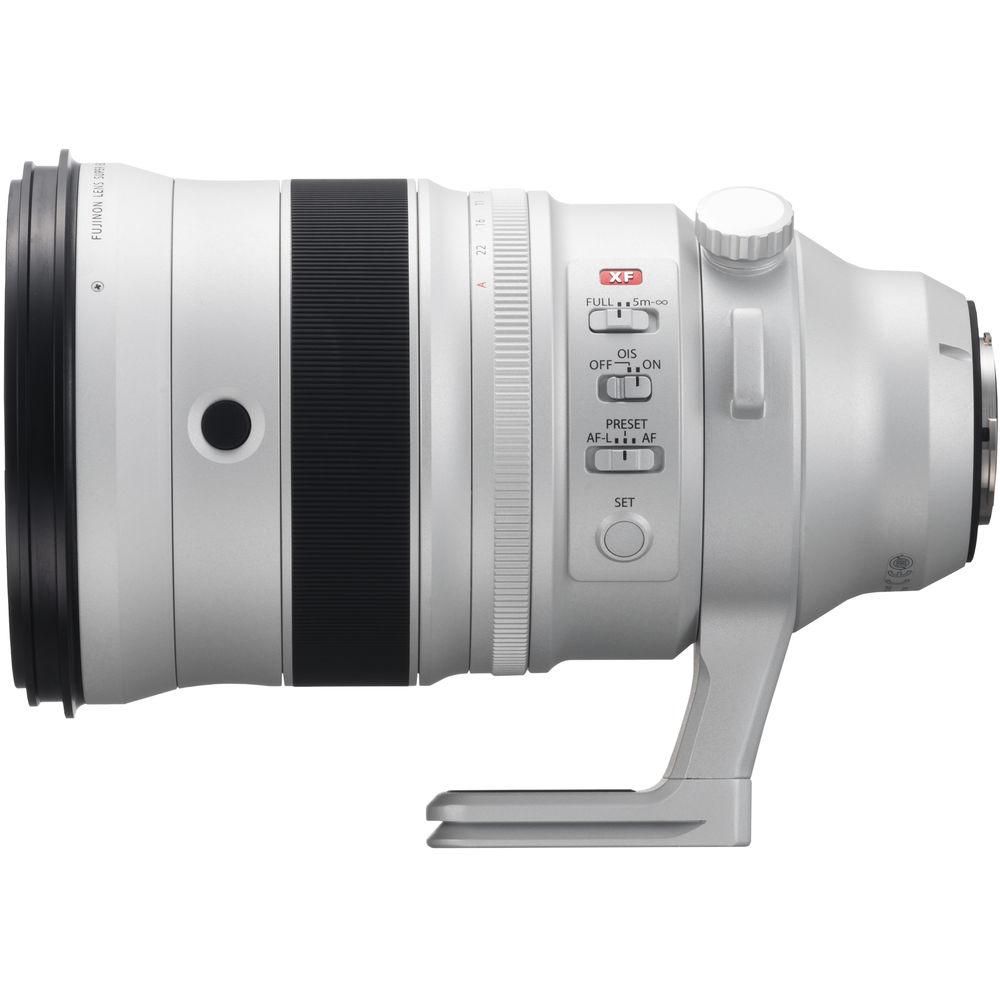

- Focus range limiter switch allows you to constrain the focus range to between 16.4' to infinity or for the whole 5.9' to infinity range for more responsive focusing depending on the distance to your subject.
- Focus Preset Function instantly changes your focus position to a pre-selected position for faster focus switching.
- Focus Control button at the tip of the lens can be assigned to a desired focusing function of choice, including Focus Preset, AF-ON, or Focus Lock.
- Optical stabilization system minimizes the appearance of camera shake by up to five stops to enable sharper imaging when shooting handheld or working with slower shutter speeds.
- The lens body incorporates 17 distinct weather seals to protect against dust and moisture, and to enable worry-free use in inclement conditions and freezing temperatures as low as 14°F.
- A fluorine coating has been applied to the front lens element to guard against smudging, moisture, and dust.

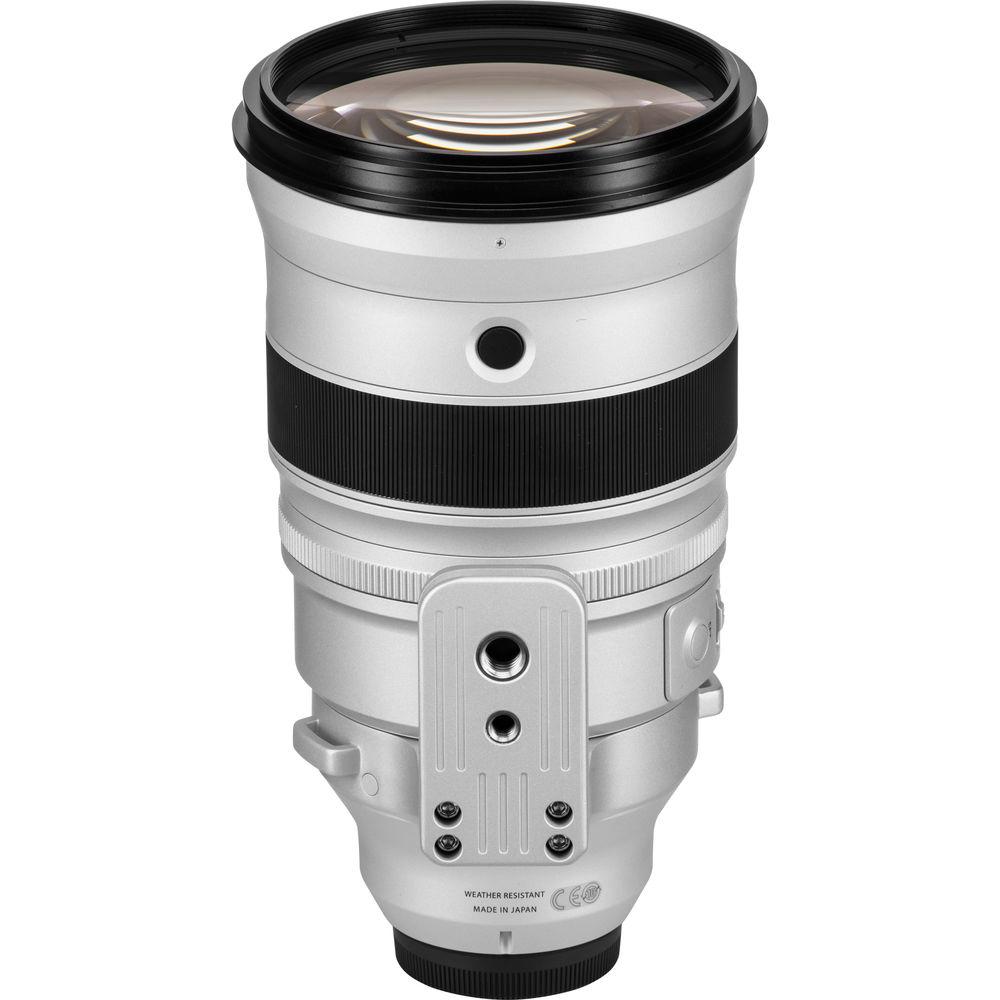

- Fixed rotating tripod collar offers well-balanced support when working from a monopod or tripod. The tripod foot is also Arca-type compatible for direct mounting to tripod heads and also has 1/4" and 3/8" sockets for attaching to quick release plates.
- Rounded nine-blade diaphragm contributes to a pleasing bokeh quality.
XF 1.4x TC F2 WR Teleconverter - Included with the 200mm f/2 lens is the dedicated 1.4x teleconverter, which extends the effective focal length to 280mm, for an equivalent focal length of 427mm.
- Optical design has seven elements in four groups, including one aspherical element to reduce distortion and maintain high sharpness.
- Retains all AF, AE, and image stabilization functions of the 200mm f/2 lens, as well as the same minimum focusing distance of 5.9'.
- Requires one additional stop of light, making the effective maximum aperture f/2.8.
- Teleconverter adds an additional 0.6" to the overall length of the lens system along with an additional 4.6 oz of weight.
UPC: 074101037883 In the Box FUJIFILM XF 200mm f/2 R LM OIS WR Lens with XF 1.4x TC F2 WR Teleconverter Kit FLCP-105 Front Lens Cap usbaayxtcteabtzbsrs Rear Lens Cap for FUJIFILM X-Mount Lenses Lens Hood Shoulder Strap Lens Case XF 1.4x TC F2 WR Teleconverter Rear Lens Cap for FUJIFILM X-Mount Lenses Front Teleconverter Cap Teleconverter Pouch Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FUJIFILM XF 200mm f 2 R LM OIS WR Lens with XF 1.4x TC F2 WR Teleconverter Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFUJIFILM 200mm f/2.0 Specs | Focal Length | 200mm (35mm Equivalent Focal Length: 305mm) | | Maximum Aperture | f/2 | | Minimum Aperture | f/22 | | Lens Mount | FUJIFILM X | | Format Compatibility | APS-C | | Angle of View | 8.1
