User manual
FUJIFILM XF 56mm f 1.2 R

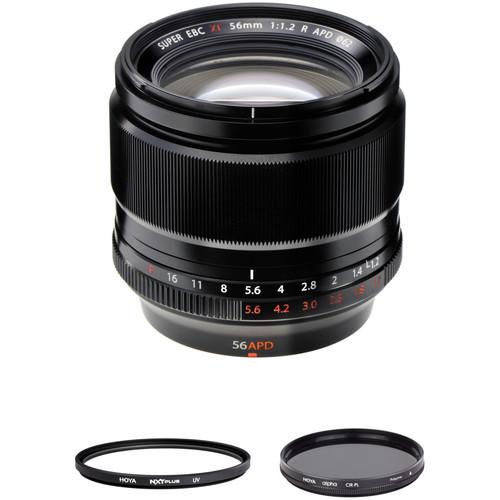

User Manual for FUJIFILM XF 56mm f 1.2 R APD Lens with UV and Circular Polarizer Filters

• Product category: Mirrorless System Lenses FUJIFILM
• Brand: FUJIFILM
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for FUJIFILM Mirrorless System Lenses

Product description

• FUJIFILM XF 56mm f/1.2 R APD Lens Designed for the bokeh enthusiast, the FUJIFILM XF 56mm f/1.2 R APD features a unique optical design, flattering portrait-length field of view, and an especially fast f/1.2 maximum aperture. Differentiating itself from FUJIFILM's other XF 56mm f/1.2 lens, this APD version incorporates an apodization filter to produce an aesthetically-pleasing out-of-focus quality to suit selective focus applications.

  Complementing the unique bokeh-related attributes of the lens is an equally sophisticated optical design, which features both aspherical and extra-low dispersion elements to help reduce a variety of aberrations, color fringing, and distortion. A Super EBC coating is used, too, to reduce flare and ghosting for improved contrast and color accuracy in bright and backlit conditions. Additionally, this lens also features an internal focusing mechanism for quick focusing performance along with a rounded seven-blade diaphragm to further contribute to a pleasing bokeh quality.
  • Prime portrait-length lens is designed for APS-C-format Fujifilm X-mount mirrorless cameras and provides an 85mm equivalent focal length.
  • Especially bright f/1.2 maximum aperture excels in low-light conditions and also offers notable control over depth of field for using selective focus techniques.
  • Signified by the APD designation, this lens incorporates an apodization filter in order to produce controllable and aesthetically-pleasing bokeh, which is characterized by sharp main subjects, tremendously blurred background, and an overall three-dimensional quality.
  • Since the apodization filter performs best at wider aperture values, a 3-stop ND filter is built into the lens to aid in controlling exposure. Using two separate sets of aperture values, the red series of numbers indicates the effective aperture value as it relates to depth of field. The standard white set of numbers indicates the actual f/stop number, and the difference between these two sets of numbers indicates the effectiveness of the filter.
  • One double-sided aspherical element limits distortion and spherical aberration in order to realize greater sharpness and accurate rendering.
  • Two extra-low dispersion elements reduce color fringing and chromatic aberrations in order to provide greater clarity and color accuracy.
  • Super EBC coating has been applied to individual elements to reduce lens flare and ghosting for improved contrast and color fidelity when working in strong lighting conditions.
  • Internal focusing design affords fast and quiet autofocus performance that benefits both stills and video applications.
  • Rounded seven-blade diaphragm contributes to a pleasing out-of-focus quality to benefit the use of selective focus and shallow depth of field techniques.
  UPC: 074101025699
• Hoya 62mm NXT Plus UV Filter The Hoya 62mm NXT Plus UV Filter is a general use, clear filter designed to absorb ultraviolet light and reduce the bluish cast of daylight. Aside from the reduction of unwanted blue casts, no additional coloration or contrast is created, and adjustments to exposure are not required while using this filter. To prevent internal ghosting and reflections, each glass surface includes five layers of anti-reflection coating. These coatings also offer greater protection to the filter substrate and helps it to stay clean for longer than with uncoated filters. An additional hydrophobic coating results in an improved beading effect when in contact with water for greater cleaning efficiency.

  This NXT Plus UV filter is constructed from Schott B270 glass for increased clarity as well as color fidelity and features an aluminum-alloy filter ring for durability while remaining lightweight. It is also useful as a general protective filter to leave on lenses at all times. Such filters help to reduce dust and moisture from reaching your front lens element and provide additional protection in case of drops or situations where scratching could occur.
  • Absorbs UV light and reduces bluish cast of daylight.
  • Does not require adjustments to exposure while in use.
  • Multicoated to prevent internal ghosting and reflections while providing an improved beading effect with water for more efficient cleaning.
  • Creates no additional coloration or contrast.
  • Aluminum-alloy filter ring for durability while remaining lightweight.
  • 62mm front filter threads allow for use with other filters.
  • Top knurling to provide a more textured grip when mounting or removing it from a lens.
  • Constructed from Schott B270 glass for increased optical clarity.
  • Plastic case included for storage and transport.
  UPC: 024066067968
• Hoya 62mm alpha Circular Polarizer Filter The Hoya 62mm alpha Circular Polarizer Filter helps to reduce reflections and glare by filtering out light that has become polarized due to reflection from a non-metallic surface. The light from the sun naturally becomes partially polarized due to reflecting off electrons in air molecules, causing the light to scatter into what appears as haze. A polarizing filter arranges, and filters, this directionally polarized light perpendicularly to the reflected light, allowing for the absorption of much of this light. This results in a noticeable reduction of glare and reflections from non-metallic surfaces and an increase in the saturation of skies and foliage.

  A circular polarizer only differs from a linear polarizer in that it contains a quarter wave plane in addition to the linear polarizing filter. The addition of this quarter wave plane is to circularly polarize the linearly polarized light for the use of auto focus and exposure functions. Due to how the light is broken down and filtered with a linear polarizer, auto focus and exposure accuracy become skewed during use. When the light becomes circularly polarized, it permits the use of these functions.

  This filter is non-coated and has approximately 96% average light transmission. It is constructed from optical glass and precision milled aluminum frames.
  • Helps to reduce reflections and glare by filtering out light that has become polarized due to reflection from a non-metallic surface.
  • Polarizing filters arrange, and filter, directionally polarized light perpendicularly to the reflected light, allowing for the absorption of much of the light.
  • Clears up haze in distant landscapes and provides more saturated, vivid colors.
  • Strongest effect when used at a 90° angle from the sun.
  • Circular polarizers are ideal for use with digital cameras and autofocus lenses where a linear polarizer will often disrupt auto exposure and focus features.
  • Non-coated.
  • Approximately 96% average light transmission.
  • 3 to 4x filter factor reduces exposure by 1.6 to 2 stops.
  • Constructed from optical glass and precision milled aluminum frames.
  • Plastic filter case for storage and transport.
  UPC: 024066056184

• XF 56mm f/1.2 R APD Lens wywbfdtt
• FLCP-62II 62mm Front Lens Cap
• Rear Lens Cap for FUJIFILM X-Mount Lenses
• Lens Hood
• ND8 Neutral Density Filter
• Cloth Wrap
• Limited 1-Year Warranty

• Hoya - 62mm NXT Plus UV Filter

• Hoya - 62mm alpha Circular Polarizer Filter

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• FUJIFILM XF 56mm f/1.2 R APD Lens

  Focal Length	56mm (35mm Equivalent Focal Length: 85mm)
  Maximum Aperture	f/1.2
  Minimum Aperture	f/16
  Lens Mount	FUJIFILM X
  Format Compatibility	APS-C
  Angle of View	28.5 Rating 98% users recommend this product to others. And what about you? This product has already been rated by 21 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
