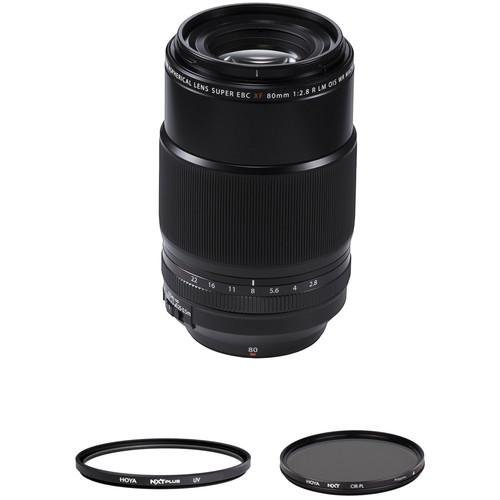

User Manual for FUJIFILM XF 80mm f 2.8 R LM OIS WR Macro Lens with UV and Circular Polarizer Filters

• Product category: Mirrorless System Lenses FUJIFILM
• Brand: FUJIFILM
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for FUJIFILM Mirrorless System Lenses

Product description

• FUJIFILM XF 80mm f/2.8 R LM OIS WR Macro Lens Designed for close-up shooting, the FUJIFILM XF 80mm f/2.8 R LM OIS WR Macro is a 122mm equivalent telephoto prime for X-mount mirrorless cameras. The long focal length coupled with the f/2.8 maximum aperture is well-suited to isolating subject matter, especially when paired with the short 9.8" minimum focusing distance, and a 1:1 life-size magnification is ideal for macro shooting. A Floating Focus System benefits close-up work by using two distinct focusing groups in order to maintain image quality throughout the focus range, and a linear motor ensures quick, quiet autofocus performance. Additionally, a five stop-effective optical image stabilization system complements making sharp imagery by minimizing the appearance of camera shake.

  In regard to the optical design, this lens employs one aspherical element and four low dispersion elements to realize sharp, clear imagery void of both chromatic and spherical aberrations. A Super EBC coating has also been applied to suppress flare and ghosting when working in bright and backlit conditions. Additionally, enabling the lens's use in harsh environments, it is weather-sealed and also features a fluorine coating on the front element to guard against moisture, smudging, and dust.
  • Short telephoto prime lens is designed for APS-C-format FUJIFILM X-mount mirrorless cameras and provides a 122mm equivalent focal length.
  • Macro lens affords a life-size 1:1 magnification ratio along with a 9.8" minimum focusing distance for working with close-up subjects.
  • Four extra-low dispersion elements, including one Super ED element, are used to greatly reduce color fringing and chromatic aberrations in order to produce high clarity and color fidelity.
  • One aspherical element controls distortion, curvature of field, and spherical aberrations, which helps to improve sharpness and realize more accurate rendering.
  • Super EBC coating has been applied to individual elements to reduce lens flare and ghosting for improved contrast and color fidelity when working in strong lighting conditions.
  • Floating Focus System employs two distinct groups of focusing elements for faster performance as maintained image quality throughout the focusing range.
  • Linear motor autofocus system delivers smooth, near-silent performance that is especially beneficial to video applications and when working in noise-sensitive areas.
  • Focus range limiter switch allows you to constrain the focus range to between 9.8" to 1.6', 1.6' to infinity, or for the whole 9.8" to infinity range for more responsive focusing depending on the distance to your subject.
  • A five stop-effective optical image stabilization system minimizes the appearance of camera shake for sharper handheld shooting in low-light conditions and with slower shutter speeds.
  • The lens body is weather-sealed to protect against dust and moisture, and to enable worry-free use in inclement conditions. Additionally, this design also permits working in temperatures as low as 14°F.
  • A fluorine coating has been applied to the front lens element to guard against smudging, moisture, and dust.
  • Rounded nine-blade diaphragm contributes to a pleasing bokeh quality.
  • Compatible with optional XF 1.4x TC WR and XF 2x TC WR teleconverters for extending the effective focal length to an equivalent 171mm and 244mm, respectively.
  UPC: 074101034677
• Hoya 62mm NXT Plus UV Filter The Hoya 62mm NXT Plus UV Filter is a general use, clear filter designed to absorb ultraviolet light and reduce the bluish cast of daylight. Aside from the reduction of unwanted blue casts, no additional coloration or contrast is created, and adjustments to exposure are not required while using this filter. To prevent internal ghosting and reflections, each glass surface includes five layers of anti-reflection coating. These coatings also offer greater protection to the filter substrate and helps it to stay clean for longer than with uncoated filters. An additional hydrophobic coating results in an improved beading effect when in contact with water for greater cleaning efficiency.

  This NXT Plus UV filter is constructed from Schott B270 glass for increased clarity as well as color fidelity and features an aluminum-alloy filter ring for durability while remaining lightweight. It is also useful as a general protective filter to leave on lenses at all times. Such filters help to reduce dust and moisture from reaching your front lens element and provide additional protection in case of drops or situations where scratching could occur.
  • Absorbs UV light and reduces bluish cast of daylight.
  • Does not require adjustments to exposure while in use.
  • Multicoated to prevent internal ghosting and reflections while providing an improved beading effect with water for more efficient cleaning.
  • Creates no additional coloration or contrast.
  • Aluminum-alloy filter ring for durability while remaining lightweight.
  • 62mm front filter threads allow for use with other filters.
  • Top knurling to provide a more textured grip when mounting or removing it from a lens.
  • Constructed from Schott B270 glass for increased optical clarity.
  • Plastic case included for storage and transport.
  UPC: 024066067968
• Hoya 62mm NXT Circular Polarizer Filter The Hoya 62mm NXT Circular Polarizer Filter helps to reduce reflections and glare by filtering out light that has become polarized due to reflection from a non-metallic surface. The light from the sun naturally becomes partially polarized due to reflecting off electrons in air molecules, causing the light to scatter into what appears as haze. A polarizing filter arranges, and filters, this directionally polarized light perpendicularly to the reflected light, allowing for the absorption of much of this light. This results in a noticeable reduction of glare and reflections from non-metallic surfaces and an increase in the saturation of skies and foliage.

  A circular polarizer only differs from a linear polarizer in that it contains a quarter wave plane in addition to the linear polarizing filter. The addition of this quarter wave plane is to circularly polarize the linearly polarized light for the use of auto focus and exposure functions. Due to how the light is broken down and filtered with a linear polarizer, auto focus and exposure accuracy become skewed during use. When the light becomes circularly polarized, it permits the use of these functions.

  This filter is non-coated. Hoya NXT filters have over 97% average light transmission, and are constructed from heat-resistant, high-transparency optical glass.
  • Helps to reduce reflections and glare by filtering out light that has become polarized due to reflection from a non-metallic surface.
  • Polarizing filters arrange, and filter, directionally polarized light perpendicularly to the reflected light, allowing for the absorption of much of the light.
  • Clears up haze in distant landscapes and provides more saturated, vivid colors.
  • Non-coated.
  • Strongest effect when used at a 90° angle from the sun.
  • Circular polarizers are ideal for use with digital cameras and autofocus lenses where a linear polarizer will often disrupt auto exposure and focus features.
  • Over 97% average light transmission.
  • Constructed from heat-resistant, high-transparency optical glass.
  UPC: 024066055675

• XF 80mm f/2.8 R LM OIS WR Macro Lens awqzvwrbrryycvux
• FLCP-62II 62mm Front Lens Cap
• Rear Lens Cap for FUJIFILM X-Mount Lenses
• Lens Hood
• Lens Pouch and Wrapping Cloth
• Limited 1-Year Warranty

• Hoya - 62mm NXT Plus UV Filter

• Hoya - 62mm NXT Circular Polarizer Filter

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• FUJIFILM XF 80mm f/2.8 R LM OIS WR Macro Lens

  Focal Length	80mm (35mm Equivalent Focal Length: 122mm)
  Maximum Aperture	f/2.8
  Minimum Aperture	f/22
  Lens Mount	FUJIFILM X
  Format Compatibility	APS-C
  Angle of View	20.1 Rating 86% users recommend this product to others. And what about you? This product has already been rated by 29 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
