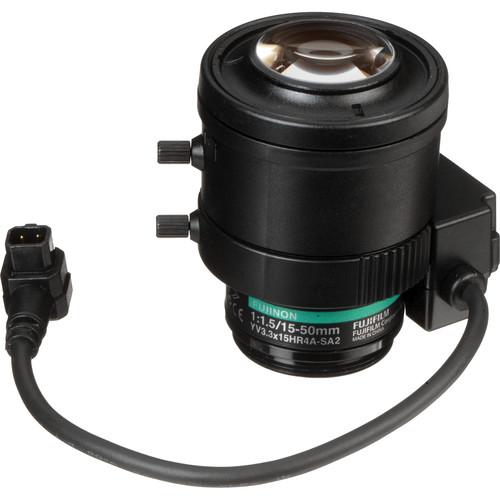

User Manual for Fujinon 1.3 Megapixel Varifocal T360 Lens Click to enlarge the picture
Contents of the user manual for the Fujinon 1.3 Megapixel Varifocal T360 Lens
- Product category: Lenses Fujinon
- Brand: Fujinon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fujinon Lenses
|
User manual for the Fujinon 1.3 Megapixel Varifocal T360 Lens contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fujinon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fujinon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fujinon product will considerably shorten its lifespan!
|
Product description The Fujinon 1.3 Megapixel Varifocal T360 Lens (15-50mm, 3.3x Zoom) is compatible with 1.3 megapixel cameras, and suitable for use with dome cameras. In addition to 3.3x zoom, the lens has a focal length that ranges from 15-50mm and an aperture of f/1.5. The lens is designed with a high-accuracy aspheric lens, low-dispersion glass, and high refractive-index glass, which maximize optical performance. It features a built-in ND filter of T360 to support high sensitivity cameras. Equipped with a CS-type lens mount (metal), the varifocal lens is suitable for color, B&W, and Day/Night cameras. It allows manual operation of zoom and focus, and features DC auto iris. - Ideal for use with dome cameras
- Broad range of focal length that ranges from 15-50 mm and 3.3x zoom
- High-accuracy aspheric lens, low-dispersion glass and high refractive-index glass for optimum performance
- Built-in ND filter of T360 supports high sensitivity cameras
- Equipped with a CS-type lens mount (metal)
- Suitable for color, B&W, and Day/Night cameras
- Uses manual zoom and focus, and DC auto iris
- Viewing angle - 18°29' x 13°45' (wide) and 5°29' x 4°9' (tele)
- Minimum focus (HxV) - 271 x 201 mm (wide) and 91 x 69 mm (tele)
In the Box Fujinon 1.3 Megapixel Varifocal T360 Lens (15-50mm, 3.3x Zoom) 1-Year Parts & Labor Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fujinon 1.3 Megapixel Varifocal T360 Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFujinon YV3.3x15HR4A-SA2L Specs | Imager Size | for 1/3" camera | | Mount Type | CS | | Focal Length | 15-50mm (3.3x) | | Aperture | F1.5 ~ T360 (equivalent to F360) | | Iris Operation | DC iris | | Focus Operation | Manual | | Angle of View | 1/3" Wide: 18°29' x 13°45'
1/3" Tele: 5°29' x 4°9'
1/4" Wide: 13°45' x 10°16'
1/4" Tele: 4°9' x 3°8' | | Minimum Object Distance (M.O.D.) | ∞ ~ 0.8m | | Filter Size | N/A | | Object Dimensions | (HxV at MOD in mm)
1/3" Wide: 271 x 201
1/3" Tele: 91 x 69
1/4" Wide: 201 x 150
1/4" Tele: 69 x 52 | | Back Focal Distance | (in air)
Minimum 8.56mm | | Exit Pupil Position | (from image plane)
-50mm | | Dimensions (Diam. x L) | 1.5 x 1.9" (38 x 48mm) | | Weight | 1.8 oz (50g) | | | | Package Weight | 0.15 lb | | Box Dimensions (LxWxH) | 3.2 x 2.4 x 2.3" |
