User Manual for Fujinon 1.3 Megapixel Varifocal T360 Lens Click to enlarge the picture
Contents of the user manual for the Fujinon 1.3 Megapixel Varifocal T360 Lens
- Product category: Lenses Fujinon
- Brand: Fujinon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fujinon Lenses
|
User manual for the Fujinon 1.3 Megapixel Varifocal T360 Lens contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fujinon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fujinon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fujinon product will considerably shorten its lifespan!
|

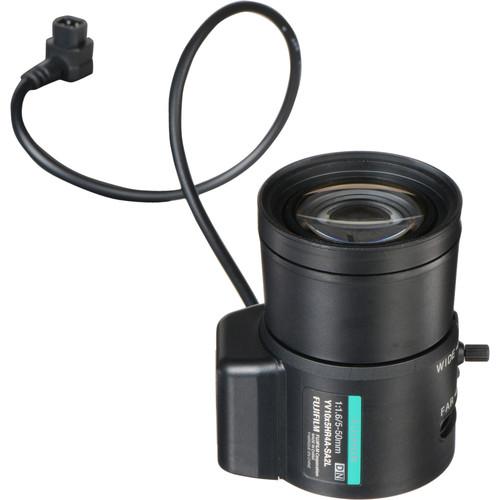

Product description The Fujinon 1.3 Megapixel Varifocal T360 Lens (5-50mm, 10x Zoom) has a wide aperture of f/1.6, offering detailed imagery even at low light. In addition to 10x zoom, the lens has a broad range of focal length that ranges from 5-50mm. The lens is designed with a high-accuracy aspheric lens, low-dispersion glass, and high refractive-index glass, which maximize the optical performance. It features a built-in ND filter of T360 to support high sensitivity cameras. Equipped with a CS-type lens mount (metal), the varifocal lens is suitable for color, B&W, and Day/Night cameras. It allows manual operation of zoom and focus, and features DC auto iris. - For 1.3 megapixel cameras
- Wide aperture of f/1.6 enhances the performance even at low lighting intensity
- Broad range of focal length that ranges from 5-50 mm and 10x zoom
- High-accuracy aspheric lens, low-dispersion glass and high refractive-index glass for optimum performance
- Built-in ND filter of T360 supports high sensitivity cameras
- Equipped with a CS-type lens mount (metal)
- Suitable for color, B&W, and Day/Night cameras
- Allows manual zoom and focus, and features DC auto iris
- Viewing angle - 51°17' x 39°36' (wide) and 5°30' x 4°7' (tele)
- Minimum focus - 304 x 228 mm (wide) and 54 x 41 mm (tele)
In the Box Fujinon 1.3 Megapixel Varifocal T360 Lens (5-50mm, 10x Zoom) 1-Year Parts & Labor Warranty Brochure PDF 517.8kbsvybrystccfxervxxxbb Table of Contents
|
Upload User Manual
Have you got an user manual for the Fujinon 1.3 Megapixel Varifocal T360 Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFujinon YV10x5HR4A-SA2L Specs | Lens Mount | CS | | Sensor Compatibility | 1/3" (1.5 MP) | | Focal Length | 5 to 50mm | | Back Focal Length | 7.5mm | | Aperture | f/1.6 to 360 | | Angle of View | 1/3" Sensor
Horizontal: 51.28 to 5.5°
Vertical: 39.6 to 4.12°
1/4" Sensor
Horizontal: 39.6 to 4.12°
Vertical: 30.22 to 3.1° | | Minimum Object Distance | 1' / 0.3 m | | Focus Type | Manual Focus | | Iris Type | DC Auto | | IR Corrected | Yes | | Dimensions (D x L) | 1.6 x 2.3" / 41 x 59 mm | | Weight | 0.2 lb / 85 g | | | | Package Weight | 0.25 lb | | Box Dimensions (LxWxH) | 3.8 x 2.7 x 2.7" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 45 owners. Add your rating and experience with the product.
