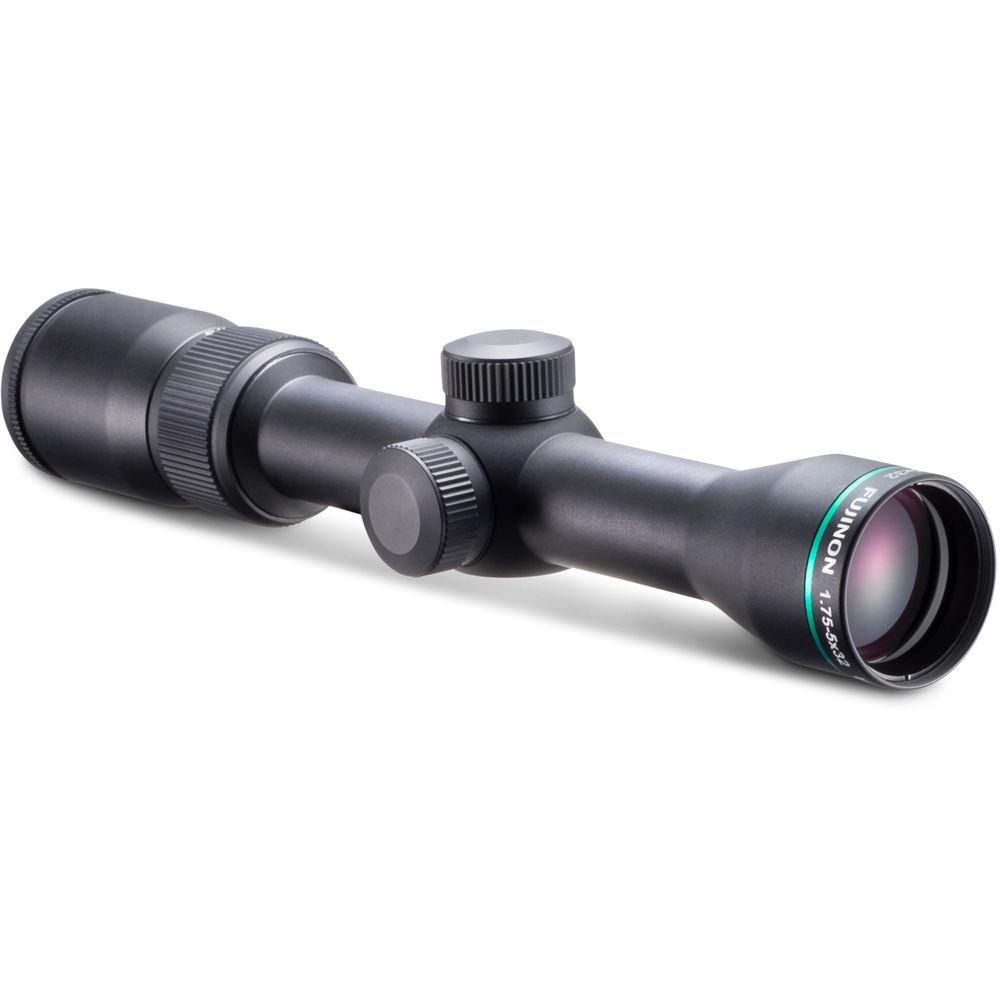

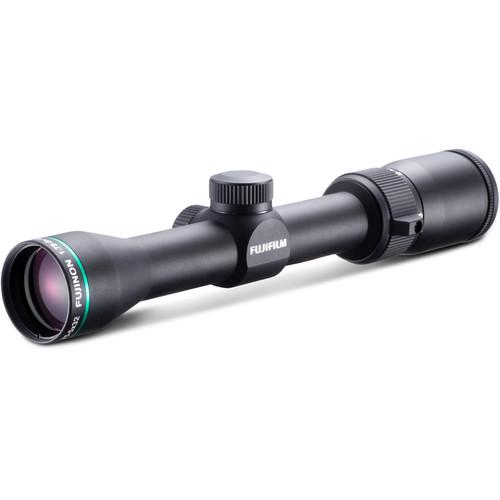

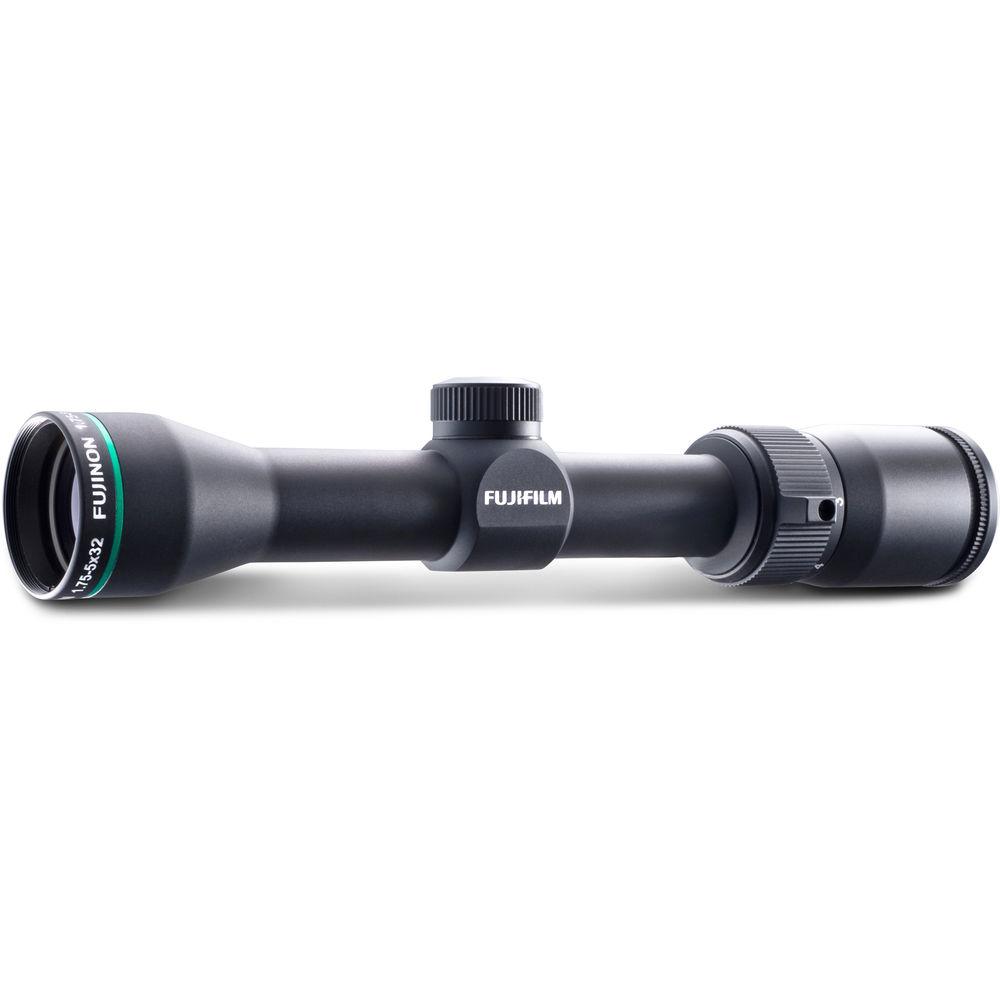

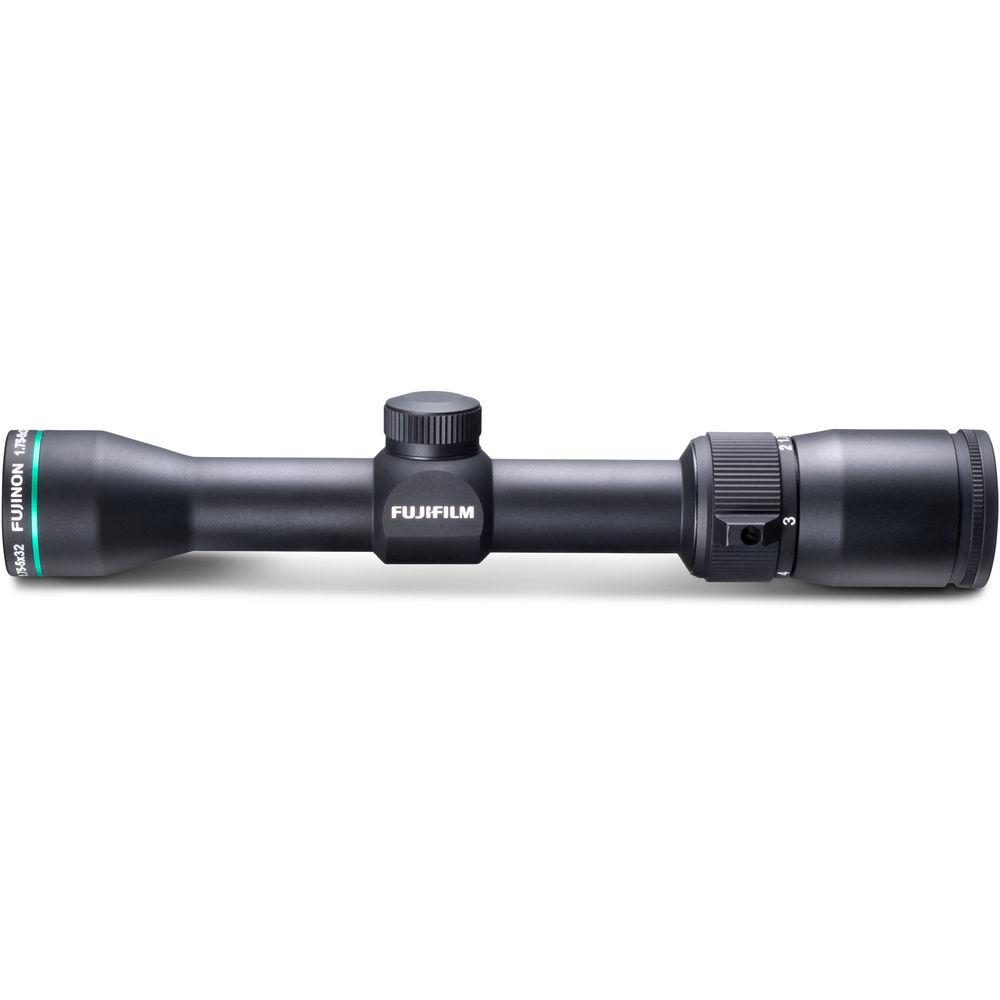

User Manual for Fujinon 1.75-5x32 Accurion Riflescope Click to enlarge the picture
Contents of the user manual for the Fujinon 1.75-5x32 Accurion Riflescope
- Product category: Riflescopes Fujinon
- Brand: Fujinon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fujinon Riflescopes
 |
User manual for the Fujinon 1.75-5x32 Accurion Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fujinon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fujinon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fujinon product will considerably shorten its lifespan!
|
Product description Get on target using the Fujinon 1.75-5x32 Accurion Riflescope. The scope is compact and lightweight and offers bright and clear fully multi-coated optics. Its optical system provides a 1.75-5x zoom for engaging close and mid-range targets. The 32mm objective makes it a suitable optic for most daylight applications and offers a more compact form factor, which makes it easier to carry on through heavily wooded areas. To improve shot accuracy, the optical system features a 2nd focal plane Plex reticle. The reticle's pattern offers four posts, a target dot, and a medium crosshair. To compensate for ballistics and winds, the windage and elevation turret system allows you to make adjustments with 1/4 MOA increments.
To enable you to carry out your activities in any weather or terrain, the scope's aluminum housing is O-ring sealed for a waterproof and fogproof performance. It is built around a 1" maintube and has short capped windage and elevation turrets. A fast-focus eyepiece has knurled rings for easy diopter and magnification adjustments and a low-profile lever for one-finger zooming action. The scope ships with a lens cloth and lens cover. - Optical Performance
-
- Fully multi-coated optical elements
- 1.75 - 5x zoom magnification
- 32mm objective diameter
- 66 - 22' at 100 yards linear field of view
- 14.6 - 6.4 mm exit pupil
- Parallax-free performance at 100 yd
- 3.4 - 3.2" eye relief
- ±1.5 diopter
- Use and Handling
-
- 1/4 MOA impact point correction
- Windage and elevation adjustments
- Construction
-
- 1" maintube diameter
- Aluminum housing with matte black finish
- Capped short windage and elevation turrets
- O-ring sealed waterproof and fogproof
- Fast focus eyepiece with a low-profile zoom lever
- Impact resistant
- Lens cap included
- Plex Reticle
-
- 2nd focal plane
- Four medium posts
- Target dot
- Medium crosshair
UPC: 631267183979 In the Box Fujinon 1.75-5x32 Accurion Riflescope (Plex, Matte Black) - Lens Cover
- Lens Cloth
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Fujinon 1.75-5x32 Accurion Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFujinon 600018397 Specs | | | Magnification | 1.75 to 5x | | Objective Lens Diameter | 32 mm | | Field of View | 1.8x: 66' @ 100 yd / 22 m @ 100 m
5x: 22.8' @ 100 yd / 7.6 m @ 100 m | | Exit Pupil Diameter | 1.75x: 14.6 mm
5x: 6.4 mm | | Eye Relief | 3.2 to 3.4" / 81.3 to 86 mm | | Diopter Correction | -1.5 to +1.5 | | | | Reticle Type | Plex Reticle (Second Focal Plane) | | | | Impact Point Correction | 1/4 MOA per Click | | Parallax Correction | Yes, 100 yd / 91.4 m | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Maintube Diameter | 1" | | Battery | None | | Dimensions | Length: 10.4" / 26.4 cm | | Weight | 13 oz / 370 g |
