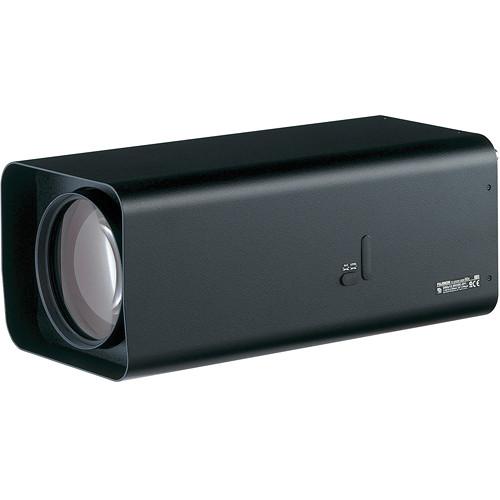

User Manual for Fujinon 12.5 to 750mm F 3.8 C-Mount 60x Motorized Auto-Iris Telephoto CCTV Lens Click to enlarge the picture
Contents of the user manual for the Fujinon 12.5 to 750mm F 3.8
- Product category: Lenses Fujinon
- Brand: Fujinon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fujinon Lenses
|
User manual for the Fujinon 12.5 to 750mm F 3.8 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fujinon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fujinon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fujinon product will considerably shorten its lifespan!
|
Product description The Fujinon 12.5 to 750mm F/3.8 C-Mount 60x Motorized Auto-Iris Telephoto CCTV Lens uses a motor drive to provide precise, individual zoom and focus motorized operation and incorporates an advanced optical system to ensure optimal performance through its entire focal range. Equipped with an auto iris connection, this lens can be installed in varying light areas with the lens auto adjusting to meet the current lighting conditions. In the Box Fujinon 12.5 to 750mm F/3.8 C-Mount 60x Motorized Auto-Iris Telephoto CCTV Lens Limited 1-Year Warranty on Parts and Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Fujinon 12.5 to 750mm F 3.8 C-Mount 60x Motorized Auto-Iris Telephoto CCTV Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFujinon D60X12.5R3DE Specs | Focal Length | 1x: 12.5 to 750 mm (60x)
2x: 25 to 1500 mm (60x) | | Iris Range | 1x: F3.8: T3000 (Equivalent to F3000)
2x: F7.6: T3000 (Equivalent to F3000) | | Operation | Zoom: Motor drive
Focus: Motor drive
Iris auto (video type) or remote When power is turned off , iris will automatically close | | Angle of View (HxV) | 1/2"
1x: Wide: 28°43' × 21°44', Tele: 0°29' × 0°22'
2x: Wide: 14°35' × 10°58', Tele: 0°15' × 0°11'
1/3"
1x: Wide: 21°44' × 16°23', Tele: 0°22' × 0°17'
2x: Wide: 10°58' × 8°14', Tele: 0°11' × 0°08' | | Focusing Range | ∞ to 5 m from front of the lens | | Object Dimensions at M.O.D. (HxV) | 1/2"
1x: Wide: 97.04 x 72.79" (2465.00 × 1849.00 mm), Tele: 1.61 x 1.22" (41.00 × 31.0 mm)
2x: Wide: 48.54 x 36.37" (1233.00 × 924.00 mm), Tele: 0.82 x 0.59" (21.00 × 15.00 mm)
1/3"
1x: Wide: 72.79 x 54.60" (1849.00 × 1387.00 mm), Tele: 1.22 x 0.90" (31.00 × 23.00 mm)
2x: Wide: 36.41 x 27.28" (925.00 × 693.00 mm), Tele: 0.62 x 0.47" (16.00 × 12.00 mm) | | Back Focal Distance | 1x: 2.09" (53.23 mm) in air
2x: 1.22" (31.10 mm) in air | | Exit Pupil Position | 1x: -77 mm 2x: -38 mm | | Filter Thread | 1 x M107 | | Extender | 2x | | Mount | C-mount | | Weight | 11.46 lb (5.20 kg) | | | | Package Weight | 16.4 lb | | Box Dimensions (LxWxH) | 20.4 x 12.7 x 9.0" |
