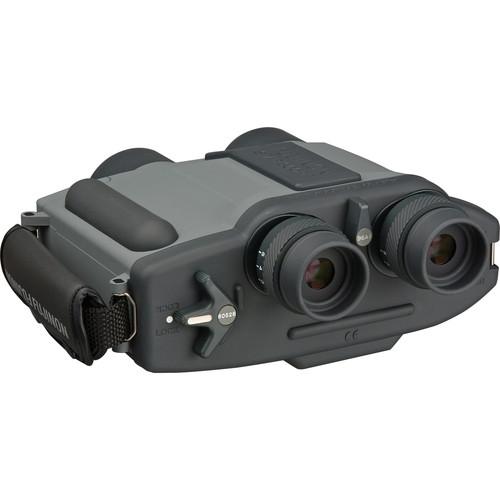

User Manual for Fujinon 16x40 S1640D Stabiscope Binocular Click to enlarge the picture
Contents of the user manual for the Fujinon 16x40 S1640D Stabiscope Binocular
- Product category: Binoculars Fujinon
- Brand: Fujinon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fujinon Binoculars
|
User manual for the Fujinon 16x40 S1640D Stabiscope Binocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fujinon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fujinon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fujinon product will considerably shorten its lifespan!
|
Product description The B&H Binocular Buying Guide Read More The image-stabilized Fujinon 16x40 S1640D Stabiscope Binocular uses gyroscopic stabilization to counteract any movements applied to the binocular, whether from shaky hands or speeding watercraft. Unlike other stabilizers, the Stabiscope's ±5° of compensation will work with the optics aimed along any axis. A user can aim the Stabiscope straight up or down, at the zenith or nadir, and still enjoy stable viewing, making the Stabiscope the most sensible choice for law enforcement use from a helicopter. This 16x magnification unit is designed for longer-distance observation, with a 167' minimum distance.The Stabiscope also is compatible with multiple power sources. It can be powered with 12-32 VDC electrical systems found on most land, sea, and air vehicles, as well as four AA batteries or a single 2CR5 battery.The Stabiscope is designed for either left- or right-hand use, and optional accessories include polarizing filters and eyecups. - A 100% water and fogproof stabilized binocular
- ±5° all-direction motion compensation
- Stabilization works with binocular pointed in any direction, including straight up or down
- Phase-coated BAK4 roof prisms
- Full Fujinon EBC multi-coatings on all optical surfaces
- Accepts optional haze eyepiece filters
- Designed for either left- or right-hand use
- 60-70mm interpupillary adjustment range
- Adaptable to DC power sources, as well as AA or 2CR5 batteries
- Enhanced 16x magnification
UPC: 032705010220 In the Box Fujinon 16x40 S1640D Stabiscope Binocular Hard Case with Foam Cutouts Woven Strap Hand Strap DC Regulator Cleaning Cloth Limited 1-Year or 1000 Hours Usage Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the Fujinon 16x40 S1640D Stabiscope Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFujinon S1640D Specs | Prism Type | Roof | | Magnification | 16 x | | Objective Lens Diameter | 40 mm | | Angle of View | 3.4° (actual) | | Field of View | 178.5' @ 1000 yd / 59.5 m @ 1000 m | | Minimum Focus Distance | 167.3' / 51 m | | Exit Pupil Diameter | 2.5 mm | | Eye Relief | 12 mm | | Interpupillary Adjustment | 60 to 70 mm / 2.4 to 2.8" | | Dioptric Correction | ±5 | | Stabilization Freedom | ±5° | | Focus Type | Individual | | Tripod Mount | None | | Dimensions | 8.3 x 3.5 x 7.9" / 21.1 x 8.9 x 20.1 cm | | Weight | 3.92 lb / 1.78 kg | | | | Package Weight | 10.5 lb | | Box Dimensions (LxWxH) | 14.25 x 11.0 x 6.5" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 85 owners. Add your rating and experience with the product.
