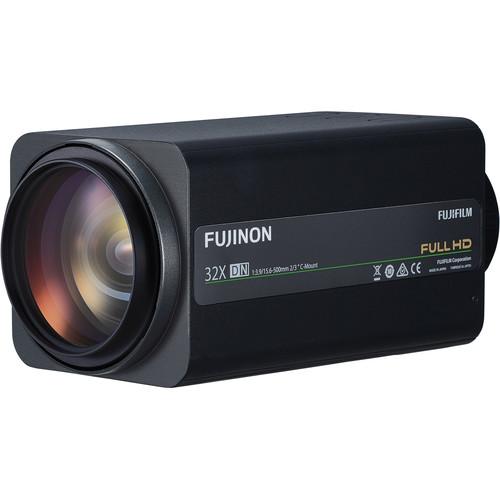

User Manual for Fujinon 2 3" C-Mount 15.6-500 mm f 3.9-16 32x Zoom Telephoto Lens Click to enlarge the picture
Contents of the user manual for the Fujinon 2 3" C-Mount 15.6-500 mm
- Product category: Lenses Fujinon
- Brand: Fujinon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fujinon Lenses
|
User manual for the Fujinon 2 3" C-Mount 15.6-500 mm contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fujinon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fujinon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fujinon product will considerably shorten its lifespan!
|
Product description The 15.6-500 mm f/3.9-16 32x Zoom Telephoto Lens from Fujinon is compatible with 2/3" format image sensors. The lens comes with a C-mount and offers 32x zoom. It can capture full-HD (2 MP) pictures across the entire zoom range when used on a camera with a 2/3"-format sensor. It is equipped with a visible light cut filter that creates a de-fogging effect with an IR camera, frequently used in long-range surveillance and providing clear image quality. This telephoto lens is suitable for long-range surveillance such as national borders, ports, sensitive facilities, and remote locations. - Compatibility
- For use with 2/3"-format size sensors
- Captures full-HD pictures across the entire 32x zoom range
- Flange focal length adjustment function for precision focus settings in full-HD systems
- 32x zoom covering a wide focal range from 15.6 to 500mm
- Supports both analog and serial interfaces, giving lens control choices to you according to your existing systems
- Supports Pelco-D and FUJIFILM C10 protocols
- Comes equipped with a visible light cut filter, which creates a de-fogging effect with an IR camera, frequently used in long-range surveillance systems
- Features a large seat for affixing to a housing with a total of eight affixing holes for improved installation stability
In the Box Fujinon 2/3" C-Mount 15.6-500 mm f/3.9-16 32x Zoom Telephoto Lens Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fujinon 2 3" C-Mount 15.6-500 mm f 3.9-16 32x Zoom Telephoto Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFujinon FH32X15.6SR4A-CV1 Specs | Resolution | Full-HD 2 MP (When used on a camera with a 2/3"-format sensor) | | Sensor Size | 2/3" | | Focal Length | 15.6 to 500mm | | Zoom | 32x | | Iris Range | f/3.9 to 16 | | Focusing Range | ∞ to 9.8' (∞ to 3 m), from front of the lens | | Iris Operation | Auto (DC / Video Type) | | Angle of View (HxV) | 2/3" [4:3]
Wide: 30.93° × 23.60°
Tele: 1.03° x 0.77°
1/1.8" [4:3]
Wide: 25.38° x 19.24°
Tele: 0.83° x 0.63°
1/3" [4:3]
Wide: 17.33° x 13.06°
Tele: 0.56° x 0.42° | | Mount Type | C-mount | | Dimensions (H x W x L) | 4.3 x 4.5 x 10.1" (108 x 114 x 256 mm)
Maximum Length: 10.4" (263 mm) | | Weight | Approximately 6.4 lb (2.9 kg) | | | | Package Weight | 9.75 lb | | Box Dimensions (LxWxH) | 16.772 x 12.284 x 11.653" |
