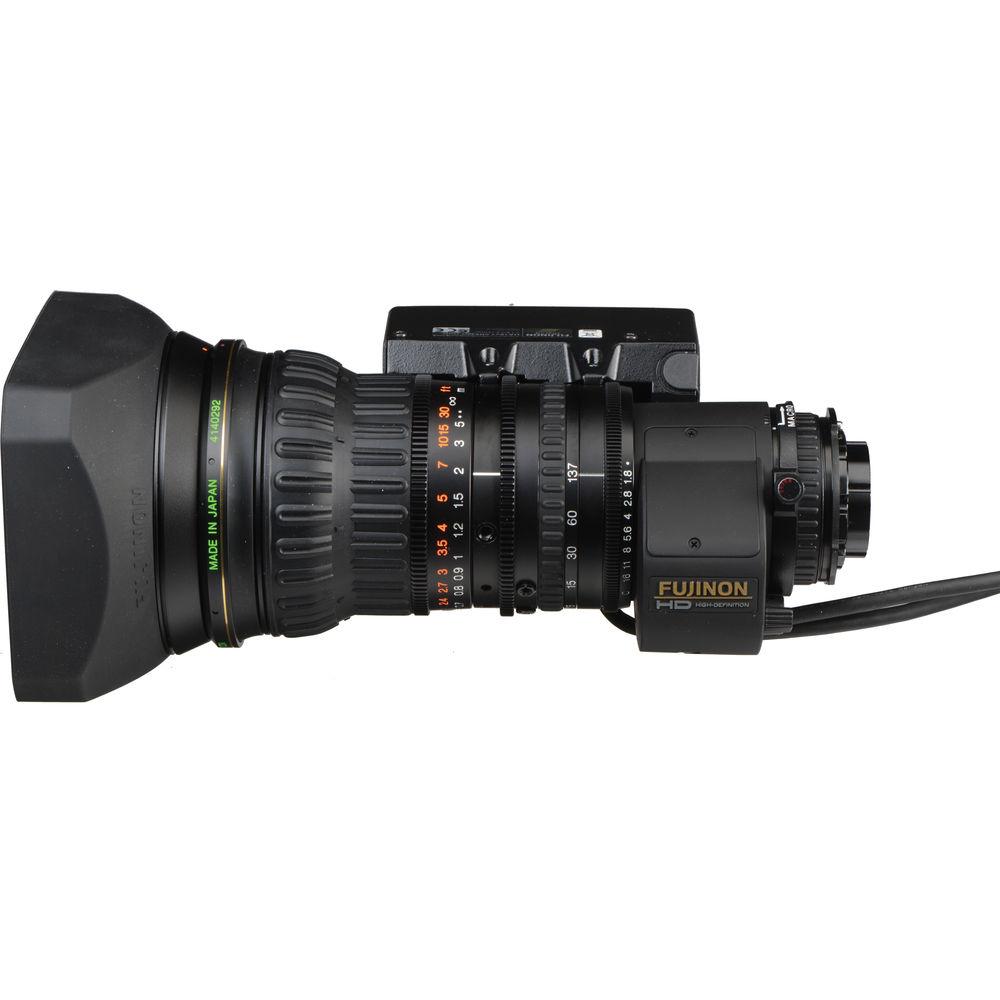

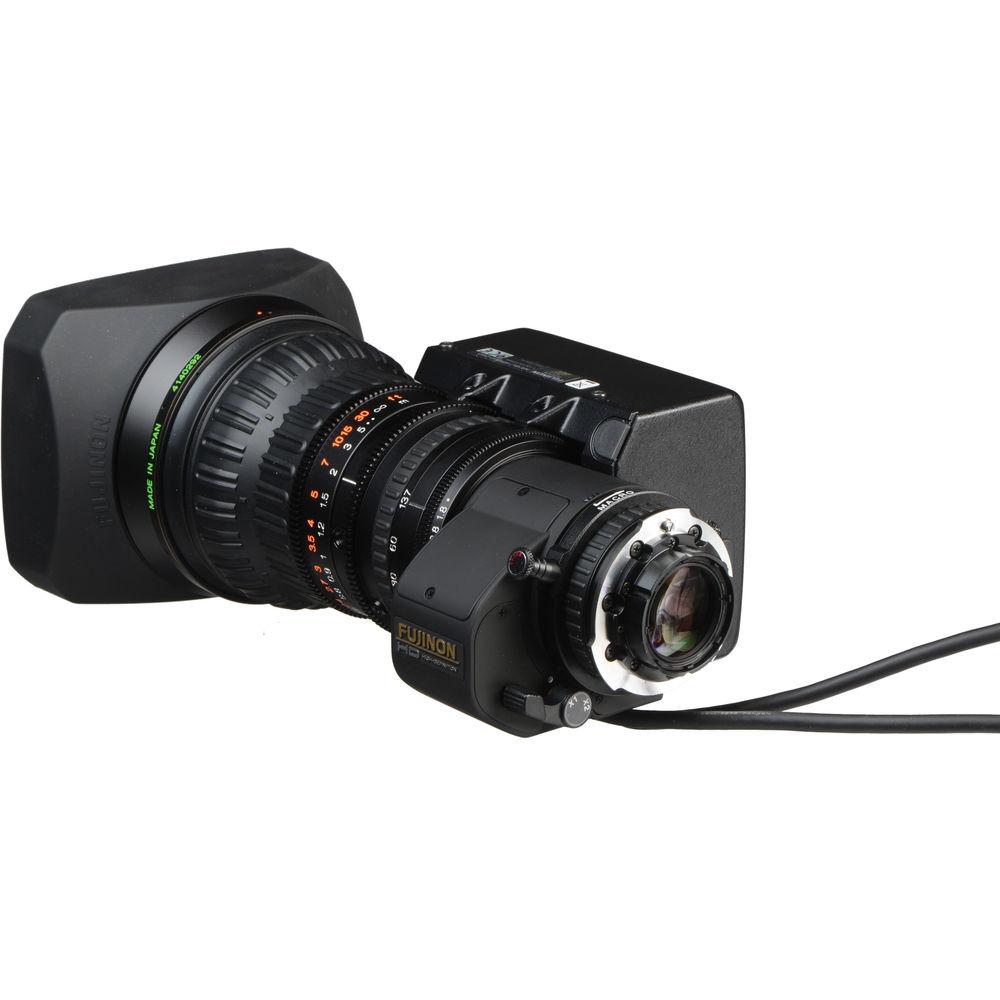

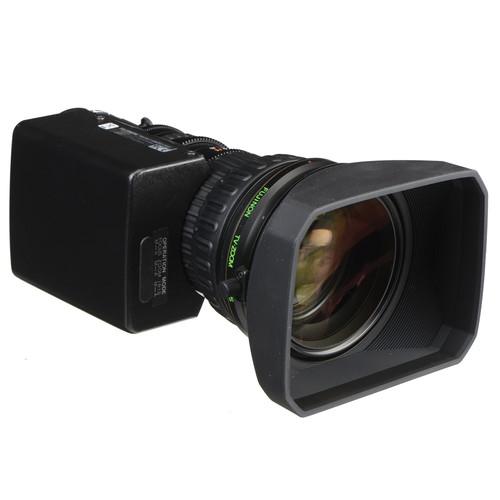

Product description The Fujinon 2/3" HD ENG Full Servo Lens with 18x Optical Zoom is a high-definition lens for 2/3" format ENG-style cameras, and offers a focal length range of 7.6-137mm.
Featuring a 32-bit RISC processor, a CPU in each servo demand, optical encoders, and a digital control circuit, the HD lens provides 13-bit accuracy in zoom and focus control. The Quick Zoom lens offers you an end to end zoom movement in 0.7 seconds. This feature allows you to move to the telephoto position to check the focus, and then return to the previously selected zoom position by simply pushing and releasing the button.
In addition to supporting HD digital technology, the lens features Innerfocus technology which helps minimize lens breathing. The Focused Intelligent Network Diagnosis system stores and evaluates the lens' electronic and mechanical data, for use in preventive maintenance and troubleshooting. You can control the lens remotely from a PC or any other device via the RS232 connector. - HD lens for ENG-style cameras with 2/3" format sensors
- 18x optical zoom with 7.6-137 mm focal length range
- 32-bit RISC processor, a CPU in each servo demand and optical encoders together with a digital control circuit help provide enhanced focus control and 13-bit accuracy in zoom
- Quick Zoom offers you an end to end zoom movement in 0.7 seconds
- You can move to the telephoto position at the push of a button in order to check focus, and then return to the previously selected zoom position by simply pushing and releasing the button
- Features Innerfocus technology that helps minimize lens breathing
- Focused Intelligent Network Diagnosis system stores and evaluates the lens' electronic and mechanical data, for use in preventive maintenance and troubleshooting
In the Box Fujinon 2/3" HD ENG Full Servo Lens with 18x Optical Zoom 1-Year Parts and Labor Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fujinon 2 3" HD ENG Full Servo Lens with 18x Optical Zoom in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFujinon 7.6-137mm Specs | Image Format | 2/3" | | Focal Length | 7.6 - 137 mm | | Zoom Range | 18x | | Maximum Relative Aperture | 1 : 1.8 (7.6 - 105 mm) 1 : 2.4 (137 mm) | | Maximum Photometric Aperture T-No. | 1 : 1.9 (7.6 - 105 mm) 1 : 2.6 (137 mm) | | M.O.D. from Image Plane | 2.75' (0.84 m) | | M.O.D. from Front of Lens | 1.96' (0.6 m) | | Object Dimensions at M.O.D. | 16 : 9 Aspect ratio: 7.6 mm 696 x 392 mm, 137 mm 41 x 23 mm | | Angular Field of View | 16 : 9 Aspect ratio: 7.6 mm 64°30' x 39°03', 137 mm 4°01' x 2°15' | | Macro | Available | | Filter Thread | M82 x 0.75 | | Diameter | 3.34" (85 mm) | | Length | 8.03" (204 mm) | | Weight | 3.48 lb / 1.58 kg (Lens hood excluded) | | | | Package Weight | 6.3 lb | | Box Dimensions (LxWxH) | 13.8 x 11.6 x 10.6" |
