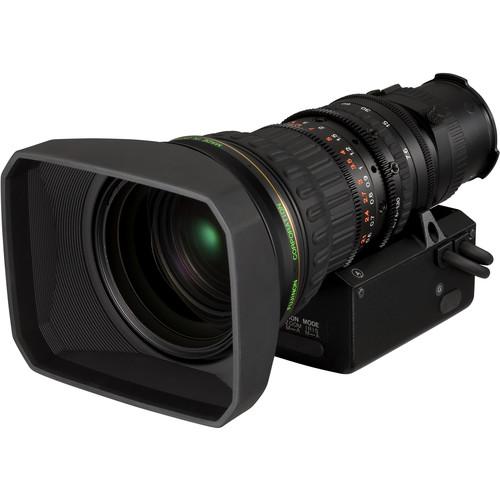

User Manual for Fujinon 2 3" HD Remote Control Lens with 17x Optical Zoom & 2x Extender Click to enlarge the picture
Contents of the user manual for the Fujinon 2 3" HD Remote Control
- Product category: Professional Lenses Fujinon
- Brand: Fujinon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fujinon Professional Lenses
|
User manual for the Fujinon 2 3" HD Remote Control contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fujinon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fujinon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fujinon product will considerably shorten its lifespan!
|
Product description The Fujinon 2/3" HD Remote Control Lens with 17x Optical Zoom & 2x Extender is a high-definition lens suitable for use in teleconferencing, Tower Cam, POV and other applications that require full analog remote control of zoom, focus and iris. It offers a focal length range of 7.6-130mm and supports the 2/3" image format. Equipped with a 2x extender, the lens can provide a telephoto angle up to 260mm. The Quick Zoom lens offers you an end to end zoom movement in 0.7 seconds. This feature allows you to move to the telephoto position to check the focus, and then return to the previously selected zoom position by simply pushing and releasing the button. The zoom limit function can be used in the servo operation mode. It allows the zoom movement to be confined toward both the wide side and the telephoto side, thus ensuring that zooming is done within the desired shot angles. In addition to supporting HD digital technology, the lens features Innerfocus technology which helps minimize lens breathing. You can control the lens remotely from a PC or any other device via Fujinon controllers, Pan/Tilt units or any other third party controller. - 17x optical zoom with 7.6-130 mm focal length range
- 2x extender provides a telephoto angle up to 260 mm
- Suitable for use in teleconferencing, Tower Cam, POV and other applications that require full analog remote control of zoom, focus and iris
- Zoom limit function allows the zoom movement to be confined toward both the wide side and the telephoto side, thus ensuring that zooming is done within the desired shot angles
- Quick Zoom offers you an end to end zoom movement in 0.7 seconds
- You can move to the telephoto position at the push of a button in order to check focus, and then return to the previously selected zoom position by simply pushing and releasing the button
- Features Innerfocus technology that helps minimize lens breathing
In the Box Fujinon 2/3" HD Remote Control Lens with 17x Optical Zoom & 2x Extender 1-Year Parts and Labor Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fujinon 2 3" HD Remote Control Lens with 17x Optical Zoom & 2x Extender in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFujinon 7.6-130mm Specs | Image Format | 2/3" | | Focal Length | 1x Extender: 7.6 - 130 mm 2x Extender: 15.2 - 260 mm | | Zoom Range | 17x | | Extender | 2x | | Maximum Relative Aperture | 1 : 1.8 (7.6 - 102 mm) 1 : 2.3 (130 mm) | | Maximum Photometric Aperture T-No. | 1 : 1.9 (7.6 - 102 mm) 1 : 2.5 (130 mm) | | M.O.D. from Image Plane | 2.75' (0.84 m) | | M.O.D. from Front of Lens | 1.96' (0.6 m) | | Object Dimensions at M.O.D. | 16 : 9 Aspect ratio: 1x Extender: 7.6 mm - 696 x 392 mm, 130 mm - 43 x 24 mm 2x Extender: 15.2 mm - 362 x 204 mm, 260 mm - 21 × 12 mm | | Angular Field of View | 16 : 9 Aspect ratio: 1x Extender: 7.6 mm - 64°30' x 39°03', 130 mm - 4°13' x 2°23' 2x Extender: 15.2 mm - 35°01' x 20°07', 260 mm - 2°07' x 1°11' | | Macro | Available | | Filter Thread | M82 x 0.75 | | Diameter | 3.34" (85 mm) | | Length | 7.99" (203 mm) | | Weight | 3.52 lb / 1.6 kg (Lens hood excluded) | | | | Package Weight | 6.65 lb | | Box Dimensions (LxWxH) | 14.0 x 11.6 x 10.8" |
