User Manual for Fujinon 2MP C-Mount 16.7-1000mm f 3.5-22 60x Zoom Day Night Varifocal Lens Click to enlarge the picture
Contents of the user manual for the Fujinon 2MP C-Mount 16.7-1000mm f 3.5-22
- Product category: Lenses Fujinon
- Brand: Fujinon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fujinon Lenses
|
User manual for the Fujinon 2MP C-Mount 16.7-1000mm f 3.5-22 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fujinon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fujinon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fujinon product will considerably shorten its lifespan!
|

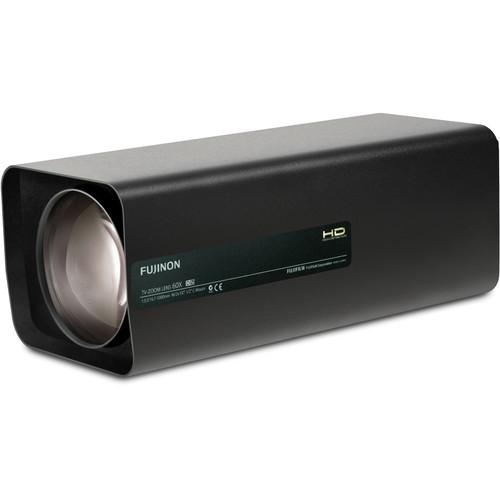

Product description The 16.7-1000mm f/3.5 to 22 Day/Night Varifocal Lens from Fujinon offers 60x zoom and is designed for C-Mount cameras with 1/1.8 to 1/3" format images sensors. The focal length can be extended up to 2000mm when used with a 2x extender. Designed for 24-hour operation, this lens uses a Day/Night function for maximum light transmission in light levels ranging from visible to near infrared and is appropriate for use with Day/Night cameras. The built-in ND filter caters well to high-sensitivity cameras, giving no change in hue of color rendition. In the Box Fujinon 2MP C-Mount 16.7-1000mm f/3.5-22 60x Zoom Day/Night Varifocal Lens Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fujinon 2MP C-Mount 16.7-1000mm f 3.5-22 60x Zoom Day Night Varifocal Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFujinon D60X16.7SR4DE-V23S Specs | Lens Mount | C-mount | | Focal Length | 1x : 16.7-1000mm
2x : 33.4-2000mm | | Zoom Ratio | 60x | | Maximum Relative Aperture | f/3.5 | | Iris Range | f/3.5 to 22 | | ND Filters | 1/8, 1/64 | | IR Cut Filter | Transmittance
730 nm: 0.1%
780 nm: 50% | | Image Size | H x V (4:3)
7.1 x 5.3 mm (Φ 8.93 mm)
6.4 x 4.8 mm (Φ 8 mm)
H x V (16:9)
7.78 x 4.38 mm (Φ 8.93 mm)
6.97 x 3.92 mm (Φ 8 mm) | | Back Focal Length | 24.85 mm (in air) | | Flange Focal Length | 17.526 (in air) | | Focus Range | Infinity to 16.4' (5 m), from front of lens | | Clear Aperture | Front: Φ 107 mm
Rear: Φ 11.5 mm | | Field Angle | H x V (4:3)
1/1.8"
Horizontal: 23°05' to 0°25' (11°46' to 0°12')
Vertical: 17°41’ to 0°19’ (8°54' to 0°09')
1/2"
Horizontal: 20°53' to 0°22' (10°35' to 0°11')
Vertical: 15°55' to 0°17' (7°59' to 0°08')
H x V (16:9)
1/1.8"
Horizontal: 24°56' to 0°27' (12°47' to 0°14')
Vertical: 14°34' to 0°15' (7°18' to 0°08')
1/2"
Horizontal: 22°35' to 0°24' (11°30' to 0°12')
Vertical: 13°06' to 0°14' (6°32' to 0°07') | | Field of View at M.O.D | H x V (4:3)
1/1.8"
Horizontal: 1975 to 35 mm (998 to 18 mm)
Vertical: 1504 to 27 mm (753 to 13 mm)
1/2"
Horizontal: 1782 to 32 mm (896 to 16 mm)
Vertical: 1353 to 24 mm (676 to 12 mm)
H x V (16:9)
1/1.8"
Horizontal: 2137 to 38 mm (1084 to 19 mm)
Vertical: 1237 to 22 mm (617 to 11 mm)
1/2"
Horizontal: 1931 to 34 mm (974 to 17 mm)
Vertical: 1111 to 20 mm (553 to 10 mm) | | Filter Screw Size | M112 x 0.75 mm | | Temperature | Operating: 32 to 122°F (0 to 50°C)
Storage: 14 to 140°F (-10 to 60°C) | | Weight | Approximately 14.8 lb (6.7 kg) |
