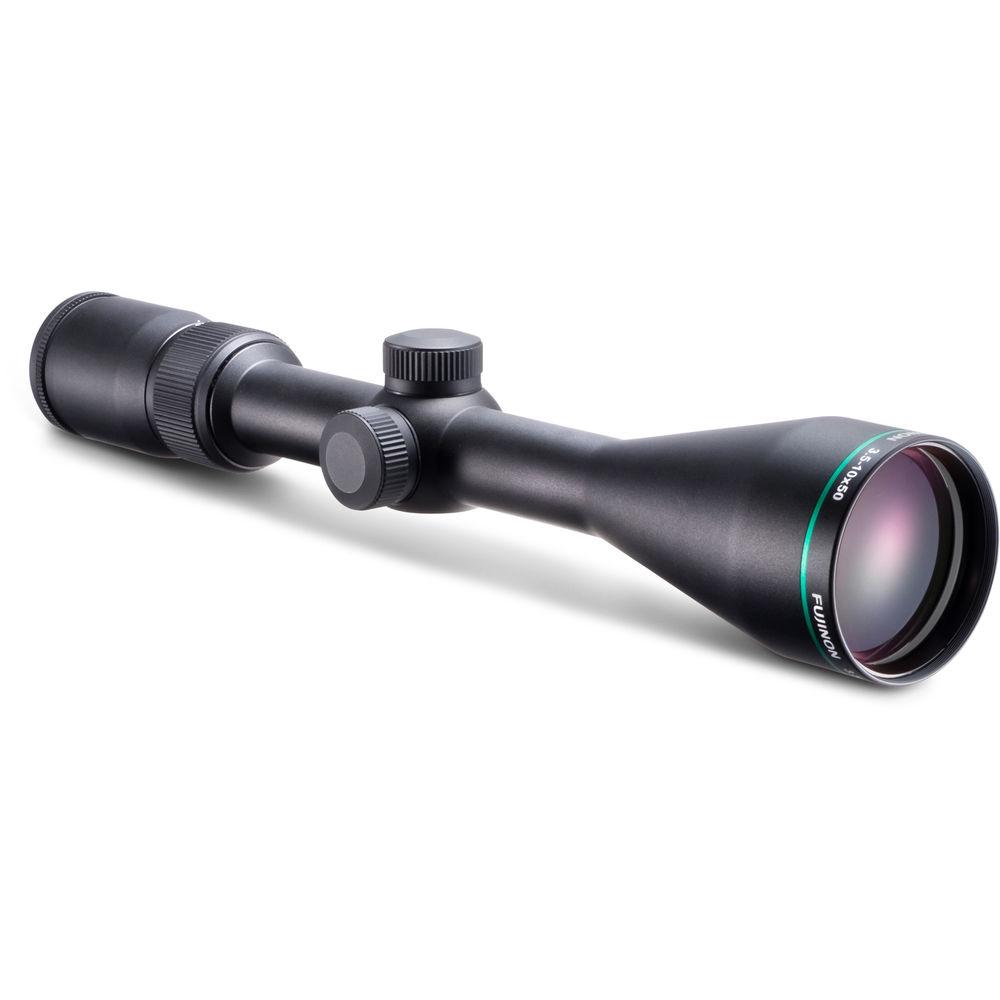

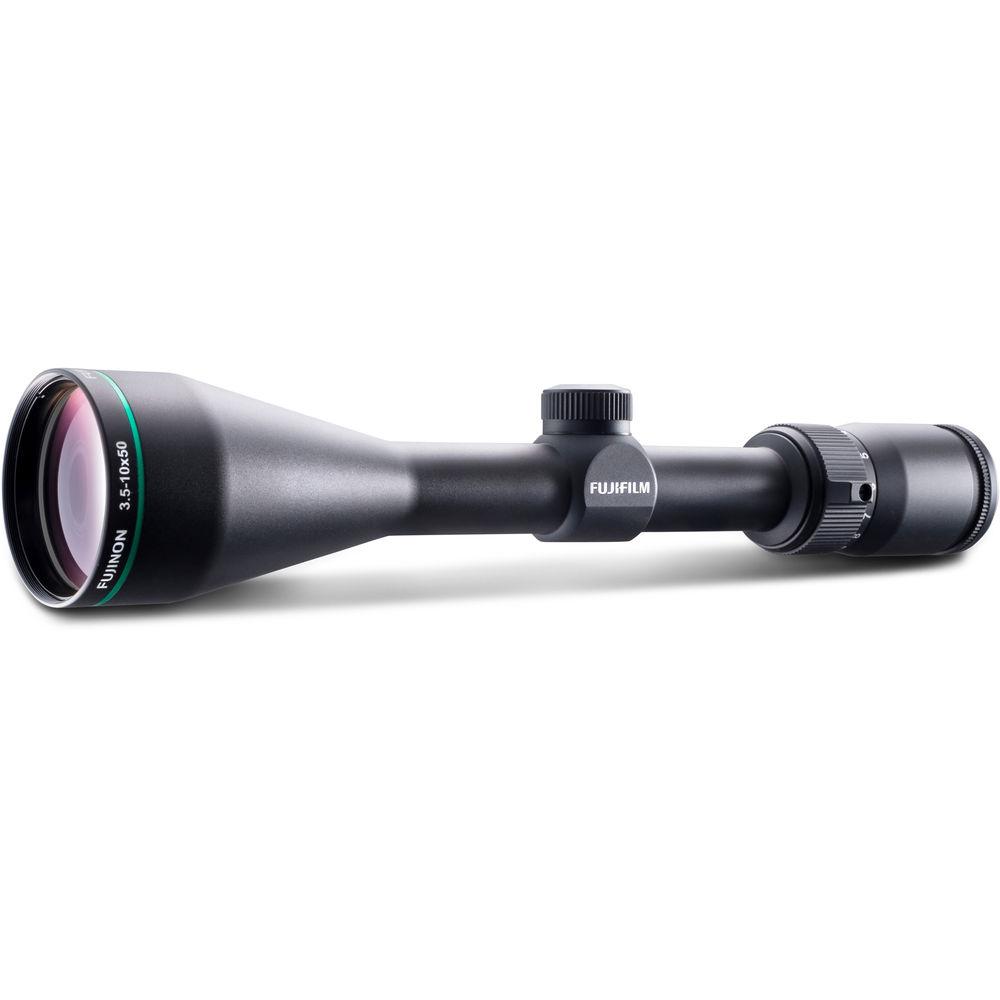

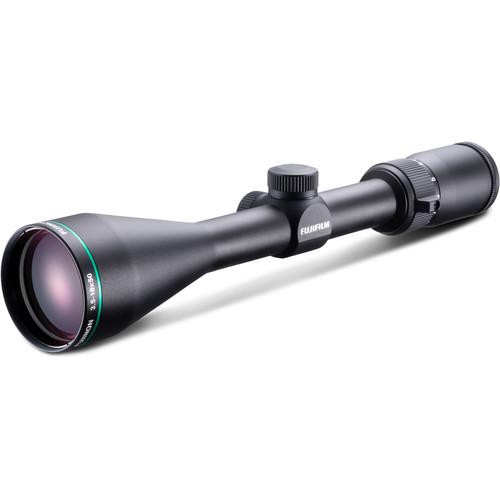

User Manual for Fujinon 3.5-10x50 Accurion Riflescope Click to enlarge the picture
Contents of the user manual for the Fujinon 3.5-10x50 Accurion Riflescope
- Product category: Riflescopes Fujinon
- Brand: Fujinon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fujinon Riflescopes
 |
User manual for the Fujinon 3.5-10x50 Accurion Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fujinon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fujinon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fujinon product will considerably shorten its lifespan!
|
Product description Get on target using the Fujinon 3.5-10x50 Accurion Riflescope. This telescopic sight offers a mid to long-range zooming capability and an extra-wide 50mm objective lens. With such a large objective, you can confidently use it in any low-light conditions. The bright and clear lenses are fully multi-coated and provide a 3.5-10x zooming capability. To improve shot accuracy, the optical system offers a 2nd focal plane BDC reticle, featuring four posts, a target dot, and a medium crosshair with two horizontal brackets and a system of lines for ballistic compensation. To compensate for ballistics and winds, the windage and elevation turret system allows you to make adjustments with 1/4 MOA increments.
To enable you to carry out your activities in any weather or terrain, the scope's aluminum housing is O-ring sealed for a waterproof and fogproof performance. It features a 1" maintube and short capped windage and elevation turrets. A fast-focus eyepiece provides knurled rings for easy diopter and magnification adjustments and has a low-profile lever for one-finger zooming action. The scope ships with a lens cloth and lens cover. - Optical Performance
-
- 3.5 - 10x zoom magnification
- 50mm objective improves visibility in low light and high zoom factors
- Fully multi-coated optical elements
- 38.4- 14.7' at 100 yd linear field of view
- Parallax-free performance at 100 yd
- Use and Handling
-
- 1/4 MOA impact point correction
- Windage and elevation adjustments
- 3.7 - 3.0" eye relief
- ±1.5 diopter
- Construction
-
- 1" maintube diameter
- Aluminum housing with matte black finish
- Capped short windage and elevation turrets
- O-ring sealed waterproof and fogproof
- Fast focus eyepiece with a low-profile zoom lever
- Impact resistant
- Lens cap included
- BDC Reticle
-
- 2nd focal plane
- Four medium posts
- Target dot
- Crosshair with horizontal brackets and ballistic lines
UPC: 631267184006 In the Box Fujinon 3.5-10x50 Accurion Riflescope (BDC Reticle, Matte Black) - Lens Cover
- Lens Cloth
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Fujinon 3.5-10x50 Accurion Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFujinon 600018400 Specs | | | Magnification | 3.5 to 10x | | Objective Lens Diameter | 50 mm | | Field of View | 3.5x: 38.4' @ 100 yd / 12.8 m @ 100 m
10x: 14.7' @ 100 yd / 4.9 m @ 100 m | | Exit Pupil Diameter | 3.5x: 12.7 mm
10x: 4.4 mm | | Eye Relief | 3 to 3.7" / 75 to 94 mm | | Diopter Correction | -1.5 to +1.5 | | | | Reticle Type | BDC Reticle (Second Focal Plane) | | | | Impact Point Correction | 1/4 MOA per Click | | Parallax Correction | Yes, 100 yd / 91.4 m | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Maintube Diameter | 1" | | Battery | None | | Dimensions | Length: 12.6" / 32 cm | | Weight | 15.9 oz / 450 g |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 55 owners. Add your rating and experience with the product.
