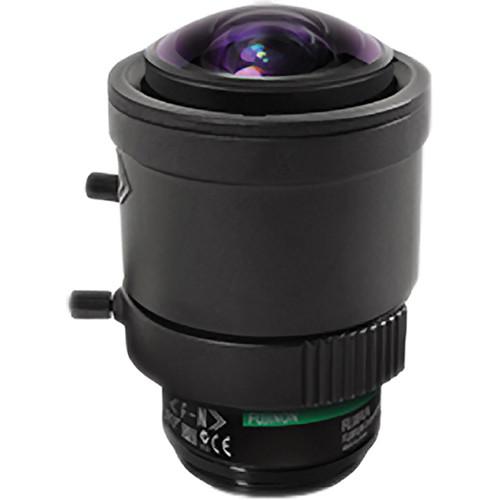

User Manual for Fujinon 3 Mp 2.2 to 6mm Day Night Vari-focal 2.7x Zoom Lens Click to enlarge the picture
Contents of the user manual for the Fujinon 3 Mp 2.2 to 6mm
- Product category: Lenses Fujinon
- Brand: Fujinon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fujinon Lenses
|
User manual for the Fujinon 3 Mp 2.2 to 6mm contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fujinon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fujinon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fujinon product will considerably shorten its lifespan!
|
Product description The 3 Mp 2.2 to 6mm Day/Night Vari-focal 2.7x Zoom Lens from Fujinon supports high-quality image monitoring with support up to a resolution of 3 Mp. Thanks to the advanced design and use of special optic glass, this lens is compatible with color, B & W, and Day/Night cameras. The lens can achieve a horizontal field angle of 121° when used on 1/3-type cameras. The manual iris lens is useful to maximize optical performance with high-accuracy aspheric lens, low-dispersion glass, and high refractive-index glass. The built-in ND filter that is used in T360 digital camera supports high sensitivity cameras. - High image-quality monitoring with optical performance support up to 3 Mp
- Advanced design engineering and special optic glass adopted, well suited for color, B&W and Day/Night cameras
- Range of 2.2 to 6mm, supporting various applications
- Wide aperture of F1.3 optimizes the performance at low lighting intensity
- Designed to maximize optical performance with high-accuracy aspheric lens, low-dispersion glass, and high refractive-index glass
- Built-in ND filter used in T360 camera, supports high sensitivity cameras
In the Box Fujinon 3 Mp 2.2 to 6mm Day/Night Vari-focal 2.7x Zoom Lens Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fujinon 3 Mp 2.2 to 6mm Day Night Vari-focal 2.7x Zoom Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFujinon YV2.7x2.2SR4A-2 Specs | Mount | CS | | Focal Length | 2.2 to 6 mm | | Focus | Manual | | Iris Range | F1.3 - T360 (Equivalent to F360) | | Iris | Manual | | Zoom | 2.7x manual | | Back Focal Distance | 8.33 mm | | Exit Pupil Position | 116 mm | | Object Dimensions at M.O.D. | 1/2.7"
Wide: 1398 × 731 mm, Tele: 299 × 218 mm
1/3"
Wide: 1080 × 625 mm, Tele: 269 × 197 mm
1/4"
Wide: 625 × 417 mm, Tele: 197 × 146 mm | | Object Dimensions @ M.O.D. (16:9) | 1/2.7"
Wide: 1896 × 532 mm, Tele: 329 × 176 mm
1/3"
Wide: 1358 × 466 mm, Tele: 296 × 159 mm
1/4"
Wide: 718 × 327 mm, Tele: 216 × 119 mm | | Angular Field of View | 1/2.7"
Wide: 132°51' × 100°22', Tele: 50°26' × 37°56'
1/3"
Wide: 121°04' × 91°20', Tele: 45°51' × 34°28'
1/4"
Wide: 91°20' × 68°43', Tele: 34°28' × 25°53' | | Angular Field of View (16:9) | 1/2.7"
Wide: 144°17' × 82°13', Tele: 54°53' × 31°01'
1/3"
Wide: 131°34' × 74°46', Tele: 49°55' × 28°11'
1/4"
Wide: 99°19' × 56°19', Tele: 37°31' × 21°12' | | Focusing Range | ∞ to 0.3 m | | Weight | 2.6 oz (75.0 g) | | | | Package Weight | 0.2 lb | | Box Dimensions (LxWxH) | 3.0 x 2.4 x 1.7" |
