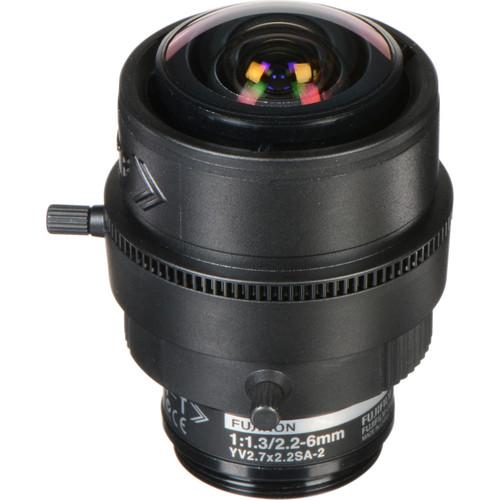

User Manual for Fujinon 3 MP Varifocal Lens Click to enlarge the picture
Contents of the user manual for the Fujinon 3 MP Varifocal Lens
- Product category: Lenses Fujinon
- Brand: Fujinon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fujinon Lenses
|
User manual for the Fujinon 3 MP Varifocal Lens contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fujinon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fujinon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fujinon product will considerably shorten its lifespan!
|
Product description The Fujinon 3 MP Varifocal Lens (2.2-6mm, 2.7x Zoom) has a wide aperture of f/1.3 and offers detailed imagery even at low-intensity lighting. Designed for use with dome cameras, the Day & Night lens offers a 2.7x zoom and a focal length that ranges from 2.2-6mm and allows for manual operation of the zoom, focus, and iris. Equipped with a glass that offers low dispersion and a high refractive index, the high-accuracy aspheric lens maximizes optical performance. A CS-type lens mount (metal) is integrated into the lens assembly. The lightweight (55g) lens is compatible with 1/3" and 1/4" type image sensors. - 3 MP lens with an iris range of f/1.3 that offers optimum performance even at low-intensity lighting
- Suitable for use with dome cameras
- Focal length ranges from 2.2-6 mm and includes a 2.7x zoom
- Uses manual zoom, focus, and iris operation
- High-accuracy aspheric lens with a glass having a low dispersion and high-refractive index for optimum performance
- Equipped with a CS-type metal mount
- Lightweight (55g) and compatible with 1/3" and 1/4" type image sensors
- Viewing angle - 91°36' x 69°21' (wide) and 34°59' x 26°18' (tele)
- Minimum focus - 638 x 429 (wide) and 196 x 145 (tele)
In the Box Fujinon 3 MP Varifocal Lens (2.2-6mm, 2.7x Zoom) 1 Year Parts & Labor Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fujinon 3 MP Varifocal Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFujinon YV2.7x2.2SA-2 Specs | Lens Mount | CS | | Sensor Compatibility | 1/3", 1/4" (3 MP) | | Focal Length | 2.2 to 6mm | | Back Focal Length | 7.7mm | | Aperture | f/1 to 3 | | Angle of View | 1/3" Sensor
Horizontal: 120 to 46.43°
Vertical: 91.6 to 34.98°
1/4" Sensor
Horizontal: 91.6 to 34.98°
Vertical: 69.35 to 26.3° | | Minimum Object Distance | 1' / 0.3 m | | Focus Type | Manual Focus | | Iris Type | Manual | | Dimensions (D x L) | 1.5 x 21" / 38 x 54 mm | | Weight | 1.9 oz / 55 g | | | | Package Weight | 0.185 lb | | Box Dimensions (LxWxH) | 3.05 x 2.4 x 2.35" |
