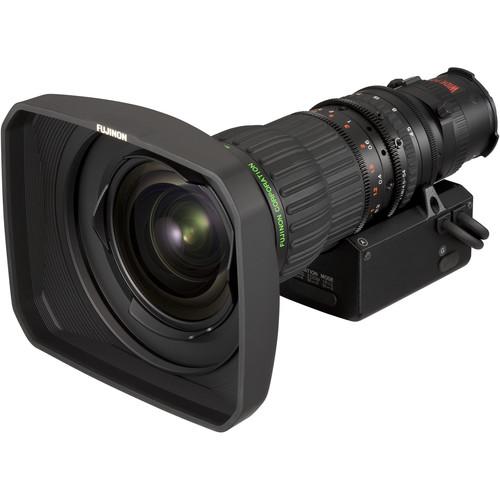

User Manual for Fujinon 4.5-54mm f 1.8-2.4 Lens with Digital Servo with Quickframe

• Product category: Professional Lenses Fujinon
• Brand: Fujinon
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Fujinon Professional Lenses

Product description

• Super wide angle for 2/3" format cameras

• 35mm equivalent of approximately 17.7-212.2mm

• Very fast f/1.8 max aperture at 4.5-41mm and f/2.4 at 54mm

• Digital servo for focus and zoom

• RS-232 remote control

• The Inner Focus design means that any focusing action only moves elements in the middle of the lens so the length of the lens does not change while focusing. This feature also enables the use of polarizing filters and matte boxes because the front element will not rotate.

• Quick Zoom provides for a rapid zoom movement to the telephoto position to check focus with the simple push of a button. Releasing the button returns the lens to the previously selected zoom position. Quick Zoom speed is improved to 0.7 seconds end to end.

• Quick Frame allows the operator to make manual zooms while the lens is in servo zoom mode. The mechanical clutch that allows this function reduces backlash in the zoom motor/lens combination, providing extremely accurate and repeatable zooms, which makes this lens well suited for robotic and virtual reality applications.

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

Fujinon 4.5-54mm Specs

Sensor Compatibility	2/3" (16:9)
Focal Length	4.5 to 54mm
Built-In Extender	None
Zoom Ratio	12x
Angle of View	16:9 Wide: 93.63 x 61.83° (H x V) Tele: 10.15 x 5.72° (H x V)
Maximum Aperture	f/1.8 to 2.4
Filter Thread	M127 x 0.75 mm Filter attaches to lens hood
Minimum Focus Distance from Image Plane	23.23" / 59 cm
Minimum Object Distance	11.81" / 0.3 m
Dimensions	2.7 x 9.3" / 9.5 x 23.8 cm ( Rating 90% users recommend this product to others. And what about you? This product has already been rated by 86 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
