Fujinon 7.6-130mm f 1.8-2.3 ENG Style

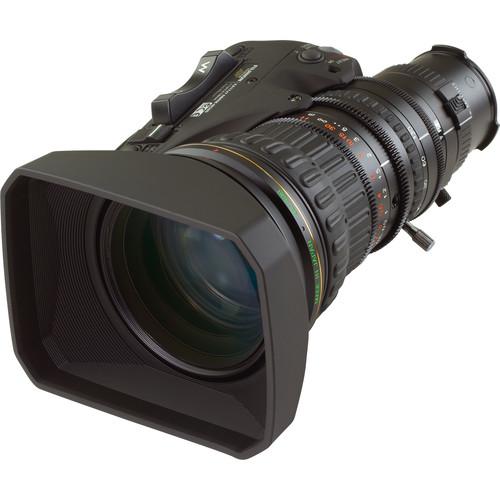

User Manual for Fujinon 7.6-130mm f 1.8-2.3 ENG Style Lens with Digital Servo Focus & Zoom with Quickframe

• Product category: Professional Lenses Fujinon
• Brand: Fujinon
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Fujinon Professional Lenses

Product description

• 7.6-130mm focal length for 2/3" cameras

• Fast f/1.8 aperture at 7.6-102mm and f/2.3 at 130mm

• Digital servo for focus and zoom with RS-232

• The Inner Focus design means that any focusing action only moves elements in the middle of the lens so the length of the lens does not change while focusing. This feature also enables the use of polarizing filters and matte boxes because the front element will not rotate.

• Quick Zoom provides for a rapid zoom movement to the telephoto position to check focus with the simple push of a button. Releasing the button returns the lens to the previously selected zoom position. Quick Zoom speed is improved to 0.7 seconds end to end.

• Quickframe allows the operator to make manual zooms while the lens is in servo zoom mode. The mechanical clutch that allows this function reduces backlash in the zoom motor/lens combination, providing extremely accurate and repeatable zooms, which makes this lens well suited for robotic and virtual reality applications.

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

Fujinon 7.6-130mm Specs

Sensor Compatibility	2/3" (16:9)
Focal Length	7.6 to 130mm
Built-In Extender	None
Zoom Ratio	17x
Angle of View	16:9 Wide: 64.5 x 39.05° (H x V) Tele: 4.22 x 2.38° (H x V)
Maximum Aperture	f/1.8 to 2.3 (T9 to 2.5)
Filter Thread	M82 x 0.75 mm
Minimum Focus Distance from Image Plane	2.76' / 0.84 m
Minimum Object Distance	1.97' / 0.6 m
Dimensions	3.4 x 8.0" / 8.5 x 20.3 cm ( Rating 80% users recommend this product to others. And what about you? This product has already been rated by 62 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
